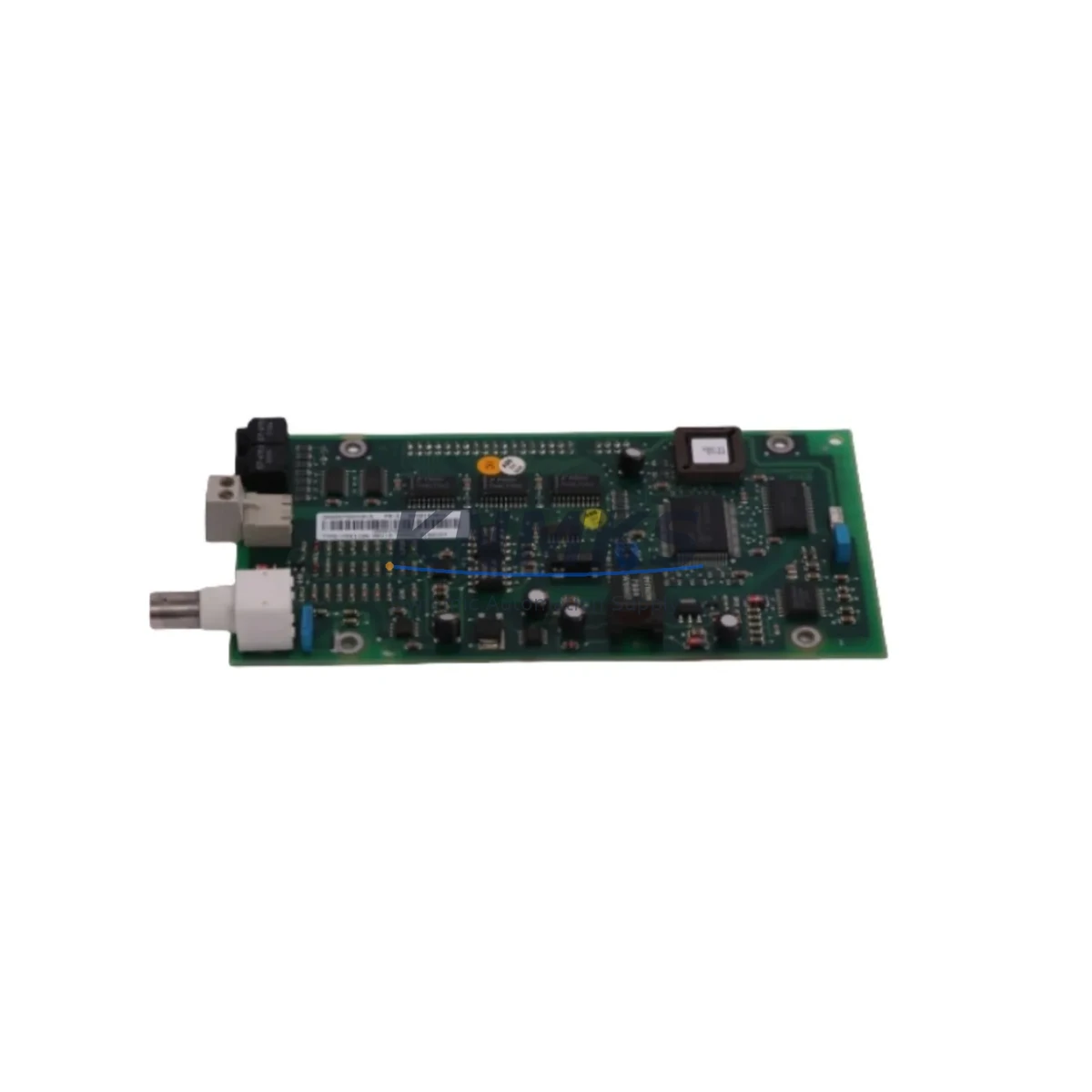

The ABB HIEE205012R1 (UNC4672A V1) is a critical communication and network interface module designed for the ABB AC800M Distributed Control System (DCS) platform. For maintenance engineers managing long-lifecycle process automation installations — in power generation, oil & gas, pulp and paper, chemical processing, or water treatment — this module represents a foundational component in sustaining uninterrupted plant operations. Sourced as an original ABB spare, the HIEE205012R1 is tested prior to shipment, backed by a support terms confirmed by quotation, and available for immediate B2B procurement to support both emergency replacement and planned maintenance inventory programs.

When a DCS communication module fails or degrades, the consequences extend well beyond a single I/O point. Loss of network connectivity between the AC800M controller and field devices can cascade into process shutdowns, alarm floods, and unplanned downtime that costs far more than the component itself. Procurement engineers and maintenance planners who maintain a buffer stock of the HIEE205012R1 — alongside complementary modules in the same control cabinet — are consistently better positioned to recover from faults within a single shift rather than waiting days or weeks for OEM lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the HIEE205012R1 in an AC800M control cabinet is rarely an isolated task. Experienced maintenance engineers treat any communication module fault as a trigger for a broader cabinet inspection. Before returning the system to service, it is standard practice to verify the integrity of the PM861 or PM864 processor module seated in the same rack — communication faults are sometimes symptomatic of upstream processor instability rather than a failed network card alone.

The TB820 or TB840 I/O termination units connected downstream of the communication module should also be inspected for loose terminal connections, corrosion, or thermal stress damage, particularly in high-humidity or high-vibration environments. Similarly, the CI854 or CI858 fieldbus communication interfaces — if present in the same cabinet — should be checked for firmware version alignment and physical connector integrity, as mismatched firmware between communication layers is a known source of intermittent faults in 800xA systems.

Power supply modules feeding the AC800M backplane, such as the SD821 or SD822 power supply units, warrant inspection during any communication module replacement. Voltage ripple or marginal power delivery can accelerate module wear and cause erratic network behavior that mimics a failed HIEE205012R1. Maintenance teams should also audit the backplane itself for bent connector pins or oxidation on the module interface, which can cause contact resistance issues that are difficult to diagnose without physical inspection.

For sites running PROFIBUS or FOUNDATION Fieldbus segments through the AC800M, the associated segment couplers and signal isolators in the same loop should be verified for correct termination resistance and signal levels. A communication module replacement is an ideal opportunity to confirm that all field device addresses remain correctly configured and that no address conflicts have developed over time. Procurement engineers building a comprehensive spare parts kit for AC800M installations should consider stocking the HIEE205012R1 alongside processor modules, I/O termination units, and power supply spares to ensure full cabinet recovery capability without multiple procurement cycles.

Site Replacement Workflow

The HIEE205012R1 is designed as a direct replacement for the UNC4672A V1 module within the AC800M platform. Before beginning the replacement procedure, maintenance engineers should confirm that the replacement module carries the same hardware revision and firmware baseline as the unit being removed, or that the site’s 800xA engineering station is prepared to perform a firmware update post-installation. Mismatched hardware revisions between the replacement module and the existing system configuration are the most common cause of post-replacement communication errors.

The recommended replacement sequence begins with a controlled shutdown of the affected communication segment — not a full controller shutdown — to minimize process impact. After physically swapping the module into the correct backplane slot, the 800xA system should be allowed to perform automatic module recognition before any manual configuration is applied. In most AC800M installations, the system will restore the module’s configuration from the controller’s non-volatile memory without requiring manual re-entry of network parameters, significantly reducing the risk of configuration errors during emergency replacements.

For sites transitioning away from older Advant OCS or MOD 300 control architectures, the HIEE205012R1 and the broader AC800M platform represent a proven migration path that preserves existing field wiring and I/O infrastructure while modernizing the controller layer. This approach reduces migration risk, shortens commissioning time, and allows maintenance teams to leverage existing spare parts knowledge during the transition period. Documenting the module’s slot position, firmware version, and network configuration before removal is strongly recommended as part of any site replacement workflow, both for compliance purposes and to accelerate future replacements.

Spare Parts Support FAQ

Q: Is the HIEE205012R1 an original ABB component or a third-party replacement?
A: The HIEE205012R1 supplied by KNMKS is an original ABB spare part, not a third-party or aftermarket substitute. Each unit is inspected and tested before shipment to confirm functionality. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: How do I confirm compatibility with my existing AC800M system before ordering?
A: Compatibility is confirmed by matching the part number (HIEE205012R1) and module designation (UNC4672A V1) against your existing module label and your 800xA system’s hardware inventory report. If you require additional compatibility verification — including hardware revision matching or firmware baseline confirmation — our technical team can assist prior to order placement. Contact [email protected] with your system version and existing module details.

Q: What is the typical lead time and how is the module prepared for shipment?
A: In-stock units ship within 3–5 business days. Each module undergoes functional testing prior to packaging. Export documentation, including commercial invoice and packing list, is prepared for international B2B shipments. For urgent requirements, expedited shipping options are available — contact us directly to confirm availability and arrange priority dispatch.

Q: Can KNMKS support long-term supply of the HIEE205012R1 for multi-year maintenance contracts?
A: Yes. KNMKS maintains ongoing sourcing relationships to support long-term spare parts programs for AC800M and 800xA installations. For customers managing multi-site or multi-year maintenance contracts, we can discuss reserved stock arrangements, scheduled delivery programs, and volume pricing. All units supplied under long-term agreements carry the same support terms confirmed by quotation and pre-shipment testing standard as single-unit orders.
