ABB HESG447005R2-70EB01B-E Migration-Ready DCS Processor for Legacy Control Systems

Overview

ABB HESG447005R2-70EB01B-E Migration-Ready DCS Processor for Legacy Control Systems

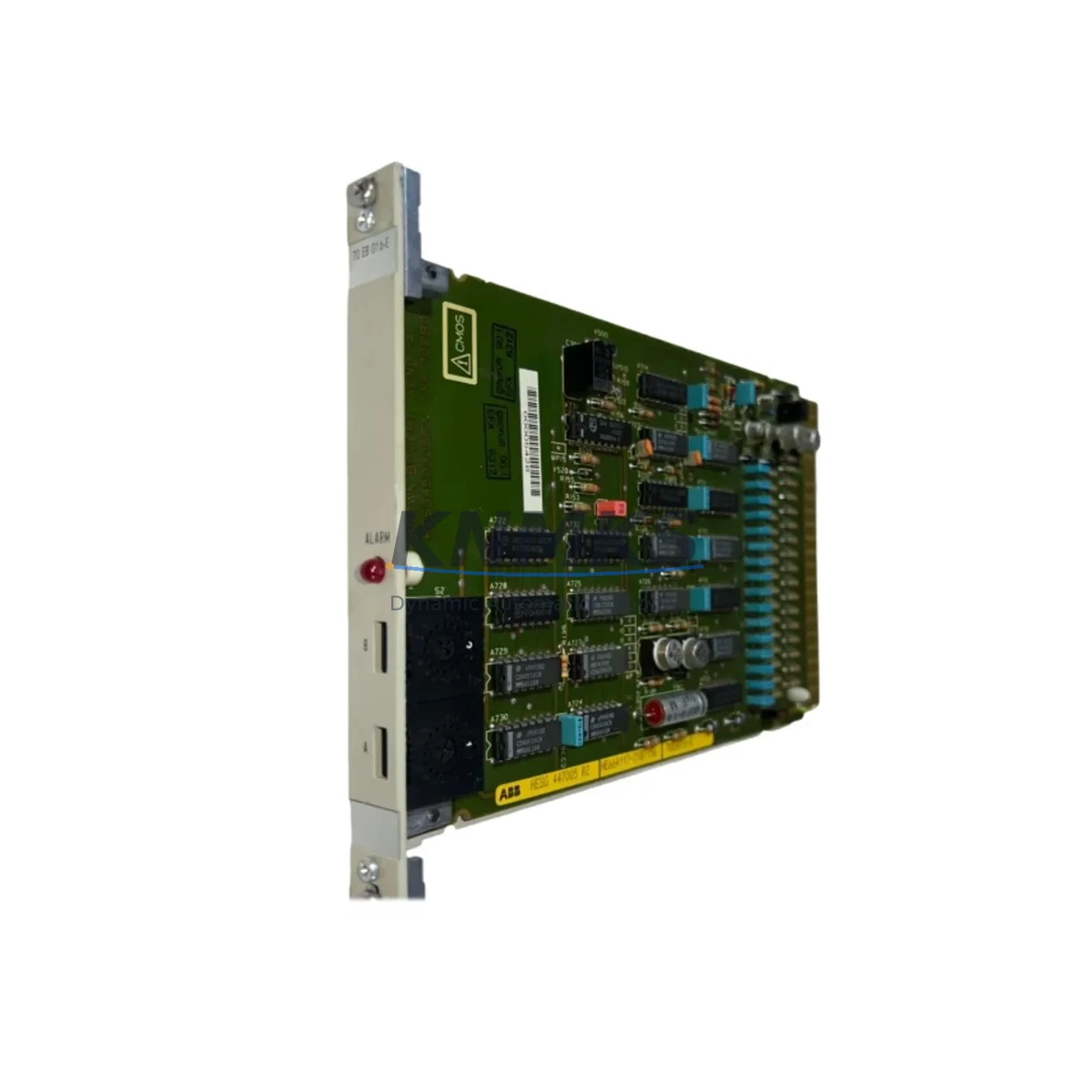

The ABB HESG447005R2-70EB01B-E is a DCS processor board engineered for the HESG Series distributed control platform. As legacy ABB HESG-family systems approach end-of-life and OEM support windows close, this module serves as a validated migration-ready replacement for facilities managing aging control infrastructure in energy, petrochemical, pulp and paper, and heavy manufacturing environments. Whether you are executing a like-for-like spare part swap or planning a phased control system modernization, the HESG447005R2-70EB01B-E provides a reliable, inventory-backed solution with a support terms confirmed by quotation and global shipping capability.

Procurement teams and control system engineers sourcing this module typically face a common set of challenges: discontinued OEM supply, long lead times from authorized channels, and the operational risk of running critical processes on a single remaining spare. KNMKS maintains verified stock of the HESG447005R2-70EB01B-E and conducts pre-shipment functional testing to reduce commissioning risk and protect your planned maintenance window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HESG447005R2-70EB01B-E retrofit begins well before the module arrives on site. Control system engineers should initiate a pre-replacement audit covering the following areas to minimize risk and protect existing program logic.

Power Budget Verification: Before installing the replacement processor board, confirm that the existing HESG Series power supply module has sufficient headroom to support the HESG447005R2-70EB01B-E alongside all co-installed I/O modules and communication cards. Undersized power capacity is a common root cause of intermittent faults following processor replacements in legacy racks.

Backplane and Rack Slot Assignment: The HESG Series uses a defined slot-addressing scheme on its backplane. Verify that the target slot is correctly assigned in the system configuration file and that no address conflicts exist with adjacent modules. If the rack also houses HESG Series analog input modules or digital output modules, confirm that their addresses remain unaffected after the processor swap.

Terminal Wiring and I/O Mapping: Document all field wiring terminations connected to the existing processor or associated I/O terminal blocks before removal. Cross-reference the wiring diagram against the current I/O mapping in the control program. Any discrepancy between physical wiring and software configuration must be resolved before the replacement module is energized.

Communication Link Integrity: The HESG447005R2-70EB01B-E must be validated against the communication architecture of the host system. If the existing installation includes a HESG Series communication interface module or a dedicated protocol gateway bridging legacy HESG nodes to a supervisory SCADA layer, confirm that the replacement processor is recognized by the network master and that node addressing is preserved. Signal isolators installed between the processor and field devices should also be inspected for compatibility with the replacement module’s output characteristics.

HMI Screen and Tag Validation: Following processor replacement, HMI screens referencing tags mapped to the HESG447005R2-70EB01B-E should be validated for correct data binding. In systems where the HMI communicates directly with the processor via a dedicated link, re-establish the communication path and confirm that all process variable displays, alarm setpoints, and control faceplate functions operate as expected before returning the loop to automatic control.

Programming Cable and Firmware Upload: If the replacement module requires a firmware update or program download, ensure the appropriate programming cable and software version are available on site. Confirm that the engineering workstation software version is compatible with the HESG447005R2-70EB01B-E firmware baseline to avoid configuration errors during the download sequence.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS processor replacement requires a structured approach that protects existing program logic, maintains field control continuity, and reduces the risk of introducing new faults during the changeover.

Pre-Maintenance Backup: Before removing the existing processor, create a full backup of the control program, including all function block configurations, PID tuning parameters, alarm limits, and communication settings. Store the backup on an isolated engineering workstation and verify the backup file integrity before proceeding. This step is non-negotiable for any HESG Series processor replacement, as program loss during a failed swap can extend downtime from hours to days.

Staged Replacement Strategy: Where process conditions allow, consider placing affected control loops in manual mode before initiating the processor swap. This approach maintains field device positions at their last commanded state and prevents uncontrolled process excursions during the period when the processor is offline. Coordinate with operations to identify which loops can safely be held in manual and for how long.

Parallel Verification Before Handback: After installing the HESG447005R2-70EB01B-E and restoring the control program, perform a parallel verification pass before returning loops to automatic. Confirm that all I/O channels are reading correctly, communication links to upstream controllers and SCADA systems are active, and HMI displays are reflecting live process data. Only after this verification is complete should automatic control be re-enabled loop by loop.

On-Site Commissioning Support: For facilities without in-house DCS commissioning expertise, KNMKS can provide technical documentation and pre-shipment configuration support to reduce the time required for on-site setup. Contact [email protected] to discuss your specific installation requirements before the module ships.

Retrofit Support FAQ

Q: Is the HESG447005R2-70EB01B-E a direct drop-in replacement for my existing HESG Series processor?
A: The HESG447005R2-70EB01B-E is designed for the HESG Series platform and is compatible with standard HESG rack and backplane configurations. However, direct drop-in compatibility depends on your specific system revision, firmware version, and slot configuration. We recommend providing your existing module’s full part number and system documentation to our technical team at [email protected] before ordering to confirm compatibility.

Q: What pre-shipment testing is performed on the HESG447005R2-70EB01B-E before dispatch?
A: Each unit undergoes a functional power-on test and communication link verification before shipment. Modules that do not pass testing are not dispatched. A test report can be provided upon request. The module is covered by a support terms confirmed by quotation from the date of shipment.

Q: How do I confirm that my existing HESG Series power supply has sufficient capacity for the replacement processor?
A: Locate the power module’s rated output current specification (typically found on the module label or in the HESG Series hardware manual) and compare it against the total current draw of all installed modules in the rack, including the HESG447005R2-70EB01B-E. If the existing power module is operating near its rated capacity, consider replacing it concurrently to avoid post-installation power faults.

Q: What is the typical lead time and do you maintain stock of the HESG447005R2-70EB01B-E?
A: KNMKS maintains inventory of the HESG447005R2-70EB01B-E and can confirm current stock availability upon inquiry. Contact [email protected] or call +86 18359268345 for a real-time stock check and lead time confirmation. For critical spares, we recommend confirming availability before your scheduled maintenance window.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HESG447005R2-70EB01B-E
Legacy Control Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HESG447005R2-70EB01B-E
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
