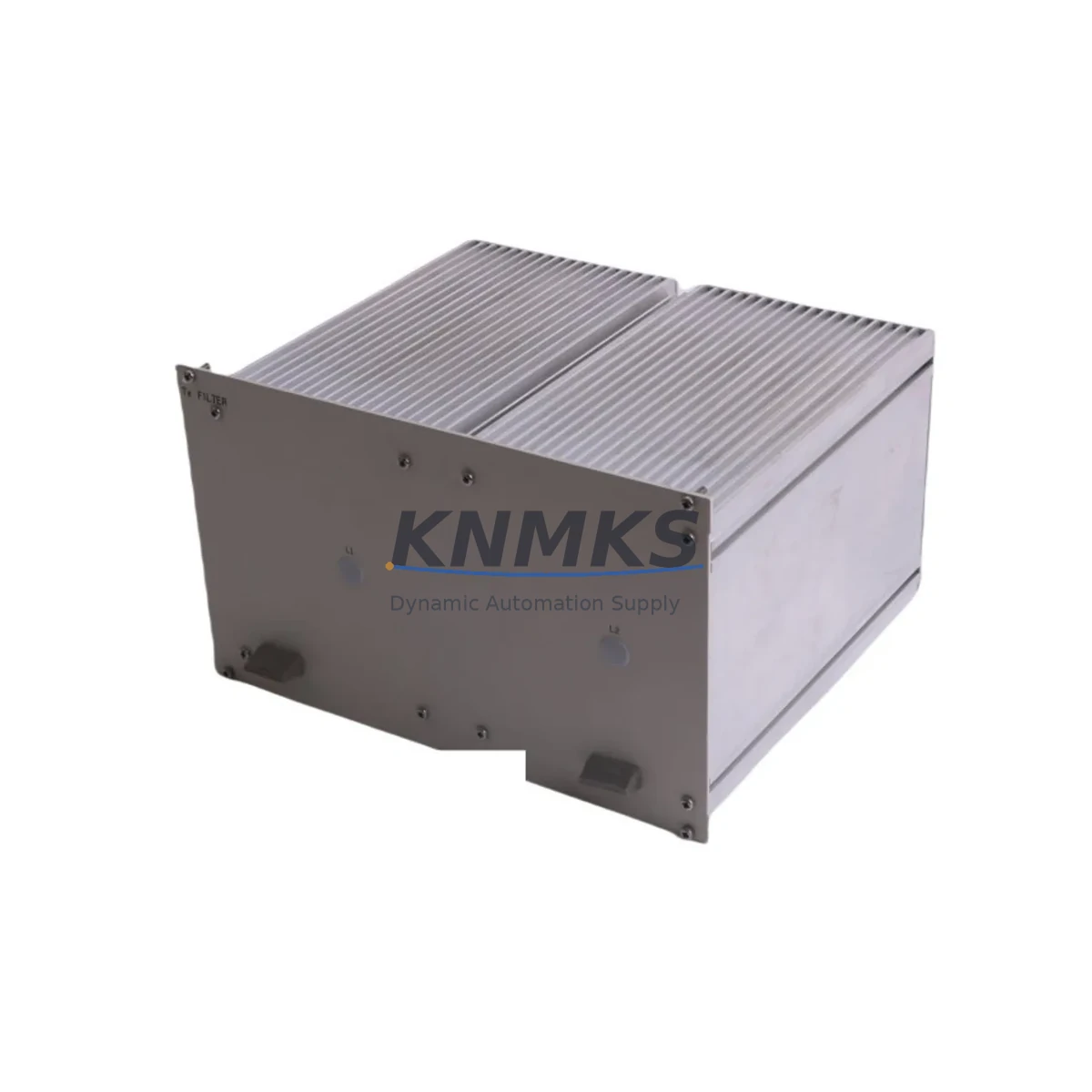

ABB HENF105296R0001E5LA Fail-Safe EMC Filter for Industrial Control

Overview

ABB HENF105296R0001E5LA Fail-Safe EMC Filter for Industrial Control Reliability

The ABB HENF105296R0001E5LA is a safety-grade EMC filter module engineered for continuous, fail-safe operation within ABB’s AC800M Distributed Control System and S800 I/O architecture. In high-stakes industrial environments — petrochemical refineries, power generation plants, metallurgical smelters, and continuous process manufacturing — electromagnetic interference (EMI) is one of the most persistent and underestimated threats to control loop integrity. The HENF105296R0001E5LA addresses this threat at the source, providing robust conducted and radiated noise suppression that protects signal fidelity, prevents spurious trips, and ensures that safety interlocks respond only to genuine process deviations.

Designed to operate inside densely populated control cabinets where variable frequency drives, high-current contactors, and multi-axis servo systems generate aggressive EMI, this module maintains stable filtering performance across wide temperature and humidity ranges. Its compact DIN-rail form factor integrates directly into the AC800M controller rack, requiring no additional mounting hardware and minimizing installation risk during planned maintenance windows or emergency spare replacements.

Signal drift and communication anomalies caused by unfiltered EMI are a leading cause of unplanned shutdowns in process industries. By attenuating high-frequency noise before it reaches the S800 I/O modules, the HENF105296R0001E5LA prevents false readings on analog input channels, eliminates erratic behavior in PROFIBUS DP and FOUNDATION Fieldbus segments, and reduces nuisance alarms that erode operator confidence. The result is a measurable reduction in mean time between failures (MTBF) for the entire control node.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective EMC management in an AC800M control cabinet is never a single-component solution. The HENF105296R0001E5LA works as part of a layered protection architecture. At the power entry point, an ABB PSTX soft starter or a dedicated line reactor conditions incoming power before it reaches the controller rack, reducing low-frequency harmonic distortion that the EMC filter then handles at higher frequencies. Within the same cabinet, the ABB CI854A PROFIBUS DP communication interface module relies on clean, noise-free power rails to maintain deterministic fieldbus timing — a condition the HENF105296R0001E5LA directly supports by suppressing common-mode noise on the DC bus.

For safety-critical interlock loops, the ABB AI810 analog input module and DI810 digital input module must receive uncorrupted signals from field transmitters. Any EMI-induced offset on a 4–20 mA loop can cause a safety instrumented function (SIF) to either fail to actuate or actuate spuriously — both unacceptable outcomes in a SIL-rated loop. The HENF105296R0001E5LA’s filtering action upstream of these I/O modules is therefore a direct contributor to SIF reliability. In high-vibration environments such as compressor halls or offshore platforms, the ABB TU810V1 terminal unit provides the mechanical interface between field wiring and S800 I/O modules; pairing it with the HENF105296R0001E5LA ensures that vibration-induced cable noise does not propagate into the control system. For redundant controller configurations using the ABB PM866 processor module with hot-standby, maintaining EMC filter integrity on both primary and redundant nodes is essential to prevent switchover events triggered by noise-induced communication faults rather than genuine process upsets.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous distillation and catalytic cracking units, the AC800M DCS manages hundreds of regulatory and safety loops simultaneously. The HENF105296R0001E5LA prevents EMI from variable speed pump drives from corrupting pressure and temperature signals, reducing the risk of spurious ESD activations that trigger costly flaring events and production losses.

Power Generation: Thermal and hydroelectric power plants operate AC800M systems for turbine governor control and boiler management. High-frequency switching noise from excitation systems and generator protection relays is a persistent EMI source. The HENF105296R0001E5LA maintains filter integrity across load-cycling events, ensuring that governor response signals remain clean during grid frequency disturbances.

Mining & Mineral Processing: Crusher and conveyor control systems in underground and open-pit mines face extreme dust ingress, humidity, and vibration. The HENF105296R0001E5LA’s robust construction and wide environmental tolerance make it a reliable spare for AC800M nodes controlling ore handling and flotation circuits, where an unplanned control outage can halt an entire production line.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on AC800M for SCADA-integrated pump station and dosing control. The HENF105296R0001E5LA protects I/O signal integrity in wet, chemically aggressive environments, preventing false high-level alarms and ensuring that chemical dosing interlocks respond accurately to actual process conditions.

Metallurgy & Steel: Electric arc furnace (EAF) and continuous casting operations generate some of the most severe EMI profiles in industry. The HENF105296R0001E5LA is a critical spare for AC800M nodes in melt shop automation, where EMI-induced control faults can result in casting defects, equipment damage, or personnel safety incidents.

Port & Marine: Ship-to-shore crane control systems and vessel automation platforms using ABB DCS architecture require EMC-compliant filter modules that meet marine classification society standards. The HENF105296R0001E5LA supports reliable operation in salt-air, high-humidity environments where corrosion and condensation compound EMI risks.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the HENF105296R0001E5LA?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified EMC filtering function within the confirmed support period, a replacement or documented resolution support is provided. Support requests are supported with documentation and fast dispatch to minimize control system downtime.

Q2: What pre-shipment testing is performed on each unit?
Every HENF105296R0001E5LA undergoes a full functional test and insulation resistance check before dispatch. Testing verifies filter attenuation performance, terminal integrity, and absence of internal faults. A test record is available upon request for quality audit and maintenance documentation purposes.

Q3: Is this module compatible with both legacy and current AC800M controller generations?
Yes. The HENF105296R0001E5LA is compatible with the full AC800M processor range including PM851, PM856, PM860, and PM866 modules, as well as S800 I/O expansion racks. It is a direct form-fit-function replacement for installed units, requiring no firmware changes or rack reconfiguration.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
Multi-region stock is maintained specifically to support planned maintenance schedules and emergency replacement requirements for AC800M installations. Priority allocation is available for customers with annual maintenance agreements or multi-unit procurement needs. Contact the sales team to discuss supply continuity arrangements for your site.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HENF 105296 R0001 E5LA
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HENF 105296 R0001 E5LA
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
