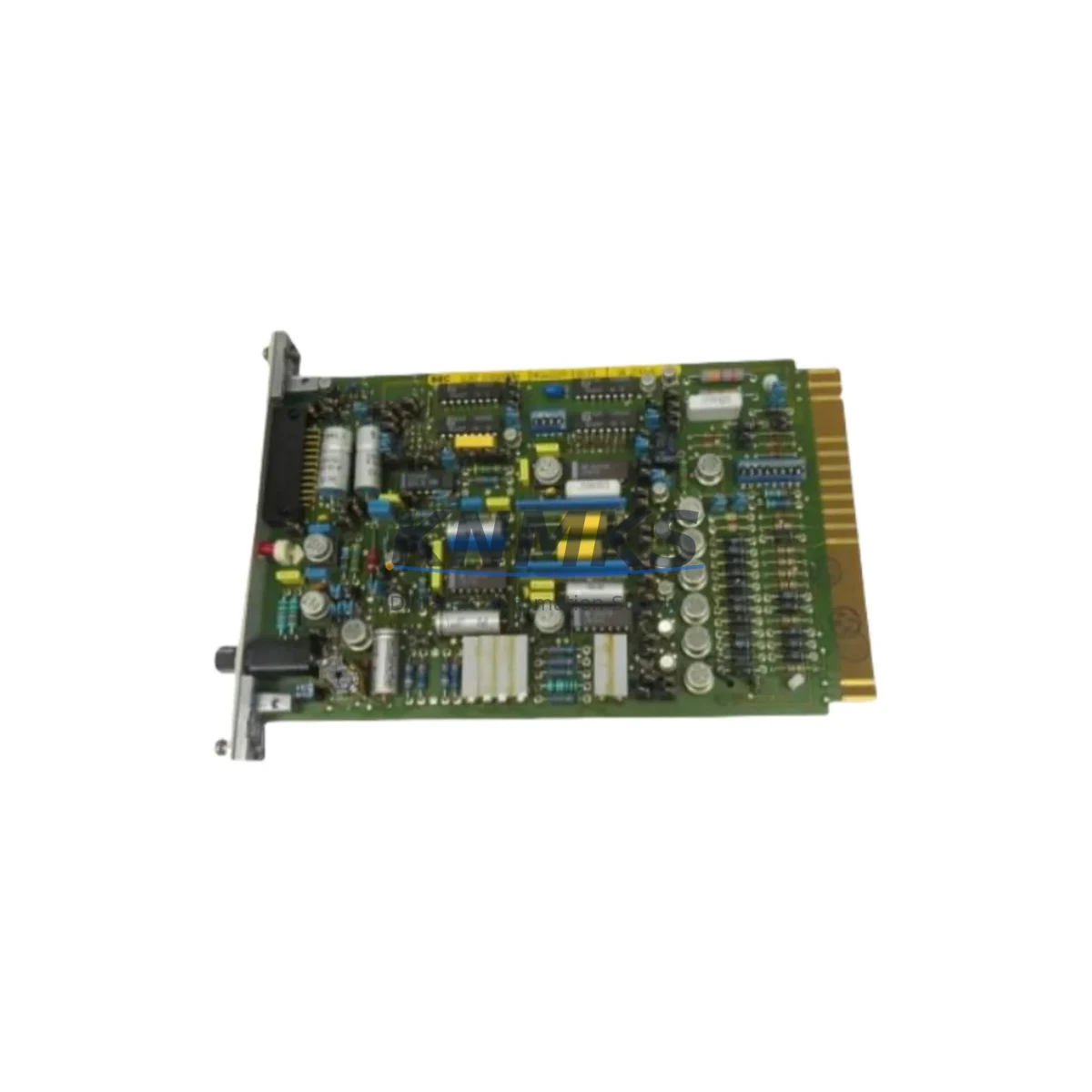

ABB HE667102-318 Migration-Ready Angle Transducer for Legacy DCS

Overview

ABB HE667102-318 Migration-Ready Angle Transducer for Legacy DCS

The ABB HE667102-318 is a precision Angle Measure Transducer Module engineered for the ABB MOD 300 and AC 450 Distributed Control System platforms. As legacy DCS installations approach end-of-life and OEM support windows close, the HE667102-318 remains one of the most sought-after retrofit components for plants that need to extend operational continuity without committing to a full platform migration. This module provides accurate angular position feedback critical to turbine control, valve positioning, and rotating equipment monitoring in process industries including oil & gas, power generation, pulp & paper, and chemical processing.

Each unit supplied by KNMKS is sourced from verified industrial channels, subjected to functional bench testing prior to shipment, and backed by a support terms confirmed by quotation. Whether you are replacing a failed transducer on an emergency basis or pre-positioning stock ahead of a planned outage, the HE667102-318 is available for immediate dispatch from regional warehouses.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HE667102-318 into an aging MOD 300 or AC 450 control system requires a structured pre-installation review. Before the replacement module arrives on site, the maintenance team should pull the existing I/O list and cross-reference terminal wiring against the field cable schedule. The HE667102-318 connects to the backplane via the standard MOD 300 card edge connector — no rewiring of the marshalling cabinet is typically required, but terminal block labeling should be verified against the as-built drawings to avoid signal inversion errors on angular feedback loops.

Power budget confirmation is a critical step often overlooked during emergency replacements. The ABB PM150 or PM511 power supply modules that feed the MOD 300 rack must have sufficient headroom to support the transducer module alongside co-installed cards such as the AI810 analog input module or the DI810 digital input module. If the rack is near capacity, a load calculation should be performed before insertion.

For plants running mixed-generation control architectures — for example, where a legacy MOD 300 rack interfaces with a newer AC 800M controller via the CI854 PROFIBUS communication interface — the HE667102-318 sits on the legacy side of the boundary and does not require any protocol bridge configuration. The CI520 or CI522 communication interface modules already installed in the rack handle all internal bus arbitration transparently.

HMI screen updates are rarely required when replacing a like-for-like transducer module, but the engineering team should confirm that the tag name and module address in ABB Master or Composer engineering software match the replacement unit’s configured address. If the original module was running a non-default address due to a previous rack reorganization, the new HE667102-318 must be configured to match before the DCS controller performs its next scan cycle.

For plants planning a broader control cabinet upgrade — such as migrating from MOD 300 to the System 800xA platform — the HE667102-318 can serve as a bridge component, keeping the legacy measurement loop operational while the new S800 I/O modules and AC 800M controllers are staged and commissioned in parallel. This phased approach allows the plant to maintain continuous process control without a full cutover outage, reducing migration risk significantly.

Downtime Control During System Migration

Minimizing unplanned downtime during a transducer module replacement on a live MOD 300 system requires preparation at three levels: spare parts pre-positioning, program logic preservation, and field continuity planning.

At the spare parts level, having a tested HE667102-318 on the shelf — or available for next-day dispatch from a regional KNMKS warehouse — eliminates the most common source of extended downtime: waiting for a replacement part. Lead times for discontinued ABB MOD 300 components from OEM channels can stretch to 12–20 weeks. Maintaining a buffer stock of critical transducer and I/O modules is the single most effective downtime reduction strategy for aging DCS installations.

At the program logic level, the replacement of a like-for-like transducer module does not require changes to the control application running in the MOD 300 or AC 450 controller. The existing function block configuration, PID loop parameters, and alarm setpoints remain intact. However, the engineering team should take a full backup of the controller database using ABB Master or Composer before any physical card swap, as a precaution against accidental configuration loss during the maintenance window.

At the field continuity level, if the angular measurement loop feeds a critical control output — such as a turbine governor or a valve positioner — the loop should be placed in manual mode at the DCS operator station before the card is removed. This prevents the controller from driving the output to a default or last-known value during the module absence window. Once the HE667102-318 is reseated and the DCS has completed its module recognition scan, the loop can be returned to automatic control after verifying that the process variable reading is within the expected range.

For planned outages, a pre-commissioning checklist should include: slot position confirmation, terminal wiring verification, power supply load check, module address configuration, firmware version validation, signal output verification against a known reference, and HMI display confirmation. Following this sequence consistently reduces commissioning time to under two hours for a single module replacement.

Retrofit Support FAQ

Q1: Is the HE667102-318 a direct drop-in replacement for the original ABB MOD 300 angle transducer module?
Yes. The HE667102-318 is a direct OEM-equivalent replacement for the original module of the same part number. It uses the same card edge connector, occupies a single rack slot, and communicates over the standard MOD 300 internal bus. No backplane adapter, wiring modification, or program change is required for a like-for-like swap.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, the module address must be confirmed or re-entered in ABB Master or Composer engineering software. The DCS controller will perform an automatic module recognition scan on the next power cycle or warm restart. The engineer should then verify the process variable reading at the operator station and confirm that the angular feedback signal is within the calibrated range before returning the loop to automatic control.

Q3: How do I confirm terminal wiring compatibility before installation?
Pull the existing field cable schedule and cross-reference terminal assignments against the HE667102-318 wiring diagram. Pay particular attention to signal polarity on the angular feedback lines and confirm that the shield grounding arrangement matches the original installation. If the original module was installed with a signal isolator — such as a MACX or MTL barrier — verify that the isolator’s output range is compatible with the replacement module’s input specification.

Q4: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
Every HE667102-318 supplied by KNMKS undergoes functional bench testing before dispatch, covering signal output accuracy, communication bus handshake, and power consumption within specification. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. Units that fail within the confirmed support period are replaced or refunded. Contact [email protected] for support requests or pre-purchase technical verification.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HE667102-318
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HE667102-318
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
