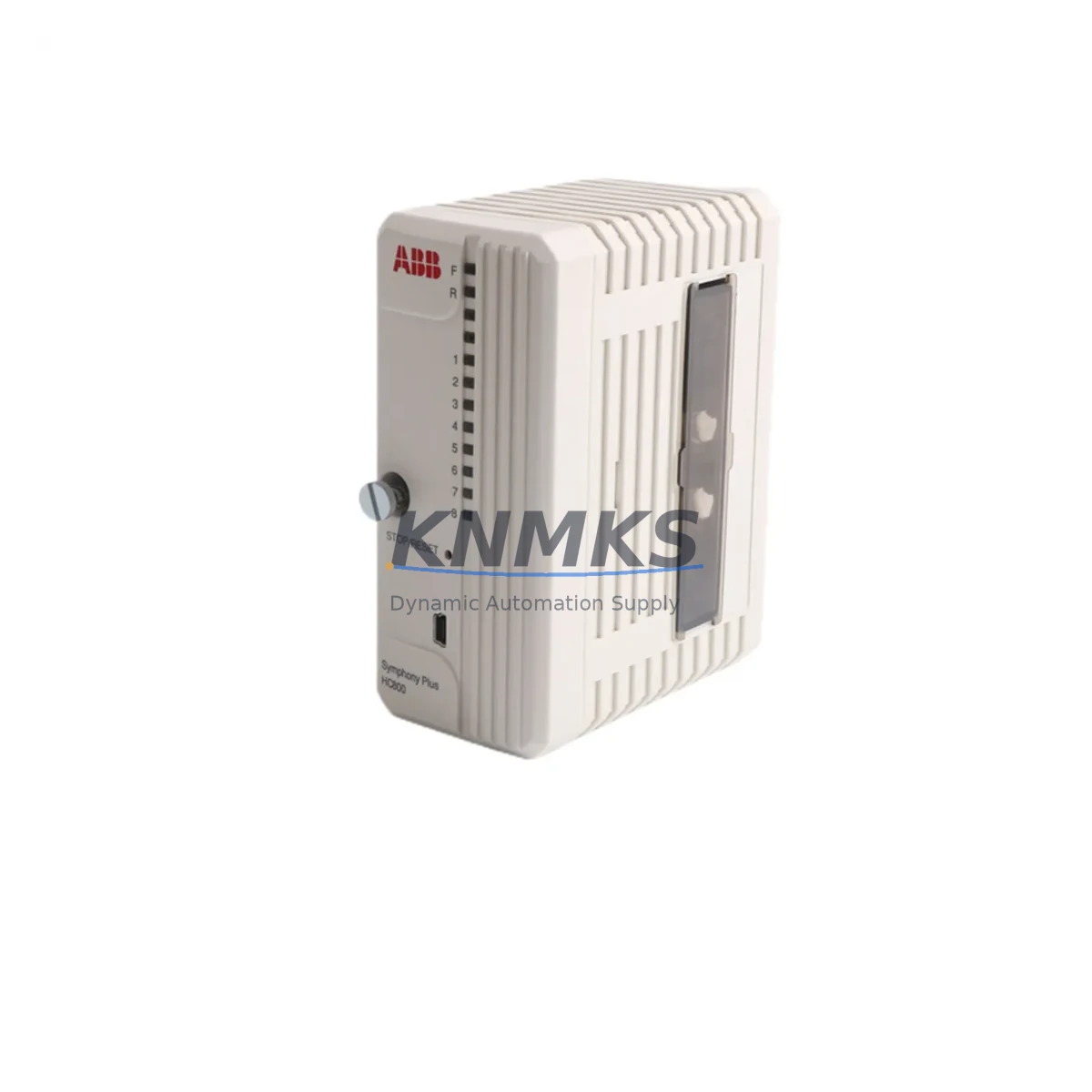

ABB HC800 Migration-Ready DCS Processor for Legacy Systems

Overview

ABB HC800 Migration-Ready DCS Processor for Legacy Control Systems

The ABB HC800 is a high-performance DCS control processor designed for the ABB Freelance automation platform. As legacy Freelance installations age and original HC800 units approach end-of-life, plant engineers and system integrators increasingly rely on verified replacement stock to maintain production continuity without committing to a full platform migration. The HC800 serves as a direct drop-in replacement for aging or failed processor modules within existing Freelance control cabinets, preserving the original program logic, I/O mapping, and HMI screen configurations without requiring re-engineering of the control architecture.

When planning a retrofit or spare-part replacement using the HC800, engineers must verify several critical parameters before installation. Power supply capacity within the existing control cabinet must be confirmed — the HC800 draws regulated 24 VDC from the backplane bus, and any degraded ABB DP820 or equivalent power supply module should be replaced concurrently to avoid processor instability after commissioning. Terminal wiring on the existing backplane must be inspected for corrosion or loose connections, particularly on high-density I/O racks where vibration over years of service can compromise signal integrity.

Backplane interface compatibility is a key checkpoint. The HC800 is designed for use with ABB Freelance-series racks and is not directly interchangeable with modules from the AC800M or AC500 families without hardware adaptation. Module addressing must be confirmed in the Freelance Engineering Tool (FET) before the replacement unit is inserted — incorrect slot addressing will prevent the processor from loading the resident application program and may trigger a cold-start sequence that clears volatile memory. Firmware version alignment between the HC800 and the installed Freelance system software version is mandatory; mismatched firmware can cause communication faults on the Profibus DP segment connecting field devices such as ABB PROFIBUS I/O modules, valve positioners, and transmitters.

Program compatibility should be validated offline using a backup copy of the application exported from the original HC800 prior to removal. If no backup exists, the replacement procedure becomes significantly more complex and may require partial reconstruction of the control logic from P&ID documentation and historian data. HMI screen bindings — particularly those referencing processor-resident variables in ABB’s Panel Builder or third-party SCADA systems — must be re-verified after the replacement HC800 is online to confirm that all dynamic data links are active and correctly mapped.

Communication link integrity across the Profibus DP network should be tested using a bus analyzer before and after the swap. Segment termination resistors, cable shielding continuity, and repeater settings must remain unchanged during the processor exchange. Where the existing installation also includes ABB CI840 or CI854 communication interface modules for HART or Foundation Fieldbus device integration, these modules will re-establish their device databases automatically once the HC800 is online and the application program is running — provided firmware compatibility is maintained.

Installation space within the control cabinet should be measured before ordering. The HC800 occupies a standard Freelance rack slot and does not require additional mounting hardware, but adjacent modules — including AI810, AO810, DI810, or DO810 I/O modules — must not be disturbed during the swap to avoid inadvertent I/O state changes on live process signals. Where possible, the replacement should be performed during a planned maintenance window with the process in a safe hold state.

All HC800 units supplied by KNMKS are sourced from verified industrial channels, function-tested prior to dispatch, and covered by a support terms confirmed by quotation against manufacturing defects and operational failure. Inventory is maintained availability confirmed by RFQ for immediate shipment, supporting urgent spare-part requirements and planned retrofit schedules alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HC800 retrofit begins with a complete audit of the existing Freelance control cabinet. The audit should document the installed rack configuration, the firmware version of the current HC800, the Profibus DP segment topology, and the revision levels of all I/O modules in the rack — including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output modules. This baseline ensures that the replacement HC800 is configured identically before it is inserted into the live system.

Power infrastructure is frequently overlooked in retrofit planning. The ABB DP820 power supply module, which feeds the Freelance backplane, should be load-tested before the HC800 swap. A degraded power supply that was marginally supporting the original processor may fail to sustain the replacement unit under full I/O load, causing intermittent resets or communication dropouts on the Profibus segment. Replacing the DP820 concurrently with the HC800 eliminates this risk and extends the effective service life of the entire control node.

Where the Freelance system communicates with field instruments via HART protocol, the CI840 HART communication interface module must be confirmed as operational before the HC800 is replaced. HART device databases stored in the CI840 are retained in non-volatile memory and will be re-associated with the new HC800 automatically once the application program is loaded and running. Similarly, any ABB programming cable or USB-to-serial adapter used for local FET access should be tested for compatibility with the replacement unit’s firmware version before the maintenance window begins.

For installations where the Freelance system interfaces with a third-party SCADA or DCS via OPC DA or OPC UA, the OPC server configuration must be reviewed to confirm that tag paths referencing the HC800 node address remain valid after the swap. Node address changes — even minor ones — can silently break SCADA data acquisition for hours before operators notice missing trends or stale values on process overview screens.

Downtime Control During System Migration

Minimizing unplanned downtime during an HC800 replacement requires preparation that begins days before the maintenance window. The original application program must be exported and archived. A full backup of the Freelance project — including hardware configuration, I/O assignments, function block diagrams, and alarm definitions — should be stored on an offline engineering workstation and verified for completeness before the old processor is removed.

During the swap, all field I/O should be placed in a defined safe state using the process control system’s manual override or hold functions. Analog output modules such as the AO810 should be set to their last-good-value hold mode to prevent control valve movement during the processor exchange. Digital output modules should be confirmed in their de-energized or safe-state positions before the HC800 is removed from the rack.

The replacement HC800 should be pre-configured offline — firmware updated, module address set, and application program loaded — before it is brought to the installation site. This approach reduces the time the control node is offline to the minimum required for the physical swap and communication re-establishment. Once the replacement unit is inserted and powered, the Profibus DP segment should be monitored for bus errors using a diagnostic tool before process control is returned to automatic mode.

Post-commissioning, a 30-minute observation period with all I/O in automatic mode and all SCADA trends active is recommended before the maintenance window is formally closed. This confirms that the replacement HC800 is stable, that all field devices are communicating correctly, and that no latent wiring or addressing issues were introduced during the swap.

Retrofit Support FAQ

Q: Is the ABB HC800 supplied by KNMKS a direct replacement for the original Freelance processor?
A: Yes. The HC800 is a form-fit-function replacement for the original Freelance control processor. No rack modification or wiring change is required. Firmware version alignment and module address configuration in the Freelance Engineering Tool are required before insertion.

Q: What commissioning steps are required after installing the replacement HC800?
A: After physical installation, load the backed-up application program via FET, verify module addressing, confirm Profibus DP bus status, re-verify HMI and SCADA tag links, and perform a 30-minute observation period in automatic mode before closing the maintenance window.

Q: How is the HC800 tested before shipment?
A: All HC800 units supplied by KNMKS are function-tested prior to dispatch. Testing confirms power-on self-test completion, backplane communication, and basic I/O bus integrity. A test report is available on request.

Q: What support terms and supply terms apply?
A: KNMKS provides a support terms confirmed by quotation covering manufacturing defects and operational failure from the date of shipment. Inventory is maintained availability confirmed by RFQ for immediate dispatch. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.

© 2026 KNMKS. All rights reserved. Original Source: https://knmks.com | Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

HC800
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB HC800
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
