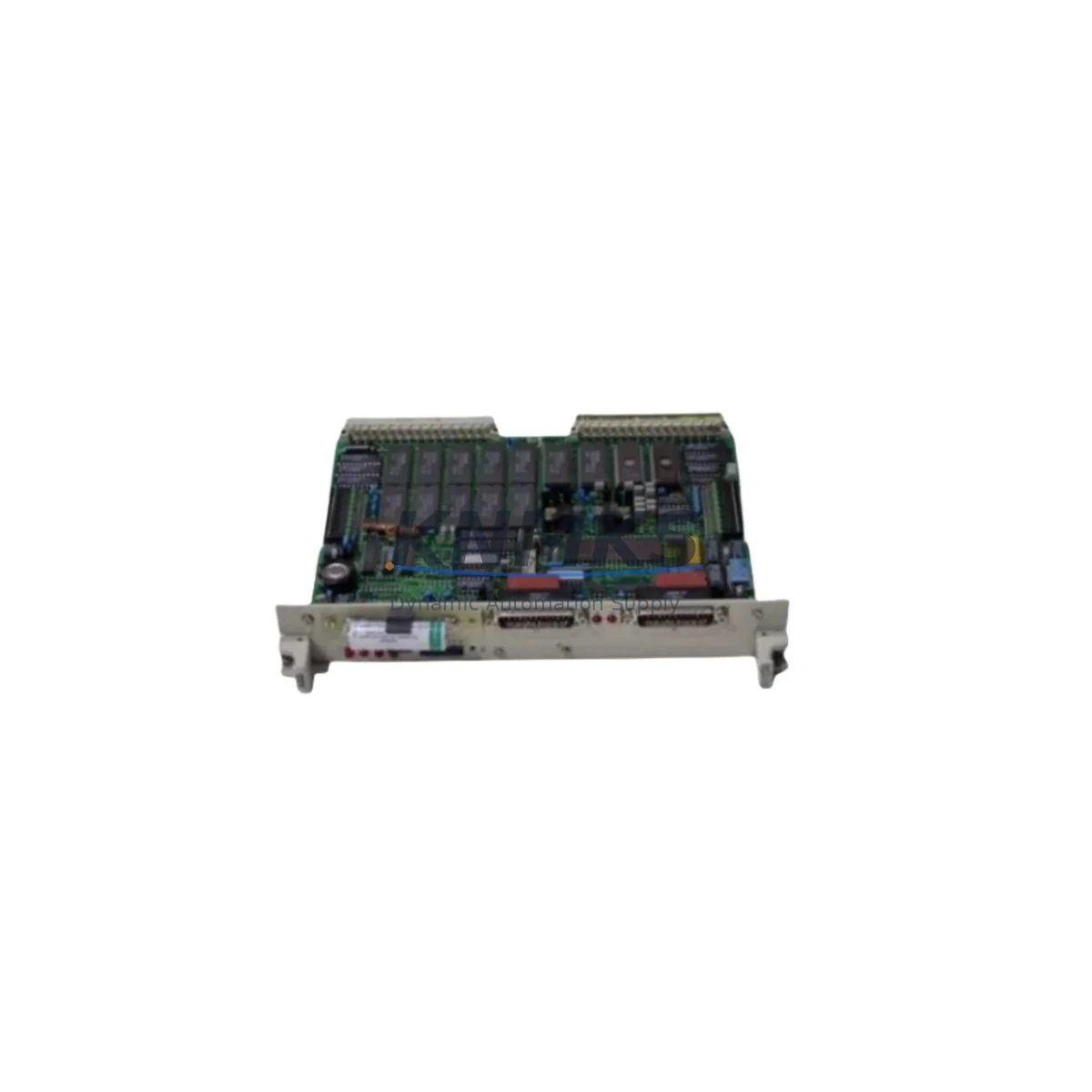

ABB GJR5136400R0001 35GS91 Fail-Safe Card File Rack

Overview

ABB GJR5136400R0001 35GS91 Fail-Safe Card File Rack: Fault Protection and Critical Industrial Field Reliability

The ABB GJR5136400R0001 35GS91 is a ruggedized card file rack engineered for the AC800M Distributed Control System platform — one of ABB’s most widely deployed process automation architectures across petrochemical, power generation, mining, and continuous manufacturing facilities. In critical control environments where unplanned downtime carries severe operational and safety consequences, the structural and electrical integrity of the card file rack is not a peripheral concern — it is a foundational element of control loop protection.

Designed and manufactured in Germany to ABB’s industrial-grade specifications, the GJR5136400R0001 35GS91 provides the mechanical backbone for housing AC800M processor modules, I/O modules, and communication interface cards within a single, electrically coherent enclosure. Its backplane architecture ensures low-impedance signal paths between installed modules, directly reducing the risk of signal drift, intermittent communication faults, and ground loop interference — failure modes that are disproportionately common in aging or counterfeit rack assemblies.

In high-electromagnetic-interference environments such as variable frequency drive (VFD) rooms, high-voltage switchgear cabinets, and arc furnace control panels, the rack’s shielded construction provides passive EMI attenuation that protects sensitive processor and I/O modules from radiated and conducted noise. This is particularly relevant when the AC800M system is co-located with PM803F or PM861A processor modules, where backplane signal integrity directly affects scan cycle consistency and deterministic control response.

Surge and transient protection is another critical dimension of the GJR5136400R0001 35GS91’s reliability profile. In field installations subject to lightning-induced surges, capacitor bank switching transients, or motor start inrush events, a compromised rack backplane can propagate voltage spikes across all installed modules simultaneously — a single-point failure mode with catastrophic consequences for safety interlocks and emergency shutdown (ESD) circuits. The 35GS91 rack’s robust backplane design mitigates this risk, complementing dedicated surge protection devices such as the ABB SACE surge arresters or third-party DIN-rail SPDs installed upstream in the control cabinet power distribution chain.

For control cabinets operating in dusty, humid, or high-vibration environments — including offshore platforms, cement plants, and underground mining installations — the rack’s mechanical rigidity and secure module retention system prevent the micro-vibration-induced contact degradation that leads to intermittent I/O faults and spurious alarms. When paired with properly torqued module locking levers and periodic thermal imaging inspections, the GJR5136400R0001 35GS91 supports continuous operation across extended maintenance intervals without requiring module reseating.

Thermal management within the control cabinet is directly influenced by rack geometry and airflow design. The 35GS91’s slot spacing and ventilation geometry are optimized for the AC800M module thermal envelope, ensuring that heat generated by CI854A communication interface modules, AI810 analog input modules, and DO810 digital output modules is effectively dissipated without creating localized hot spots that accelerate component aging. In high-ambient-temperature installations, this thermal discipline is a measurable contributor to mean time between failures (MTBF) for the entire controller assembly.

From a spare parts and lifecycle management perspective, the GJR5136400R0001 35GS91 addresses a common challenge in long-running process plants: the rack is often the last component replaced during a control system refresh, yet its degradation — through backplane oxidation, mechanical fatigue, or connector wear — can silently undermine the performance of newly installed modules. Proactive rack replacement as part of a planned maintenance cycle, supported by verified stock availability and pre-shipment functional testing, eliminates this hidden reliability risk.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable AC800M control cabinet is the product of system-level thinking, not individual component selection. The GJR5136400R0001 35GS91 card file rack forms the structural and electrical core of this assembly, but its fault-protection value is fully realized only when integrated with a coherent cabinet architecture. The PM861A processor module, mounted directly into the rack’s backplane slots, depends on the rack’s signal integrity for deterministic scan cycle execution — any backplane impedance anomaly translates directly into processor communication latency or watchdog faults.

Power supply stability is equally critical. The ABB SD833 or SD822 power supply modules, installed in adjacent rack slots or in a dedicated power rack, must deliver clean, regulated DC power to the backplane bus. Voltage ripple or transient dropout events that exceed the rack’s backplane filtering capacity can trigger simultaneous resets across all installed I/O modules — a failure mode that is indistinguishable from a software fault during post-incident analysis. Upstream cabinet power protection, including properly rated MCBs and DIN-rail surge protection devices, forms the first line of defense.

Communication architecture reliability is addressed through the CI854A PROFIBUS DP communication interface module, which when seated in the GJR5136400R0001 35GS91 rack benefits from the rack’s EMI shielding to maintain fieldbus signal quality in electrically noisy environments. Similarly, the TB811 or TB820 terminal base units connected to AI810 and DI810 field I/O modules rely on stable backplane power and signal routing to prevent spurious input transitions that could trigger false safety interlock activations.

For installations requiring redundant control architectures, the rack’s physical slot allocation supports dual-processor configurations with the PM860A redundancy module, ensuring that a single module failure does not interrupt the control loop. This redundancy strategy, combined with verified spare rack availability and documented replacement procedures, constitutes a complete cabinet-level fault tolerance framework.

Critical Industrial Safety Applications

The ABB GJR5136400R0001 35GS91 card file rack is deployed across the full spectrum of process-critical and safety-critical industrial applications where control system availability is directly linked to operational safety and regulatory compliance.

In petrochemical and refinery environments, the rack supports AC800M controllers managing fired heater fuel gas control, compressor anti-surge systems, and emergency shutdown (ESD) valve actuation. The rack’s EMI resistance is particularly valuable in these environments, where high-power motor drives and transformer switching generate continuous conducted interference on cabinet power rails.

In power generation facilities — including coal, gas, and hydroelectric plants — the AC800M platform with GJR5136400R0001 35GS91 racks is used for turbine governor control, boiler combustion management, and grid synchronization interlocks. Control interruptions in these applications carry immediate grid stability consequences, making rack-level reliability a regulatory requirement rather than a design preference.

In mining and mineral processing operations, the rack operates in high-vibration, high-dust environments managing conveyor interlocks, crusher control, and ventilation safety systems. The mechanical robustness of the 35GS91 rack directly supports the extended maintenance intervals required in remote mining installations where spare parts logistics are a critical operational constraint.

In water and wastewater treatment plants, the rack supports continuous process control for dosing systems, pump station automation, and SCADA integration — applications where control system faults can result in regulatory non-compliance and public health consequences. The rack’s long-term availability as a verified spare part supports the 15–25 year operational lifecycles typical of municipal water infrastructure.

In metallurgical and steel production, the rack is deployed in electric arc furnace (EAF) control systems and rolling mill automation, where extreme electromagnetic interference from high-current switching demands the highest levels of backplane shielding and signal integrity.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB GJR5136400R0001 35GS91?
All units are covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects, backplane connectivity failures, and module retention system faults identified under normal operating conditions. Support requests are supported with direct technical assistance and replacement unit dispatch.

Q2: What pre-shipment testing is performed on each unit?
Every GJR5136400R0001 35GS91 unit undergoes functional verification prior to dispatch, including backplane continuity testing, slot connector inspection, and mechanical integrity assessment. Units that do not meet ABB’s original performance specifications are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the GJR5136400R0001 35GS91 compatible with all AC800M module variants?
The 35GS91 rack is designed for the ABB AC800M platform and is compatible with the standard range of AC800M processor, I/O, and communication modules including PM803F, PM861A, CI854A, AI810, DI810, DO810, and AO810 variants. Compatibility with specific module firmware versions or hardware revisions should be confirmed against ABB’s AC800M hardware compatibility matrix for safety-critical applications.

Q4: Can long-term supply agreements be arranged for ongoing spare parts requirements?
Yes. For facilities requiring guaranteed stock availability across 12–36 month maintenance cycles, long-term supply agreements with reserved inventory allocation are available. This service is particularly relevant for multi-site operators managing standardized AC800M installations across multiple plants, where consistent spare parts sourcing reduces procurement risk and simplifies maintenance planning.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

GJR5136400R0001 35GS91
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB GJR5136400R0001 35GS91
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
