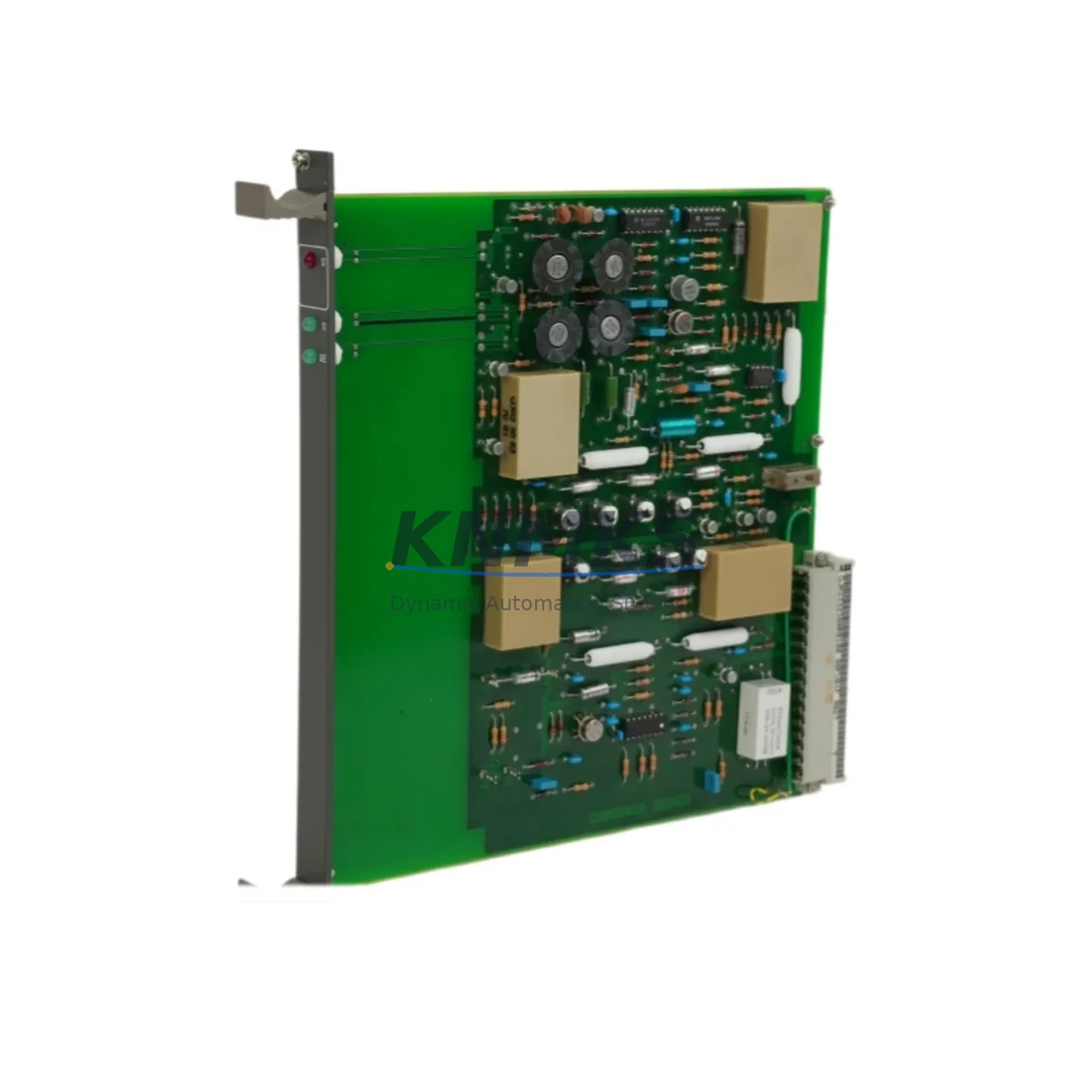

ABB GJR2332300R0100 88FV01E Fail-Safe DCS Processor

Overview

ABB GJR2332300R0100 88FV01E Fail-Safe DCS Processor: Fault Protection and Critical Industrial Field Reliability

The ABB GJR2332300R0100 88FV01E is a high-reliability processor module designed for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in continuous process industries worldwide. Engineered to operate in demanding industrial environments, this module delivers fail-safe control logic execution, deterministic scan cycle performance, and robust fault isolation that are essential for uninterrupted production in critical facilities.

In industries where a single control interruption can trigger cascading shutdowns, equipment damage, or safety incidents, the GJR2332300R0100 88FV01E provides the processing backbone that keeps control loops stable and responsive. Its architecture supports redundant CPU configurations, allowing seamless bumpless transfer between primary and standby processors without disrupting field device communication or process variable tracking.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the ABB GJR2332300R0100 88FV01E as the central processing unit within a control cabinet demands a coordinated protection strategy across all associated components. In high-electromagnetic-interference environments — such as those found near variable frequency drives, large motor starters, or high-voltage switchgear — the processor’s deterministic execution depends on clean, stable power delivery. The ABB PM866K01 power supply module, commonly paired with AC800M systems, provides regulated 24 VDC with built-in filtering to suppress conducted interference before it reaches the CPU backplane.

For I/O signal integrity, the ABB AI810 analog input module and ABB DI810 digital input module are designed to interface directly with the AC800M backplane, offering galvanic isolation that prevents ground loop currents from corrupting sensor readings or triggering spurious process alarms. In cabinets operating in dusty, humid, or chemically aggressive atmospheres — typical of water treatment plants, fertilizer production, or coastal marine installations — maintaining clean signal paths between field transmitters and the GJR2332300R0100 88FV01E is critical to avoiding signal drift and false trips.

Communication reliability is equally important. The ABB CI854B PROFIBUS DP communication interface module, when installed alongside the GJR2332300R0100 88FV01E, extends the control network to remote I/O stations and intelligent field devices while maintaining deterministic bus cycle times. In safety interlock architectures, any communication timeout or bus fault must be handled gracefully — the AC800M processor’s watchdog and fault-response logic ensures that field outputs default to their safe states upon loss of communication, preventing uncontrolled actuator movement.

For applications requiring functional safety up to SIL 2 or SIL 3, the GJR2332300R0100 88FV01E can be integrated with the ABB AC800M HI high-integrity controller platform, which adds hardware-level diagnostic coverage and voting logic. Surge protection devices installed on incoming power rails — such as DIN-rail-mounted SPDs rated for 24 VDC control circuits — further shield the processor from transient overvoltages caused by nearby lightning strikes or capacitor bank switching events.

Critical Industrial Safety Applications

The ABB GJR2332300R0100 88FV01E processor module is deployed across a broad spectrum of critical industrial environments where control system availability directly determines operational safety and production continuity.

In petrochemical and refinery facilities, the module manages burner management sequences, compressor anti-surge control, and emergency shutdown (ESD) interlock logic. Its redundant CPU capability ensures that a single processor fault does not interrupt the continuous monitoring of flammable gas detection signals or pressure relief valve positions. Any unplanned control interruption in these environments carries the risk of overpressure events, flare system overload, or uncontrolled hydrocarbon release.

In electric power generation and substation automation, the GJR2332300R0100 88FV01E supports turbine governor control, excitation system regulation, and protection relay coordination. The module’s fast scan cycle and deterministic response time are essential for maintaining grid synchronization and responding to load transients within the millisecond windows required by power system protection standards.

In mining and mineral processing operations — including underground coal mines, open-pit copper extraction, and gold processing plants — the processor controls conveyor interlocks, crusher sequencing, and ventilation fan management. High dust concentrations, vibration from blasting and heavy machinery, and wide ambient temperature swings demand a processor with proven environmental robustness and reliable fault detection.

In water and wastewater treatment plants, the module governs pump station sequencing, chemical dosing control, and SCADA communication for remote monitoring. Continuous operation is a regulatory requirement in municipal water supply systems, making redundant processor configurations and fast fault recovery essential design criteria.

In metallurgical and steel production facilities, the GJR2332300R0100 88FV01E manages rolling mill speed control, furnace temperature regulation, and cooling water interlock systems. The extreme thermal environment — with radiant heat from furnaces and molten metal handling — demands that control cabinet thermal management be carefully engineered alongside the processor’s operating temperature limits.

In port and marine applications, including ship-to-shore crane control, vessel dynamic positioning systems, and offshore platform process control, the module’s resistance to salt-laden humid air and vibration from wave motion and machinery makes it a reliable choice for safety-critical automation in maritime environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB GJR2332300R0100 88FV01E?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified control and communication functions within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every ABB GJR2332300R0100 88FV01E unit undergoes a full functional test before dispatch. This includes power-on verification, communication interface checks, memory integrity validation, and I/O bus communication confirmation. Units that do not pass all test criteria are not shipped. A test record is available upon request for quality documentation purposes.

Q3: Is this module compatible with existing ABB AC800M controller configurations?
Yes. The GJR2332300R0100 88FV01E is a standard AC800M series processor module and is compatible with the full range of ABB AC800M I/O modules, communication interfaces, and power supply units. It supports the ABB Control Builder M engineering environment for configuration, programming, and diagnostics. Firmware version compatibility should be verified against your existing system version before installation.

Q4: Can long-term supply and replacement support be guaranteed for this module?
We maintain dedicated stock of the ABB GJR2332300R0100 88FV01E to support both planned maintenance schedules and emergency replacement requirements. For facilities operating on extended maintenance cycles — such as annual or biennial planned shutdowns — we recommend securing spare units in advance. Our team can provide lead time commitments and reserved stock arrangements for critical site spares programs, ensuring that a control system fault does not result in extended unplanned downtime due to parts unavailability.
