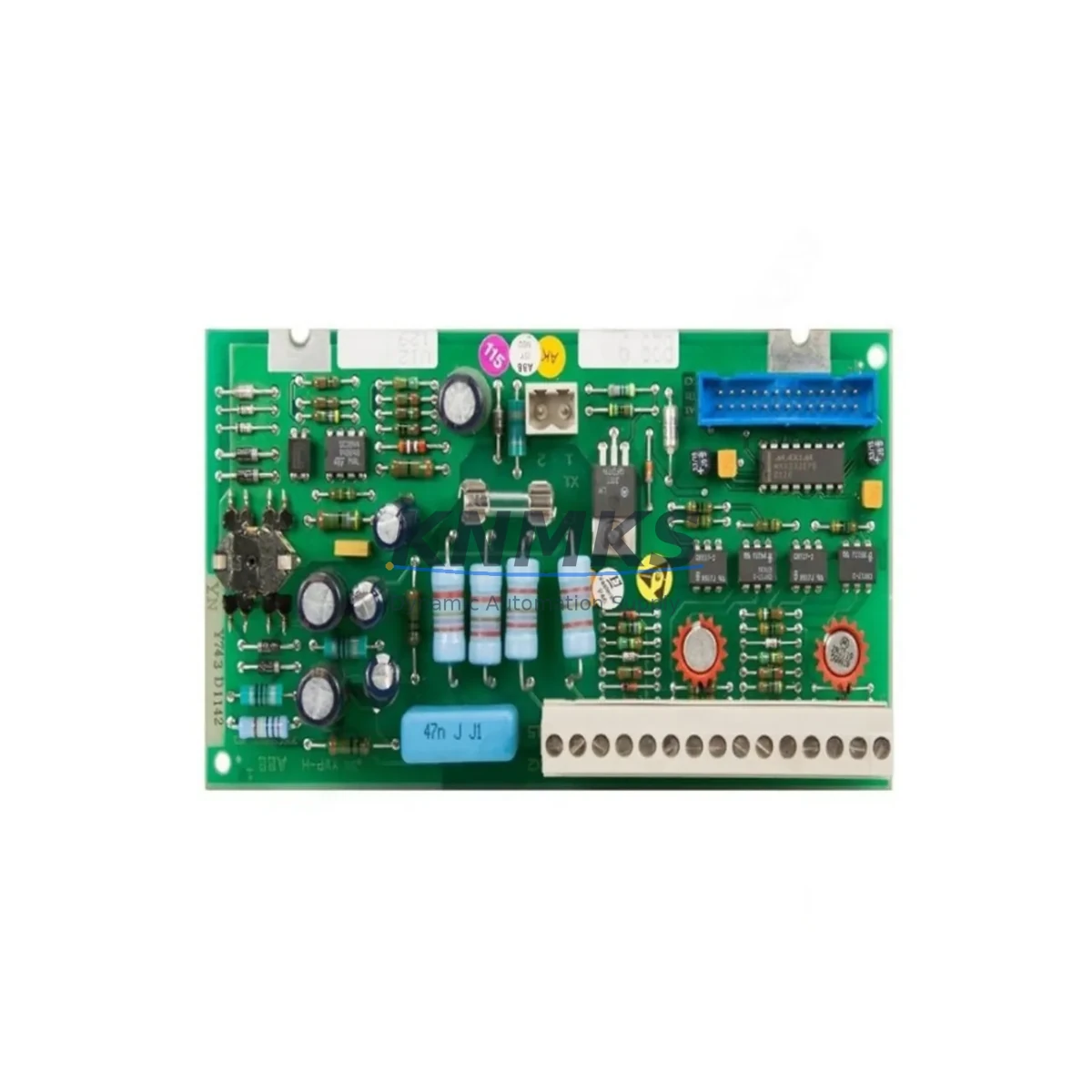

The ABB GJR2312200R1010 (88VK01A-E) is a proven DCS circuit board module engineered for the AC800M controller platform — one of ABB’s most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and heavy manufacturing. For maintenance engineers managing aging control infrastructure, this module represents a critical spare that directly supports factory uptime, production continuity, and long-term system reliability without requiring costly platform migration.

Whether you are responding to an unplanned fault, executing a scheduled annual overhaul, or building a strategic spare parts buffer, the GJR2312200R1010 is a high-priority line item. Its role within the AC800M backplane architecture means that a failed or degraded unit can cascade into I/O communication loss, controller redundancy failure, or full process shutdown. Stocking a verified replacement eliminates the risk of extended lead times from OEM channels — which can stretch 8 to 20 weeks for legacy DCS components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the GJR2312200R1010 is identified as a fault source or scheduled for replacement during a planned outage, experienced maintenance engineers know that a single-module swap rarely tells the whole story. The AC800M control cabinet is an integrated system, and a board-level failure often signals stress across adjacent components that share the same power rail, backplane slot, or communication segment.

Before or alongside replacing the GJR2312200R1010, a thorough site inspection should include the PM864 or PM861 processor module — the controller CPU that directly interfaces with this board. If the processor module has accumulated years of runtime in a high-vibration or high-humidity environment, it is prudent to verify its firmware version and diagnostic status. Similarly, the TB820 or TB840 I/O interface modules connected downstream should be checked for communication timeouts or signal drift, as a degraded circuit board can corrupt I/O polling cycles before it fails outright.

The SD821 or SD822 power supply module feeding the AC800M rack deserves close attention: an under-voltage condition on the 24 VDC rail is a common root cause of intermittent board faults that are misdiagnosed as module failures. Verifying rail voltage under load — not just at idle — is a standard step in any AC800M fault isolation procedure. Alongside the power supply, inspect the backplane bus connector for oxidation, bent pins, or contamination, particularly in environments with airborne particulates or condensation cycles.

For sites running PROFIBUS or FOUNDATION Fieldbus segments through the AC800M, the CI854 or CI801 communication interface module should be included in the inspection scope. Communication module faults can present symptoms that mimic circuit board failures, and confirming the integrity of the fieldbus segment before and after the swap prevents misdiagnosis. Finally, review the fuse and surge protection components on the incoming 24 VDC supply — a blown fuse or degraded MOV is often the silent precursor to a board-level failure event.

Building a spare parts kit around the GJR2312200R1010 that includes at least one backup processor module, one power supply module, and one communication interface module gives your maintenance team the coverage needed to resolve the most common AC800M failure scenarios within a single planned maintenance window — without waiting on emergency procurement.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Log into the AC800M engineering workstation (Control Builder M) and export the current controller configuration backup. Confirm the firmware version running on the existing module and note any active alarms or diagnostic messages in the event log.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected controller rack. If the AC800M is configured in a redundant pair (PM864 redundancy), initiate a controlled switchover to the standby controller before removing the faulty module to maintain process continuity.

Step 3 — Physical replacement: Remove the GJR2312200R1010 from its backplane slot. Inspect the slot connector and backplane bus for damage. Insert the replacement module, ensuring the locking lever is fully engaged. Verify that the module’s status LED sequence matches the expected boot pattern for the AC800M platform.

Step 4 — Configuration restore and validation: Reload the controller configuration from the backup taken in Step 1. Perform a full I/O scan and confirm that all field devices are communicating correctly. Check the event log for any new fault codes generated during the restart sequence.

Step 5 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), including the old module’s serial number, the new module’s serial number, and the date of replacement. Update your spare parts inventory to trigger a reorder for the consumed unit.

This workflow is compatible with both hot-standby redundant configurations and simplex AC800M installations. The GJR2312200R1010 is a direct form-fit-function replacement that does not require hardware modification or firmware re-flashing in standard AC800M deployments, minimizing downtime to the duration of the physical swap and configuration validation.

Spare Parts Support FAQ

Q1: What is the shelf life of the GJR2312200R1010 if stored as a spare?
When stored in a dry, temperature-controlled environment (15°C to 25°C, relative humidity below 60%, away from direct sunlight and electromagnetic interference), the GJR2312200R1010 can be held as a shelf spare for 3 to 5 years without degradation of electrical performance. We recommend annual visual inspection of stored modules and functional testing before deployment if the module has been stored for more than 24 months.

Q2: How do I verify compatibility with my specific AC800M configuration before ordering?
The GJR2312200R1010 is designed for the AC800M controller family. Compatibility is confirmed by matching the module’s part number against your existing rack’s bill of materials or the ABB AC800M hardware configuration guide. If you are unsure, send your controller model number and current module list to [email protected] and our technical team will confirm compatibility before shipment.

Q3: What testing is performed before shipment?
Every GJR2312200R1010 unit undergoes functional power-on testing and visual inspection prior to dispatch. Units are shipped in anti-static packaging with individual serial number documentation. A test report is available upon request for customers requiring traceability records for their maintenance management systems.

Q4: What does the support terms confirmed by quotation cover, and what is the long-term supply commitment?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the module’s rated specifications. For long-term supply, KNMKS maintains a dedicated inventory buffer for high-demand AC800M spare parts and can support blanket purchase orders for customers requiring guaranteed stock availability over 12 to 36-month procurement cycles. Contact [email protected] to discuss a supply agreement.
