ABB FS300R12KE3/AGDR-72CS Migration-Ready IGBT for Legacy Control Systems

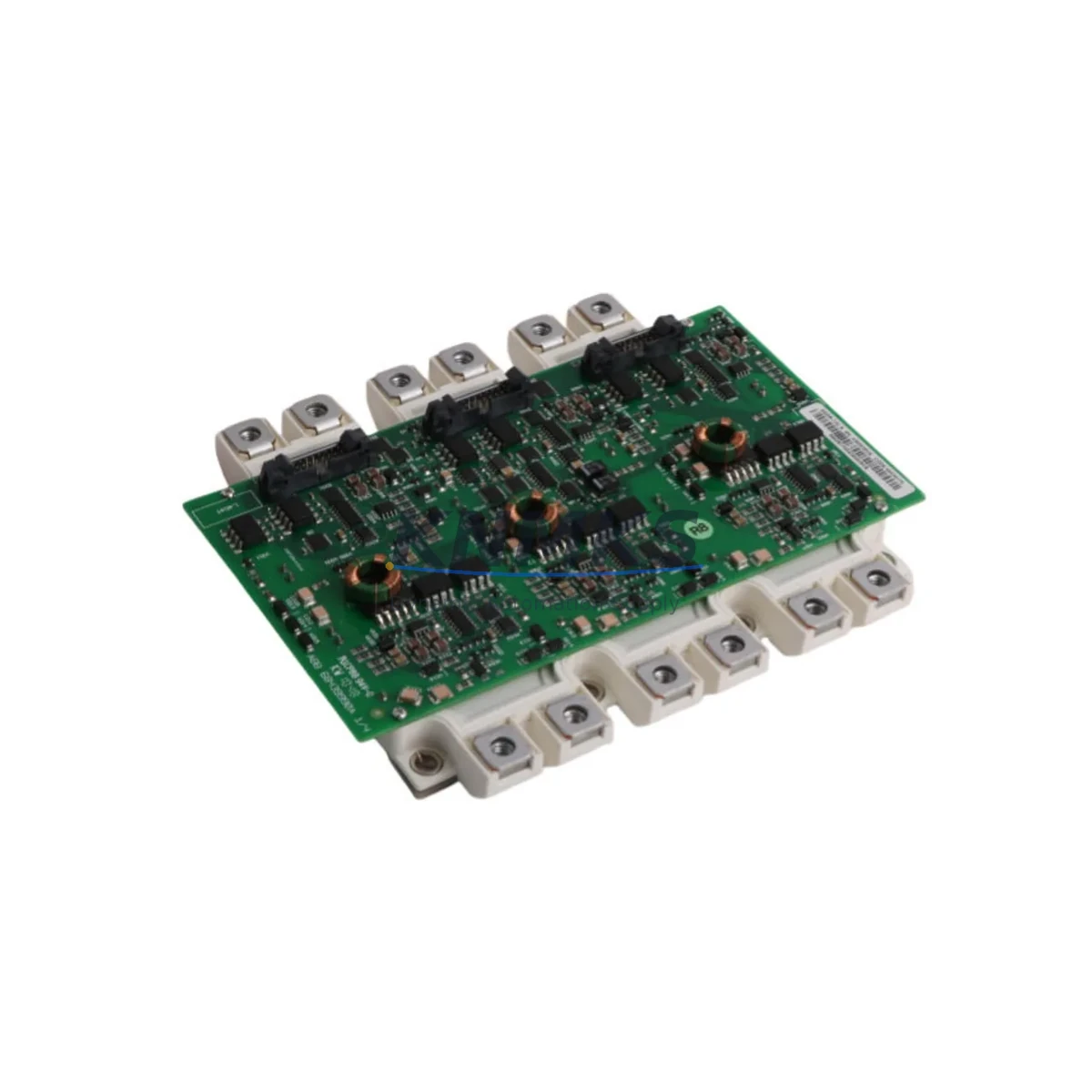

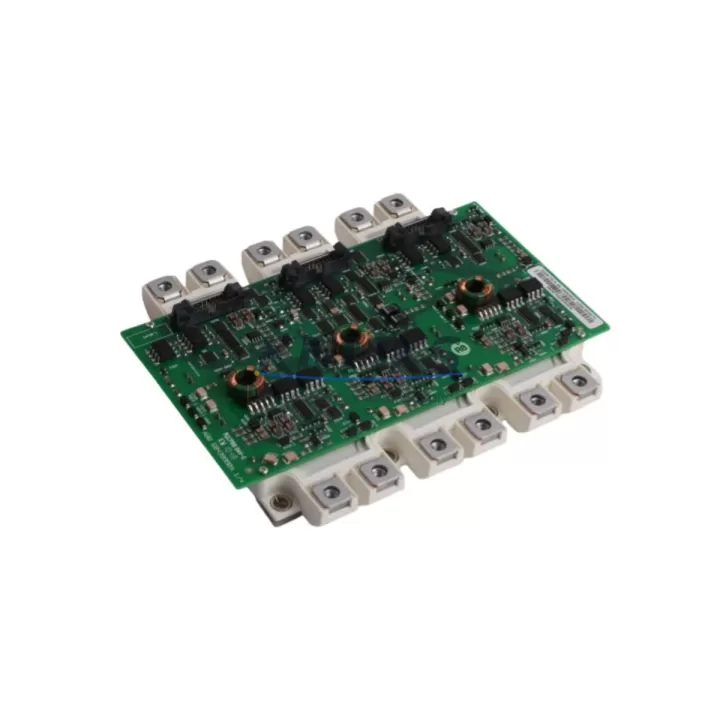

The ABB FS300R12KE3/AGDR-72CS is a high-current IGBT power module rated at 300A / 1200V, factory-paired with the AGDR-72CS gate driver unit and engineered for direct integration into ABB ACS800 series variable frequency drives. As ACS800 platforms approach end-of-service milestones and original IGBT assemblies become increasingly difficult to source through standard OEM channels, the FS300R12KE3/AGDR-72CS has become a critical retrofit component for maintenance engineers managing legacy drive cabinets across heavy industry, marine propulsion, pulp and paper, and metals processing applications.

This module is verified compatible with ACS800-01, ACS800-02, ACS800-04, ACS800-07, and ACS800-11 drive frames. It is a direct mechanical and electrical replacement for the original IGBT stack in these platforms, preserving the existing DC bus architecture, snubber circuit layout, and thermal interface requirements without requiring PCB-level redesign or firmware modification to the RDCU-02C or RDCU-12C control boards.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FS300R12KE3/AGDR-72CS into an existing ACS800 drive cabinet begins with a structured pre-replacement audit. Engineers should first verify the DC bus voltage level under no-load conditions using the drive’s internal measurement points, confirming that residual charge has fully discharged before any module handling. The AGDR-72CS gate driver board connects to the AINT-02C or AINT-12C interface board via fiber optic links; both transmit and receive fibers must be inspected for contamination or bend-radius violations before reconnection.

Terminal block wiring on the gate driver side follows the same pinout as the AGDR-71C predecessor, which simplifies the swap for sites that have retained original wiring documentation. However, engineers should cross-reference the AGDR-72CS installation manual against the existing cabinet wiring diagram to confirm that the 24VDC auxiliary supply feeding the gate driver is within tolerance — typically ±5% of nominal. If the cabinet also houses an APBU-44C or APBU-12C pulse encoder interface board, its fiber connections to the RDCU control board should be verified independently, as these are unaffected by the IGBT replacement but are a common source of post-retrofit fault codes if disturbed during the swap.

For sites running ACS800 drives with an RDCU-02C control board and a PROFIBUS or MODBUS RTU fieldbus adapter such as the RPBA-01 or RMBA-01, no fieldbus reconfiguration is required following the IGBT replacement. The drive’s parameter set — including motor model data, speed reference scaling, and protection thresholds — remains intact in the RDCU’s non-volatile memory. Engineers should, however, perform a motor identification run (ID Run) after the replacement to re-establish the motor model if the drive was previously operating in Direct Torque Control (DTC) mode, as thermal history data is reset during power cycling.

Where the retrofit involves a cabinet that also contains an ACS800-04 regenerative supply unit sharing the same DC bus, the sequencing of the IGBT replacement must account for the supply unit’s pre-charge circuit. The pre-charge contactor logic, typically managed by the AIMA-01 or AIMA-11 I/O extension module, should be verified to be in the correct state before energizing the replaced drive section. This prevents inrush current events that could stress the newly installed module during the first power-on cycle.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 IGBT replacement requires advance preparation that begins well before the scheduled maintenance window. The most effective approach is to pre-stage the FS300R12KE3/AGDR-72CS assembly alongside all ancillary materials — thermal interface compound, torque wrench calibrated to the M6 bolt specification, fiber optic cleaning kit, and a copy of the drive’s parameter backup — so that the physical swap can be completed within a single shift.

Parameter backup should be performed using the DriveWindow Light 2 software connected to the RDCU control board via the DDCS optical link or the front panel RS-232 port. This backup preserves the complete parameter set, including application macros, PID tuning values, and any customer-specific I/O configurations programmed through the AIMA-01 extension module. If the site uses an ABB Panel Bus connection to a CP600 or CP400 series HMI panel, the HMI’s drive parameter mirror should also be verified against the backup file before the replacement begins.

During the replacement window, the control program logic stored in the RDCU is not affected by the IGBT swap, which eliminates the risk of application logic loss. The primary risk factors are mechanical — incorrect torque on the baseplate mounting bolts leading to uneven thermal contact, and fiber optic connector misalignment causing gate signal errors on first start. A structured commissioning checklist that includes a low-speed no-load test run, followed by a ramp to full speed under controlled load conditions, provides the verification sequence needed to confirm successful installation before returning the drive to production service.

For sites where the ACS800 drive controls a critical process with no standby drive available, pre-shipment functional testing of the FS300R12KE3/AGDR-72CS assembly is strongly recommended. Each unit shipped from stock is tested under load conditions prior to dispatch, with test records available on request. Combined with the support terms confirmed by quotation covering manufacturing defects, this provides the confidence level required for single-drive critical applications.

Retrofit Support FAQ

Q: Is the FS300R12KE3/AGDR-72CS a direct replacement for the AGDR-71C-based IGBT assembly in older ACS800 frames?
A: Yes. The FS300R12KE3/AGDR-72CS is mechanically and electrically compatible with ACS800 R8i frames previously fitted with AGDR-71C gate driver variants. The AGDR-72CS gate driver uses the same fiber optic interface pinout and 24VDC auxiliary supply requirements. No modifications to the AINT-02C or AINT-12C interface boards are required.

Q: Does replacing the IGBT module require any changes to the drive’s parameter set or fieldbus configuration?
A: No parameter changes are required for the IGBT replacement itself. The RDCU-02C or RDCU-12C control board retains all parameters in non-volatile memory during the swap. If the drive operates in DTC mode, an ID Run is recommended after replacement to refresh the motor model. Fieldbus adapters such as the RPBA-01 (PROFIBUS) or RMBA-01 (MODBUS RTU) are unaffected.

Q: What pre-shipment testing is performed on each FS300R12KE3/AGDR-72CS unit?
A: Each unit undergoes functional load testing prior to dispatch. Gate driver signal integrity, switching waveform verification, and thermal interface inspection are included in the test protocol. Test records are available on request. All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment.

Q: What is the typical lead time and stock availability for the FS300R12KE3/AGDR-72CS?
A: Units are maintained in forward stock to support urgent retrofit and breakdown replacement requirements. Standard dispatch is within 3–5 business days for in-stock units. For volume requirements or scheduled maintenance programs, contact the sales team to confirm allocation and arrange consolidated shipment.
