ABB FS300R12KE3/AGDR-71C Migration-Ready IGBT for Legacy Control Systems

Overview

ABB FS300R12KE3/AGDR-71C Migration-Ready IGBT for Legacy Control Systems

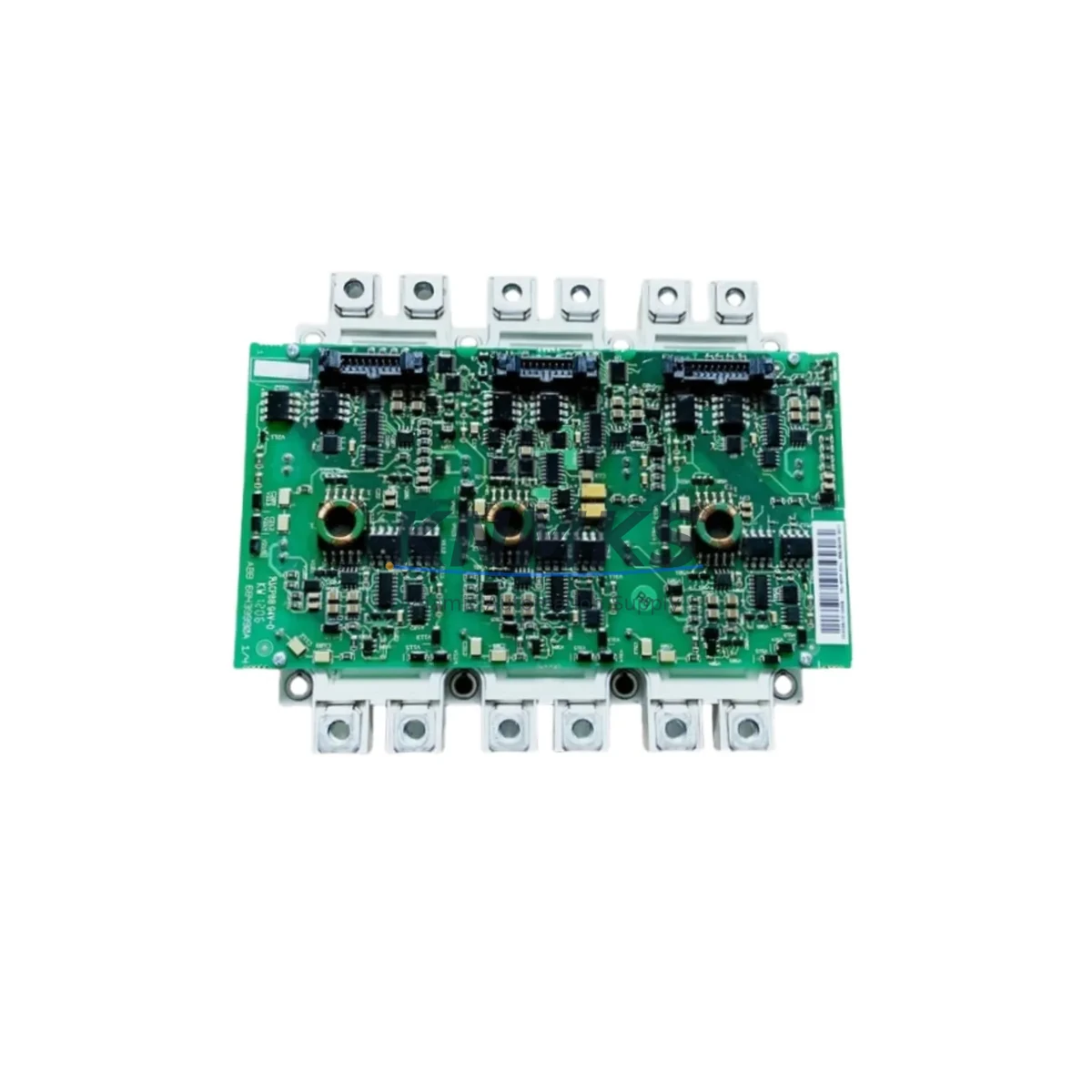

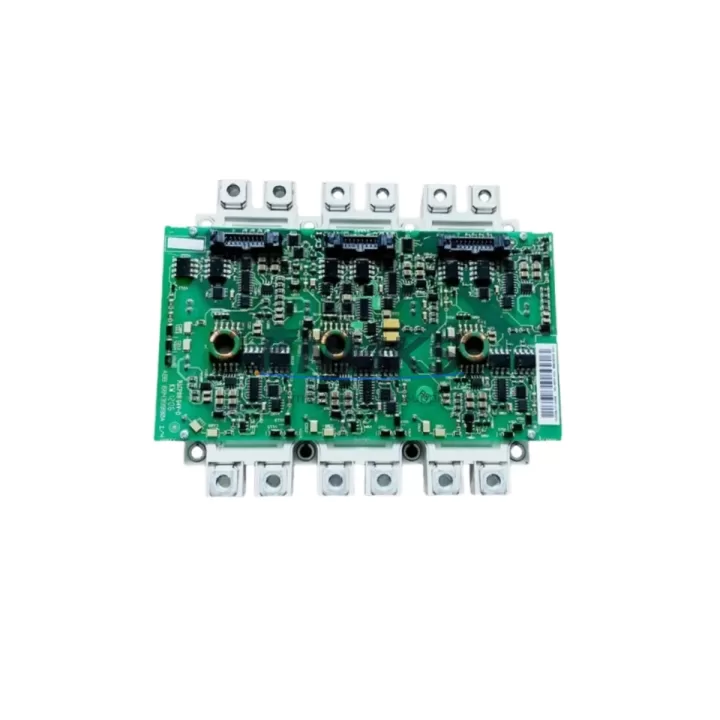

The ABB FS300R12KE3/AGDR-71C is a 1200V / 300A IGBT power module supplied as a matched kit with the AGDR-71C gate driver unit, engineered as a direct migration solution for aging ACS800 and ACS880 variable-speed drive platforms. As ABB progressively phases out legacy R7 and R8 frame power stacks, maintenance engineers and system integrators face increasing pressure to source verified replacement modules that preserve drive performance without requiring full cabinet redesign. The FS300R12KE3/AGDR-71C kit addresses this challenge by delivering factory-tested switching characteristics, gate threshold compatibility, and thermal interface geometry that align with the original OEM specification.

For facilities running continuous production lines, paper mills, water treatment stations, or steel rolling mills on ACS800 platforms, unplanned IGBT failure represents a critical downtime event. Sourcing a pre-matched FS300R12KE3/AGDR-71C kit with the AGDR-71C gate driver eliminates the risk of mismatched gate resistance values or incompatible isolation voltage ratings that can arise when modules and drivers are sourced separately. Each unit shipped from our inventory undergoes outgoing inspection covering forward voltage drop, gate leakage, and thermal resistance verification before dispatch.

When planning a retrofit around this module, engineers should confirm available DC bus voltage headroom within the ACS800 or ACS880 power section, verify that the existing heatsink mounting surface meets the thermal interface flatness specification, and check that the AGDR-71C fiber-optic signal cables are routed without sharp bends that could degrade optical signal integrity. The AGDR-71C communicates with the ACS800 AINT or RDCU control board via fiber-optic links; confirming fiber connector cleanliness and cable continuity before energizing the replacement module is a mandatory pre-commissioning step.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful FS300R12KE3/AGDR-71C retrofit begins well before the module arrives on site. The engineering team should pull the ACS800 or ACS880 drive’s parameter backup using DriveWindow Light or the CDP control panel, preserving motor ID run data, speed reference scaling, and process PID parameters. This backup protects against accidental parameter loss during the power section replacement and allows rapid restoration if the RDCU control board requires reinitialization after the new IGBT kit is installed.

Power supply capacity within the control cabinet deserves careful review. The AGDR-71C gate driver draws its auxiliary supply from the ACS800 internal APOW power supply board; confirming that the APOW output rails are within tolerance before energizing the new gate driver prevents nuisance faults and protects the replacement module during initial power-up. If the APOW board shows signs of aging — evidenced by capacitor bulge or output ripple exceeding specification — replacing it alongside the IGBT kit is strongly recommended to avoid a secondary failure shortly after the primary retrofit.

Terminal wiring at the DC bus busbars and AC output terminals should be inspected for thermal discoloration, loose fasteners, or oxidized contact surfaces before the new module is installed. Torque values for the DC bus connections on R7/R8 frames are specified in the ACS800 hardware manual and must be followed precisely to prevent contact resistance heating under full load current. The ACS800 AINT board, which manages the inverter section control signals, should also be inspected; if the AINT board has accumulated fault history related to gate drive faults or overcurrent trips, replacing it as a precautionary measure alongside the FS300R12KE3/AGDR-71C kit reduces the risk of a repeat failure caused by a marginal control board driving the new module.

For sites where the ACS800 communicates with a DCS or SCADA system via an RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module, verifying that the fieldbus node address and baud rate settings are preserved in the parameter backup is essential. Communication link restoration after the retrofit should be confirmed before returning the drive to automatic control mode. Similarly, if the drive interfaces with an ACS800 application program stored on the RMIO board, confirming program version compatibility with the restored parameter set prevents unexpected behavior during the first production run after commissioning.

HMI screens connected to the ACS800 via the CDP panel port or via a panel bus should be tested for correct speed feedback display and fault acknowledgment functionality after the replacement. If the site uses a third-party HMI connected through an RAIO-01 analog I/O extension module or an RDIO-01 digital I/O module, verifying that all analog scaling and digital interlock signals are functioning correctly before releasing the drive to production is a mandatory commissioning step.

Downtime Control During System Migration

Minimizing production downtime during an IGBT replacement on an ACS800 or ACS880 drive requires a structured pre-outage preparation protocol. Before the scheduled maintenance window opens, the replacement FS300R12KE3/AGDR-71C kit should be on-site, unpacked, and visually inspected. The AGDR-71C gate driver should be confirmed as the correct variant for the specific drive frame — R7 and R8 frames use the same AGDR-71C model, but confirming the fiber-optic cable length and connector type against the existing installation prevents last-minute delays.

During the outage, the DC bus capacitors must be fully discharged before any work begins on the power section. ACS800 and ACS880 drives retain dangerous DC bus voltage for several minutes after mains disconnection; following the discharge verification procedure in the hardware manual using a calibrated voltmeter is non-negotiable. Once discharge is confirmed, the failed module can be removed, the heatsink surface cleaned and re-greased with the specified thermal compound, and the new FS300R12KE3/AGDR-71C module installed and torqued to specification.

After mechanical installation, the AGDR-71C fiber-optic connections should be made before applying auxiliary power. Initial power-up should be performed with the motor disconnected if possible, allowing the drive to complete its self-diagnostics and confirm gate driver communication without risk to the connected load. Running the motor ID run with the motor connected and unloaded before returning to full production load validates that the new IGBT module is operating correctly within the drive’s control loop and that no parameter adjustments are required to maintain process stability.

For critical applications where even a brief unplanned outage is unacceptable, maintaining a spare FS300R12KE3/AGDR-71C kit in the local storeroom is the most effective risk mitigation strategy. Our support terms confirmed by quotation cover all units, and our inventory is maintained to support same-week dispatch for urgent replacement requirements.

Retrofit Support FAQ

Q: Is the FS300R12KE3/AGDR-71C a direct drop-in replacement for the original ABB IGBT module in ACS800 R7/R8 drives?
A: Yes. The FS300R12KE3/AGDR-71C kit is dimensionally and electrically compatible with the original ABB power module assembly used in ACS800 and ACS880 R7/R8 frame drives. No cabinet modification or busbar rework is required for a standard replacement. Confirm heatsink surface condition and thermal compound application before installation.

Q: Does the replacement require a motor ID run after installation?
A: ABB recommends performing a new motor ID run after any power section replacement to ensure the drive’s current measurement calibration reflects the characteristics of the new module. This is particularly important for applications using direct torque control (DTC) mode. The ID run can be initiated from the CDP panel or DriveWindow without requiring changes to the motor nameplate parameters.

Q: What outgoing tests are performed before shipment?
A: Each FS300R12KE3/AGDR-71C unit undergoes forward voltage drop measurement, gate leakage current verification, and thermal resistance spot-check before dispatch. A test report is included with each shipment. Units are packed in anti-static foam with moisture indicator cards to protect against electrostatic discharge and humidity damage during transit.

Q: What support terms and supply lead time should I expect?
A: All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and verified premature failure under normal operating conditions. Stock is maintained for same-week dispatch on standard orders. For urgent requirements, contact our sales team directly to confirm current inventory availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

FS300R12KE3/AGDR-71C
S800 Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: ABB FS300R12KE3/AGDR-71C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
