ABB FI820F 3BDH000031R1 Maintenance Spare for AC800M DCI

Overview

ABB FI820F 3BDH000031R1 Maintenance-Proven Spare Part for Factory Uptime

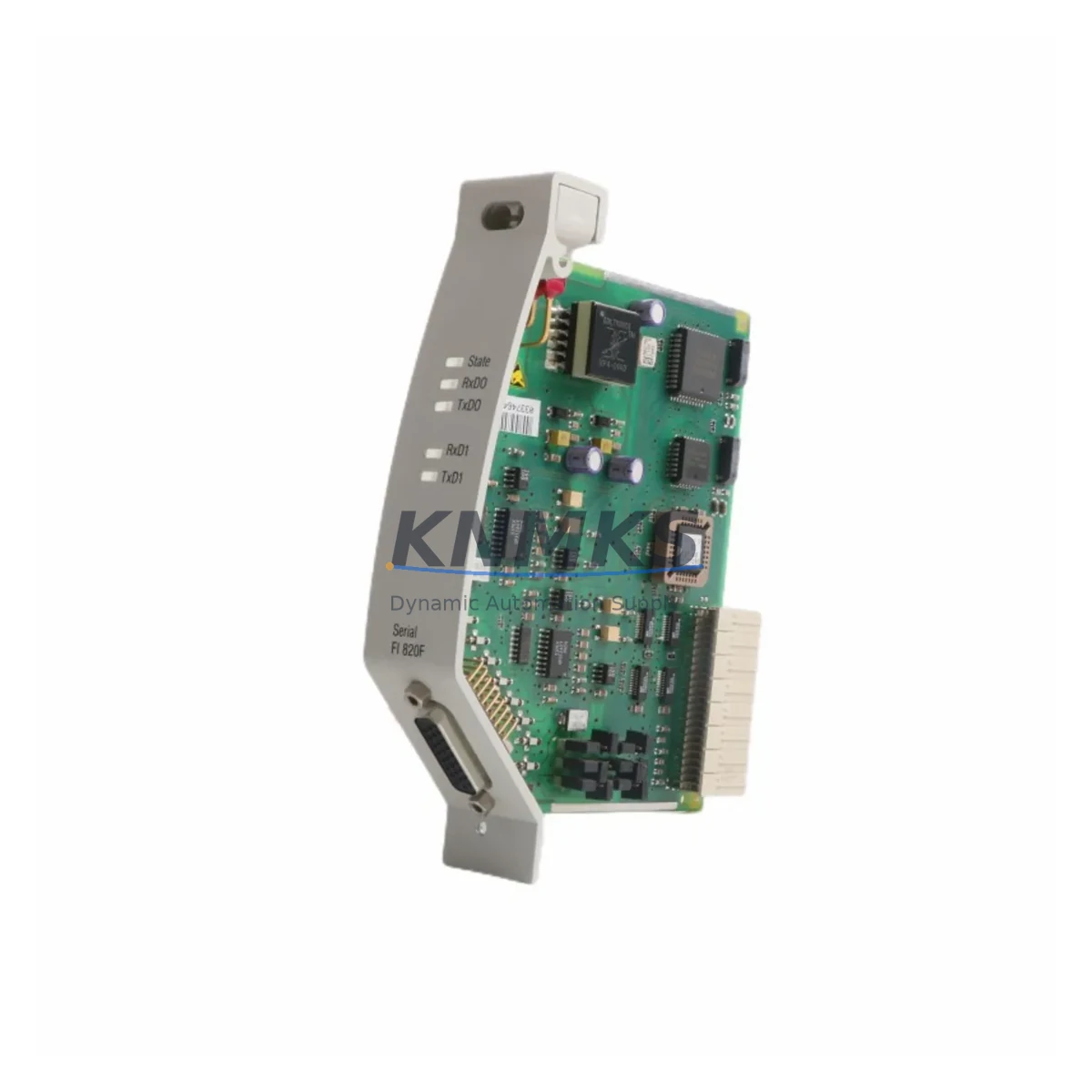

The ABB FI820F (part number 3BDH000031R1) is a fieldbus communication module designed for the ABB AC800M DCI distributed control system. As a critical interface between the AC800M controller and field-level PROFIBUS DP networks, this module plays a central role in maintaining real-time data exchange across process automation environments. For maintenance engineers managing aging DCS infrastructure, keeping a verified spare of the FI820F on the shelf is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

In industrial facilities running continuous processes — chemical plants, pulp and paper mills, power generation stations, and oil & gas terminals — the FI820F module is often the single point of communication between the AC800M controller and dozens of field instruments, valve positioners, and remote I/O stations. A failed FI820F can isolate an entire PROFIBUS segment, triggering a cascade of alarms and forcing a controlled shutdown. Having a tested, original replacement unit available on-site reduces mean time to repair (MTTR) from hours to minutes.

This listing provides an original ABB FI820F 3BDH000031R1 spare part, sourced from verified supply channels, individually tested prior to shipment, and backed by a support terms confirmed by quotation. Each unit is inspected for firmware compatibility, connector integrity, and communication function before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the FI820F 3BDH000031R1, experienced maintenance engineers treat the module swap as an opportunity for a broader control cabinet inspection. The FI820F interfaces directly with the AC800M backplane, so the condition of the TB820V2 ModuleBus Modem and the PM864A or PM866 processor module should be verified at the same time — a degraded backplane connection or a processor module with elevated cycle time can mask the root cause of fieldbus faults and lead to repeat failures.

On the PROFIBUS DP segment side, inspect the PROFIBUS termination resistors and cable shielding at both ends of the segment. Intermittent communication errors attributed to the FI820F are frequently caused by improper termination or damaged cable at junction boxes. If the facility uses PROFIBUS repeaters or optical links to extend segment reach, these should be tested for signal integrity during the same maintenance window.

For the power distribution side of the control cabinet, verify the 24 VDC SITOP or equivalent industrial power supply feeding the S800 I/O bus. Voltage ripple or transient dips on the backplane supply are a known cause of communication module resets. Inline fuse holders and miniature circuit breakers protecting the 24 V rail should be checked for contact resistance and rated current compliance.

If the AC800M system includes S800 I/O modules such as AI810, AO810, DI810, or DO810 connected via the FI820F’s PROFIBUS segment, their diagnostic LEDs and configuration checksums should be reviewed after the module replacement to confirm that all slave addresses have been re-established correctly. For systems with CI854A or CI858 communication interfaces handling parallel fieldbus segments, cross-check that the replacement FI820F does not introduce address conflicts on shared network infrastructure.

Procurement engineers sourcing the FI820F 3BDH000031R1 for annual maintenance kits should also consider stocking the TK850V007 or TK212A termination and cable assembly as a companion spare, since connector wear at the module interface is a common secondary failure mode in high-vibration environments. Maintaining a minimum of one verified FI820F spare per AC800M DCI cabinet cluster is the recommended inventory posture for facilities with uptime SLAs above 99.5%.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s part number (FI820F / 3BDH000031R1) and firmware version via the AC800M Engineering Workplace (Control Builder M). Document the current PROFIBUS segment configuration, slave address list, and GSD file assignments before proceeding.

Step 2 — Safe module removal: Place the affected PROFIBUS segment in safe state (inhibit outputs at the DCS level). Power down the AC800M slot if hot-swap is not supported in your firmware version. Remove the FI820F by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane pins for debris or corrosion before inserting the replacement unit.

Step 3 — Replacement installation: Insert the new FI820F 3BDH000031R1 into the designated slot. Confirm the module LED sequence on power-up: RUN (green), BUS (green), and ERR (off) indicate normal initialization. If ERR remains lit, verify firmware compatibility and re-download the PROFIBUS configuration from Control Builder M.

Step 4 — Segment re-commissioning: Restore the PROFIBUS segment and confirm all slave devices return to cyclic data exchange. Check diagnostic buffers in Control Builder M for any residual fault entries. Perform a live I/O test on critical field devices before releasing the system to production.

Step 5 — Documentation update: Record the replacement date, new module serial number, and firmware version in the plant maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of the consumed FI820F unit, maintaining buffer stock for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is this FI820F 3BDH000031R1 compatible with all AC800M DCI controller versions?
The FI820F is designed for the ABB AC800M DCI platform and is compatible with PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions of Control Builder M should be confirmed prior to installation. We provide firmware advisory support on request to ensure seamless integration with your existing system configuration.

Q2: What testing is performed before shipment?
Each FI820F unit undergoes functional communication testing, connector integrity inspection, and LED diagnostic verification before dispatch. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What is the support terms coverage and what does it include?
All FI820F 3BDH000031R1 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with priority turnaround to minimize impact on plant operations.

Q4: Can KNMKS support long-term or repeat procurement of this module?
Yes. KNMKS maintains ongoing sourcing relationships for ABB AC800M DCI spare parts, including the FI820F 3BDH000031R1. For facilities with annual maintenance budgets or multi-site procurement programs, we offer reserved stock arrangements and lead-time commitments. Contact our technical sales team to discuss volume pricing, consignment stock options, and scheduled delivery programs aligned with your planned maintenance calendar.
