ABB EI803F 3BDH000017R1 Migration-Ready Ethernet for Legacy DCS

Overview

ABB EI803F 3BDH000017R1 Migration-Ready Ethernet for Legacy DCS

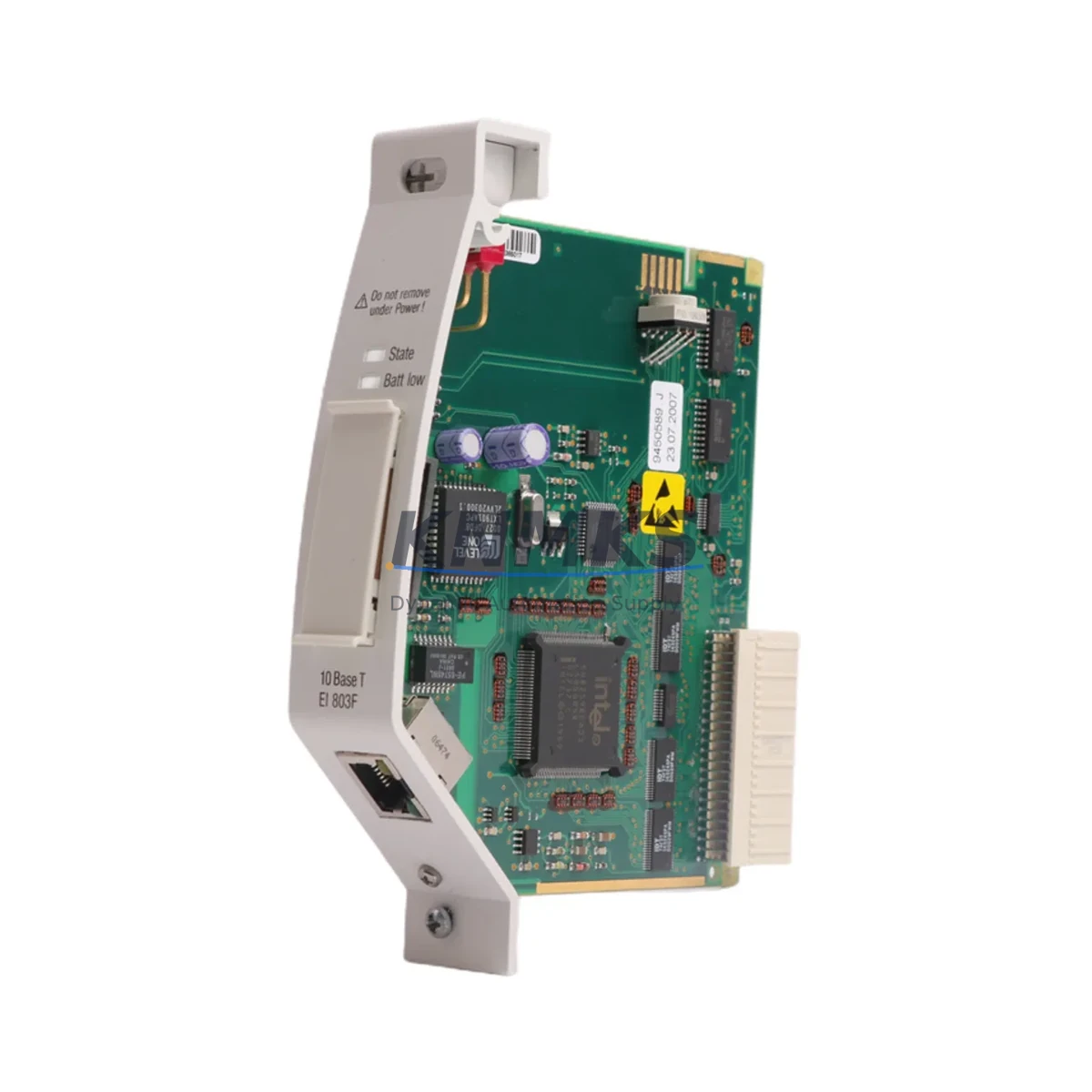

The ABB EI803F (part number 3BDH000017R1) is an Ethernet Interface Module designed for the AC800M controller platform, one of ABB’s most widely deployed distributed control system (DCS) families in process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As legacy AC800M installations approach end-of-life or require communication infrastructure upgrades, the EI803F serves as a critical migration component — enabling plants to extend the operational life of existing control architectures while transitioning toward modern Ethernet-based supervisory and field communication topologies.

Sourced from verified supply channels and subject to full functional testing prior to shipment, each EI803F unit supplied by KNMKS is backed by a support terms confirmed by quotation covering hardware defects and operational failures under normal industrial service conditions. Inventory is maintained availability confirmed by RFQ to support urgent replacement and planned retrofit schedules alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the EI803F into an existing AC800M-based control system requires a structured retrofit assessment before any physical swap is performed. Engineers should begin by auditing the current rack configuration — confirming available module slots, backplane revision, and the installed firmware version on the PM864 or PM866 processor module. In many legacy installations, the Ethernet interface slot may be occupied by an older CI854 PROFIBUS interface or a CI857 INSUM interface, and the migration to Ethernet-based communication via the EI803F represents a protocol-level change that must be reflected in the Control Builder M project file.

Power budget verification is essential. The AC800M rack’s internal power supply — typically an SD821 or SD822 power supply module — must have sufficient headroom to support the EI803F alongside existing I/O modules, communication modules, and the processor. Adding or replacing a communication module changes the rack’s total current draw, and this must be validated against the power supply’s rated output before commissioning.

Terminal wiring for the Ethernet port uses standard RJ45 connectors, but the physical cable routing within the control cabinet must be planned to maintain EMC compliance — particularly in environments with variable frequency drives or high-current switching equipment nearby. Shielded Cat5e or Cat6 cabling is recommended, with proper grounding at the cabinet entry point.

For plants also upgrading their field I/O infrastructure, the EI803F retrofit is often performed in conjunction with S800 I/O module replacements — such as the AI810 analog input module or the DI810 digital input module — where aging field termination units (FTUs) and I/O modules are replaced as part of a broader cabinet modernization. In these scenarios, the Ethernet interface upgrade enables the modernized I/O subsystem to communicate with updated SCADA or historian platforms over standard TCP/IP rather than legacy serial or proprietary fieldbus links.

HMI screen updates are a frequently overlooked element of EI803F retrofit projects. When the communication path changes — for example, from a serial OPC server connection to a direct Ethernet OPC-DA or OPC-UA link — tag addresses and communication drivers in the HMI project (whether running on ABB’s own 800xA system or a third-party SCADA platform) must be updated to reflect the new network topology. Failure to update HMI communication parameters is a common cause of post-retrofit alarm floods and false process deviations.

Where the existing installation includes a CI853 Modulebus Cluster modem or TB820 Modulebus optical port for remote I/O communication, the EI803F installation does not affect those parallel communication paths — they continue to operate independently on the AC800M backplane. This allows phased migration strategies where Ethernet supervisory communication is established first, and legacy fieldbus links are decommissioned in a subsequent maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime during an EI803F replacement or retrofit is achievable through disciplined pre-migration preparation. The most effective approach is to perform a full backup of the AC800M application program — including all function block diagrams, SFC sequences, and communication configuration — using Control Builder M before any hardware is disturbed. This backup should be stored both locally and on a network share, and the restore procedure should be tested in a staging environment if one is available.

Physical module swap time for the EI803F is typically under five minutes when the rack is de-energized and the replacement unit is pre-staged. However, the total maintenance window must account for post-installation configuration steps: assigning the module’s network address, verifying Ethernet link status LEDs, confirming communication with the supervisory network switch, and performing a controlled application download if the Control Builder M project has been updated to reference the new module.

For critical process applications where a cold restart of the AC800M is unacceptable, engineers should evaluate whether the Ethernet interface slot can be swapped while the processor continues to execute the control application in degraded mode — relying on local I/O and retaining last-known values for supervisory setpoints. This approach requires pre-coordination with the process operations team and a defined fallback procedure in case the module swap does not restore communication within the expected window.

Post-swap verification should include a structured checklist: Ethernet link established, module recognized in Control Builder M hardware tree, all OPC or Modbus TCP client connections re-established, historian data flow confirmed, and HMI process values updating correctly. Completing this checklist before releasing the system back to automatic control ensures that no latent communication fault is masked by operator manual override during the restart sequence.

Retrofit Support FAQ

Q: Is the EI803F 3BDH000017R1 a direct drop-in replacement for a failed EI803F in my existing AC800M rack?
A: Yes. The EI803F is a form-fit-function replacement for any existing EI803F installation. No mechanical modification to the rack or backplane is required. Module address and network parameters must be configured via Control Builder M after installation.

Q: What firmware version does the AC800M need to support the EI803F?
A: ABB recommends AC800M firmware version 5.1 or later for full EI803F feature support. Earlier firmware versions may recognize the module but may not support all Ethernet communication features. Firmware upgrade should be planned as part of the retrofit if the installed version is below this threshold.

Q: Does KNMKS perform pre-shipment functional testing on EI803F units?
A: Yes. Each EI803F unit undergoes functional verification prior to shipment, including power-on self-test confirmation and communication port integrity checks. Units are shipped with original or equivalent protective packaging. A support terms confirmed by quotation cover hardware defects and operational failures under normal service conditions.

Q: What is the typical lead time and inventory availability for the EI803F 3BDH000017R1?
A: KNMKS maintains stock inventory of the EI803F to support both urgent replacement and planned retrofit schedules. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, contact [email protected] to confirm availability and lead time commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

EI803F
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB EI803F
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
