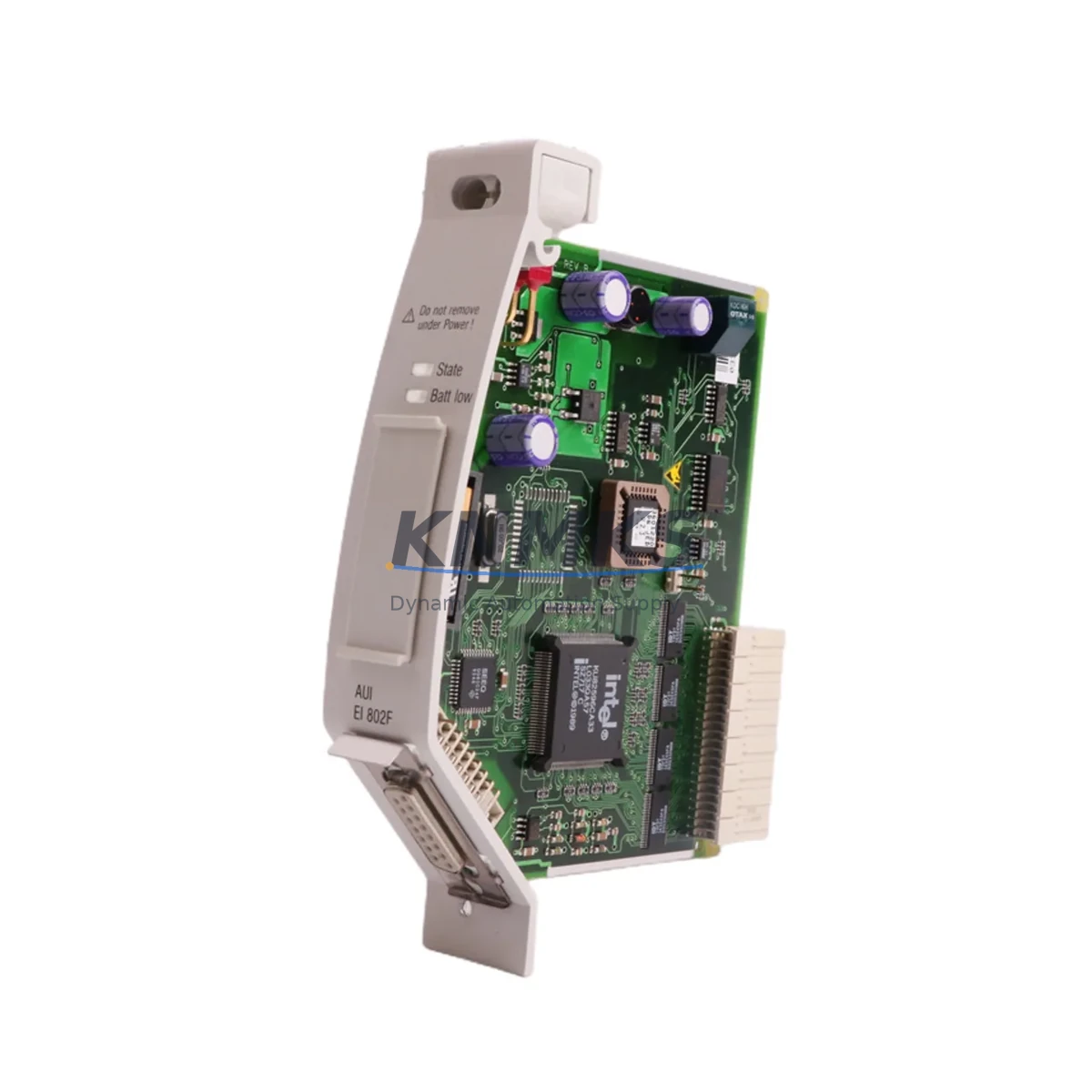

ABB EI802F 3BDH000016R1 Migration-Ready Ethernet AUI Module

Overview

ABB EI802F 3BDH000016R1 Migration-Ready Ethernet AUI Module: Legacy System Retrofit and Compatible Upgrade

The ABB EI802F (3BDH000016R1) is an Ethernet AUI communication interface module designed for integration within the ABB AC800M Distributed Control System platform. As industrial facilities face increasing pressure to modernize aging control infrastructure, the EI802F serves as a critical bridge component — enabling engineers to extend the operational life of existing AC800M-based control systems or execute structured migration paths toward current-generation DCS architectures such as ABB 800xA and Symphony Plus.

This module provides a reliable Ethernet AUI (Attachment Unit Interface) connection point within the AC800M controller rack, supporting high-availability communication between the controller and field devices, HMI stations, engineering workstations, and supervisory systems. Its compact form factor and direct backplane integration make it a preferred choice for retrofit projects where installation space within existing control cabinets is constrained.

For facilities operating legacy ABB Advant, MOD 300, or early-generation AC800M systems, the EI802F 3BDH000016R1 represents a validated replacement path that avoids the cost and risk of full platform migration. Engineers can maintain existing program logic, I/O mapping, and HMI screen configurations while upgrading the communication layer to meet current network infrastructure standards.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the EI802F 3BDH000016R1 into an existing control system requires a structured pre-retrofit assessment. Engineers should begin by auditing the current AC800M rack configuration, confirming available module slots, and verifying that the rack power supply — typically an SD821, SD822, or SD823 power supply module — has sufficient capacity to support the additional communication module load. Overloaded rack PSUs are a common cause of intermittent communication faults following module additions.

Before physical installation, the engineering team should export and archive the current Control Builder M project, including all hardware configuration files, function block libraries, and communication topology definitions. This ensures that if the new module address assignment conflicts with existing I/O module addressing — particularly when integrating alongside S800 I/O modules such as the AI810, AO810, or DI810 — the original configuration can be restored without data loss.

Communication link verification is essential prior to cutover. The EI802F connects the AC800M controller to the plant Ethernet network, and its integration must be validated against the existing network switch configuration, VLAN assignments, and any firewall rules governing OPC server or MMS communication paths. Where the facility operates a parallel HSE (High Speed Ethernet) fieldbus segment using CI854 or CI857 communication interface modules, engineers must confirm that the new Ethernet AUI path does not introduce IP address conflicts or routing anomalies.

For systems that include an OP500 or Panel 800 HMI, the retrofit plan should include a review of all HMI screen object bindings to confirm that tag addresses remain valid after the communication module swap. In cases where the legacy AUI interface was mapped to specific OPC server node configurations, the OPC address space may require partial reconfiguration following module replacement.

Where the control system includes a TB820 or TB840 Termination Unit for field signal routing, engineers should confirm that the physical termination wiring remains undisturbed during the module swap, minimizing the risk of signal interruption to connected field instruments. A pre-tested spare EI802F module, verified against the target firmware version, should be staged on-site before the maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live control system retrofit. For the EI802F 3BDH000016R1 replacement, the recommended approach is a planned maintenance window with a target duration of two to four hours, depending on the complexity of the communication topology and the number of dependent subsystems.

Prior to the maintenance window, the engineering team should perform a full backup of the AC800M controller application using Control Builder M, including all task configurations, communication object definitions, and hardware module assignments. A second backup should be stored on an isolated engineering workstation to provide a recovery path independent of the plant network.

During the swap, the controller should be placed in a controlled stop state rather than a hard power-down, where process conditions permit. This preserves the controller’s internal memory state and reduces the risk of output state changes that could affect field actuators or safety interlocks. After physical module replacement, the hardware configuration in Control Builder M must be updated to reflect the new module’s slot assignment and communication parameters before the controller is restarted.

Post-restart, the commissioning engineer should verify communication link status via the Control Builder M online diagnostic view, confirm that all I/O module status indicators return to normal, and validate that HMI tag updates are being received at the expected scan rate. A structured functional test covering critical control loops should be completed before the system is returned to automatic operation.

For facilities with redundant AC800M controller pairs, the EI802F replacement can be performed on one controller at a time while the redundant controller maintains process control, effectively reducing the operational impact to a brief bumpless transfer event rather than a full process shutdown.

Retrofit Support FAQ

Q1: Is the ABB EI802F 3BDH000016R1 a direct drop-in replacement for the original AUI interface module in my AC800M rack?
A: In most AC800M rack configurations, the EI802F is a direct slot replacement. However, engineers should verify the rack hardware revision and confirm that the Control Builder M hardware library supports the module’s firmware version. A hardware configuration update in CBM is required after physical installation.

Q2: What pre-shipment testing is performed on the EI802F 3BDH000016R1?
A: Each unit undergoes a functional power-on test and communication interface verification prior to shipment. Units are supplied with a support terms confirmed by quotation covering manufacturing defects. Test records are available upon request for quality-critical applications.

Q3: Can the EI802F be used in an AC800M system running an older firmware version?
A: Firmware compatibility depends on the specific AC800M controller revision and the installed Control Builder M version. We recommend confirming the target firmware version before ordering. Our technical team can assist with compatibility verification based on your system’s hardware and software revision data.

Q4: What is the typical lead time and stock availability for the EI802F 3BDH000016R1?
A: We maintain inventory of the EI802F 3BDH000016R1 to support urgent retrofit and breakdown replacement requirements. Standard orders ship within 3–7 business days. Express shipping options are available for emergency maintenance situations. Contact our sales team for current stock confirmation and lead time.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

EI802F 3BDH000016R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB EI802F 3BDH000016R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
