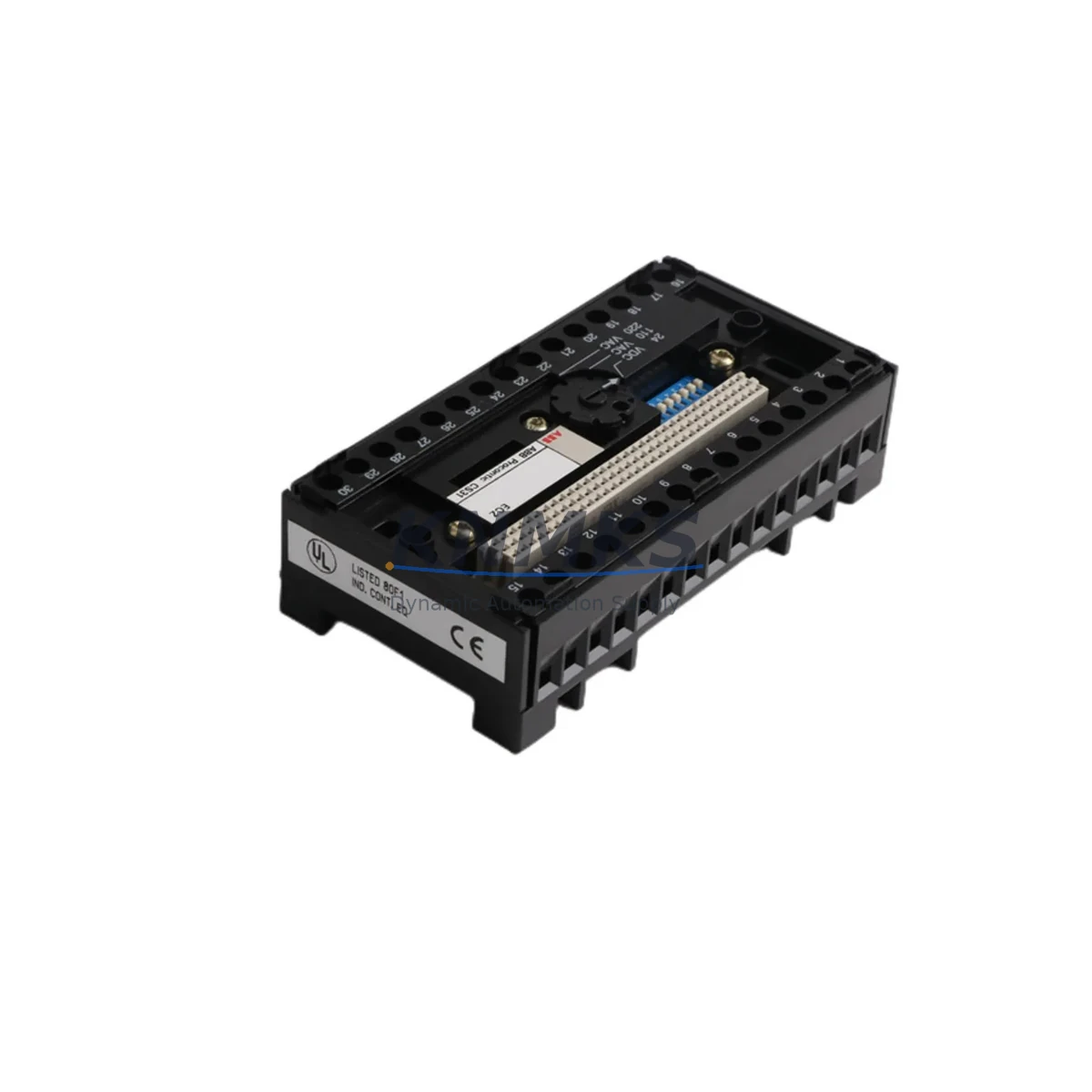

ABB ECZ FPR3700001R0001 Migration-Ready DCS Bus Module

Overview

ABB ECZ FPR3700001R0001 Migration-Ready DCS Bus Module: Legacy Control System Retrofit & Upgrade

The ABB ECZ FPR3700001R0001 is a DCS bus communication module designed for the AC800M controller platform. For facilities running aging Advant OCS, MOD 300, or early-generation AC800M installations, this module represents a verified, drop-in-compatible replacement that eliminates the need for full controller rack overhauls. Whether you are managing a planned shutdown upgrade or responding to an unplanned failure of a discontinued bus interface card, the FPR3700001R0001 provides a reliable path forward with minimal reprogramming and no backplane redesign.

When integrating this module into an existing control cabinet, engineers must first confirm the available power budget on the AC800M rack. The FPR3700001R0001 draws from the shared backplane supply, and in densely populated racks — particularly those also housing PM861, PM864, or PM866 processor modules alongside multiple CI854 or CI857 communication interface modules — the total rail current must be verified before installation. Exceeding the rated backplane capacity is a common cause of intermittent faults during post-retrofit commissioning.

Terminal wiring compatibility is a critical checkpoint. Legacy field wiring routed through TB820 or TB840 termination units must be mapped against the FPR3700001R0001 signal assignments. In many brownfield projects, the original wiring documentation is incomplete or reflects field modifications made without drawing updates. A physical point-to-point verification of all I/O connections before powering the new module is strongly recommended. Where signal isolation is required between legacy field devices and the new bus interface, inline signal isolators or barriers should be inserted at the marshalling cabinet level rather than relying on module-internal protection alone.

Module addressing must be reconfigured in Control Builder M following physical installation. The FPR3700001R0001 slot address is determined by its physical position in the S800 I/O station or AC800M local bus, and any mismatch between the hardware address and the software configuration will prevent the module from going online. Backup the existing controller project in Control Builder M before making any hardware changes. This preserves the original function block diagram, SFC sequences, and variable bindings, allowing a clean rollback if commissioning reveals unexpected behavior.

HMI screen updates are often overlooked during bus module replacements. If the plant uses an 800xA System or an older Operate IT environment, the faceplates and alarm configurations tied to the replaced bus segment may require re-association after the new module comes online. Coordinate with the DCS system integrator to confirm that all operator graphics correctly reflect the new I/O mapping before returning the loop to automatic control.

Communication link integrity should be validated end-to-end after installation. For installations where the FPR3700001R0001 interfaces with PROFIBUS DP field devices, confirm that the baud rate, station address range, and GSD file assignments in the PROFIBUS master configuration match the physical network. Termination resistors at both ends of the PROFIBUS segment must be active; a missing or double termination is a frequent source of intermittent communication errors that are difficult to diagnose under load.

Installation space in the control cabinet must be confirmed before ordering. The FPR3700001R0001 occupies a standard S800 module slot. In retrofit scenarios where the original rack is partially populated with older-generation modules of non-standard depth, physical clearance for the module body and its cable harness must be measured. Where space is constrained, relocation of adjacent modules or replacement of the rack with a higher-density S800 I/O station may be necessary.

Firmware version compatibility between the FPR3700001R0001 and the installed AC800M processor module should be confirmed against ABB’s compatibility matrix prior to installation. Mismatched firmware versions can result in the bus module being recognized but operating in a degraded or limited-function mode. If the processor module is running an older firmware baseline, a coordinated firmware update of both the processor and the bus module during the same maintenance window reduces the risk of version-related incompatibilities.

All units shipped from our inventory undergo functional verification testing prior to dispatch. Each FPR3700001R0001 is tested for bus communication integrity, backplane interface continuity, and power rail stability. A support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Inventory is maintained to support both planned procurement cycles and emergency replacement requirements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete audit of the existing control architecture. In a typical AC800M-based DCS installation, the FPR3700001R0001 bus module operates alongside a PM864 or PM866 processor module, one or more CI854 PROFIBUS DP communication interface modules, and a distributed array of S800 I/O modules handling analog and digital field signals. Before the replacement module arrives on site, the project engineer should have a confirmed slot map of the existing rack, a verified power budget calculation, and a printed copy of the current Control Builder M project as a reference baseline.

In older installations that also include an TP830 or TP854 termination panel, the physical cable routing between the termination panel and the bus module must be inspected for insulation degradation, connector corrosion, or non-standard field modifications. These issues are common in installations that have been in service for more than ten years and are frequently the root cause of communication instability after a module swap.

Where the retrofit scope extends beyond a single module replacement to a broader control system modernization, the FPR3700001R0001 is typically one component in a larger bill of materials that may include a replacement PM866 processor module, updated CI857 communication interface modules for FOUNDATION Fieldbus segments, a new SD821 or SD822 power supply module to support the increased current draw of modern I/O, and updated operator station software for the 800xA environment. Planning the installation sequence of these components — and confirming the firmware compatibility matrix across all of them — is essential to avoiding a situation where individual components are online but the system as a whole cannot establish a coherent communication topology.

Downtime Control During System Migration

Minimizing unplanned downtime during a bus module replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure the replacement FPR3700001R0001 offline using a bench test rack, confirm that it initializes correctly with the target firmware version, and verify its bus communication behavior before it enters the plant environment.

During the actual swap, the sequence should follow a defined procedure: isolate the affected I/O station from the process, export the current controller project from Control Builder M, physically replace the module, restore power, confirm module recognition in the hardware configuration, download the project, and perform a controlled loop check on all I/O points served by the replaced bus segment before returning to automatic. This sequence, when followed without shortcuts, typically allows a single bus module replacement to be completed within a two-to-four hour maintenance window, depending on the number of I/O points involved.

For critical process loops where even a brief interruption is unacceptable, a parallel installation strategy — where the new module is brought online in a shadow configuration before the old module is decommissioned — should be evaluated with the DCS system integrator. This approach requires additional rack space and a temporary increase in system complexity, but it eliminates the risk of an extended outage caused by unexpected commissioning issues.

Protecting the original program logic throughout the migration is non-negotiable. All function block diagrams, SFC sequences, alarm limits, and interlock configurations should be archived to a version-controlled project repository before any hardware changes are made. This ensures that if the migration encounters an unresolvable issue, the system can be restored to its pre-migration state without loss of configuration data.

Retrofit Support FAQ

Q: Is the ABB ECZ FPR3700001R0001 a direct replacement for discontinued legacy bus interface modules in the AC800M platform?
A: Yes. The FPR3700001R0001 is designed for the AC800M and S800 I/O platform and serves as a replacement for legacy bus communication modules that have reached end-of-life or been discontinued by ABB. Physical slot dimensions, backplane interface pinout, and software recognition in Control Builder M are consistent with the original module specification. Minor firmware updates may be required depending on the processor module version in the target rack.

Q: What commissioning steps are required after installing the FPR3700001R0001 in an existing rack?
A: After physical installation, confirm the module address in Control Builder M matches the hardware slot position, download the controller project, verify bus communication status in the diagnostic view, and perform a point-by-point I/O check on all signals served by the replaced bus segment. If PROFIBUS DP devices are connected, confirm baud rate, station addresses, and segment termination before enabling automatic control.

Q: How should field wiring be verified before connecting to the replacement module?
A: Perform a physical continuity check on all field cables from the termination unit (TB820 or TB840) back to the field device. Verify that signal polarity, shielding continuity, and insulation resistance meet the original design specification. Do not rely solely on existing wiring documentation in brownfield installations — field modifications made without drawing updates are common and can cause signal errors that are difficult to diagnose after the module is powered.

Q: What does the support terms confirmed by quotation cover, and how is inventory availability managed?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit is tested for bus communication integrity, backplane interface continuity, and power rail stability before dispatch. Inventory is maintained to support both planned procurement and emergency replacement requirements. Contact [email protected] or +86 18359268345 for current stock status and lead time confirmation.
