ABB ECPSR 086370-001 Migration-Ready Power Supply for Legacy Control Systems

Overview

ABB ECPSR 086370-001 Migration-Ready Power Supply for Legacy Control Systems

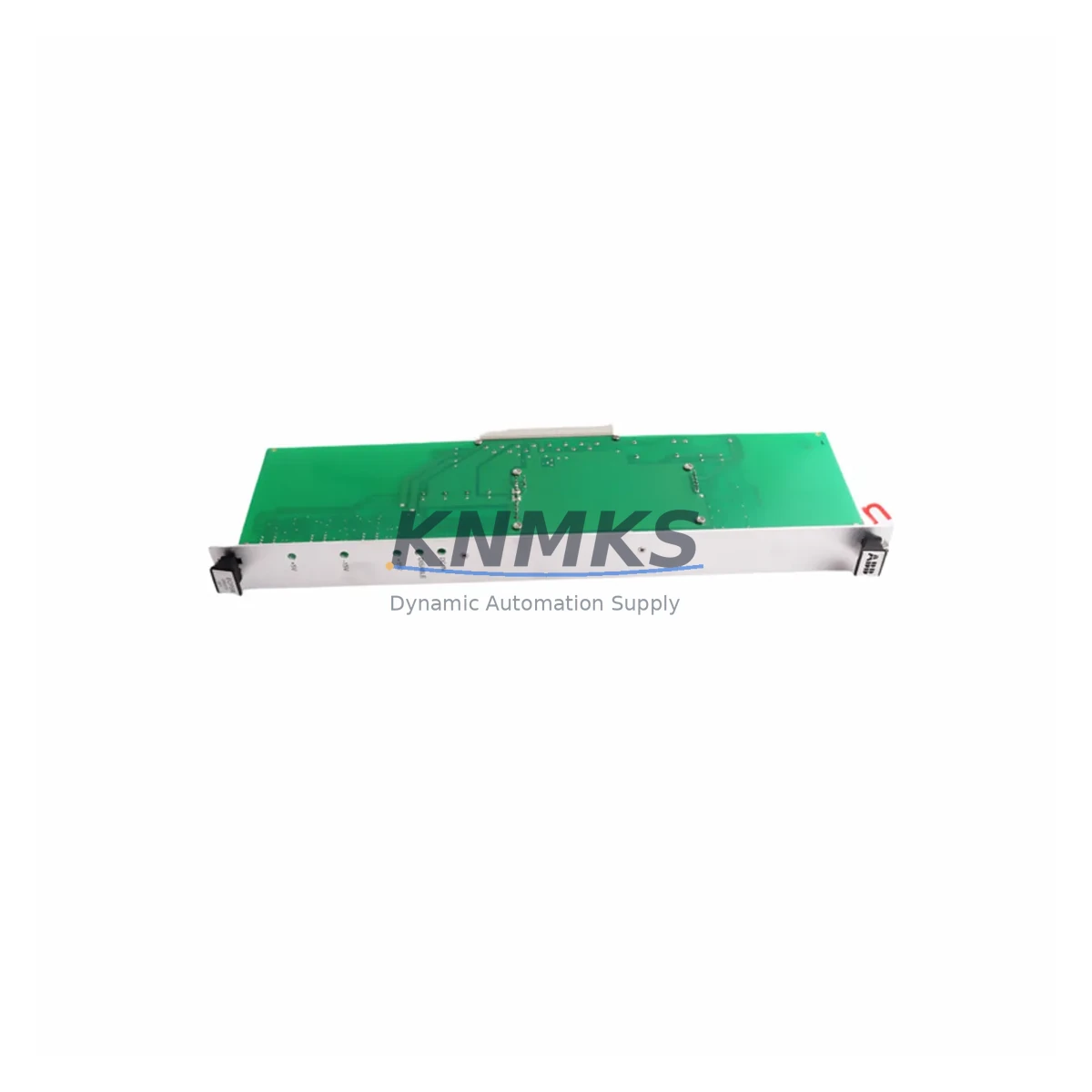

The ABB ECPSR 086370-001 is a migration-ready power supply module engineered for direct replacement in Accuray-based legacy control architectures and broader ABB distributed control system (DCS) environments. As industrial facilities accelerate end-of-life hardware retirement programs, the ECPSR 086370-001 provides a verified, pre-tested drop-in solution that eliminates the extended lead times and compatibility risks typically associated with obsolete power supply procurement. Whether your facility is executing a scheduled outage upgrade or responding to an unplanned failure, this module is stocked for immediate global dispatch with a support terms confirmed by quotation covering all shipped units.

The ECPSR 086370-001 is specifically designed to support control cabinet modernization projects where the original power supply has reached end-of-support status. Engineers undertaking Accuray system retrofits must verify several critical parameters before installation: rated input voltage range, output DC rail specifications, terminal block pitch and wiring compatibility, backplane connector type, and physical footprint within the existing cabinet enclosure. This module maintains dimensional and electrical compatibility with the original Accuray power supply slot, reducing the need for cabinet rework and minimizing installation time during planned maintenance windows.

In multi-module control cabinets, the ECPSR 086370-001 typically operates alongside I/O expansion modules, communication interface cards, and controller backplanes. During migration planning, teams should confirm that the replacement power supply’s output current capacity is sufficient to support all co-installed modules — including any newly added Ethernet communication modules or additional analog I/O cards introduced as part of the upgrade scope. Load calculations should account for worst-case simultaneous module activation, particularly in systems where safety relay modules or signal isolators draw transient startup current.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ECPSR 086370-001 into an existing Accuray control system requires a structured pre-installation checklist. Before removing the legacy power supply, engineers should document all active terminal connections using the original wiring diagram and photograph the as-found cabinet layout. This is especially important in systems where the power supply feeds both the controller backplane and auxiliary field devices through shared DC bus rails.

In Accuray-based architectures, the power supply module typically shares the rack with the main controller module, analog input/output cards, and in some configurations, a dedicated communication gateway module for Modbus RTU or PROFIBUS DP connectivity. When upgrading the power supply as part of a broader migration — for example, transitioning from a legacy serial communication backbone to an Ethernet-based PROFINET or Modbus TCP topology — the new power supply must be confirmed to support the increased current draw of the updated communication modules. Teams should also verify that any signal isolators or loop-powered transmitters connected to the I/O cards remain within the power budget of the replacement unit.

For facilities running parallel migration phases, where legacy Accuray controllers operate alongside newer ABB AC500 PLC modules or third-party SCADA gateways during a transition period, the ECPSR 086370-001 provides a stable interim power solution that does not require changes to the existing program logic, HMI tag mapping, or field instrument wiring. This makes it particularly valuable in Phase 1 migration scenarios where the goal is hardware stabilization before full system cutover.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy power supply replacement project. The ECPSR 086370-001 is stocked for same-day dispatch, which directly addresses the most common cause of extended outages: parts unavailability. For facilities with planned maintenance windows, we recommend pre-positioning a spare unit on-site at least two weeks before the scheduled outage date.

During the physical swap, the original program logic stored in the controller module is unaffected by the power supply replacement — provided the controller retains its memory during the brief power interruption. Engineers should confirm whether the installed controller module uses battery-backed RAM or flash memory for program storage before proceeding. If battery-backed, verify battery health prior to the outage. For systems where the controller does not retain memory through a power cycle, a full program backup should be extracted via the engineering workstation and the programming cable before the power supply is removed.

Post-installation commissioning for a like-for-like power supply swap is typically limited to: verifying DC output voltage at the backplane connector, confirming all I/O module status LEDs return to normal operating state, and checking communication link continuity between the controller and any connected HMI panels or SCADA hosts. No changes to module addressing, network configuration, or HMI screen logic are required for a direct ECPSR 086370-001 replacement.

Retrofit Support FAQ

Q1: Is the ECPSR 086370-001 a direct replacement for the original Accuray power supply module?
Yes. The ECPSR 086370-001 is a like-for-like replacement designed for direct installation into the original Accuray rack slot. No mechanical adapters, wiring modifications, or firmware updates are required. All units are pre-tested before shipment to confirm full functional compliance.

Q2: What wiring checks are required before installation?
Verify input voltage supply (AC or DC, depending on your cabinet configuration), confirm terminal block pitch matches the existing wiring harness, and check that wire gauge and insulation ratings are within the module’s specified range. Re-torque all terminal connections to the manufacturer’s specified value after installation.

Q3: How does this replacement affect the existing HMI and SCADA configuration?
A power supply swap does not affect HMI tag databases, SCADA communication links, or controller program logic. After installation and power-up, the system should resume normal operation without any configuration changes. If communication faults appear post-installation, check the communication module’s power rail voltage first.

Q4: What is the support terms coverage and what happens if the unit is DOA?
All ECPSR 086370-001 units ship with a support terms confirmed by quotation from the date of delivery. In the event of a dead-on-arrival (DOA) unit, a replacement is dispatched within 24 hours of confirmed fault diagnosis. Support terms coverage includes manufacturing defects and functional failures under normal operating conditions.
