ABB 35NE90 GJR4500400R1 Migration-Ready Power Supply for Legacy Control Systems

Overview

ABB 35NE90 GJR4500400R1 Migration-Ready Power Supply for Legacy Control Systems

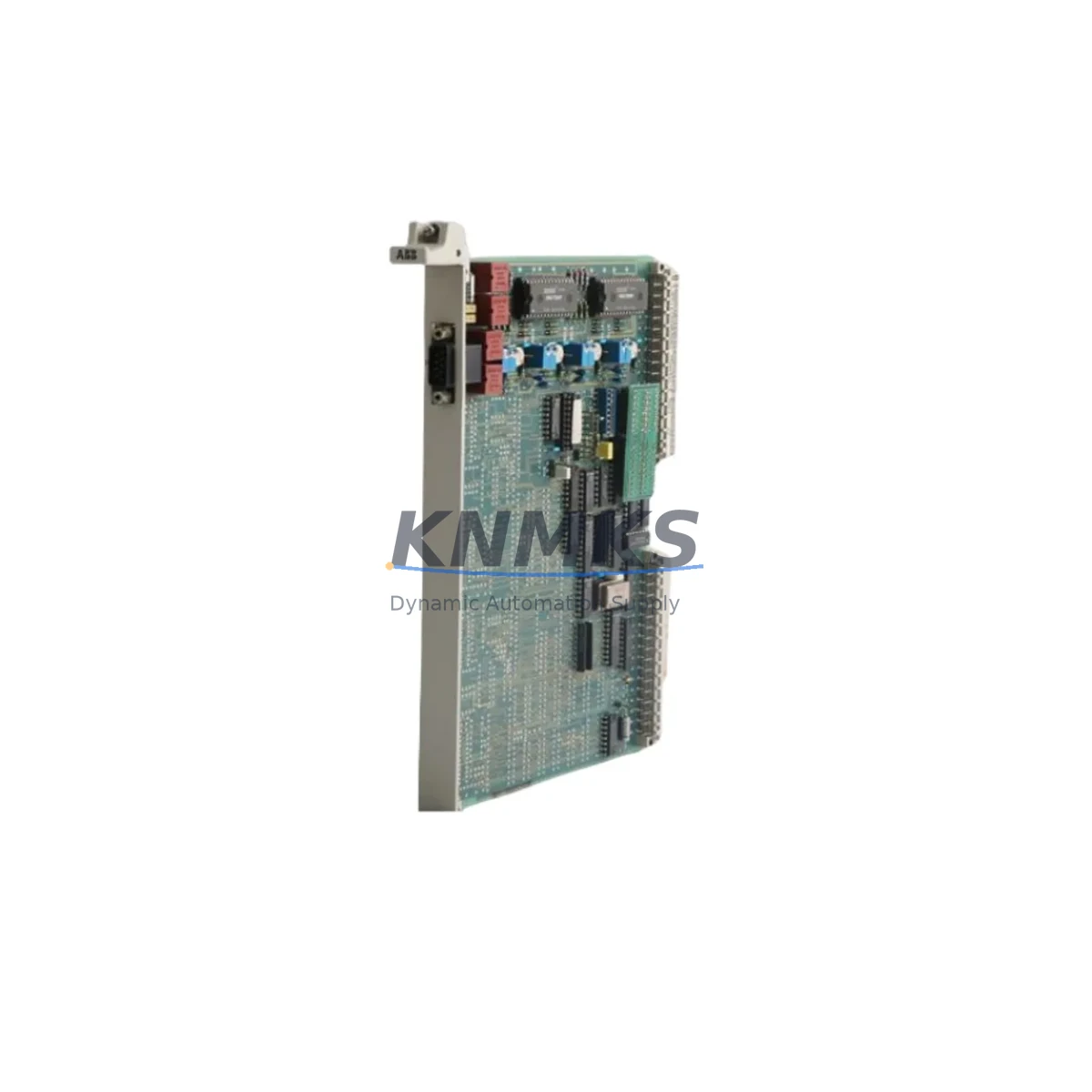

The ABB 35NE90 (part number GJR4500400R1, ordering code 220AC140E6-5/20/20N) is a 220 VAC input power supply module engineered for the Advant AC110 distributed control platform. As ABB progressively phases out the AC110 product line in favour of the AC500 and AC800M families, the 35NE90 has become one of the most sought-after spare parts for plants that must sustain legacy control cabinets while planning a phased migration. Whether you are extending the operational life of an existing AC110 rack or executing a full control-system retrofit, this module provides the stable, regulated DC bus voltage that every I/O module, communication processor, and field interface card in the cabinet depends upon.

Each unit supplied by KNMKS is sourced from verified industrial channels, subjected to pre-shipment functional testing under rated load conditions, and backed by a support terms confirmed by quotation covering manufacturing defects and premature failure. Stock is maintained to support both emergency breakdown orders and planned maintenance schedules, with global logistics available for same-week dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A power supply replacement in an AC110 cabinet rarely occurs in isolation. In most retrofit scenarios, the 35NE90 is replaced alongside — or immediately before — a broader modernisation effort that touches multiple layers of the control architecture. Understanding the interdependencies between the PSU and adjacent modules is essential for a low-risk, low-downtime changeover.

Backplane and rack integrity: Before installing the 35NE90, inspect the AC110 rack backplane for oxidised contacts or cracked PCB traces — common in cabinets that have operated for more than 15 years. If the backplane shows signs of degradation, a concurrent rack replacement using an ABB Advant AC110 spare rack assembly should be planned. Attempting to run a new PSU into a compromised backplane will produce intermittent faults that are difficult to diagnose in the field.

I/O module power budget: The AC110 rack may house a mix of digital input modules (e.g., ABB DSDI 110A), digital output modules (ABB DSDO 115A), and analogue I/O cards. Each module draws current from the DC bus supplied by the 35NE90. Before commissioning, calculate the total current demand across all populated slots and confirm it remains within the PSU’s rated output capacity. Overloading the bus is a leading cause of premature PSU failure in legacy racks that have had additional I/O cards added over the years.

Communication processor continuity: Many AC110 installations include a communication processor such as the ABB DSCS 110 or a MasterBus 300 interface module. These cards maintain the live data link between the AC110 rack and the supervisory SCADA or DCS layer. During a PSU swap, the communication link will be interrupted. Coordinate with the control room to place the affected loop in manual mode, notify operators, and document the expected outage window. After restoration, verify that all MasterBus 300 or PROFIBUS DP node addresses are correctly re-established and that the SCADA historian resumes data collection without gaps.

HMI and operator station alignment: If the AC110 system feeds process values to an ABB Advant Station or a third-party HMI panel, confirm that the HMI screens return to normal display after the PSU is restored. Stale or frozen values on the HMI are a common post-maintenance finding when the communication processor requires a manual reset after a cold-start power cycle.

Signal isolation and field wiring: In cabinets where the AC110 rack shares a common earth with field instruments, a PSU replacement is an appropriate moment to inspect signal isolators and surge protection devices on analogue input channels. Degraded isolators can introduce ground loops that manifest as measurement drift — a fault that is often misattributed to the PSU itself. Replacing aged signal isolators during the same maintenance window avoids a second planned outage.

Programming cable and backup: Before any power interruption, use an ABB Advant programming cable (or compatible USB-to-serial adapter) to perform a full programme backup from the AC110 controller. Store the backup on an offline medium. Although a PSU replacement does not alter the programme memory — which is battery-backed in the AC110 CPU module — having a verified backup eliminates risk in the event of an unexpected CPU reset during the power cycle.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern for any maintenance team working on a legacy AC110 installation. The 35NE90 is a hot-swap-capable module in racks that support redundant PSU configurations; however, most single-PSU AC110 installations require a brief controlled shutdown. The following practices are recommended to keep the outage window as short as possible and to protect the integrity of the running process.

Pre-work preparation: Confirm that the replacement 35NE90 has been tested and is ready to install before scheduling the outage. KNMKS performs pre-shipment load testing on every unit, but a bench verification at site — applying rated input voltage and measuring DC bus output with a calibrated multimeter — takes less than five minutes and eliminates the risk of installing a unit that was damaged in transit.

Programme and configuration protection: The AC110 CPU module retains its programme in battery-backed SRAM. Verify that the CPU battery is within its service life (typically 5–7 years) before the outage. A depleted battery combined with an extended power interruption can result in programme loss, converting a routine PSU swap into a full system recovery exercise. If the battery is near end-of-life, replace it during the same maintenance window.

Controlled shutdown sequence: Place all output modules in a safe state (outputs de-energised or held at last value, depending on process requirements) before removing power. This prevents field actuators from responding unpredictably to the loss of the DC bus. Document the shutdown sequence and assign a dedicated technician to monitor field conditions throughout the outage.

Restoration and verification: After installing the 35NE90 and restoring AC input power, allow the DC bus to stabilise for 30 seconds before re-enabling I/O modules. Check all bus voltage LED indicators on the PSU faceplate. Confirm that the CPU module has resumed programme execution (RUN LED active) and that all I/O modules have returned to their normal operating state. Re-establish communication links and confirm SCADA data flow before returning the process to automatic control.

Post-maintenance documentation: Record the installation date, the serial number of the replaced unit, and the results of the post-installation verification checks. This documentation supports future maintenance planning and provides evidence of due diligence for regulatory or insurance purposes.

Retrofit Support FAQ

Q1: Is the 35NE90 GJR4500400R1 a direct drop-in replacement for the earlier GJR4500400R0 revision?
Yes. The R1 revision is fully backward-compatible with the R0 revision at the backplane connector and electrical interface level. No wiring changes or configuration adjustments are required. The R1 revision incorporates minor component updates that improve thermal performance and long-term reliability, making it the preferred replacement for any R0 unit that has reached end-of-life.

Q2: What pre-shipment testing does KNMKS perform on the 35NE90?
Every unit undergoes functional load testing at rated input voltage (220 VAC) with a resistive load applied to each DC output rail. Output voltages are measured and recorded against ABB’s published tolerance bands. Units that fail to meet specification are quarantined and not shipped. A test record is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can the 35NE90 be used in an AC110 rack that has been partially migrated to AC500 I/O modules?
No. The AC500 platform uses a different backplane architecture and power distribution scheme. The 35NE90 is designed exclusively for the AC110 rack backplane. If your migration strategy involves running AC110 and AC500 hardware in the same cabinet, the AC500 I/O stations must be powered by a dedicated AC500-compatible power supply unit, separate from the AC110 rack PSU.

Q4: What is the typical lead time and are quantity orders supported?
Stock units are available for same-week dispatch. For quantity orders supporting planned maintenance programmes or multi-site spare parts agreements, KNMKS can provide a dedicated inventory allocation with a 12–36 month supply horizon. Contact the sales team to discuss volume pricing and consignment stock arrangements.
