ABB DTCC901B 61430001-FU Migration-Ready DCS Module

Overview

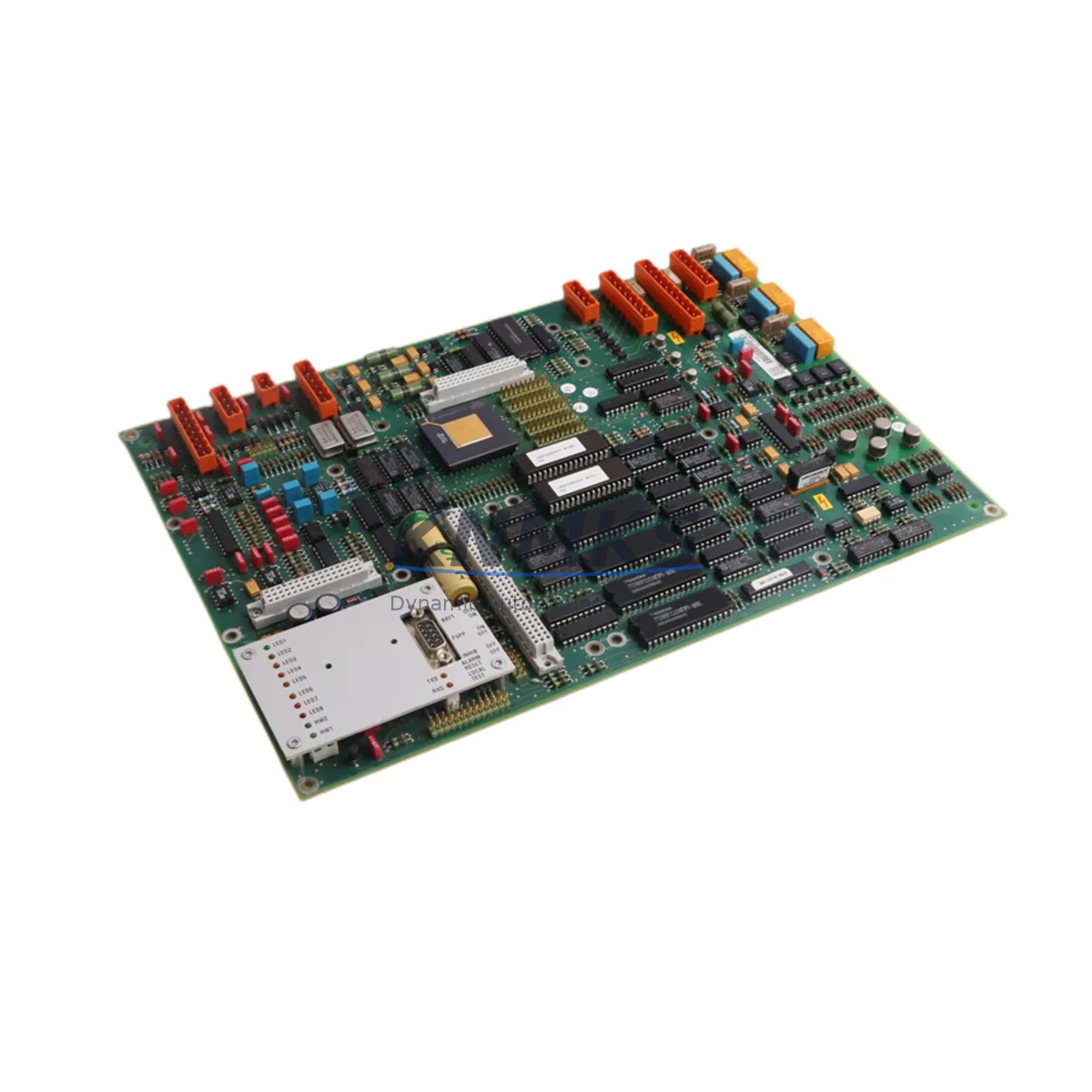

ABB DTCC901B 61430001-FU Migration-Ready DCS Module for Legacy Control Systems

The ABB DTCC901B 61430001-FU is a communication module engineered for the AC800M Distributed Control System platform, widely deployed across process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As legacy AC800M installations approach end-of-support milestones and original ABB DTCC901B units become increasingly difficult to source through standard distribution channels, this module serves as a verified drop-in replacement that preserves existing rack geometry, backplane pinout, and communication protocol behavior without requiring controller reprogramming or HMI screen redesign.

KNMKS maintains ready inventory of the DTCC901B 61430001-FU to support unplanned failures, scheduled turnaround maintenance, and phased control system modernization programs. Each unit ships with a support terms confirmed by quotation and passes pre-shipment functional verification covering power-up diagnostics, communication link establishment, and module addressing confirmation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DTCC901B retrofit begins well before the module arrives on site. Engineering teams should pull the existing rack configuration report from the AC800M engineering workstation — typically generated through ABB Control Builder M — and cross-reference every module slot assignment against the current hardware inventory. In most AC800M cabinets, the DTCC901B occupies a dedicated communication slot adjacent to the PM866 or PM891 processor module, and the slot address is embedded in the application program’s hardware configuration tree. Confirming this address before removal prevents the controller from generating a hardware mismatch fault on restart.

Power budget verification is a frequently overlooked step. The AC800M rack draws consolidated power through the SD802F or SD803F power supply module, and adding or replacing communication modules can shift the total current draw. Engineers should calculate the updated rack load against the power supply’s rated output, particularly in cabinets where AI810, AO810, or DI810 I/O modules already consume a significant portion of available capacity. A marginal power budget is a common root cause of intermittent communication faults after module replacement.

For sites running PROFIBUS DP or Modbus RTU communication links through the existing DTCC901B, the replacement module must be confirmed to support the same protocol variant and baud rate. Communication parameters — including station address, baud rate, parity, and stop bits — are stored in the controller application and do not need to be re-entered, but the physical link should be tested with a protocol analyzer before returning the loop to automatic control. Where the site also operates CI854 or CI857 fieldbus communication interface modules in the same rack, their configuration is independent and unaffected by the DTCC901B swap.

HMI screens connected to the AC800M via OPC DA or OPC UA server links will continue to function without modification, as the communication module replacement is transparent to the data server layer. However, sites using ABB 800xA System with aspect-based engineering should verify that the hardware object representing the DTCC901B slot does not carry site-specific aspect data that would be lost during the swap. A configuration backup taken immediately before removal is standard practice and takes less than five minutes using Control Builder M’s export function.

Physical installation requires the rack to be de-energized or, where hot-swap is supported by the specific rack variant, the slot to be logically disabled from the engineering workstation before extraction. The replacement DTCC901B 61430001-FU should be inserted firmly until the backplane connector seats fully, and the module locking lever engaged before power is restored. Post-installation, the controller will perform an automatic module recognition cycle; engineers should monitor the diagnostic display on the PM866 or PM891 processor to confirm the communication module status LED transitions from fault to normal within the expected initialization window.

Downtime Control During System Migration

Minimizing process downtime during a DTCC901B replacement requires a structured pre-outage preparation sequence. The most effective approach is to complete all engineering verification steps — slot address confirmation, power budget calculation, firmware version check, and configuration backup — during normal operation, so that the physical swap window is limited to module extraction, insertion, and communication link verification only. In well-prepared retrofits, the physical replacement can be completed in under 30 minutes.

Where the process cannot tolerate even a brief interruption, sites with redundant AC800M controller pairs can execute the replacement on the standby controller first, verify full communication restoration, then perform a controlled switchover before replacing the active controller’s module. This approach keeps the process loop in automatic control throughout the maintenance window and eliminates the risk of an unplanned trip caused by a communication fault during module initialization.

Original application logic stored in the AC800M controller memory is not affected by communication module replacement. The program resides in the processor module’s non-volatile memory and continues to execute during the module swap if the controller remains powered. Field devices connected through I/O modules will hold their last commanded output state during the brief communication interruption, which is the standard fail-safe behavior for AC800M I/O modules operating in their configured fallback mode.

After the replacement module is confirmed operational, a full loop check covering all communication-dependent control loops should be completed before the process is returned to automatic. KNMKS recommends documenting the as-found and as-left module serial numbers, firmware versions, and communication link test results in the site’s maintenance management system to support future audits and spare parts planning.

Retrofit Support FAQ

Q: Is the DTCC901B 61430001-FU a direct replacement for the original ABB DTCC901B without any program changes?
A: Yes. The DTCC901B 61430001-FU is a form-fit-function replacement for the original DTCC901B. It uses the same backplane connector, occupies the same rack slot, and is recognized by the AC800M controller using the same hardware configuration entry. No changes to the application program, hardware configuration tree, or HMI screens are required.

Q: What pre-shipment testing does KNMKS perform on the DTCC901B 61430001-FU?
A: Each unit undergoes power-up diagnostics, communication bus initialization verification, and module addressing confirmation before shipment. Units that fail any test stage are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q: How should I verify firmware compatibility before installing the replacement module?
A: Check the AC800M controller’s current firmware version in Control Builder M under the hardware configuration properties. Cross-reference this against ABB’s firmware compatibility matrix for the DTCC901B. If your site runs a firmware version that requires a specific DTCC901B hardware revision, contact KNMKS sales with your controller firmware version and we will confirm compatibility before shipment.

Q: What does the support terms confirmed by quotation cover, and what is the process for a support terms claim?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Dead-on-arrival units are replaced at no charge with expedited shipping. For support requests, contact [email protected] with the order number, module serial number, and a description of the fault. KNMKS will issue a return authorization and ship a replacement unit within 3 business days of claim confirmation.
