ABB DSTK228SL3 3BSC950174R30 Spare Part for Factory Uptime

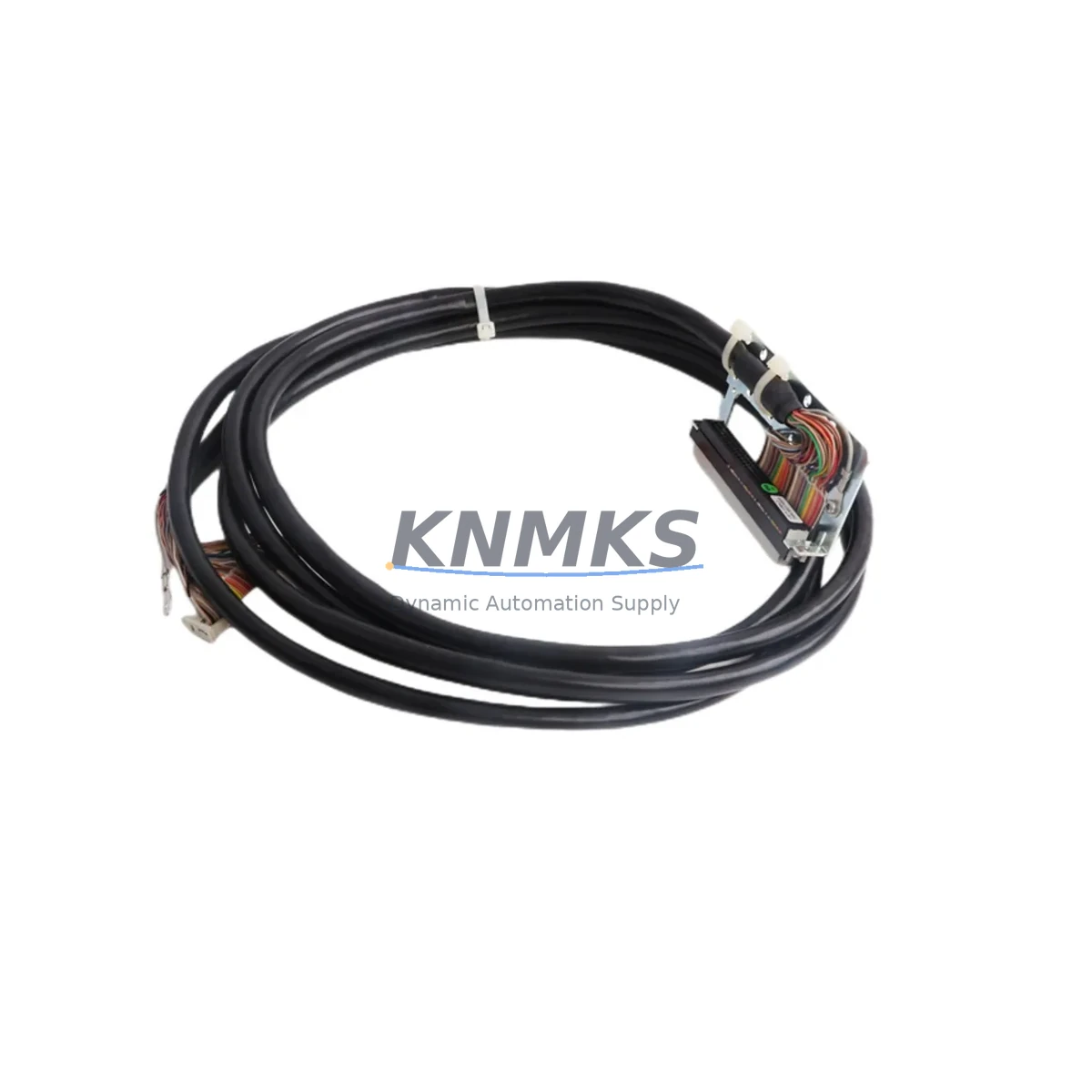

The ABB DSTK228SL3 (part number 3BSC950174R30) is an original ribbon cable assembly designed for the ABB AC800M Distributed Control System (DCS) platform. As a maintenance-proven spare part, it plays a critical role in sustaining signal integrity between processor modules, I/O boards, and communication backplanes in continuous-process and discrete manufacturing environments. Sourced from verified supply channels and dispatched with full inspection, this cable is a reliable choice for maintenance engineers managing aging AC800M installations or building strategic spare parts inventories.

Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or proactively stocking your control cabinet spares kit, the DSTK228SL3 delivers the dimensional accuracy, connector compatibility, and signal shielding required by ABB’s AC800M architecture. Each unit is tested prior to dispatch and covered by a support terms confirmed by quotation, giving procurement engineers confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DSTK228SL3 ribbon cable in an AC800M control cabinet, a thorough maintenance engineer will treat the cable swap as an opportunity to inspect the entire signal chain. Begin by verifying the condition of the PM856 or PM864 processor module seated at the cable’s source end — connector pins on aging modules can develop oxidation that mimics cable faults. Check the TB820 or TB840 I/O termination unit at the cable’s destination for bent pins, cracked housings, or loose locking tabs.

Inspect the 24 VDC power supply rail feeding the I/O rack; voltage sag under load is a common root cause of intermittent communication errors that are incorrectly attributed to cable failure. If the cabinet includes a CI854 or CI857 PROFIBUS/PROFINET communication interface module, verify its status LEDs and check for loose fiber or copper communication cables that may have been disturbed during the ribbon cable replacement procedure.

For cabinets running mixed analog and digital I/O, inspect the AI810 or AO810 analog I/O modules adjacent to the replaced cable path — mechanical vibration during cable removal can loosen module seating. Additionally, review the condition of DIN rail terminal blocks and fuse holders in the same cabinet section; a blown fuse on a 24 VDC branch circuit can cause symptoms identical to a failed ribbon cable. Maintaining a spare DSTK228SL3 alongside a spare PM856 processor module and a set of TB820 termination units is a recognized best practice for AC800M installations with high uptime requirements.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the fault via AC800M diagnostic logs in ABB Control Builder. A ribbon cable failure typically presents as a persistent I/O communication fault or a module offline alarm on a specific I/O cluster.

Step 2 — Safe Isolation: Place the affected controller in manual or backup mode per your site safety procedure. De-energize the I/O rack section if required by your LOTO protocol.

Step 3 — Cable Removal: Depress the locking tabs on both ends of the DSTK228SL3 and withdraw the cable with even, straight pull force. Do not twist or lever the connector body.

Step 4 — Inspection: Inspect the vacated connector sockets on both the processor module and the I/O termination unit for debris, bent pins, or corrosion before inserting the replacement cable.

Step 5 — Installation: Align the keyed connector of the new DSTK228SL3 (3BSC950174R30) and press firmly until the locking tabs click. Verify seating visually on both ends.

Step 6 — Restoration and Verification: Re-energize the rack, observe module status LEDs, and confirm I/O communication restoration in Control Builder. Log the replacement in your CMMS with the part number, date, and technician ID.

This workflow supports a target return-to-service time of under 30 minutes for a trained technician with the spare part on hand, minimizing production loss during unplanned shutdowns.

Spare Parts Support FAQ

Q1: Is the DSTK228SL3 (3BSC950174R30) compatible with all AC800M controller variants?
The DSTK228SL3 is designed for the AC800M platform and is compatible with the PM851, PM856, PM860, PM861, PM864, and PM866 processor families when used with the corresponding I/O termination units. Always cross-reference your system’s hardware revision against ABB’s compatibility matrix or contact our technical team before ordering if you are unsure of your exact configuration.

Q2: What is included in the support terms confirmed by quotation and how does it apply?
Each DSTK228SL3 unit is functionally tested prior to dispatch. The support terms confirmed by quotation cover manufacturing defects and connector integrity from the date of shipment. It does not cover damage resulting from incorrect installation, over-voltage events, or physical mishandling. Support requests are processed with photographic evidence and a return authorization.

Q3: Can you support long-term or blanket purchase orders for ongoing AC800M maintenance programs?
Yes. We support scheduled delivery agreements and blanket PO arrangements for maintenance teams managing multiple AC800M installations. Long-term supply commitments allow us to reserve stock and provide price stability across your annual maintenance budget cycle. Contact our sales team to discuss volume and delivery terms.

Q4: How do you verify authenticity and condition before dispatch?
All units undergo visual inspection, connector continuity verification, and packaging integrity checks before shipment. We source from authorized distribution channels and maintain traceability records. A test report or inspection certificate can be provided upon request for quality-critical procurement processes.
