ABB DSTF610 HESN119032P1 Maintenance-Proven Spare Part

Overview

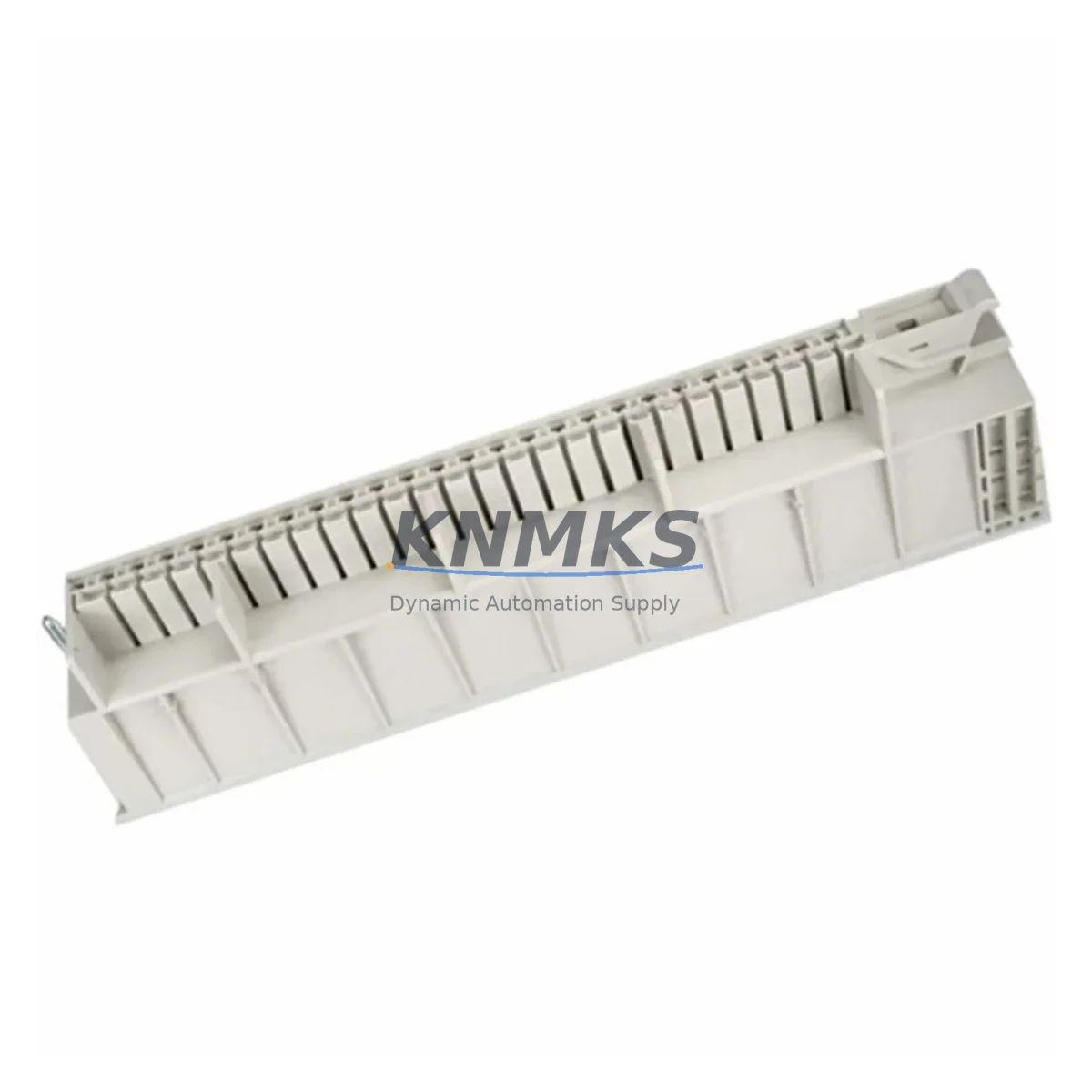

ABB DSTF610 HESN119032P1 Maintenance-Proven Spare Part for Factory Uptime

The ABB DSTF610 HESN119032P1 is an original process connector module designed for deployment within ABB’s AC800M controller platform and 800xA Distributed Control System (DCS) architecture. For maintenance engineers managing continuous-process facilities — refineries, chemical plants, pulp and paper mills, and power generation sites — this module represents a critical link between the controller backplane and field I/O instrumentation. Sourcing a verified, tested replacement unit is essential to minimizing unplanned downtime and restoring loop integrity after a fault event.

At KNMKS, every DSTF610 HESN119032P1 unit is inspected, function-tested, and shipped with a support terms confirmed by quotation. Our inventory supports both emergency breakdown orders and planned annual maintenance procurement cycles, with fast international dispatch and full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSTF610 HESN119032P1 process connector module fails or is flagged during a scheduled inspection, the fault rarely exists in isolation. Experienced maintenance engineers know that a connector module fault can cascade from — or trigger — issues in adjacent components within the same control cabinet or I/O loop. Before returning the system to service, a structured inspection of the surrounding hardware is strongly recommended.

Power supply integrity should be verified first. The AC800M platform relies on stable 24 VDC rail power; units such as the ABB SD831 or SD832 power supply modules should be checked for output voltage stability and ripple. A degraded power supply is a common root cause of intermittent connector module faults and should be treated as a co-suspect during any DSTF610 replacement event.

Backplane and baseplate condition is the next priority. The DSTF610 interfaces directly with the AC800M baseplate bus. Inspect the baseplate connector pins for oxidation, mechanical damage, or contamination. If the baseplate shows wear, consider stocking an AC800M TB820V2 Modulebus Optical Port or equivalent communication interface module as a precautionary spare, particularly in high-vibration or high-humidity environments.

I/O module continuity across the affected loop should be confirmed. S800 I/O modules — including AI810, AO810, DI810, and DO810 series cards — connected through the process connector should be individually verified for correct addressing and signal integrity. A single failed I/O card can mask or mimic a connector module fault, leading to misdiagnosis and extended downtime.

Communication path validation is equally important. If the DSTF610 supports Modulebus or PROFIBUS connectivity in your configuration, inspect the associated CI854 PROFIBUS DP interface module or CI801 Modulebus adapter for firmware version compatibility and physical connector condition. Communication module faults are frequently overlooked during emergency replacements and can cause recurring alarms after the primary spare is installed.

Terminal blocks and field wiring connected to the I/O loop should be inspected for loose terminations, insulation degradation, and correct labeling. In older 800xA installations, TB811 or TB825 terminal units may show contact wear that contributes to signal noise or open-circuit faults. Replacing worn terminal units during the same maintenance window avoids a second unplanned outage.

Finally, fuse and surge protection components in the field loop should be checked. Blown fuses in the 24 VDC supply circuit or failed surge arrestors on analog input channels are common secondary findings during process connector module replacements. Maintaining a small buffer stock of compatible fuse inserts and signal isolators reduces mean time to repair (MTTR) for future events.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the DSTF610 HESN119032P1, record the current module address, DIP switch settings (if applicable), and any active alarms in the 800xA operator station. Take a photograph of the wiring and connector orientation for reference during reinstallation.

Step 2 — De-energize safely. Follow your site’s lockout/tagout (LOTO) procedure for the affected cabinet section. Confirm that the 24 VDC backplane supply to the module slot is isolated before extraction.

Step 3 — Extract and inspect. Remove the DSTF610 module from the baseplate. Inspect the backplane connector on both the module and the baseplate for damage. Clean connector contacts with an appropriate electronics-grade contact cleaner if contamination is present.

Step 4 — Install the replacement unit. Seat the new DSTF610 HESN119032P1 firmly into the baseplate slot. Confirm that address settings match the original configuration. Re-energize the backplane supply and observe the module status LEDs for normal initialization behavior.

Step 5 — Validate in 800xA. From the 800xA engineering station, confirm that the replacement module is recognized, all I/O channels are reporting correctly, and no new alarms are active. Perform a loop check on critical analog and digital signals before returning the loop to automatic control.

Step 6 — Update maintenance records. Log the replacement event, the new module serial number, and the date in your CMMS or maintenance logbook. Schedule a follow-up inspection at the next planned shutdown to verify long-term connector integrity.

Spare Parts Support FAQ

Q1: Is the DSTF610 HESN119032P1 compatible with both AC800M and older Advant OCS systems?
The DSTF610 is primarily designed for the ABB AC800M platform and the 800xA DCS environment. Compatibility with legacy Advant OCS configurations depends on the specific baseplate and firmware revision in use at your site. We recommend providing your system version details when placing an order so our technical team can confirm compatibility before shipment.

Q2: What testing is performed before shipment?
Every DSTF610 HESN119032P1 unit dispatched from KNMKS undergoes functional power-on testing and visual inspection for connector integrity, PCB condition, and labeling accuracy. Units that do not pass inspection are quarantined and not offered for sale. A test report is available upon request for critical procurement orders.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on site. In the event of a support terms claim, KNMKS will arrange replacement or repair with priority handling to minimize your downtime exposure.

Q4: Can KNMKS support long-term or blanket purchase orders for AC800M spare parts?
Yes. KNMKS supports annual maintenance contracts and blanket PO arrangements for customers managing large AC800M or 800xA installations. We can reserve inventory, provide scheduled delivery windows, and issue consolidated documentation packages to support your procurement and audit requirements. Contact our sales team to discuss a tailored supply agreement.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
