ABB DSQC572 3HAC023242-001 Maintenance-Proven Spare for IRC5

Overview

ABB DSQC572 3HAC023242-001 Maintenance-Proven Spare for IRC5

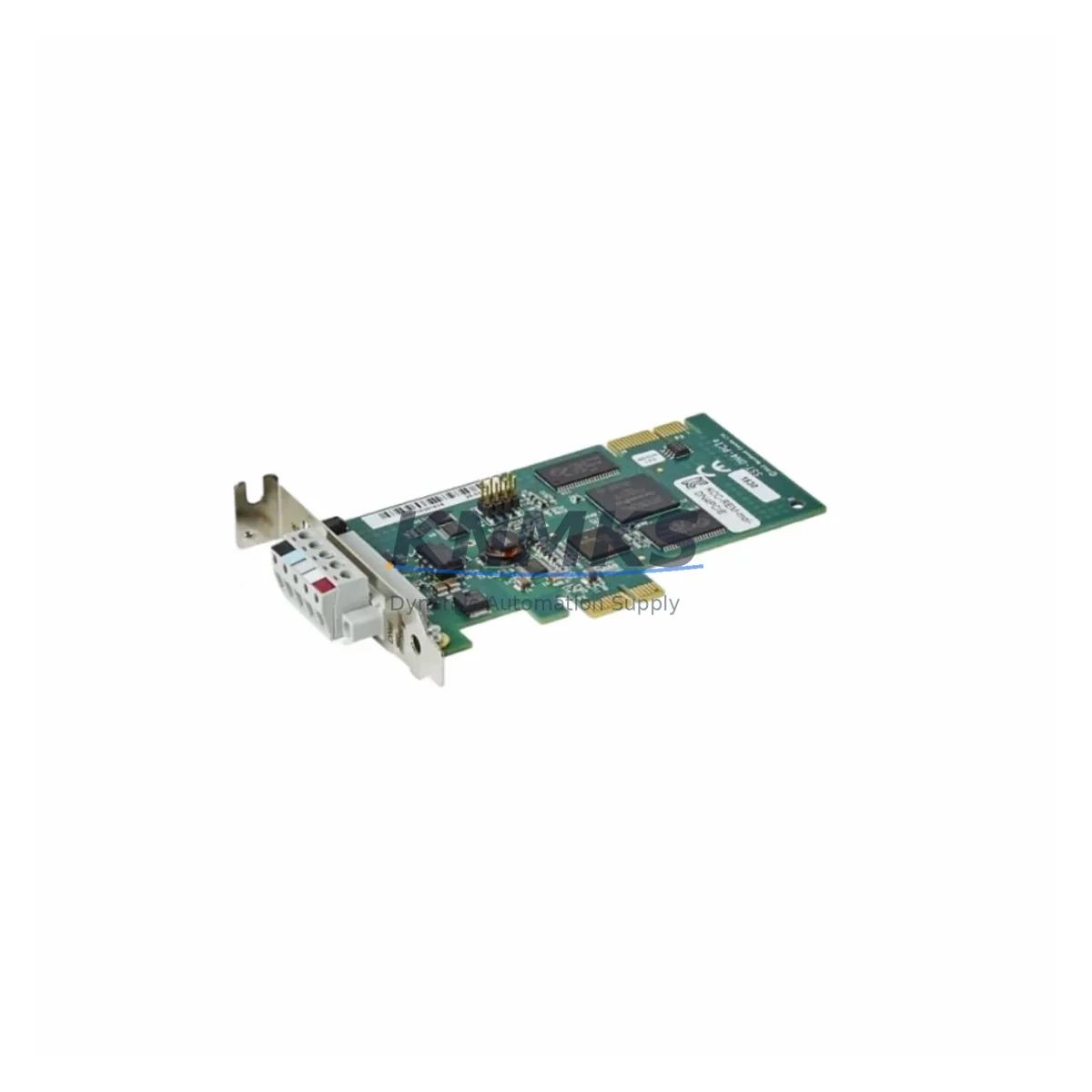

The ABB DSQC572 (part number 3HAC023242-001) is the original DeviceNet fieldbus communication board designed for ABB IRC5 robot controllers. As a safety-critical communication interface between the IRC5 controller and DeviceNet I/O networks, this board plays a central role in maintaining uninterrupted production cycles across automotive, electronics, and general manufacturing environments. Sourced directly from verified supply channels, each unit is pre-shipment tested and backed by a support terms confirmed by quotation, ensuring maintenance engineers and procurement teams can act with confidence when downtime is not an option.

For facilities running ABB IRC5 single-cabinet or dual-cabinet configurations, the DSQC572 manages real-time DeviceNet communication between the robot controller and field devices including distributed I/O nodes, safety relays, and remote terminal units. When this board fails or degrades, the entire robot cell loses fieldbus visibility — triggering fault codes, halting production, and requiring immediate spare part intervention. Keeping a verified DSQC572 in your critical spare inventory is a proven strategy for reducing mean time to repair (MTTR) and protecting OEE targets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DSQC572 during a scheduled or emergency maintenance window, a thorough inspection of the surrounding IRC5 subsystems is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the IRC5 main computer board — typically a DSQC639 or DSQC1000 — for firmware version compatibility with the replacement DeviceNet board, as mismatched firmware can cause silent communication errors that are difficult to diagnose under production pressure.

The DSQC608 analog I/O board and DSQC652 digital I/O board, commonly installed alongside the DSQC572 in the same IRC5 cabinet, should be inspected for loose backplane connectors and oxidized contacts. A DeviceNet fault that appears to originate from the DSQC572 is sometimes caused by a degraded I/O board upstream or downstream in the same fieldbus segment. Simultaneously, the DSQC661 or DSQC662 axis computer boards should be checked for any pending error logs that may have been masked by the fieldbus fault.

Power supply integrity is equally critical. The IRC5 internal DSQC604 power supply unit should be load-tested to confirm stable 24 VDC output to the communication board slot. Voltage sag or ripple on the backplane rail is a known cause of intermittent DeviceNet node dropouts that mimic board failure. If the cabinet has been in service for more than five years, the DSQC609 power distribution board and associated fuse blocks should be inspected as part of the same maintenance cycle.

For facilities using FlexPendant-based diagnostics, the DSQC679 teach pendant interface board should be verified for communication continuity after the DSQC572 replacement, as IRC5 system reinitialization can occasionally expose latent faults in the HMI communication path. Finally, all DeviceNet trunk cable termination resistors (120 Ω at each end of the segment) should be confirmed in place and within tolerance before powering the system back up.

Site Replacement Workflow

The DSQC572 is a direct plug-in replacement for the original DeviceNet fieldbus board in all IRC5 controller variants. No hardware modification is required. The replacement procedure follows ABB’s standard IRC5 board swap protocol: power down the controller via the main disconnect, discharge the capacitor bank (minimum 60-second wait), remove the existing DSQC572 from its backplane slot, seat the replacement board firmly until the retention latch engages, and restore power.

After power-up, the IRC5 system will perform a self-test sequence. If the DeviceNet network configuration was previously stored in the controller’s non-volatile memory (NVRAM), the system will automatically re-establish node communication without requiring manual re-configuration. For sites where the DeviceNet node map has changed since the original installation, a brief re-scan using ABB RobotStudio or the FlexPendant DeviceNet configuration tool will restore full network visibility within minutes.

This replacement approach eliminates the need for specialized fieldbus commissioning tools in most standard IRC5 installations, significantly reducing the skill requirement for emergency repairs and enabling faster return-to-production. Facilities that maintain a pre-tested DSQC572 in their critical spare inventory consistently report IRC5 DeviceNet fault recovery times under 90 minutes — compared to 4–8 hours or more when waiting for emergency procurement.

Spare Parts Support FAQ

Q: Is this DSQC572 compatible with all IRC5 controller variants?
A: Yes. The 3HAC023242-001 is the standard DeviceNet board for IRC5 Single Cabinet, Dual Cabinet, and Panel Mounted Controller configurations. It is compatible across IRC5 generations using the DSQC639 and DSQC1000 main computer platforms. Always verify your controller’s RobotWare version to confirm firmware compatibility before installation.

Q: What does the support terms confirmed by quotation cover?
A: Each DSQC572 unit is pre-shipment tested for DeviceNet communication function, backplane connector integrity, and power rail response. The support terms confirmed by quotation cover hardware defects and functional failures under normal industrial operating conditions. Units showing physical damage from incorrect installation or overvoltage events are excluded.

Q: How quickly can this spare part be shipped for emergency downtime recovery?
A: In-stock units are available for same-day or next-business-day dispatch. For urgent downtime situations, contact [email protected] or call +86 18359268345 to confirm real-time stock availability and expedited shipping options to your facility.

Q: Can you support long-term supply for multi-site maintenance programs?
A: Yes. KNMKS supports blanket order arrangements and scheduled delivery programs for maintenance teams managing multiple IRC5 installations. Long-term supply agreements help procurement engineers lock in pricing, guarantee availability, and eliminate emergency sourcing risk for critical ABB spare parts.
