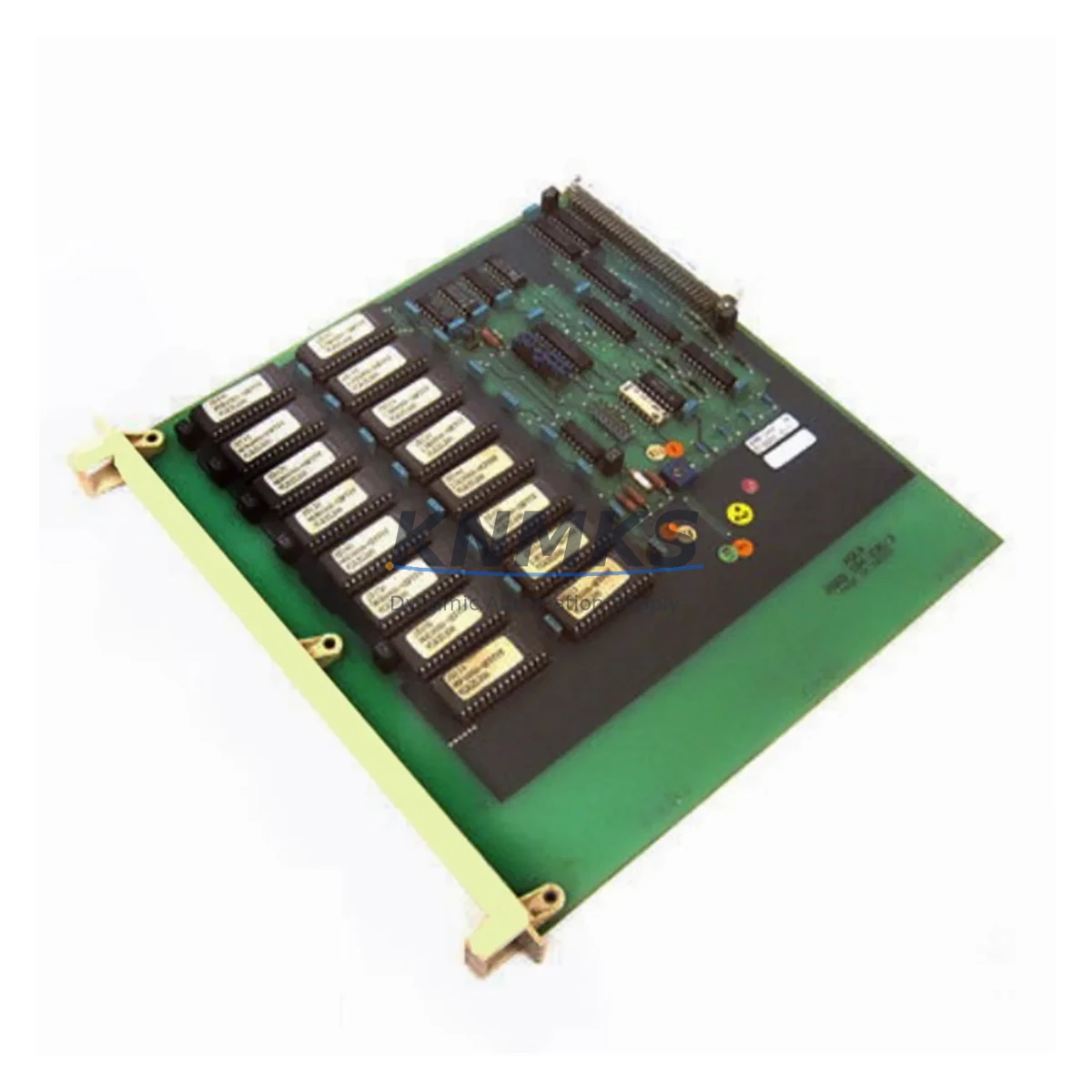

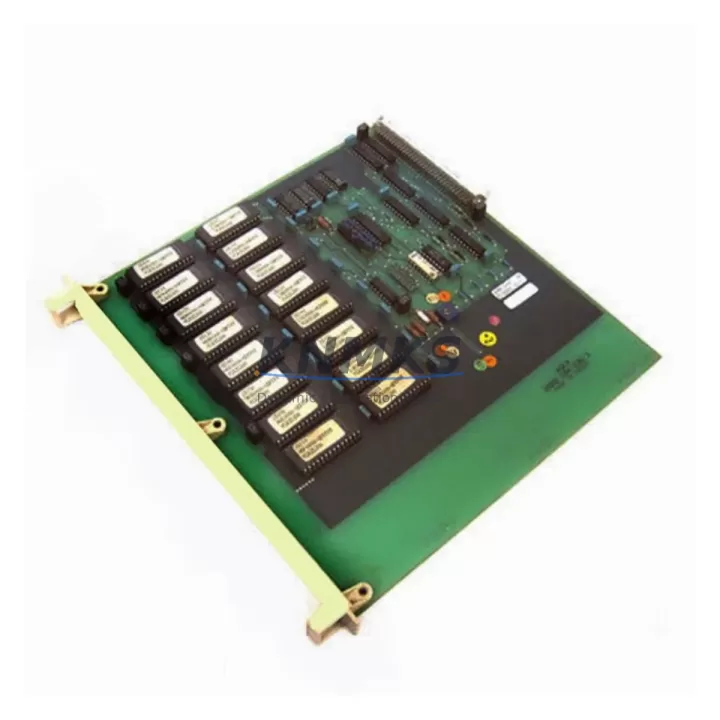

ABB DSMB144 57360001-EL Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DSMB144 57360001-EL Maintenance-Proven Spare Part for Factory Uptime

The ABB DSMB144 (part number 57360001-EL) is a memory module designed for the ABB AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and pulp & paper industries. Maintaining an available stock of the DSMB144 is a critical element of any serious spare parts strategy for facilities running AC800M-based control systems.

For maintenance engineers and spare parts procurement teams, the DSMB144 represents a high-priority line item. Memory module failures in DCS environments are rarely gradual — they tend to manifest as sudden controller faults, loss of program retention, or inability to complete a warm restart after a planned shutdown. When this occurs on a live production line, every minute of unplanned downtime translates directly into lost output and recovery costs. Having a verified, tested DSMB144 on the shelf eliminates the most dangerous variable in that scenario: sourcing lead time.

This listing covers an original ABB DSMB144 57360001-EL spare module, sourced through established industrial supply channels, inspected for physical integrity, and tested prior to shipment. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing or stocking the DSMB144 should never be treated as an isolated action. In a well-maintained AC800M control cabinet, the memory module works in close coordination with several other components that are equally subject to wear, environmental stress, and end-of-life risk. Maintenance engineers performing a DSMB144 swap should treat the event as an opportunity to audit the surrounding system.

Start with the controller module itself — typically a PM864 or PM866 processor module — and verify that firmware is current and that no latent faults are logged. A degraded processor can cause repeated memory errors that are incorrectly attributed to the DSMB144. Next, inspect the AC800M backplane and rack assembly for corrosion on connector pins, loose seating, or physical damage from vibration. A compromised backplane connection is a common root cause of intermittent memory module faults in high-vibration plant environments.

Power supply integrity is equally critical. The SD821 or SD822 power supply modules feeding the AC800M rack should be checked for output voltage stability and ripple. Undervoltage conditions during controller startup are a known cause of memory corruption events. If the facility operates redundant power feeds, verify that the changeover relay and associated wiring are functioning correctly.

For systems with active fieldbus or PROFIBUS communication, inspect the CI854 or CI858 communication interface modules for error counters and connection stability. A communication module generating excessive retries can mask or trigger controller-level faults that appear as memory issues. Similarly, review any AI810 or DI810 I/O modules in the same rack for channel faults or wiring anomalies that could be contributing to system instability.

Finally, check cabinet-level protection: fuse blocks, surge protection devices, and terminal strip connections should all be inspected during any planned maintenance window that involves memory module replacement. These passive components are frequently overlooked but are often the upstream cause of the fault that triggered the DSMB144 replacement in the first place.

Site Replacement Workflow

Replacing the DSMB144 57360001-EL on-site is a straightforward procedure when approached systematically, but it requires careful attention to controller state and program backup to avoid data loss or extended recovery time.

Step 1 — Pre-replacement backup: Before removing the existing module, use ABB Control Builder M to perform a full backup of the controller application, configuration, and parameter sets. Store the backup on a local engineering workstation and verify the file integrity. Do not proceed without a confirmed backup.

Step 2 — Controller shutdown: Place the AC800M controller in a safe state appropriate to the process. For redundant controller configurations, initiate a controlled switchover to the standby controller before powering down the primary. Confirm that the standby has assumed control before proceeding.

Step 3 — Module removal: With the controller powered down, carefully extract the DSMB144 from its slot. Note the orientation and connector condition. Inspect the vacated slot on the backplane for debris or pin damage before inserting the replacement.

Step 4 — Replacement installation: Insert the new DSMB144 57360001-EL firmly into the correct slot. Ensure the module is fully seated and any retention mechanism is engaged. Power the controller back on and observe the startup sequence for fault indicators.

Step 5 — Program restore and verification: Using Control Builder M, restore the application from the backup taken in Step 1. Verify that all I/O channels, communication links, and process values are reading correctly before returning the controller to automatic operation.

This workflow is compatible with both hot-standby redundant and simplex AC800M configurations. For legacy installations running older firmware, consult ABB’s AC800M Hardware Unit Installation documentation to confirm module compatibility before installation.

Spare Parts Support FAQ

Q1: Is the DSMB144 57360001-EL compatible with all AC800M controller variants?
The DSMB144 is designed for use with the ABB AC800M controller family, including PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions should be confirmed against ABB’s hardware compatibility matrix. If you are unsure whether this module is suitable for your installed controller revision, contact our technical team with your controller part number and firmware version before ordering.

Q2: How do you verify the module is functional before shipment?
Each DSMB144 unit undergoes a pre-shipment functional check covering physical connector integrity, module identification, and basic operational verification. Units that do not pass inspection are not listed for sale. The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of receipt.

Q3: What is your lead time and can you support urgent breakdown orders?
In-stock units typically ship within 1–3 business days. For urgent breakdown situations, contact us directly at [email protected] or +86 18359268345 to confirm availability and arrange expedited dispatch. We maintain standing stock of high-demand AC800M spare parts to support emergency sourcing requirements.

Q4: Can you supply DSMB144 modules on a long-term or blanket order basis for planned maintenance programs?
Yes. We support long-term supply agreements for facilities with recurring spare parts requirements. This is particularly relevant for plants running multiple AC800M systems or managing multi-site maintenance programs. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSMB144 57360001-EL
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSMB144 57360001-EL
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
