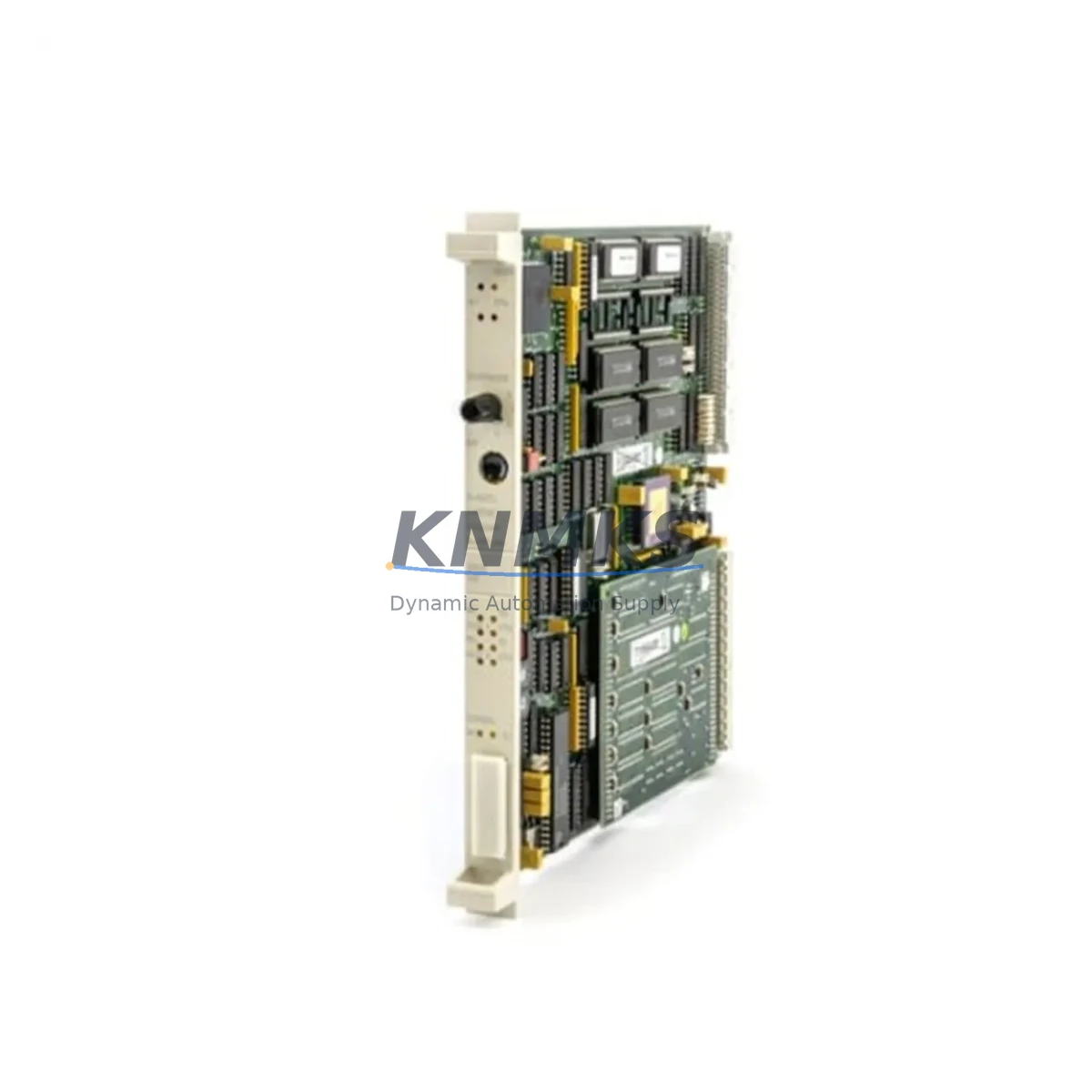

ABB DSCS150 57520001-FY Fail-Safe Serial Comm Module

Overview

ABB DSCS150 57520001-FY Fail-Safe Serial Comm Module: Fault Protection and Critical Industrial Field Reliability

The ABB DSCS150 57520001-FY is a high-reliability serial communication module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port terminals, and marine vessel control rooms — this module delivers the fault-tolerant communication backbone that modern safety-critical control architectures demand.

In continuous production environments where unplanned downtime translates directly into financial loss and safety risk, the DSCS150 57520001-FY provides a stable, interference-resistant serial communication link between the AC800M controller and field devices. Its robust hardware design addresses the most common causes of control loop disruption: signal drift, electromagnetic interference (EMI), power supply fluctuation, surge transients, and thermal stress. By maintaining reliable data exchange across the serial bus even under adverse conditions, this module significantly reduces the probability of spurious trips, missed interlocks, and communication timeouts that can cascade into process shutdowns.

The module is rated for operation in high-EMI environments typical of heavy industrial switchgear rooms and variable-frequency drive (VFD) cabinets. Its shielded signal architecture and galvanic isolation circuitry suppress common-mode noise and surge impulses that would otherwise corrupt serial data frames — a critical protection layer when the DSCS150 is deployed alongside high-power motor starters, transformer banks, or arc-flash-prone switchboards. In control cabinets where the ABB DSPC172 processor module or DSDI110A digital input module are installed, the DSCS150 serves as the communication bridge that keeps the entire I/O subsystem synchronized with the central controller, ensuring that safety interlock signals are transmitted without latency or data loss.

For installations in dusty, humid, or high-vibration environments — such as cement plants, offshore platforms, or underground mining headframes — the DSCS150 57520001-FY’s conformal-coated PCB and ruggedized connector interface provide long-term protection against corrosion and mechanical fatigue. When paired with the ABB DSDP170 pulse encoder interface module or DSDO115A digital output module, the DSCS150 ensures that encoder feedback and actuator command signals remain coherent even when the control cabinet is subject to continuous vibration from rotating machinery or structural resonance.

Power supply integrity is a foundational requirement for any safety-related control system. The DSCS150 57520001-FY is designed to tolerate the voltage ripple and micro-interruptions that occur when the ABB DSDP110 power distribution module is operating near capacity or during load-switching transients. Its internal voltage regulation and brownout protection circuitry maintain stable operation across the full specified supply range, preventing the module resets and communication dropouts that can trigger false alarms or disable safety functions at the worst possible moment.

In safety instrumented systems (SIS) and emergency shutdown (ESD) architectures, the DSCS150 57520001-FY supports the diagnostic coverage requirements of IEC 61511 and IEC 61508 by providing deterministic, low-latency serial communication between the safety controller and field transmitters. Its fail-safe design ensures that a communication fault is detected and reported to the system within the required diagnostic test interval, allowing the safety function to be executed before a hazardous condition can develop. When integrated with the ABB DSCS150A redundant communication module in a hot-standby configuration, the system achieves the communication availability levels required for SIL 2 and SIL 3 safety loops.

Every DSCS150 57520001-FY unit supplied by KNMKS undergoes a comprehensive pre-shipment functional test that verifies serial port integrity, power consumption within specification, and correct firmware identification. Units are sourced from verified supply channels and stored in ESD-safe, climate-controlled conditions to prevent latent damage. Each module is supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions, with technical support available for installation, configuration, and troubleshooting queries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust AC800M control cabinet deployment requires more than a single high-quality communication module. The DSCS150 57520001-FY is most effective when integrated as part of a coordinated protection strategy that addresses every layer of the control system. At the processor level, the ABB DSPC172 central processor module provides the computational core that the DSCS150 serves, and its health directly determines the integrity of all downstream communication. At the I/O layer, the ABB DSDI110A digital input module and ABB DSDO115A digital output module rely on the DSCS150’s serial bus to relay field status signals and actuator commands without corruption or delay.

Power quality within the cabinet is managed by the ABB DSDP110 power distribution module, which conditions the 24 VDC supply rail shared by the DSCS150 and other I/O modules. Surge events on the incoming power feed — common in facilities with large motor loads or frequent switching operations — are absorbed at the distribution level before they can reach the sensitive communication circuitry of the DSCS150. For applications requiring encoder feedback from rotating machinery, the ABB DSDP170 pulse encoder interface module works in conjunction with the DSCS150 to deliver synchronized speed and position data to the AC800M controller, enabling closed-loop control of drives and conveyors without signal interruption.

In safety-critical installations, a redundant communication path using the ABB DSCS150A in hot-standby configuration eliminates the serial communication link as a single point of failure, ensuring that the safety function remains available even if the primary DSCS150 module develops a fault during operation.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as crude distillation columns, hydrotreaters, and compressor trains, the DSCS150 57520001-FY maintains the serial communication link between the AC800M safety controller and field transmitters monitoring pressure, temperature, and flow. A communication failure in these loops can prevent the ESD system from receiving a trip signal, with potentially catastrophic consequences. The DSCS150’s galvanic isolation and surge suppression protect the communication channel from the high-energy transients generated by large rotating equipment and high-voltage switchgear in the same facility.

Power Generation and Substation Control: In thermal power plants and grid substations, the AC800M DCS controls boiler combustion, turbine governor systems, and transformer protection relays. The DSCS150 provides the serial interface between the controller and protection IEDs, ensuring that trip commands and status signals are transmitted within the required response time even during grid disturbances that introduce significant EMI into the control room environment.

Mining and Mineral Processing: Underground mining operations and surface concentrators subject control equipment to extreme vibration, dust ingress, and humidity. The DSCS150’s conformal-coated PCB and ruggedized mechanical design allow it to maintain reliable serial communication in these conditions, supporting the conveyor interlock systems, crusher protection circuits, and ventilation control loops that are essential for personnel safety and production continuity.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent plants operate continuously, with strict regulatory requirements for process availability and data logging. The DSCS150 supports the AC800M’s role in controlling dosing pumps, aeration blowers, and UV disinfection systems, providing the reliable serial communication link that ensures process parameters are monitored and controlled without interruption.

Metallurgical and Steel Plants: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference that challenges conventional communication hardware. The DSCS150’s EMI-hardened design allows it to maintain data integrity in these environments, supporting the high-speed control loops that govern furnace power regulation, roll gap control, and cooling water management.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the DSCS150 57520001-FY?
The support terms confirmed by quotation cover all manufacturing defects and functional failures that occur under normal operating conditions within the module’s specified environmental and electrical ratings. If the module fails to perform its serial communication function as specified, KNMKS will provide a replacement or repair at no additional cost. The confirmed support period begins from the date of shipment. Technical support for installation and configuration is included throughout the confirmed support period.

Q2: What pre-shipment tests are performed on each DSCS150 57520001-FY unit?
Each unit undergoes a comprehensive functional test before dispatch. This includes verification of serial port integrity on all communication channels, measurement of power consumption against the OEM specification, firmware version identification, and visual inspection for physical damage or connector contamination. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and can be provided upon request for quality audit purposes.

Q3: Is the DSCS150 57520001-FY compatible with all AC800M controller variants and firmware versions?
The DSCS150 57520001-FY is designed for use within the ABB AC800M and Advant OCS control system families. Compatibility with specific controller variants and firmware versions depends on the system configuration. KNMKS recommends confirming the target system’s hardware revision and firmware baseline before ordering. Our technical team can assist with compatibility verification based on your system documentation or existing spare parts list.

Q4: Can KNMKS guarantee long-term supply of the DSCS150 57520001-FY for ongoing maintenance and replacement needs?
KNMKS maintains stock of the DSCS150 57520001-FY and actively manages its supply chain to support customers with long-term maintenance requirements. For facilities that rely on the AC800M platform and require assured availability of critical spare parts, we recommend establishing a framework supply agreement. This ensures priority allocation of stock, agreed lead times, and price stability for planned maintenance shutdowns and emergency replacement scenarios. Contact our sales team to discuss your specific inventory and supply continuity requirements.
