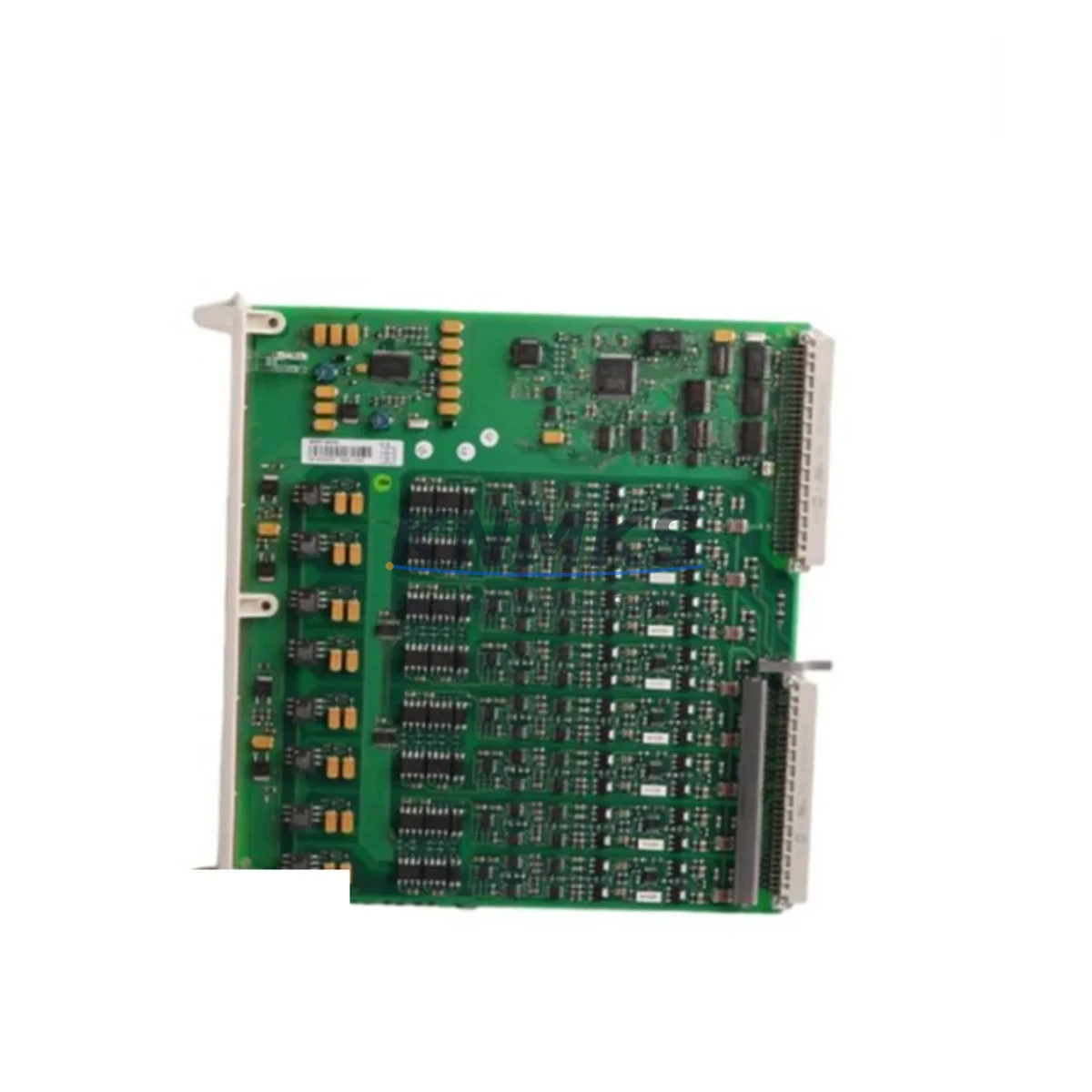

ABB DSAO120A 3BSE018293R1 Fail-Safe Analog Output Module

Overview

ABB DSAO120A 3BSE018293R1 Fail-Safe Analog Output Module: Fault Protection and Critical Industrial Field Reliability

The ABB DSAO120A (3BSE018293R1) is a high-integrity analog output module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to meet the demanding requirements of continuous production environments, this module delivers precision signal output with built-in fail-safe architecture, ensuring that critical control loops remain stable even under adverse electrical and environmental conditions. Whether deployed in petrochemical processing, power generation, metallurgical smelting, or water treatment facilities, the DSAO120A provides the signal fidelity and fault tolerance that industrial safety engineers depend on.

In modern industrial control cabinets, analog output integrity is non-negotiable. Signal drift, electromagnetic interference, power fluctuations, and surge events can cause actuator misoperation, process deviation, or unplanned shutdowns — all of which carry significant safety and financial consequences. The DSAO120A addresses these risks through robust hardware design, tight output accuracy, and compatibility with the AC800M’s redundancy and diagnostics framework.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog output performance in a control cabinet depends on more than a single module — it requires a coordinated protection strategy across power, communication, and I/O layers. The DSAO120A integrates seamlessly within this architecture. On the processor side, it pairs with ABB PM864A (3BSE018161R1) and PM856A (3BSE018105R1) main processing units, which provide the redundancy management and watchdog supervision that prevent a single-point failure from cascading into a process shutdown.

For power supply integrity, the DSAO120A relies on stable backplane voltage delivered through ABB SD821 (3BSC610037R1) or SD823 (3BSC610068R1) power supply units. These units feature active current sharing and overvoltage protection, ensuring that transient grid events — common in heavy industrial environments — do not propagate into the I/O bus and cause output signal errors or module resets.

On the communication side, the DSAO120A operates within the AC800M’s internal S100 I/O bus, coordinated by the CI854A (3BSE030220R1) PROFIBUS DP communication interface or the CI857 (3BSE018144R1) INSUM interface for motor control integration. Maintaining communication bus integrity is critical: a communication fault that causes the DSAO120A to lose its setpoint reference will trigger a configurable fail-safe output state — either hold-last-value or drive-to-zero — preventing actuator runaway in the field.

For analog input cross-verification and loop integrity checking, the DSAO120A is commonly deployed alongside the DSAI130A (3BSE018290R1) analog input module, enabling closed-loop verification of actuator response. This pairing is standard practice in safety instrumented systems where output confirmation is required by IEC 61511 functional safety standards.

Critical Industrial Safety Applications

The ABB DSAO120A 3BSE018293R1 is deployed across a wide range of critical industrial sectors where control loop failure carries unacceptable safety or operational risk:

Petrochemical and Refining: In distillation columns, reactor temperature control, and pressure regulation loops, the DSAO120A drives control valves and variable-speed drives with the precision required to maintain process stability. Its galvanic isolation prevents ground loop interference from corrupting output signals in environments where multiple grounding systems coexist.

Power Generation: Turbine governor control, boiler feedwater regulation, and excitation system interfaces demand analog output modules with sub-millisecond response and zero tolerance for signal drift. The DSAO120A’s 12-bit resolution and ±0.1% accuracy meet these requirements across the full operating temperature range of a power plant control room.

Mining and Mineral Processing: High-vibration, high-dust environments in crushing, grinding, and flotation circuits subject control hardware to mechanical and electrical stress. The DSAO120A’s IEC 60068-2-6 vibration compliance and sealed backplane connector design maintain reliable operation where lesser modules fail prematurely.

Water and Wastewater Treatment: Dosing pump control, aeration blower speed regulation, and sludge dewatering press control all rely on stable 4–20 mA output signals. In humid pump stations and outdoor control enclosures, the DSAO120A’s wide humidity tolerance and surge protection prevent the signal corruption that leads to overdosing or process upsets.

Metallurgy and Steel: Electric arc furnace electrode regulation, continuous casting mold level control, and rolling mill tension control are among the most demanding analog output applications in industry. The DSAO120A’s high EMI immunity is essential in these environments, where large motor drives and induction furnaces generate significant electromagnetic noise.

Port and Marine Automation: Crane hoist control, mooring winch regulation, and ballast system management in port terminals and vessels require analog output modules that perform reliably in salt-air, high-humidity, and high-vibration conditions. The DSAO120A’s robust design and ABB’s global service network make it a preferred choice for marine automation integrators.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the DSAO120A 3BSE018293R1?
All DSAO120A modules supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes technical diagnosis, repair assessment, and replacement coordination. Our quality team performs pre-shipment functional testing on every unit to verify output channel accuracy, isolation integrity, and bus communication before dispatch.

Q2: How is compatibility with my existing AC800M system verified?
The DSAO120A 3BSE018293R1 is a direct OEM replacement for all AC800M S100 I/O racks. Compatibility is determined by your AC800M processor generation (PM851 through PM866 series) and your existing I/O rack configuration. If you provide your system’s processor part number and rack layout, our technical team can confirm slot compatibility and firmware version requirements before you place an order.

Q3: What pre-shipment testing is performed on each module?
Each DSAO120A unit undergoes a structured outgoing quality inspection that includes: power-on functional verification, all-channel analog output accuracy measurement (4–20 mA sweep), isolation resistance testing between channels and bus, visual inspection for connector and PCB integrity, and firmware version confirmation. Test records are available upon request for critical safety applications.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated inventory of ABB AC800M series I/O modules, including the DSAO120A 3BSE018293R1, to support customers with long-term maintenance contracts and planned replacement programs. We source through verified supply channels and can provide scheduled delivery commitments for annual maintenance shutdowns. Contact our sales team to discuss blanket order arrangements and priority allocation for critical spare parts programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DSAO120A 3BSE018293R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DSAO120A 3BSE018293R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
