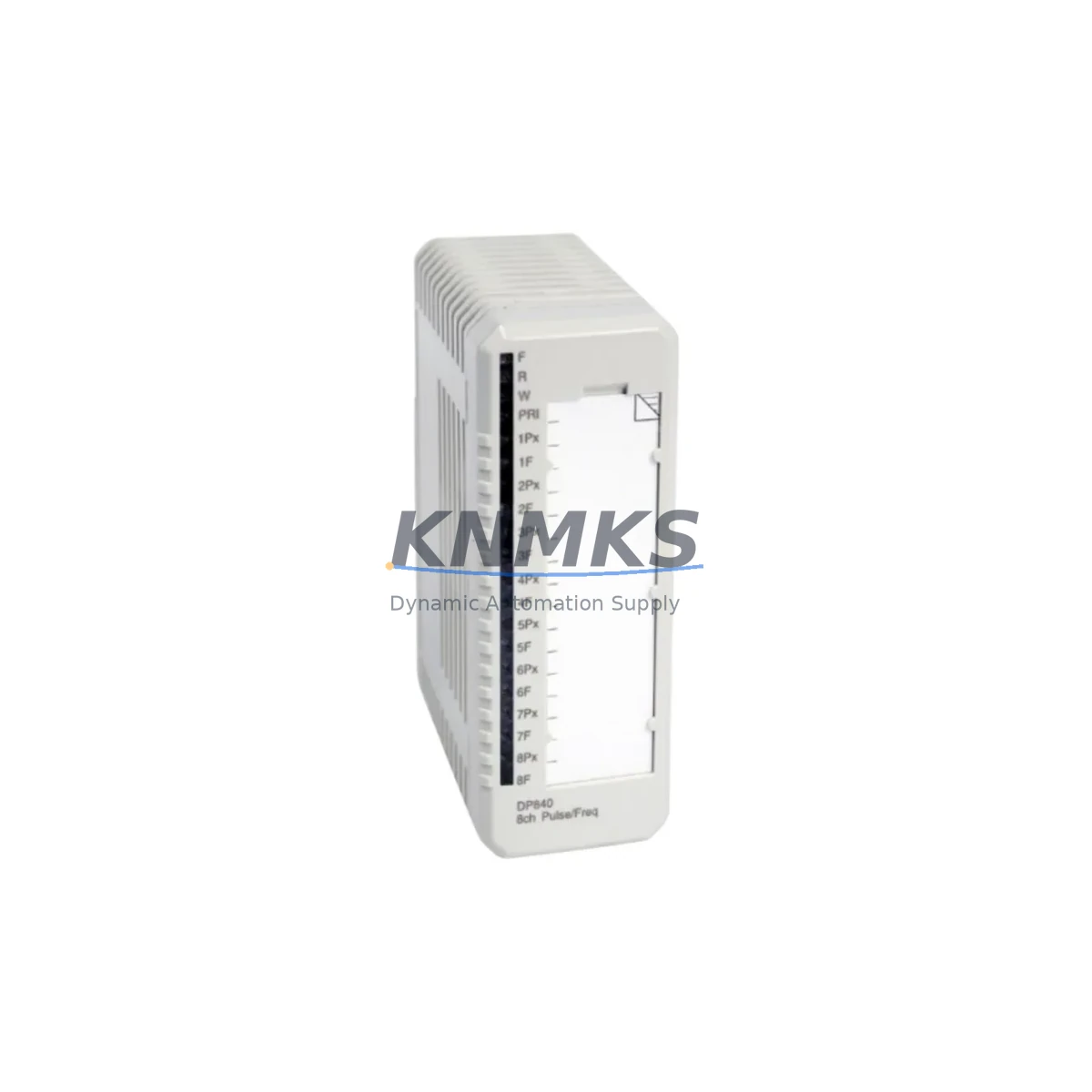

ABB DP840 3BSE028926R1 Migration-Ready Pulse Counter for Legacy Control Systems

The ABB DP840 (3BSE028926R1) is a high-performance pulse counter module designed for the ABB S800 I/O platform, widely deployed across petrochemical plants, power generation facilities, water treatment stations, and heavy industrial automation environments. As legacy DCS and PLC architectures approach end-of-life, the DP840 has become a critical spare part and retrofit component for engineers managing aging AC800M-based control systems. This module supports high-frequency pulse inputs and is engineered for precise flow measurement, speed monitoring, and event counting in demanding field environments.

With many original DP840 units reaching obsolescence in active installations, sourcing a verified replacement with confirmed firmware compatibility and pre-shipment testing is essential to maintaining system uptime. Our stock of ABB DP840 3BSE028926R1 modules is drawn from authenticated supply chains, inspected against ABB S800 I/O specifications, and shipped with a support terms confirmed by quotation covering hardware defects and functional performance.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DP840 3BSE028926R1 in an active S800 I/O installation requires careful pre-migration planning to avoid unplanned downtime and configuration errors. Engineers should begin by auditing the existing TB840 termination unit or TB820 bus modem to confirm that the backplane bus is operating within rated capacity. The DP840 draws power from the S800 I/O bus, so verifying available bus current against the total module load — including any co-installed AI810 analog input modules or DI810 digital input modules — is a mandatory pre-swap step.

In systems running ABB’s AC800M controller with Control Builder M software, the DP840 module address must be confirmed in the hardware configuration tree before physical replacement. Swapping the module without updating the address assignment can cause the controller to flag a hardware mismatch fault, triggering a partial or full I/O scan failure. Export and archive the current project backup from Control Builder M before any physical intervention.

Field wiring connected to the DP840 typically carries pulse signals from flow transmitters, turbine meters, or proximity sensors. Before disconnecting, photograph or document the terminal block layout and verify signal polarity. In older installations, the TK850 programming cable or equivalent interface may be required to re-establish communication with the module after installation if the system does not auto-detect the replacement unit.

For control cabinets undergoing broader modernization — such as migrating from an older Advant OCS or MOD 300 architecture to the AC800M platform — the DP840 is frequently part of a phased I/O migration strategy. In these scenarios, the module is installed alongside updated CI854 PROFIBUS DP/DS communication interface cards to bridge legacy field devices with the new controller backbone. Confirming that the CI854 firmware version supports the DP840’s device description file (GSD) is essential before commissioning.

HMI screens referencing pulse counter tags linked to the DP840 should be reviewed in ABB’s Operate IT or third-party SCADA systems to ensure tag names and scaling factors remain consistent after the module swap. Mismatched tag scaling is a common post-retrofit issue that can affect flow totalization accuracy and alarm thresholds.

Downtime Control During System Migration

Minimizing production interruption during a DP840 replacement requires a structured hot-swap or controlled-shutdown procedure. Where the process allows, isolate the affected I/O loop at the field device level — placing flow transmitters or speed sensors in manual or bypass mode — before powering down the S800 I/O station. This preserves upstream control logic continuity and prevents spurious alarms from propagating to the DCS operator console.

In AC800M systems with redundant I/O configurations, the DP840 replacement can often be executed during a scheduled maintenance window without a full controller restart. Confirm with the site control engineer whether the affected PROFIBUS-DP segment supports hot insertion; not all S800 I/O configurations are enabled for live module swap without a segment restart.

After physical installation, perform a channel-by-channel functional check using the Control Builder M online diagnostic view. Verify that pulse counts are incrementing correctly against a known field signal source before returning the loop to automatic control. Document the firmware version of the replacement module and update the site’s as-built configuration records to reflect the new hardware revision. This step is critical for future spare parts planning and support terms tracking.

Our pre-shipment testing protocol for the DP840 3BSE028926R1 includes power-on verification, channel functional test, and communication handshake confirmation on a live S800 I/O test bench. This reduces on-site commissioning risk and supports a faster return to normal operation.

Retrofit Support FAQ

Q1: Is the ABB DP840 3BSE028926R1 a direct drop-in replacement for an existing DP840 in my S800 I/O rack?
Yes. The DP840 3BSE028926R1 is the standard catalog revision for this module and is mechanically and electrically compatible with all S800 I/O racks using the TB840 termination unit. No hardware modification is required. Confirm the PROFIBUS-DP node address and module slot assignment in Control Builder M before powering up the replacement.

Q2: What pre-shipment testing is performed on your DP840 stock?
Each unit undergoes power-on verification, four-channel pulse input functional test, and PROFIBUS-DP communication handshake on a dedicated S800 I/O test bench. A test report is available upon request. All units ship with a support terms confirmed by quotation covering hardware defects and verified functional performance.

Q3: Can the DP840 be used in a system migrating from Advant OCS to AC800M?
Yes. The DP840 is fully supported on the AC800M platform via the CI854 PROFIBUS DP/DS interface. During migration, ensure the GSD file for the DP840 is loaded into the new Control Builder M project and that the PROFIBUS segment baud rate matches the existing field device configuration. Firmware compatibility between the CI854 and the DP840 should be verified against ABB’s compatibility matrix for your specific AC800M firmware baseline.

Q4: What is your lead time and do you maintain stock for long-term spare parts planning?
We maintain warehouse stock of the ABB DP840 3BSE028926R1 to support both immediate replacement needs and long-cycle spare parts programs (12–36 month horizons). Standard orders ship within 3–5 business days. For bulk procurement or multi-site spare parts contracts, contact our team directly to discuss allocation and pricing.
