ABB DO880-2 3BSE028603R1 Maintenance-Proven Spare Part for Factory Uptime

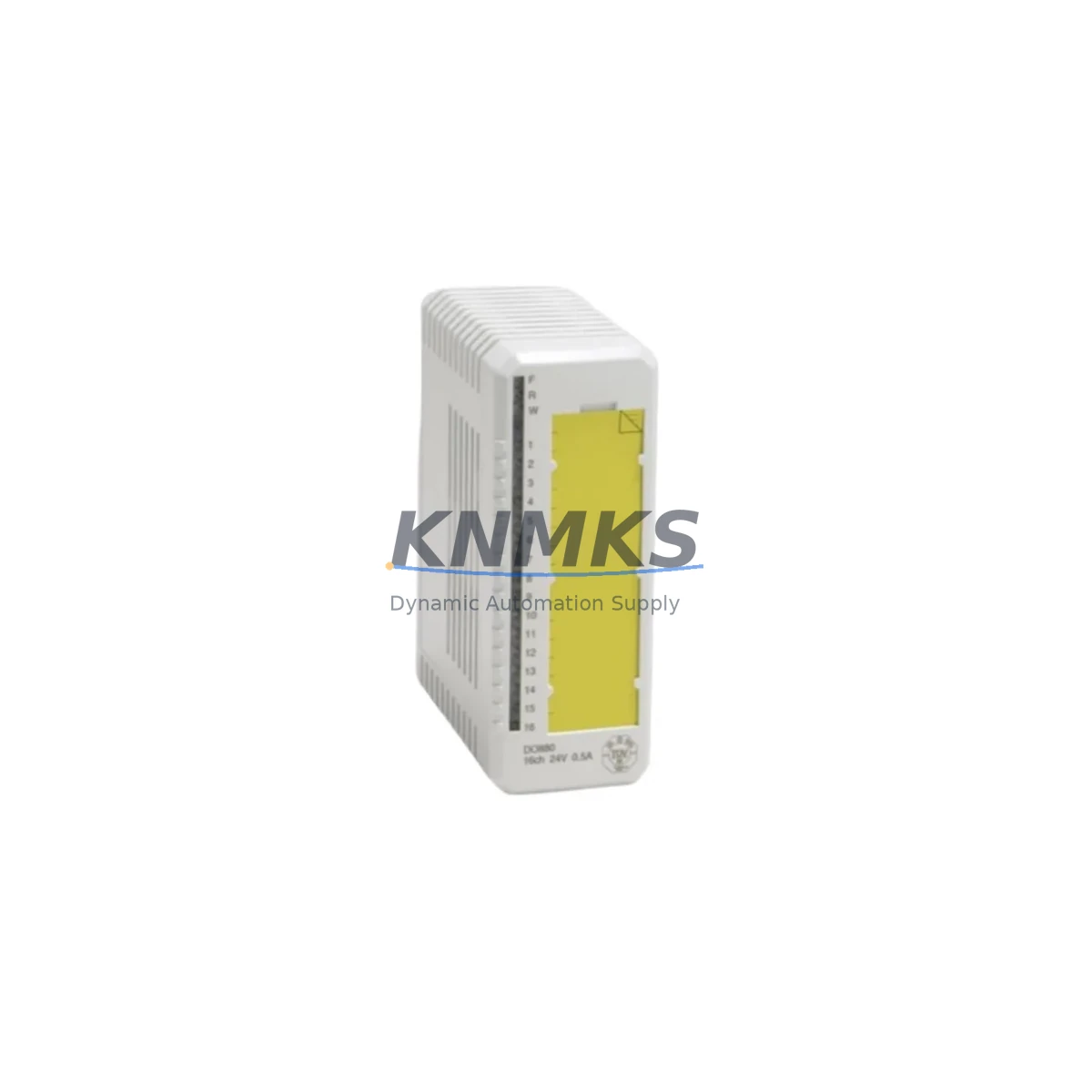

The ABB DO880-2 (3BSE028603R1) is a 32-channel digital output module designed for the ABB S800 I/O system, widely deployed in AC800M-based DCS and process automation architectures across power generation, oil & gas, pulp & paper, and chemical processing facilities. As a maintenance-proven spare part, the DO880-2 is a critical line-replaceable unit (LRU) for engineers managing aging control cabinets and sustaining continuous production uptime. KNMKS supplies original, pre-shipment tested DO880-2 modules with a support terms confirmed by quotation and long-term availability commitment to support your planned maintenance and emergency replacement programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the DO880-2 3BSE028603R1 in an AC800M-based control system, maintenance engineers should treat the module swap as part of a broader cabinet inspection rather than an isolated task. The DO880-2 interfaces with field devices through a dedicated termination unit — typically the TB820V2 or TB840A — and any degradation in the termination unit’s screw terminals or internal bus connectors can cause intermittent output faults that are incorrectly attributed to the module itself. Always inspect and, if necessary, replace the termination unit alongside the DO880-2.

The S800 I/O backplane that hosts the DO880-2 should be checked for oxidation on the ModuleBus connectors. In humid or coastal environments, connector oxidation is a leading cause of communication errors between the module and the AC800M processor unit. If the system uses a CI854A or CI858 PROFIBUS communication interface module in the same cabinet, verify that the DP network remains stable after the DO880-2 swap, as a brief bus interruption during hot-swap can trigger watchdog resets on connected field devices.

Power distribution within the control cabinet deserves equal attention. The 24 VDC supply rail feeding the DO880-2 output channels should be verified with a calibrated meter before and after replacement. If the cabinet uses an ABB SD831 or SD832 power supply module, check the output voltage under load and inspect the fuse or circuit breaker protecting the I/O segment. A marginal power supply that has been running near its rated capacity is a common root cause of repeated digital output module failures and should be replaced proactively during the same maintenance window.

For facilities running mixed S800 I/O configurations, it is good practice to audit adjacent modules in the same rack during a DO880-2 replacement. Analog input modules such as the AI810 or AI820, and digital input modules such as the DI810, share the same ModuleBus infrastructure and can exhibit latent faults that only surface after a neighboring module is disturbed. Documenting the pre- and post-replacement channel status for all modules in the rack takes less than 15 minutes and significantly reduces the risk of a secondary fault call within the same maintenance cycle.

Procurement engineers should maintain a minimum of one DO880-2 spare per control system cluster, with a recommended replenishment trigger at 50% of the spare pool. Given the 12–36 month lead time risk for legacy S800 I/O modules from the original manufacturer, KNMKS offers long-term supply agreements that guarantee availability and price stability, eliminating last-minute spot-market procurement at premium cost.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the DO880-2 3BSE028603R1 part number against the cabinet BOM and the AC800M I/O configuration in Control Builder. Note the module slot address and channel assignments before powering down the I/O segment.

Step 2 — Safe isolation: Follow site LOTO procedures. Isolate the 24 VDC supply to the affected I/O segment. Do not rely solely on the AC800M software disable — physically isolate the power rail to prevent residual voltage on output channels.

Step 3 — Module extraction: Release the DO880-2 from the termination unit by pressing the module latch and sliding the module forward. Inspect the ModuleBus connector on both the module and the termination unit for bent pins or contamination.

Step 4 — Replacement installation: Insert the new DO880-2 into the termination unit until the latch clicks. The S800 I/O system supports hot-swap for most configurations, but confirm with your site’s AC800M firmware version and Control Builder project settings before attempting a live swap in a running process.

Step 5 — Post-replacement validation: Restore power and verify that all 32 output channels report correct status in the AC800M diagnostic view. Perform a functional test of at least a representative sample of field devices connected to the module before returning the system to automatic control.

Step 6 — Documentation: Record the replacement in the site maintenance log, including the old module’s serial number, the new module’s serial number, and the date. Retain the replaced module for failure analysis if channel faults were the trigger for replacement.

Spare Parts Support FAQ

Q1: Is the DO880-2 3BSE028603R1 still available as a new original spare?
Yes. KNMKS maintains stock of original ABB DO880-2 3BSE028603R1 modules sourced through authorized industrial channels. Each unit is pre-shipment tested and supplied with a support terms confirmed by quotation. We support long-term supply agreements for facilities requiring guaranteed availability over 12–36 month horizons.

Q2: How do I verify compatibility between the DO880-2 and my AC800M system version?
The DO880-2 is compatible with all AC800M processor variants (PM860 through PM866) running S800 I/O configurations. Compatibility is determined by the termination unit type (TB820V2 or TB840A) and the ModuleBus address assignment in your Control Builder project. KNMKS technical support can assist with compatibility verification based on your system’s hardware and firmware revision.

Q3: What pre-shipment testing does KNMKS perform on the DO880-2?
Every DO880-2 unit undergoes functional channel-by-channel output verification, ModuleBus communication test, and visual inspection for connector integrity and physical condition before dispatch. Test records are available upon request for quality-controlled procurement programs.

Q4: Can KNMKS support emergency orders for the DO880-2 when a production line is down?
Yes. KNMKS prioritizes emergency spare part orders with expedited processing and express international shipping options. Contact our team at [email protected] or +86 18359268345 to confirm stock availability and arrange same-day or next-day dispatch where logistics permit.
