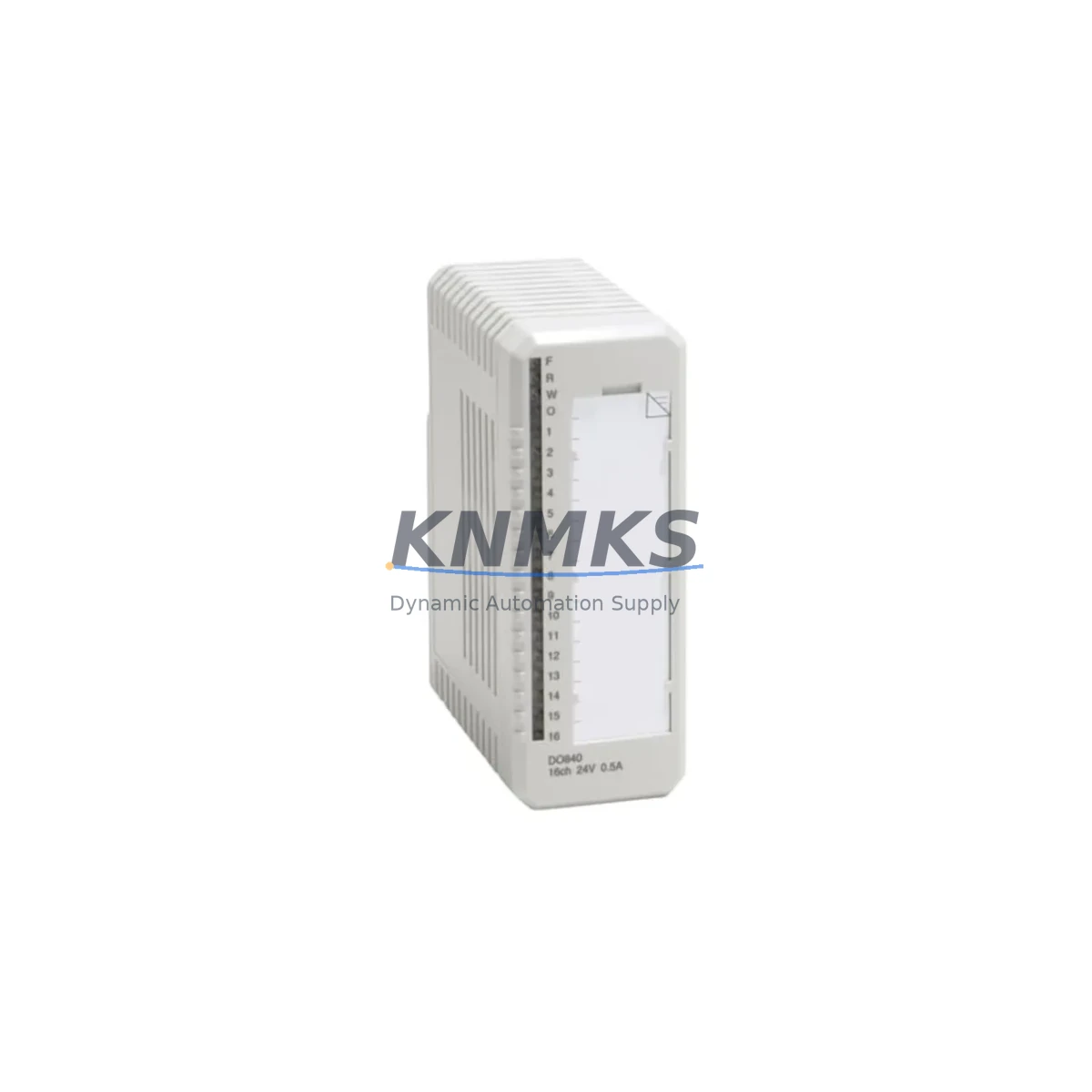

ABB DO840 3BSE020838R1 Migration-Ready Digital Output Module

Overview

ABB DO840 3BSE020838R1 Migration-Ready Digital Output for Legacy Control Systems

The ABB DO840 (3BSE020838R1) is a 16-channel, 24 VDC digital output module engineered for the S800 I/O platform and fully compatible with ABB’s AC800M controller family. As legacy distributed control systems (DCS) approach end-of-life and OEM spare part availability tightens, the DO840 has become a critical component in planned and emergency retrofit projects across process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing.

Whether you are executing a phased migration from an older Advant OCS or MOD 300 architecture, upgrading a control cabinet that still relies on S800 I/O racks, or simply maintaining a long-lifecycle installation where the original DO840 units have accumulated operating hours, this module provides a verified drop-in replacement path with no firmware re-flashing required on the controller side when the hardware revision is matched correctly.

Each unit supplied by KNMKS is sourced from authorized distribution channels or factory-refurbished stock, individually tested against ABB’s published electrical specifications, and shipped with a support terms confirmed by quotation. In-stock inventory is maintained across regional hubs to support both planned maintenance windows and unplanned shutdowns.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DO840 replacement begins well before the module is physically removed from the rack. Engineers planning a retrofit should first audit the complete S800 I/O cluster to identify all modules sharing the same backplane segment. In a typical AC800M control node, the DO840 coexists with analog input modules such as the AI810 or AI830A, digital input modules like the DI810 or DI830, and potentially analog output modules such as the AO810V2. Understanding the full I/O map prevents accidental address conflicts when a replacement module is inserted.

Power budget verification is equally important. The SD821 or SD822 24 VDC power supply units feeding the S800 rack must have sufficient headroom to support the output load of the DO840 across all 16 channels simultaneously. In aging installations, power supply capacitors may have degraded, making it prudent to test supply voltage under load before committing to a module swap. If the power supply is also approaching end-of-life, a concurrent replacement reduces total downtime compared to sequential interventions.

For sites that have extended their S800 architecture with communication modules — for example, using a CI854 PROFIBUS DP interface module or a CI856 FOUNDATION Fieldbus HSE linking device — the DO840 replacement does not affect these communication paths, since the digital output module operates on the local S800 I/O bus. However, if the retrofit is part of a broader migration toward an Ethernet-based I/O architecture, engineers should evaluate whether the existing CI873 PROFINET I/O interface module can be introduced in parallel to begin the protocol transition without disrupting the legacy S800 bus during the interim period.

Terminal wiring documentation is critical. Each of the 16 output channels on the DO840 connects to field devices — solenoid valves, motor contactors, indicator lamps, or relay coils — through the TB820 base unit terminal block. Before removal, photograph or scan the existing wiring layout and cross-reference against the as-built loop drawings. Mislabeled or undocumented field wiring is the most common source of commissioning delays during digital output module replacements in mature plants.

Finally, confirm that the HMI system — whether running on an ABB Panel 800 operator station or a third-party SCADA platform connected via OPC — does not require tag re-mapping after the module swap. Because the DO840 replacement preserves the original module address and the AC800M application program is not modified, HMI faceplate behavior and alarm logic should remain intact. A brief functional test of each output channel from the HMI after commissioning is recommended to confirm end-to-end signal integrity before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a digital output module in a live production environment. The DO840 supports hot-swap replacement within the S800 I/O architecture, meaning the module can be removed and reinserted while the AC800M controller remains powered and the application program continues to execute — provided the replacement module is inserted within the controller’s configured I/O supervision timeout window. Engineers should verify this timeout parameter in Control Builder M before proceeding and extend it if necessary to accommodate the physical swap time.

To further protect process continuity, outputs connected to critical actuators should be placed in a safe state — typically de-energized or held at a defined fallback position — before the module is removed. This is achieved by issuing forced output commands from the AC800M engineering station or by temporarily switching the affected control loops to manual mode from the HMI. Documenting the pre-swap state of all 16 output channels allows the commissioning engineer to verify restoration of correct output states immediately after the replacement module is confirmed online.

For planned maintenance windows, a parallel commissioning approach is recommended: install the replacement DO840 in a spare slot on the same or an adjacent S800 rack, configure it with a temporary address, and perform a full channel-by-channel functional test against a test load before the actual cutover. This approach eliminates uncertainty about the replacement unit’s condition and reduces the live cutover to a simple address change and physical cable transfer, typically achievable within a single shift.

Inventory availability is a key risk factor in downtime management. KNMKS maintains buffer stock of the DO840 3BSE020838R1 to support both emergency dispatch and scheduled maintenance programs. All units are pre-tested and shipped with documentation confirming electrical performance, reducing the risk of receiving a non-functional module during a critical maintenance window.

Retrofit Support FAQ

Q1: Is the DO840 3BSE020838R1 a direct drop-in replacement for earlier DO840 revisions?
In most cases, yes. The 3BSE020838R1 revision is the current production variant and is backward compatible with the TB820 and TB820V2 base units used across S800 I/O installations. However, if your existing installation uses a very early revision of the TB820 base unit with an older firmware version, we recommend confirming compatibility with the AC800M firmware version in use. KNMKS technical support can assist with revision cross-referencing prior to shipment.

Q2: What pre-shipment testing is performed on each DO840 unit?
Each DO840 3BSE020838R1 supplied by KNMKS undergoes individual electrical testing covering output channel continuity, load switching at rated current, and communication bus handshake verification. Units that do not meet ABB’s published specifications are quarantined and not shipped. A test report is available upon request for critical spare applications.

Q3: Can the DO840 be used in a mixed S800 rack alongside third-party I/O modules?
The S800 I/O bus is a proprietary ABB protocol and does not natively support third-party modules in the same cluster. The DO840 must be used with ABB S800-compatible base units and within an AC800M or compatible controller architecture. If your migration plan involves introducing third-party I/O alongside existing S800 modules, a gateway or protocol converter will be required, and KNMKS can advise on suitable interface options.

Q4: What is the support terms coverage and what does it include?
All DO840 3BSE020838R1 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, electrical performance deviations from ABB specification, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated environmental conditions. Support requests are processed within 5 business days, and replacement units are dispatched from in-stock inventory to minimize site downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DO840 3BSE020838R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DO840 3BSE020838R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
