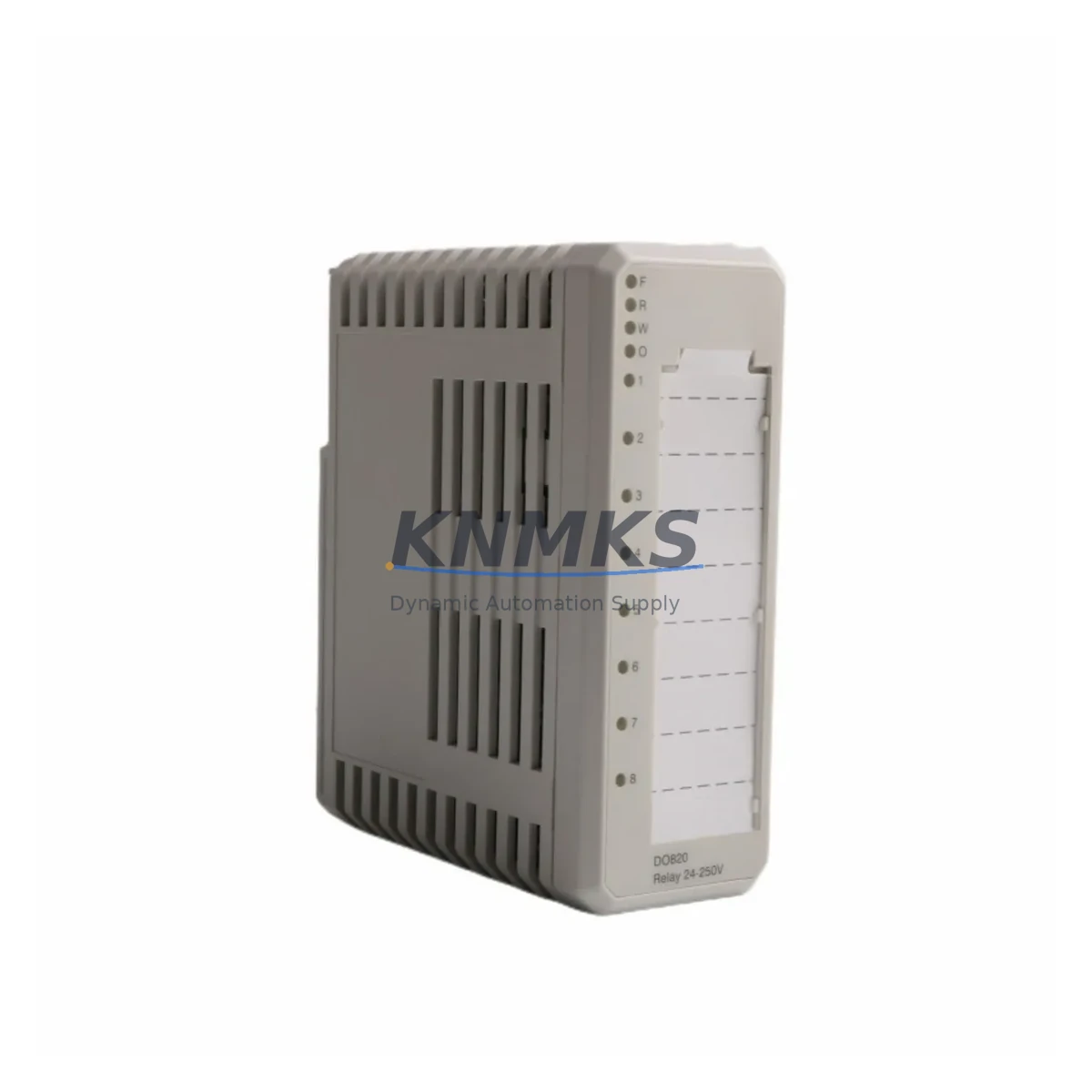

ABB DO820 3BSE008514R1 Migration-Ready Relay Output Module

Overview

ABB DO820 3BSE008514R1 Migration-Ready Relay Output Module: Legacy System Retrofit & Compatibility Upgrade

The ABB DO820 (3BSE008514R1) is a 16-channel relay digital output module designed for the S800 I/O system, fully compatible with the AC800M controller platform. As legacy DCS and PLC installations reach end-of-life, the DO820 serves as a verified migration-ready replacement for discontinued relay output modules across ABB’s earlier control generations. Whether you are upgrading a Masterpiece 200, Advant OCS, or MOD 300 installation, the DO820 integrates into modern S800 I/O racks with minimal rewiring and supports direct backplane addressing within the AC800M architecture.

For facilities managing aging control cabinets, the DO820 provides a reliable path to extend system life without full platform replacement. Its relay contact outputs support both AC and DC load switching, making it suitable for motor starter interlocks, valve actuator commands, and alarm annunciator circuits that are common in legacy panel layouts. Field engineers confirm that terminal block wiring from older TB820 or TB840 termination units can often be reused with minor adaptation, significantly reducing retrofit labor hours and minimizing exposure to unplanned downtime.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DO820 retrofit begins with a thorough audit of the existing control cabinet. Before removing the legacy relay output module, document the current I/O list, verify the rack slot assignment, and photograph all terminal wiring. In most S800-based installations, the TB820 termination unit remains in place while only the active module is swapped — this approach preserves field wiring continuity and eliminates the need to re-terminate individual conductors.

Power budget verification is a critical pre-installation step. The SD821 or SA811 power supply module feeding the S800 rack must have sufficient headroom to support the DO820’s relay coil energization current, particularly in applications where multiple output channels switch simultaneously. In high-density cabinets, engineers should also confirm that the BC810 bus connection unit or CI820 PROFIBUS communication interface is operating within its rated node count before adding the replacement module.

For sites migrating from older Advant or MOD 300 platforms, the program logic stored in the AC800M controller typically requires only minor function block updates. The DO820’s channel mapping must be reconciled with the existing Control Builder M project — specifically, the DO_RELAY function block instances should be verified against the new module’s hardware address. If the site uses ABB 800xA as the supervisory system, aspect objects and graphic faceplates linked to the legacy output module will need to be updated to reflect the new module reference.

In applications involving motor control centers or valve manifolds, the DO820’s relay contacts must be verified for load compatibility. Inductive loads such as solenoid valves and contactor coils require confirmation of the relay’s rated switching current and the presence of appropriate suppression circuits (RC snubbers or flyback diodes) on the load side. This is especially relevant when the DO820 replaces an older transistor-output module that may have had different load characteristics. A signal isolator or interposing relay may be required in some legacy panel configurations to bridge voltage level differences between the DO820 relay contacts and field devices.

For sites with extended cable runs or noisy industrial environments, verifying the integrity of the ModuleBus communication link between the S800 rack and the AC800M controller is recommended after module insertion. A short diagnostic cycle using Control Builder M’s online monitoring view will confirm that the DO820 is recognized, addressed correctly, and reporting channel status without fault codes before the system is returned to automatic operation.

Downtime Control During System Migration

Minimizing production interruption during a relay output module replacement requires a structured hot-swap or planned-outage procedure. For S800 I/O systems with redundant rack configurations, the DO820 can often be inserted into a standby slot while the primary module remains active, allowing pre-commissioning checks to be completed before the final switchover. In non-redundant installations, the replacement window should be scheduled during a planned maintenance shutdown, with all affected output channels placed in manual override or safe-state prior to module removal.

Before powering down the rack segment, export the current AC800M project from Control Builder M and create a timestamped backup of the controller application. This preserves the original program logic, I/O configuration, and communication parameters, ensuring that the restoration path is clearly defined if the retrofit encounters unexpected compatibility issues. The backup should include the full hardware configuration tree, not only the application code, so that module addressing and rack topology are captured.

Once the DO820 is seated and the rack is powered, the module self-test sequence completes within seconds. Control Builder M’s online diagnostic view will display the module’s status, channel health, and any active fault flags. A channel-by-channel output force test — conducted with field devices in a safe state — confirms relay contact continuity before the controller application is switched back to automatic mode. This structured commissioning sequence typically allows a single-module replacement to be completed within a two-hour maintenance window, including documentation and sign-off.

All DO820 units supplied by KNMKS are functionally tested prior to shipment, with relay contact resistance and channel isolation verified under load. This pre-shipment testing protocol reduces the risk of infant failure during commissioning and supports the support terms confirmed by quotation coverage that applies from the date of delivery.

Retrofit Support FAQ

Q1: Is the DO820 3BSE008514R1 a direct replacement for older ABB relay output modules in Advant OCS or MOD 300 systems?
The DO820 is a native S800 I/O module and requires an S800-compatible rack and termination unit. For Advant OCS or MOD 300 migrations, the control platform must first be upgraded to AC800M with S800 I/O infrastructure. Once the rack and communication interface (such as the CI820 or CI830) are in place, the DO820 integrates directly. KNMKS can advise on the full migration bill of materials based on your existing hardware inventory.

Q2: What wiring changes are required when replacing a legacy relay output module with the DO820?
If the existing installation uses a TB820 or TB840 termination unit, field wiring is typically preserved. The active module is removed and the DO820 is inserted into the same slot. Terminal assignments should be verified against the DO820 wiring diagram (3BSE008514R1 hardware manual) to confirm channel-to-terminal correspondence. In cases where the legacy module used a different termination standard, an adapter plate or re-termination to a compatible TB unit may be required.

Q3: How is the DO820 commissioned in Control Builder M after installation?
After physical installation, open the hardware configuration in Control Builder M and verify that the DO820 appears in the I/O tree at the correct rack address. Download the updated hardware configuration to the AC800M controller. Use the online force function to test each relay output channel individually before enabling automatic control. Confirm that 800xA faceplates and alarm tags reflect the correct channel status before returning the loop to service.

Q4: What support terms and pre-shipment testing does KNMKS provide for the DO820?
All DO820 units are covered by a support terms confirmed by quotation from the date of delivery. Prior to shipment, each module undergoes functional relay contact testing, channel isolation verification, and visual inspection. A test report is available upon request. Units are packaged in anti-static protective enclosures and shipped with tracking. For urgent retrofit requirements, expedited dispatch is available — contact [email protected] or call +86 18359268345 to confirm lead time and stock availability.
