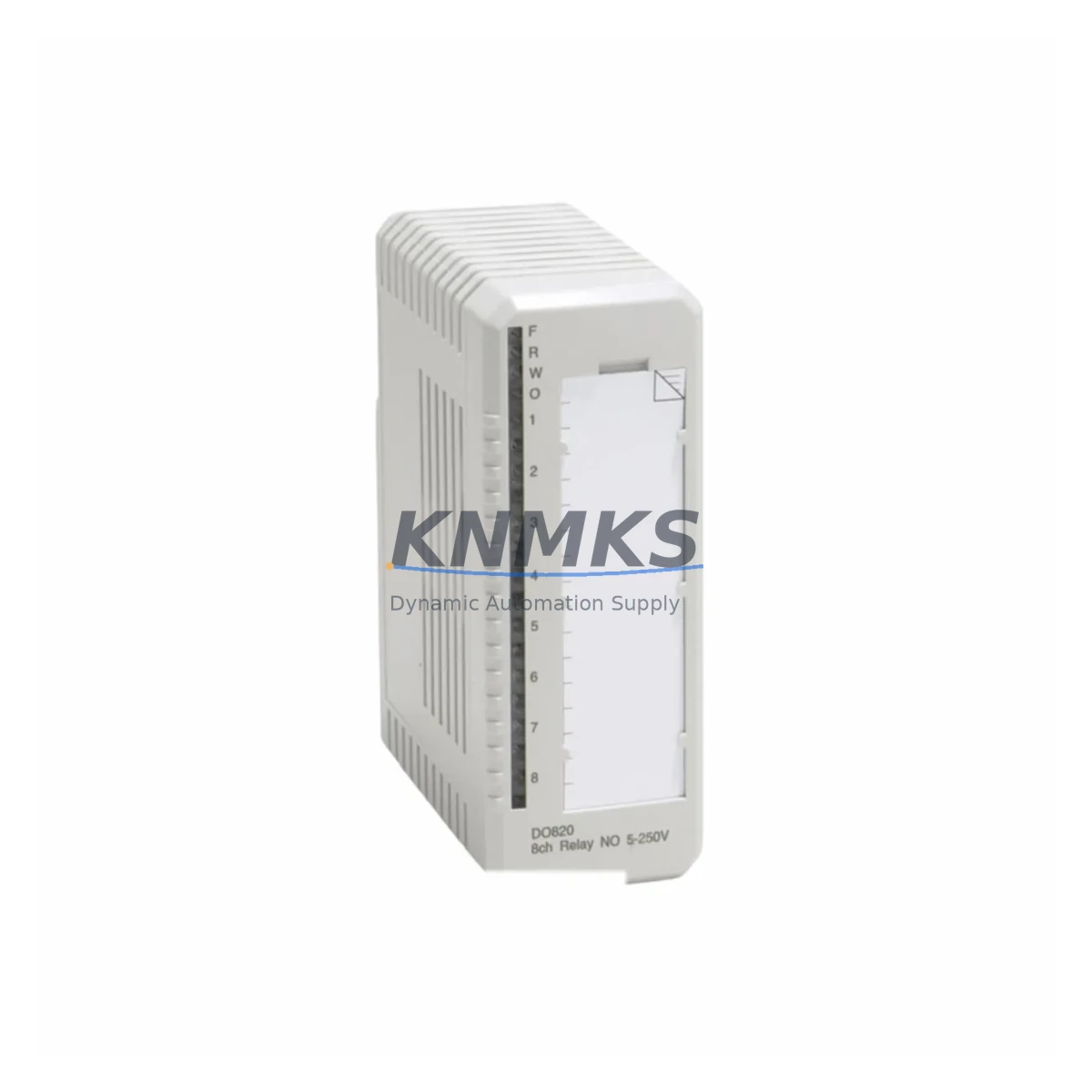

ABB DO820 3BSE008514R1 Fail-Safe Digital Output Module

Overview

ABB DO820 3BSE008514R1 Fail-Safe Digital Output Module: Fault-Protected Control for Critical Industrial Sites

The ABB DO820 (3BSE008514R1) is a high-reliability digital output module engineered for the ABB AC800M Distributed Control System. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — this module delivers deterministic, fail-safe output switching that protects both process integrity and personnel safety.

In critical control architectures where unplanned downtime carries severe operational and financial consequences, the DO820 provides the output-side assurance that safety interlocks, actuator commands, and shutdown sequences execute correctly — every time. Its robust design addresses the most common failure vectors in field-level control: signal drift, electromagnetic interference, power transients, thermal stress, vibration fatigue, and moisture ingress.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The DO820 does not operate in isolation — its fail-safe value is fully realized when integrated into a well-protected control cabinet architecture. In high-criticality installations, the module is typically paired with the ABB CI854A (3BSE030220R1) PROFIBUS DP communication interface module, which handles fieldbus communication between the AC800M controller and field devices. Reliable communication between the CI854A and the DO820 ensures that output commands are transmitted without latency or packet loss, even in environments with heavy variable-frequency drive (VFD) interference.

On the power supply side, the ABB SD823 (3BSC610065R1) 24 V DC power supply module provides stable, regulated power to the S800 I/O rail. Voltage fluctuations and surge events — common in facilities with large motor loads or frequent switching operations — are absorbed before they can propagate to the DO820’s output channels. Complementing this, the ABB TB820V2 (3BSE013208R1) ModuleBus modem serves as the optical bus coupler, isolating the I/O rail from the controller backplane and eliminating ground loop interference paths that could cause spurious output activations.

For applications requiring digital input correlation — such as confirming actuator feedback after a DO820 output command — the ABB DI810 (3BSE008508R1) digital input module provides the complementary input-side monitoring. Together, the DO820 and DI810 form a complete output-command / input-confirmation loop that supports safety interlock verification without additional external hardware.

In cabinets subject to thermal stress from high ambient temperatures or dense module packing, the ABB AI810 (3BSE008516R1) analog input module — often installed in the same S800 rack — benefits from the same thermal management practices applied to the DO820, including adequate rail spacing, forced-air ventilation, and derating of channel loads at elevated temperatures. Maintaining thermal discipline across the entire S800 I/O rack is essential to preserving the long-term reliability of every module in the assembly.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the DO820 drives solenoid valves, motor starters, and emergency shutdown (ESD) actuators within safety instrumented systems (SIS). Its per-channel short-circuit protection prevents a single field wiring fault from cascading into a broader control failure, maintaining process containment during abnormal events.

Power Generation and Substation Control: Thermal and hydroelectric power stations rely on the DO820 to issue switching commands to circuit breakers, cooling fans, and auxiliary equipment. The module’s EMI tolerance is critical in environments where high-voltage switching generates intense electromagnetic transients that can corrupt output states in less robust hardware.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and humidity. The DO820’s industrial-grade construction and sealed module housing maintain reliable output switching for conveyor drives, ventilation systems, and dewatering pump controls under these conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the DO820 to control dosing pumps, valve actuators, and blower motors within SCADA-integrated AC800M systems. Continuous 24/7 operation demands the kind of long-term output stability that the DO820’s design — with its diagnostic self-monitoring and fault reporting — is built to deliver.

Metallurgy and Steel Production: In electric arc furnace (EAF) and rolling mill environments, the DO820 manages high-cycle output switching for cooling water valves, hydraulic press controls, and furnace door actuators. The module’s ability to sustain reliable operation under high-frequency vibration and thermal cycling makes it a preferred choice for modernization projects replacing obsolete I/O hardware.

Port Logistics and Marine Applications: Ship-to-shore crane control systems and vessel automation platforms built on ABB AC800M architecture use the DO820 to command hoist brakes, travel drives, and safety interlocks. The module’s hot-swap capability minimizes crane downtime during scheduled maintenance windows, a critical advantage in high-throughput port operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB DO820 3BSE008514R1?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional performance issues under normal operating conditions. If the module fails to perform its specified digital output functions within the confirmed support period, we provide replacement or repair at no additional cost. Support terms coverage begins from the date of shipment.

Q2: What pre-shipment testing is performed on the DO820 before dispatch?
Every DO820 unit undergoes a full functional test prior to shipment, including channel-by-channel output activation verification, short-circuit protection response testing, and communication interface validation via ModuleBus. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request.

Q3: Is the 3BSE008514R1 directly compatible with existing ABB AC800M and S800 I/O installations?
Yes. The DO820 (3BSE008514R1) is a standard S800 I/O module that installs directly onto the S800 I/O rail without hardware modification. It is compatible with all AC800M controller variants and S800 bus couplers, including TB820V2 and TB840A. No firmware changes are required for direct replacement of a failed DO820 in an existing installation.

Q4: Can you support long-term or emergency supply requirements for the DO820?
Yes. We maintain multi-region stock of the ABB DO820 3BSE008514R1 to support both emergency replacement orders — typically dispatched within 24–48 hours — and planned maintenance programs requiring scheduled delivery. For facilities managing large AC800M installations, we can discuss long-term supply agreements to ensure parts availability throughout your system’s operational lifecycle.
