ABB DO818 3BSE069053R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DO818 3BSE069053R1 Maintenance-Proven Spare Part for Factory Uptime

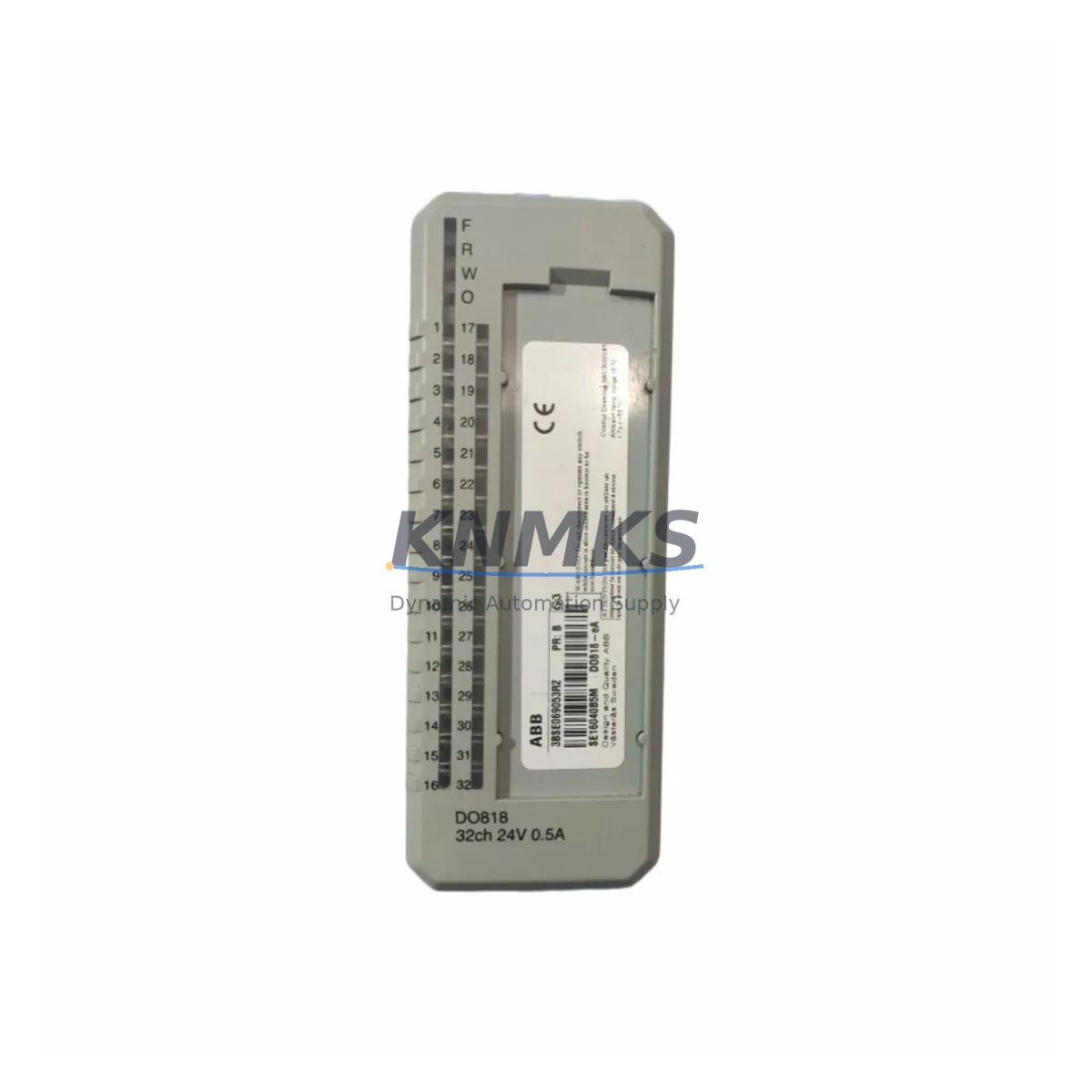

The ABB DO818 (3BSE069053R1) is an 8-channel 24VDC digital output module designed for the ABB S800 I/O system, fully compatible with AC800M process controllers. As a critical field-side output interface, the DO818 drives actuators, solenoid valves, motor starters, and relay coils in continuous process environments including chemical, oil & gas, power generation, pulp & paper, and discrete manufacturing. Maintaining a verified spare of the DO818 3BSE069053R1 in your cabinet-side inventory is a proven strategy to eliminate unplanned downtime caused by output channel failure, module aging, or surge damage.

Each unit supplied by KNMKS is sourced from authorized distribution channels, individually tested under load prior to shipment, and covered by a support terms confirmed by quotation. Long-term supply continuity is supported for legacy AC800M installations where OEM procurement lead times may extend beyond acceptable maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DO818 3BSE069053R1 output module fails or degrades in service, the fault rarely exists in isolation. Experienced maintenance engineers know that a thorough site inspection and cabinet audit should accompany any module replacement to prevent repeat failures and ensure the restored system operates reliably through the next maintenance interval.

Begin by verifying the 24VDC field supply rail feeding the DO818 output commons. A sagging or noisy supply — often sourced from an ABB SD831 or SD832 24VDC power supply unit — can cause intermittent output switching errors that mimic module failure. Confirm supply voltage is within tolerance under full load before installing the replacement module.

Inspect the TB820 or TB840 baseunit that hosts the DO818. Backplane connector pins should be clean and free of oxidation; a damaged baseunit will cause the replacement module to report the same fault. If the baseunit shows signs of heat stress or mechanical damage, replace it concurrently to avoid a second outage.

Check the field wiring terminal blocks connected to the DO818 output channels. Loose terminations, corroded conductors, or undersized cable cross-sections are common contributors to channel overcurrent trips. Verify that each output circuit is protected by an appropriately rated fuse or circuit breaker — typically 0.5A to 1A per channel for 24VDC solenoid loads.

Review the status of adjacent S800 I/O modules sharing the same I/O bus segment. Modules such as the DI810 or DI811 digital input modules, AI810 analog input modules, and AO810 analog output modules should be checked for communication errors in the AC800M controller’s diagnostic log. A bus segment fault can cascade across multiple modules and should be resolved before the replacement DO818 is commissioned.

For sites using PROFIBUS or FOUNDATION Fieldbus alongside the S800 I/O, confirm that the CI854 or CI857 communication interface module is operating without error. Communication faults at the fieldbus level can cause the controller to report false output module failures. Similarly, if the installation includes an AF100 Modulebus optical link, inspect the fiber connections for contamination or bend-radius violations.

Finally, update the site’s spare parts register to reflect the DO818 replacement and log the event in the preventive maintenance record. Sites with high actuator cycle counts should consider scheduling the next DO818 inspection at the 18-month mark, even if no fault is present, as transistor output channels accumulate wear under inductive switching loads.

Site Replacement Workflow

Step 1 — Isolate and document. Place the AC800M controller in manual mode or transfer control to a redundant path if available. Record the current DO818 channel configuration and any forced output states from the controller’s engineering tool (Control Builder M). Take a photograph of the field wiring before disconnection.

Step 2 — Remove the failed module. Power down the 24VDC field supply to the affected baseunit. Disconnect field wiring from the terminal block. Release the DO818 module from the TB820/TB840 baseunit by pressing the locking tab and sliding the module clear of the backplane connector.

Step 3 — Inspect the baseunit. Before inserting the replacement DO818 3BSE069053R1, visually inspect the baseunit connector for bent pins or contamination. Clean with dry compressed air if required.

Step 4 — Install the replacement module. Slide the new DO818 firmly into the baseunit until the locking tab engages. Reconnect field wiring to the terminal block, verifying polarity and torque on each terminal screw. Restore the 24VDC field supply.

Step 5 — Commission and verify. Power up the AC800M segment and confirm the DO818 appears in the controller’s I/O configuration without error. Force each output channel individually from Control Builder M and verify the corresponding field device responds correctly. Clear any latched diagnostics and return the controller to automatic mode.

Step 6 — Update records. Log the replacement in the CMMS, update the spare parts inventory, and file the support terms confirmed by quotation documentation supplied with the KNMKS unit.

Spare Parts Support FAQ

Q1: Is the DO818 3BSE069053R1 supplied by KNMKS a new or refurbished unit?
All DO818 units are new or factory-reconditioned to OEM specification. Each unit undergoes a full channel load test prior to shipment. The condition and test result are documented on the packing slip. A support terms confirmed by quotation applies from the date of shipment regardless of unit origin.

Q2: How do I confirm compatibility with my AC800M controller version?
The DO818 3BSE069053R1 is compatible with all AC800M controller variants (PM851 through PM866) running ABB Control Builder M software version 5.0 and above. If your site runs an earlier firmware version, contact [email protected] with your controller part number and software version for a compatibility confirmation before ordering.

Q3: What is the recommended spare holding quantity for a continuous-process plant?
For plants with more than 10 DO818 modules installed, a minimum holding of 2 spare units is recommended. Sites with critical single-path output circuits — such as emergency shutdown solenoids or burner management outputs — should hold at least 1 dedicated spare per critical loop. KNMKS supports blanket order arrangements for sites requiring guaranteed stock reservation.

Q4: Can KNMKS support long-term supply for legacy AC800M installations past ABB’s active production period?
Yes. KNMKS maintains strategic inventory of S800 I/O modules including the DO818 3BSE069053R1 to support legacy AC800M sites beyond standard OEM availability windows. Long-term supply agreements with fixed pricing and reserved stock are available. Contact [email protected] or +86 18359268345 to discuss your site’s multi-year spare parts requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DO818 3BSE069053R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DO818 3BSE069053R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
