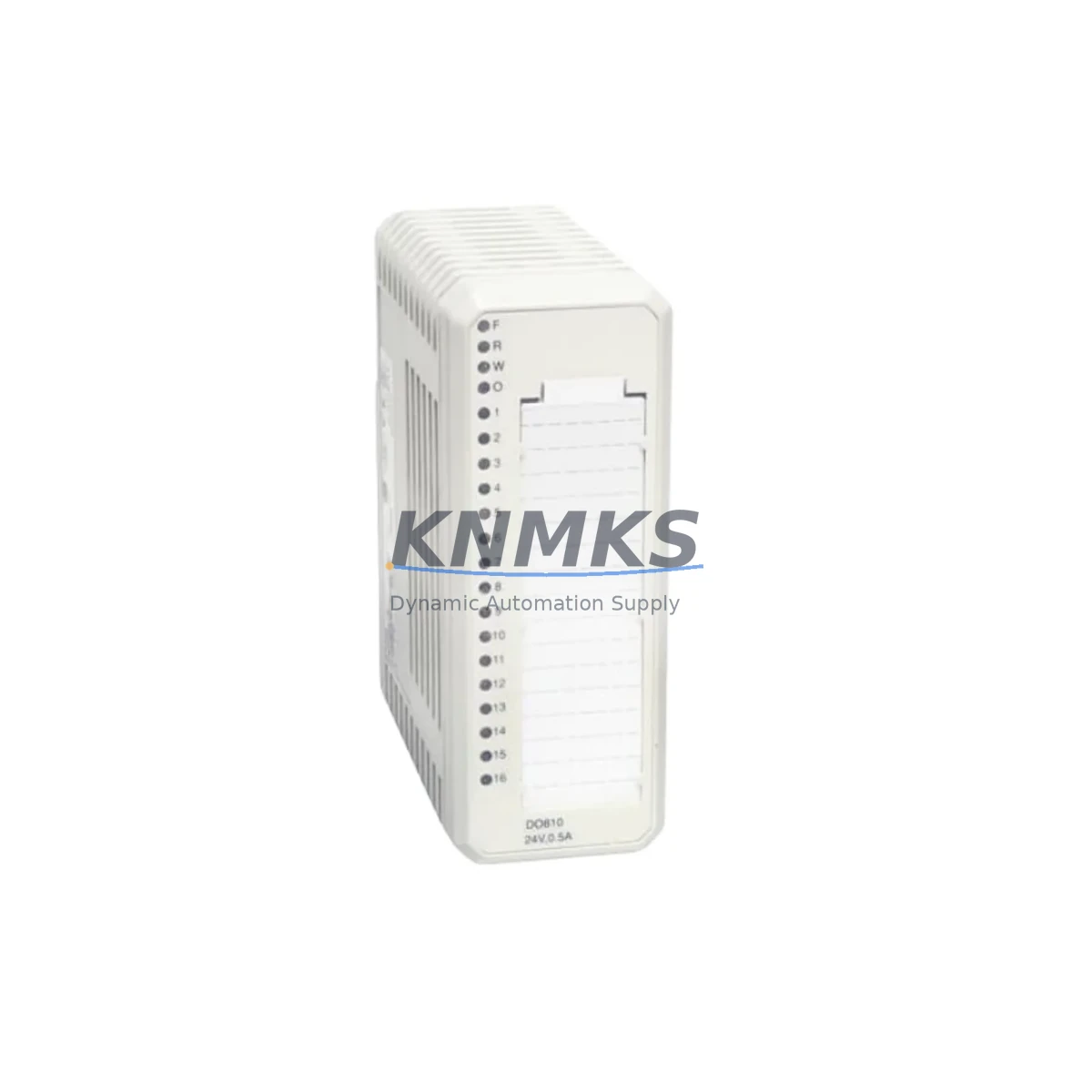

ABB DO810 3BSE008524R1 Migration-Ready Digital Output Module

Overview

ABB DO810 3BSE008524R1 Migration-Ready Digital Output Module: Legacy System Retrofit & Compatibility Upgrade

The ABB DO810 (Part No. 3BSE008524R1) is an 8-channel 24 VDC digital output module from ABB’s S800 I/O series, designed for use with the AC800M process controller platform. As legacy ABB Advant and MOD 300 control systems approach end-of-life, the DO810 3BSE008524R1 has become a critical spare part and retrofit component for engineers managing planned migrations, unplanned failures, and long-term spare parts inventory programs. With pre-shipment functional testing, compatibility verification, and a support terms confirmed by quotation, this module supports both emergency replacement and structured system modernization projects.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life DO810 3BSE008524R1 in an operating plant requires careful coordination across multiple system layers. Before removing the existing module, engineers should document the current channel assignment table from the AC800M Control Builder M project, noting which physical output channels are mapped to which function block outputs. This prevents address conflicts when the replacement module is inserted and the controller re-scans the S800 I/O station.

The S800 I/O station itself — typically mounted on a TB820V2 ModuleBus Modem or connected via a CI840A PROFIBUS DP coupler — must remain powered during hot-swap procedures if the station supports it. Confirm the station’s hot-swap capability before proceeding; some older TB820 revisions require a full station power cycle. If the control cabinet also houses an AI810 analog input module or a DI810 digital input module sharing the same I/O station, their channel assignments must be preserved and verified post-replacement to avoid cross-channel mapping errors.

For sites running PROFIBUS DP communication between the AC800M and field devices, the CI840A coupler’s GSD file and station address must remain unchanged. If the retrofit scope extends to replacing the CI840A itself alongside the DO810, plan for a PROFIBUS segment re-commissioning step, including bus termination verification and baud rate confirmation. Similarly, if the project involves migrating from an older Advant OCS or MOD 300 platform to AC800M, the DO810 3BSE008524R1 is a direct fit for the new S800 I/O architecture, eliminating the need for signal conversion hardware in most 24 VDC digital output applications.

Power budget verification is essential when adding or replacing modules in an existing S800 I/O station. Each DO810 draws current from the station’s 24 VDC supply rail. If the cabinet’s PS800 power supply or an external 24 VDC DIN-rail supply is already near capacity — particularly in dense cabinets also housing SD802 or SD812 servo drives or additional communication modules — a load calculation must be completed before installation. Insufficient supply margin can cause intermittent output faults that are difficult to diagnose under load.

Where HMI integration is part of the retrofit, verify that the 800xA System or PanelBuilder 800 HMI faceplates referencing the DO810’s output channels are updated to reflect any tag renaming or address changes introduced during the migration. Outdated HMI references are a common source of post-commissioning alarms that extend effective downtime beyond the physical module swap.

Downtime Control During System Migration

Minimizing production downtime during a DO810 3BSE008524R1 replacement begins with pre-staging: the replacement module should be on-site and bench-tested before the maintenance window opens. Confirm the DIP switch address setting matches the slot assignment in the existing Control Builder M hardware configuration. A mismatch will cause the AC800M to report a hardware fault immediately on power-up, extending the outage while the address is corrected.

Where process safety permits, use the AC800M’s forced output capability to hold critical digital outputs in their last known state during the module swap interval. This technique is particularly valuable in applications where the DO810 drives solenoid valves, motor contactors, or relay outputs that must remain energized to maintain a safe process state. Document the forced values and the release sequence before beginning work.

After physical installation, the AC800M will automatically detect the new module during its next I/O scan cycle. Verify all 8 output channels individually using the Control Builder M online diagnostic view before releasing the system to automatic control. Log the commissioning test results for the plant’s maintenance record and support terms documentation. Total planned downtime for a straightforward DO810 swap in a prepared environment is typically 30–90 minutes, depending on cabinet access and process isolation requirements.

For sites maintaining a long-term spare parts program, stocking one or two DO810 3BSE008524R1 modules per AC800M cluster significantly reduces mean time to repair (MTTR) for digital output faults. Given the module’s discontinued production status, securing inventory now — with confirmed support terms confirmed by quotation coverage from date of shipment — is a practical risk mitigation measure for facilities with 5–15 year operational horizons.

Retrofit Support FAQ

Q1: Is the DO810 3BSE008524R1 a direct drop-in replacement for earlier DO810 revisions?
Yes. The DO810 3BSE008524R1 is mechanically and electrically compatible with earlier DO810 hardware revisions installed in S800 I/O stations. No wiring changes are required at the field terminal block. Verify the DIP switch address setting matches the existing slot configuration in your Control Builder M project before insertion.

Q2: Can the DO810 be used with both ModuleBus and PROFIBUS DP communication architectures?
Yes. The DO810 communicates via the S800 I/O station’s backplane ModuleBus. The station’s communication interface — TB820V2 for optical ModuleBus or CI840A for PROFIBUS DP — determines how the station connects to the AC800M. The DO810 module itself is compatible with both architectures without modification.

Q3: What pre-shipment testing is performed, and what does the support terms confirmed by quotation cover?
Each DO810 3BSE008524R1 unit undergoes functional output channel testing prior to dispatch to verify all 8 channels operate within specification. The support terms confirmed by quotation cover hardware defects and functional failures under normal operating conditions from the date of shipment. Support requests are supported by KNMKS with direct technical assistance.

Q4: What is the typical lead time, and is inventory available for immediate shipment?
KNMKS maintains stock of the DO810 3BSE008524R1 for immediate shipment. Lead time for in-stock units is typically 3–7 business days depending on destination. For bulk orders or long-term supply agreements covering 12–36 months of planned consumption, contact our sales team to discuss reserved inventory arrangements.
