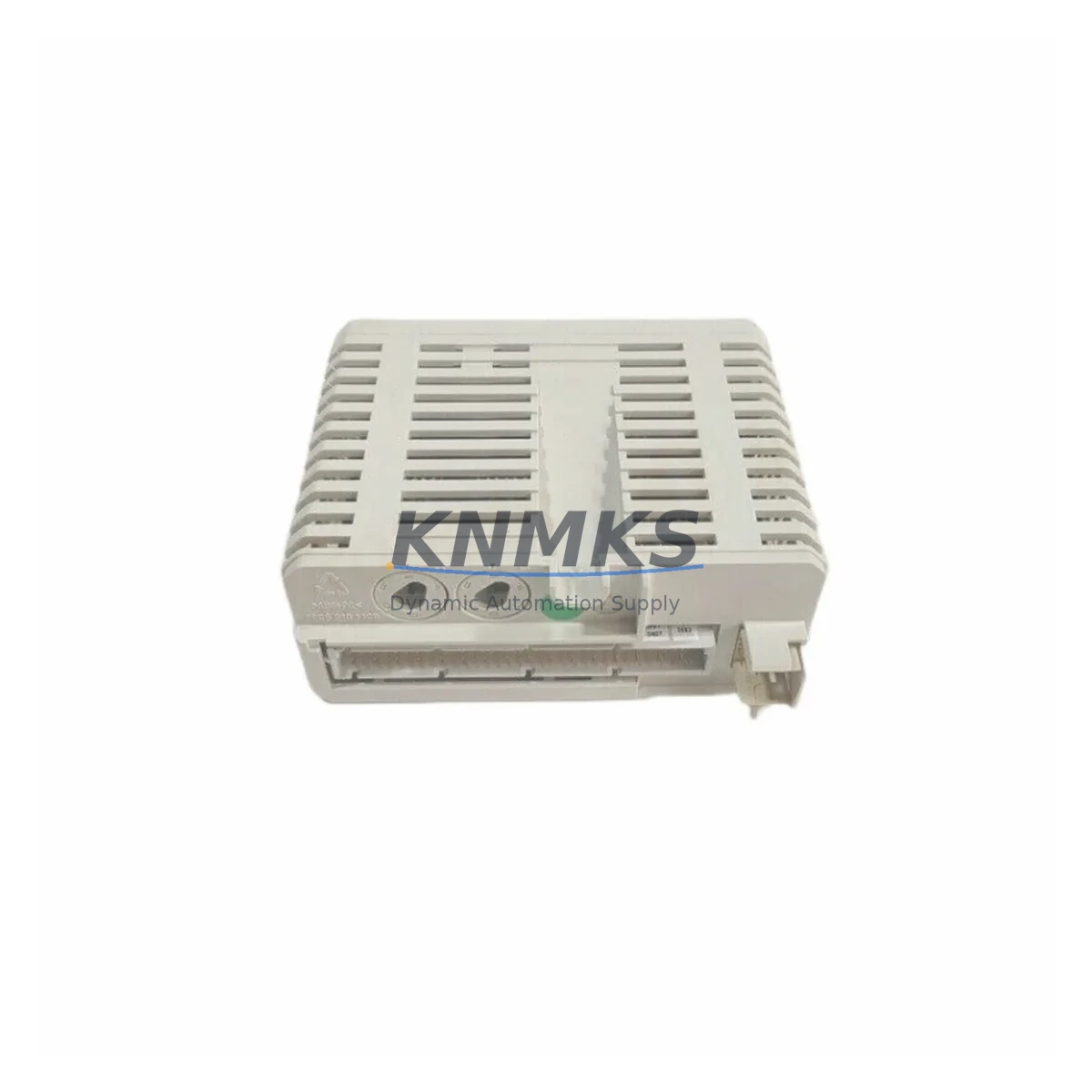

ABB DO810-3BSE008510R1 Migration-Ready Digital Output Module

Overview

ABB DO810-3BSE008510R1 Migration-Ready Digital Output Module: Legacy System Retrofit and Upgrade Guide

The ABB DO810-3BSE008510R1 is a 16-channel, 24 VDC digital output module designed for the S800 I/O platform, fully compatible with the AC800M distributed control system. As legacy S800 installations approach end-of-life or require capacity expansion, the DO810 remains one of the most critical field-replaceable units in the control cabinet. This module supports direct slot-for-slot replacement of discontinued S800 digital output variants, making it the preferred choice for maintenance engineers managing aging DCS infrastructure across process industries including oil and gas, pulp and paper, power generation, and chemical manufacturing.

When planning a retrofit or spare parts replenishment strategy, engineers must verify several key parameters before commissioning a replacement DO810-3BSE008510R1: available 24 VDC power rail capacity on the S800 power supply module (such as the SD821 or SD822), terminal block wiring compatibility with existing field cables, backplane slot addressing within the S800 I/O station, and module configuration within Control Builder M. Failure to confirm these parameters prior to installation can extend unplanned downtime and introduce commissioning risk during critical production windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DO810-3BSE008510R1 retrofit begins well before the module arrives on site. Maintenance teams should extract the current hardware configuration from Control Builder M and cross-reference the existing I/O station layout to confirm slot assignment, module addressing, and FTU wiring diagrams. The terminal unit — typically a TU810V1 or TU812V1 — must remain in place during module swap to preserve field wiring continuity and minimize reconnection errors.

Power budget validation is essential when the DO810 is being added to an existing S800 I/O station rather than replacing a failed unit. The SD821 or SD822 power supply module feeding the station must have sufficient headroom to support the additional 24 VDC output load. In high-density cabinets where multiple S800 I/O stations share a common power distribution rail, engineers should audit the full load profile before commissioning.

For sites migrating from older S800 I/O configurations to a modernized AC800M architecture, the DO810 integrates directly without requiring changes to the ModuleBus optical communication chain managed by the TB820V2 or TB840A modem. This preserves the existing communication topology and avoids the need for protocol conversion gateways or additional engineering in the controller project. Where HMI screens reference specific I/O channel tags, the tag database in the AC800M project should be reviewed to confirm that output channel assignments remain consistent after module replacement — particularly in systems where the HMI is connected via OPC or a dedicated 800xA Information Management link.

In control cabinets undergoing broader modernization — such as replacing an aging PM851 controller with a PM866 for increased processing capacity — the DO810 can be retained as part of the upgraded I/O infrastructure, reducing the scope and cost of the overall retrofit. Similarly, where I/O expansion is required, additional DO810 modules can be added to existing S800 I/O stations without disrupting active channels, provided the station’s ModuleBus address space and power budget permit.

Signal isolation requirements should also be reviewed during retrofit planning. In applications where field devices operate at voltages or in environments that could introduce ground loops or noise into the control system, an external signal isolator or relay output interface may be required between the DO810 output channels and the field actuators. This is particularly relevant in retrofit scenarios where the original control system used relay output modules rather than solid-state digital outputs.

Downtime Control During System Migration

Minimizing unplanned downtime during a DO810-3BSE008510R1 replacement requires a structured pre-outage preparation process. Before taking the I/O station offline, the maintenance team should capture a full backup of the AC800M controller project from Control Builder M, document the current output channel states, and confirm that all field devices connected to the DO810 outputs are in a safe de-energized condition or have been placed in manual control at the field level.

The physical module swap on an S800 I/O station is typically completed in under 15 minutes when the terminal unit remains in place and the replacement module is pre-staged. After reinsertion, the AC800M controller will automatically detect the new module via the ModuleBus and restore output channel operation based on the existing project configuration — no re-download of the controller application is required in most cases, provided the hardware configuration in Control Builder M matches the installed module type.

For sites where continuous process control is critical, a cold standby DO810 module should be maintained in the local spare parts inventory. Given the extended lead times associated with discontinued or low-volume S800 I/O components, holding at least one spare DO810-3BSE008510R1 per critical I/O station significantly reduces the risk of extended production outages caused by module failure. Our inventory is maintained to support rapid dispatch, and each unit undergoes pre-shipment functional testing to confirm output channel integrity before leaving the warehouse.

Post-replacement commissioning should include a channel-by-channel output verification against the HMI display and field device response, confirmation of correct module addressing in the S800 I/O station, and a review of the controller diagnostic log in Control Builder M to confirm no hardware fault alarms are active. Where the site uses ABB 800xA for system-wide asset monitoring, the replacement module should appear automatically in the hardware inventory view once the controller has completed its startup sequence.

Retrofit Support FAQ

Q: Is the DO810-3BSE008510R1 a direct replacement for other S800 digital output modules?
A: The DO810-3BSE008510R1 is the standard 16-channel 24 VDC digital output module for the S800 I/O platform. It is compatible with the same terminal units (TU810V1, TU812V1) and ModuleBus infrastructure used by other S800 I/O modules. Compatibility with specific discontinued variants should be confirmed against the S800 I/O hardware manual and the installed FTU model before ordering.

Q: Does the replacement module require firmware updates or re-configuration in Control Builder M?
A: The DO810-3BSE008510R1 is factory-configured and does not require field firmware updates. In most AC800M installations, the controller will recognize the replacement module automatically. If the hardware configuration in the Control Builder M project was previously set to the correct module type, no project changes or re-download are required. Engineers should confirm the hardware library version in use supports the installed module revision.

Q: What pre-shipment testing is performed on each DO810-3BSE008510R1 unit?
A: Each DO810-3BSE008510R1 unit undergoes functional output channel verification prior to dispatch. Testing confirms that all 16 output channels respond correctly to control signals and that the module communicates correctly over the S800 ModuleBus interface. Units that do not pass testing are not dispatched. A support terms confirmed by quotation covering manufacturing defects is included with every unit.

Q: What is the typical lead time and inventory availability?
A: We maintain stock of the DO810-3BSE008510R1 to support urgent maintenance and planned retrofit projects. Lead time for in-stock units is typically 3–7 business days for international shipments. For projects requiring multiple units or long-term supply commitments, contact our sales team to discuss volume availability and scheduled delivery arrangements. All units are supplied with a support terms confirmed by quotation from the date of dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DO810-3BSE008510R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DO810-3BSE008510R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
