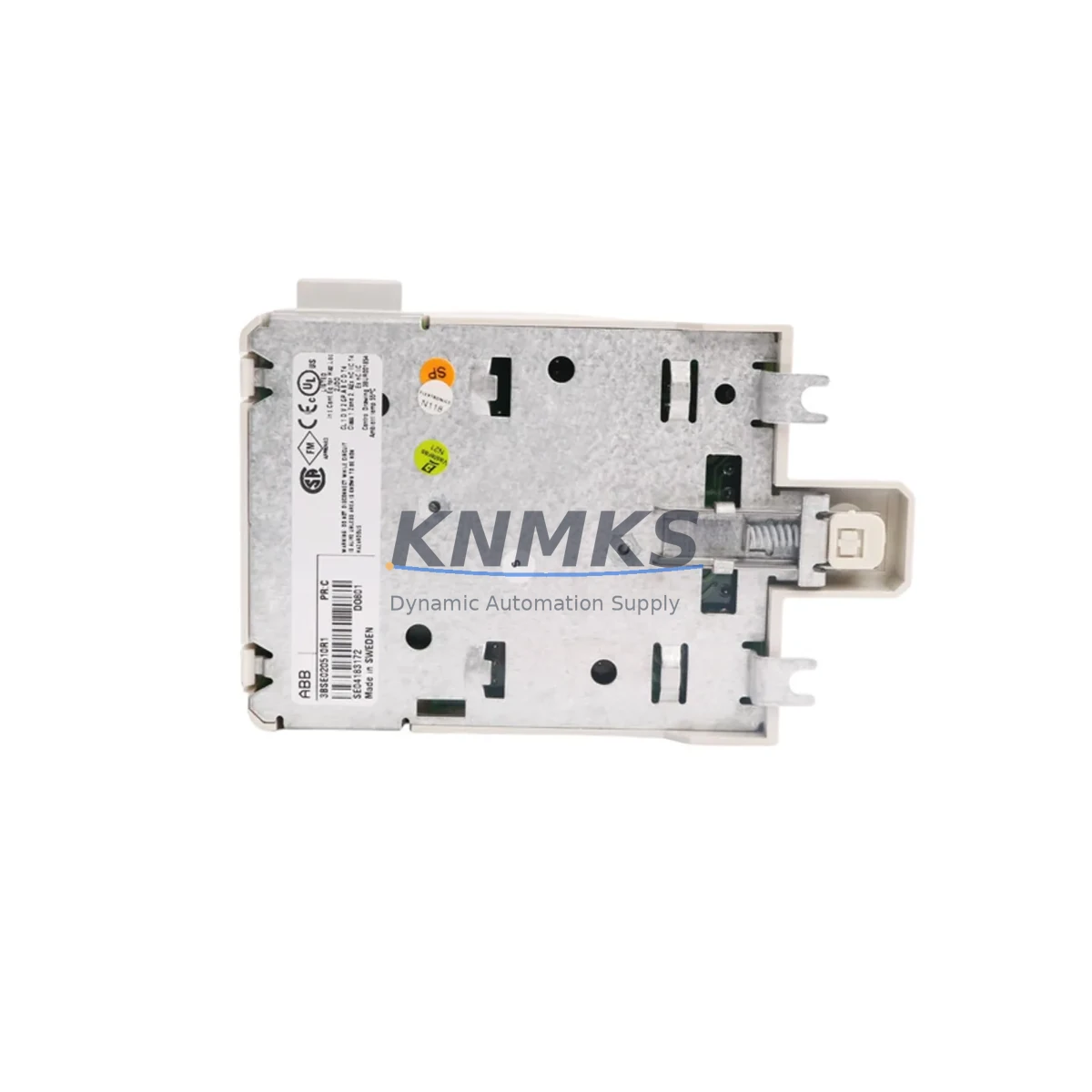

ABB DO801 3BSE020510R1 Migration-Ready Digital Output

Overview

ABB DO801 3BSE020510R1 Migration-Ready Digital Output for Legacy Control Systems

The ABB DO801 (3BSE020510R1) is an 8-channel 24 V DC digital output module designed for the ABB S800 I/O platform, fully compatible with the AC800M distributed control system. As legacy automation lines age and OEM support windows close, the DO801 has become one of the most sought-after retrofit components for engineers managing brownfield DCS upgrades, control cabinet modernization, and discontinued spare-part replacement programs.

Whether you are replacing a failed output module in a running production line, migrating from an older Advant OCS or MOD 300 architecture to AC800M, or expanding I/O capacity in an existing S800 rack, the DO801 3BSE020510R1 provides a verified, drop-in-compatible solution that minimizes engineering rework and reduces commissioning risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DO801 3BSE020510R1 into a legacy control environment requires a structured pre-replacement audit. Before pulling the existing module, engineers should document the current module address settings using the DIP switch map recorded in the original system engineering binder or extracted from the AC800M Control Builder project file. Address conflicts between the replacement DO801 and adjacent modules — such as an ABB AI810 analog input module or a co-located DI810 digital input module — are among the most common causes of post-replacement faults.

Power budget verification is equally critical. The S800 I/O bus draws distributed 24 V DC power through the SA811 or SA801 power supply module mounted on the same carrier. When adding or replacing output modules, confirm that the combined load of all installed modules — including any AO810 analog output modules sharing the same rack segment — does not exceed the rated output current of the power supply. Overloading the bus supply is a silent failure mode that manifests as intermittent output dropout rather than a hard fault alarm.

For sites migrating from older Advant or MOD 300 architectures, the DO801 is typically introduced alongside a TB840 ModuleBus Modem or CI854 PROFIBUS DP communication interface to bridge legacy field devices to the AC800M controller. In these scenarios, the I/O carrier layout, fiber optic segment lengths, and modem addressing must all be re-validated as part of the migration scope. HMI screen tag bindings referencing the old module’s hardware address will require update in the SCADA or ABB 800xA System graphics library before the new module is brought online.

Where the retrofit involves expanding output capacity — for example, adding a second DO801 to an existing carrier to control additional valve actuators or motor starters — confirm that the carrier’s available slot count and the controller’s I/O list both accommodate the expansion without requiring a new rack or additional TB820 modem. Planning this before the maintenance window eliminates the most common source of unplanned downtime extension.

Downtime Control During System Migration

The DO801 3BSE020510R1 is designed for hot-swap replacement within the S800 I/O architecture, provided the AC800M controller is configured for redundant or graceful I/O handling. In non-redundant configurations, the replacement procedure should be executed during a planned maintenance window with the affected output channels placed in a safe, de-energized state at the field device level — not simply forced off at the controller — to prevent actuator movement during the swap interval.

Before removing the existing module, export a backup of the AC800M Control Builder project and record all current forced values and interlock states. This preserves the program logic baseline and allows rapid restoration if the replacement module exhibits unexpected behavior during initial power-up. The backup also serves as the reference document for the post-replacement functional test, which should verify each of the eight output channels against its corresponding field device response.

Commissioning time for a like-for-like DO801 replacement is typically under two hours for an experienced controls engineer, assuming the field terminal unit remains seated and the module address is correctly set before insertion. Sites with documented wiring schematics, up-to-date AC800M project files, and pre-tested replacement modules from verified stock consistently achieve the shortest return-to-service intervals. All DO801 units supplied by KNMKS are pre-tested prior to shipment to eliminate infant-failure risk and support rapid field commissioning.

Retrofit Support FAQ

Q1: Is the DO801 3BSE020510R1 a direct replacement for an existing DO801 in my S800 rack?
Yes. The DO801 3BSE020510R1 is a like-for-like replacement for any DO801 unit installed in an S800 I/O carrier. No program modification is required provided the module address DIP switch is set to match the original module’s address. Confirm the address setting before insertion to avoid address conflicts with adjacent modules.

Q2: What pre-shipment testing is performed on DO801 units?
All DO801 modules supplied by KNMKS undergo functional output channel testing and visual inspection before shipment. Each unit is verified against its rated 24 V DC output specification. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can the DO801 be used in a migration from an older Advant OCS system to AC800M?
Yes, with engineering planning. The DO801 operates natively on the S800 ModuleBus and integrates directly with AC800M. When migrating from Advant OCS, the field wiring connected to the existing output terminal unit can typically be reused, but the controller-side configuration, HMI tag bindings, and interlock logic must be re-engineered for the AC800M platform. KNMKS can advise on compatible communication interface modules for the migration path.

Q4: What is the lead time and stock availability for the DO801 3BSE020510R1?
KNMKS maintains inventory of the DO801 3BSE020510R1 to support urgent replacement and planned retrofit projects. Standard lead time for in-stock units is 3–7 business days for international shipment. Contact [email protected] or call +86 18359268345 to confirm current stock levels and arrange expedited dispatch for critical maintenance situations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DO801 3BSE020510R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DO801 3BSE020510R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
