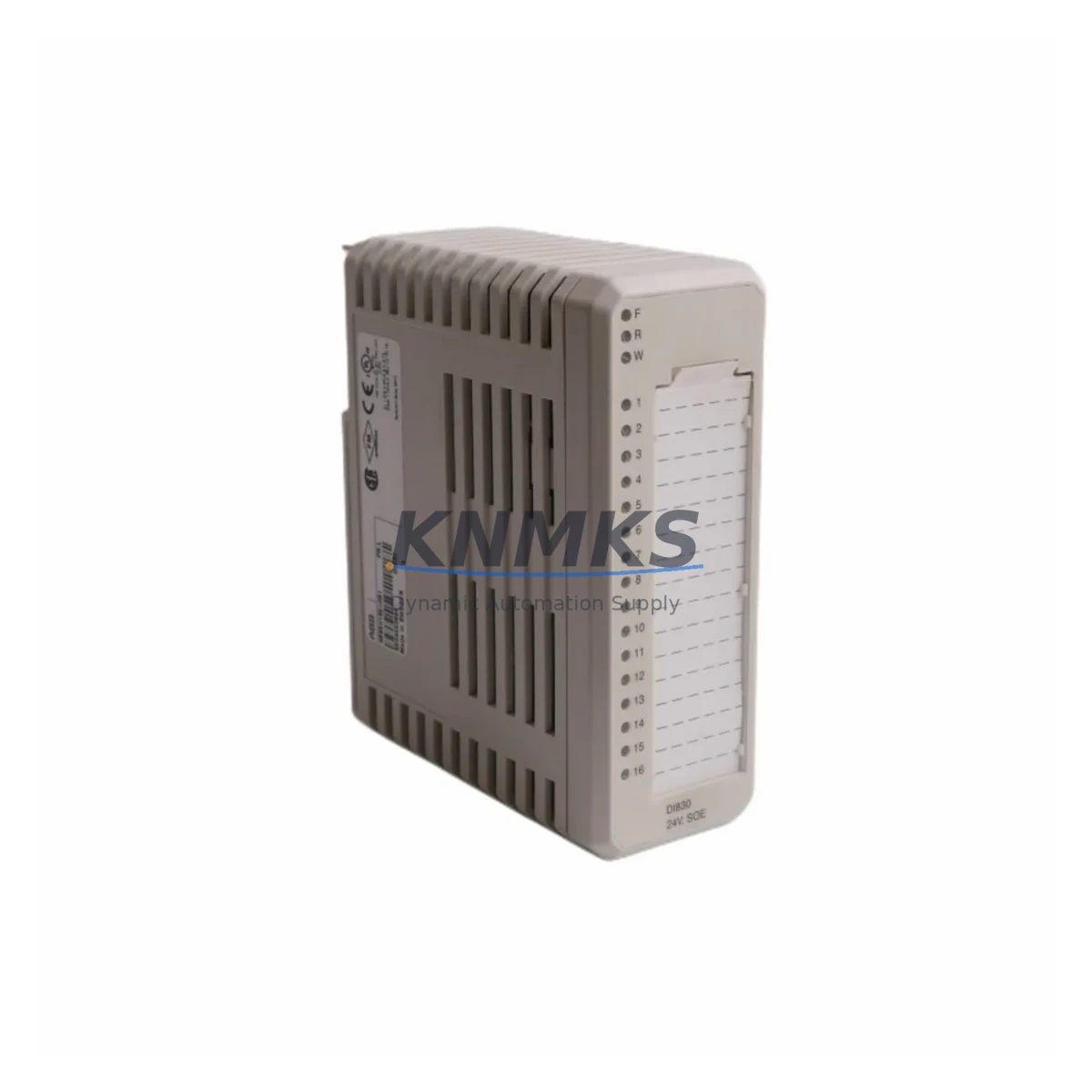

The ABB DI830 (3BSE013210R1) is a 16-channel 24VDC digital input module designed for the S800 I/O system, fully compatible with ABB AC800M Distributed Control Systems. As a maintenance-proven spare part, the DI830 is a critical component for facilities running continuous process automation, where unplanned downtime directly impacts production output and operational costs. Sourced as an original ABB spare, each unit is tested prior to shipment and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams the confidence to stock and deploy with minimal risk.

For industrial sites operating legacy AC800M-based control architectures, maintaining a verified inventory of S800 I/O modules such as the DI830 is a fundamental element of any preventive maintenance program. The DI830 handles discrete signal acquisition from field devices including proximity sensors, limit switches, push buttons, and relay contacts — making it indispensable in motor control centers, conveyor systems, packaging lines, and process plant interlocks. When this module fails or degrades, the affected I/O loop goes dark, triggering fault alarms and forcing operators into manual override or emergency shutdown procedures. Having a tested replacement on the shelf reduces mean time to repair (MTTR) from hours to minutes.

Procurement engineers sourcing the DI830 3BSE013210R1 should verify compatibility with the target S800 I/O station’s baseplate and termination unit. The DI830 mounts on standard S800 baseplates and connects via the S800 I/O bus, requiring no additional configuration beyond the existing AC800M controller project. This plug-and-replace characteristic makes it one of the most field-serviceable modules in the S800 family, reducing the skill threshold required for emergency replacement during night shifts or weekend shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective spare parts planning for an AC800M-based control system extends well beyond stocking a single I/O module. When scheduling a replacement of the DI830 3BSE013210R1, maintenance engineers should conduct a concurrent inspection of the surrounding control cabinet infrastructure to prevent secondary failures from undermining the repair effort.

Begin with the S800 baseplate (such as the TB820V2 or TB840A) to which the DI830 is mounted. Baseplates accumulate mechanical wear at the module locking tabs and can develop intermittent bus contact issues over years of thermal cycling. If the baseplate shows signs of discoloration, cracking, or loose module seating, replace it alongside the DI830. Next, inspect the termination unit (TU830V1 or equivalent) for corroded screw terminals, loose field wiring, and damaged cable shields — field wiring faults are a leading cause of repeat digital input failures that are incorrectly attributed to the module itself.

Check the 24VDC field power supply feeding the DI830’s input circuits. Voltage sag, ripple, or intermittent dropout from an aging SMPS unit can cause false input states and erratic PLC behavior that mimics module failure. Pairing the DI830 replacement with a verified power supply check — or a proactive swap of the ABB SD831 or SD832 power supply module if it is approaching end-of-life — eliminates this risk vector entirely.

For cabinets housing multiple S800 I/O stations, also verify the CI854 or CI858 PROFIBUS/Modbus communication interface module connecting the I/O station to the AC800M controller. A degraded communication module can cause the entire I/O station to drop offline, making individual module replacements ineffective until the communication path is restored. Similarly, inspect the S800 I/O station power distribution fuses and any signal isolators installed between field transmitters and the DI830 input channels — these are frequently overlooked during fault isolation and can mask the true root cause of input signal loss.

Finally, if the control cabinet includes an ABB CP430 or CP450 HMI panel displaying alarms related to the failed I/O loop, clear and re-validate all associated alarm setpoints after the DI830 is replaced and the loop is restored to service. This ensures that nuisance alarms do not persist and that operators have accurate system status visibility from the first moment of resumed production.

Site Replacement Workflow

Replacing the DI830 3BSE013210R1 on an active AC800M system follows a structured sequence that minimizes exposure time and eliminates configuration risk:

1. Pre-replacement verification: Confirm the replacement DI830 carries the same hardware revision as the installed unit. Check the AC800M controller project in ABB Control Builder to identify the I/O address mapping for the affected module slot.
2. Safe isolation: Place the affected I/O loop in manual or bypass mode at the DCS operator station. Notify field operators of the impending input signal interruption. De-energize the 24VDC field supply to the termination unit before removing the module.
3. Module swap: Release the DI830 locking tab, slide the module out of the baseplate, and insert the replacement unit. The S800 hot-swap capability allows this operation without powering down the entire I/O station, provided the baseplate remains energized and the field supply to the termination unit is isolated.
4. Loop restoration and verification: Re-energize the field supply, confirm the DI830 status LED indicates normal operation (green), and verify all 16 input channels report correct states in the AC800M controller diagnostics. Walk the field loop with a technician to physically actuate each connected device and confirm signal integrity.
5. Documentation: Record the replacement in the site maintenance log, including the old module’s serial number, the new module’s serial number, and the date of replacement. Update the spare parts inventory to trigger a replenishment order for the consumed DI830 unit.

This workflow is equally applicable when upgrading from an obsolete predecessor module to the current DI830 3BSE013210R1 revision, ensuring backward compatibility is maintained without requiring controller project modifications.

Spare Parts Support FAQ

Q1: Is the DI830 3BSE013210R1 compatible with all AC800M controller versions?
The DI830 is designed for the ABB S800 I/O system and is compatible with AC800M controllers running standard S800 I/O station configurations. Compatibility is maintained across AC800M hardware generations when the S800 baseplate and communication interface module are correctly specified. Always verify the hardware revision against your installed AC800M project before ordering.

Q2: What is included in the support terms confirmed by quotation and how does it apply to spare parts?
Each DI830 3BSE013210R1 supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Units are tested prior to dispatch to confirm channel integrity and bus communication. Support requests are supported by our technical team at [email protected].

Q3: How should the DI830 be stored as a long-term inventory spare?
Store the DI830 in its original anti-static packaging in a dry, temperature-controlled environment (recommended: 0–55°C, <95% RH non-condensing). Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect stored units annually for physical damage and verify ESD packaging integrity. Modules stored correctly retain full functionality for multi-year inventory cycles.

Q4: Can KNMKS support long-term or repeat supply of the DI830 3BSE013210R1?
Yes. KNMKS maintains sourcing channels for ABB S800 I/O modules including the DI830 3BSE013210R1 to support ongoing maintenance programs, annual shutdown kits, and emergency procurement. Contact our team to discuss blanket order arrangements, lead time commitments, and multi-unit pricing for facilities managing large AC800M installations.
