ABB DI814 3BUR001454R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB DI814 3BUR001454R1 Maintenance-Proven Spare Part for Factory Uptime

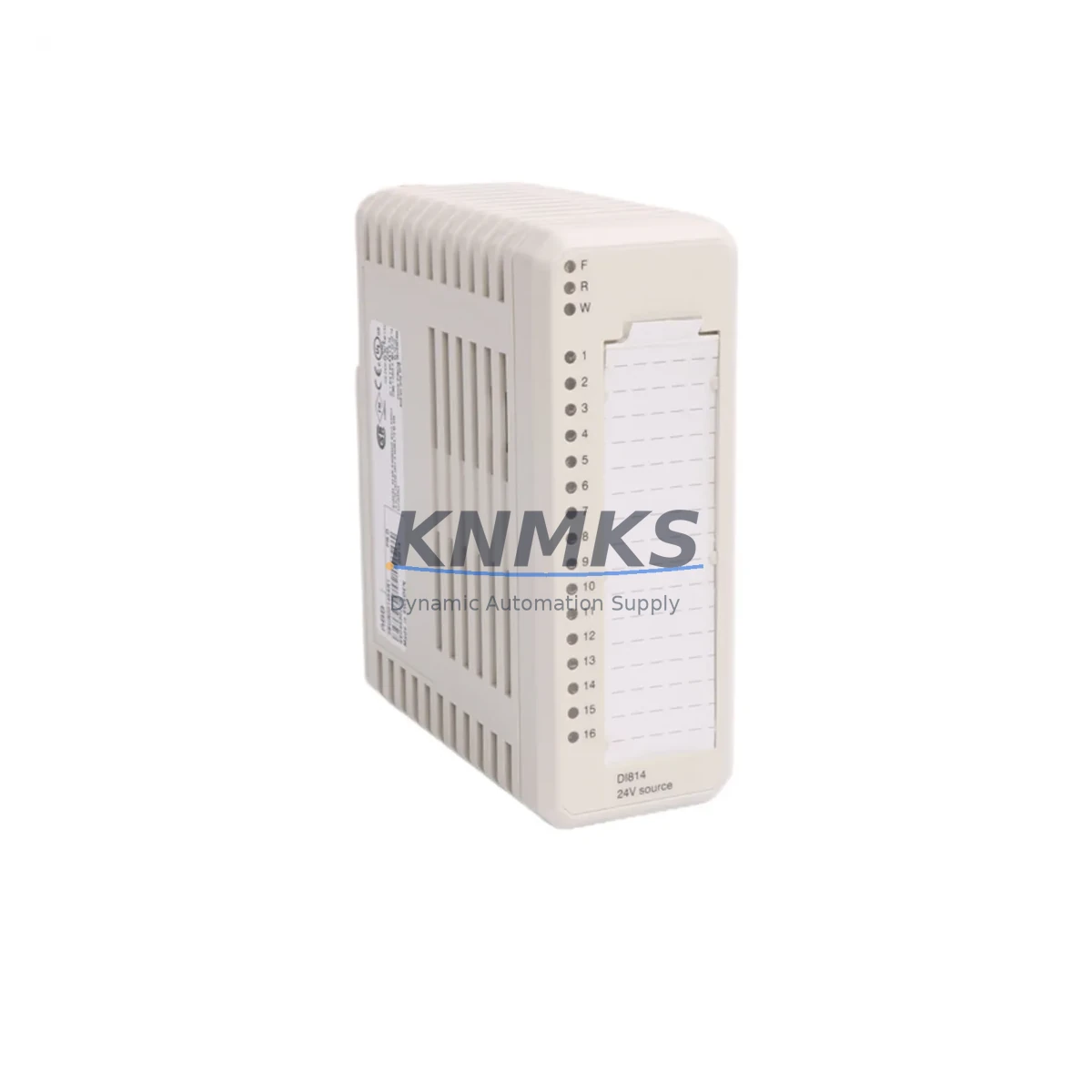

The ABB DI814 (3BUR001454R1) is an original S800 I/O series digital input module designed for integration with ABB’s AC800M Distributed Control System. As a field-proven component in continuous process industries — including chemical, oil & gas, pulp & paper, and power generation — the DI814 delivers reliable 24 VDC digital signal acquisition across 16 channels, enabling precise process monitoring and fault detection in demanding industrial environments.

For maintenance engineers managing aging DCS infrastructure, the DI814 3BUR001454R1 represents a critical spare. Unplanned failure of a digital input module can immediately disrupt process visibility, trigger interlock faults, and force unscheduled shutdowns. Stocking a verified original replacement — tested, serialized, and shipped with a support terms confirmed by quotation — is the most effective strategy to minimize mean time to repair (MTTR) and protect production continuity.

At KNMKS, every DI814 3BUR001454R1 unit is inspected and functionally verified prior to shipment. We supply original ABB S800 I/O modules with full traceability, supporting both emergency breakdown orders and planned annual maintenance procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DI814 3BUR001454R1 in an AC800M cabinet, a disciplined maintenance engineer does not stop at the module itself. The S800 I/O architecture distributes signals across a shared ModuleBus, meaning adjacent components directly affect the reliability of the replacement. Before returning the system to service, the following components should be inspected or replaced as part of the same maintenance window:

The TB820V2 ModuleBus Modem or TB840A baseunit that hosts the DI814 should be checked for backplane connector wear, corrosion, and secure module seating. A degraded baseunit will cause intermittent channel faults even with a new DI814 installed. Similarly, the SD821 or SD822 24 VDC power supply module feeding the S800 rack should be load-tested — an under-voltage condition on the field supply rail is a common root cause of digital input misread faults that are incorrectly attributed to the DI814 itself.

Field wiring terminations at the TB25 or TB26 terminal base should be inspected for loose connections, oxidized contacts, and correct cable routing. In high-vibration environments, terminal loosening is a leading cause of spurious input signals. If the DI814 is used in safety-related interlocks, the associated DO814 or DO815 digital output module in the same control loop should be functionally tested to confirm output response integrity after the input module swap.

For systems with signal conditioning requirements, any MTL or P+F signal isolators in the field circuit should be verified for correct threshold settings and output signal levels. In older installations, the CI854 or CI858 PROFIBUS communication interface connecting the S800 rack to the AC800M controller should be checked for firmware compatibility if the DI814 replacement involves a hardware revision change. Finally, inspect the cabinet’s miniature circuit breakers (MCBs) and fuse holders protecting the 24 VDC field supply — a nuisance trip on the supply circuit is often the first symptom of an impending module failure.

Procurement engineers building annual MRO spare parts lists for AC800M-based plants should consider stocking the DI814 3BUR001454R1 alongside the DO814, AI810, AO810V2, and CI854 as a core S800 I/O spare kit. This approach reduces emergency sourcing lead times and supports predictive replacement schedules aligned with planned shutdown windows.

Site Replacement Workflow

Step 1 — Isolation: Place the AC800M controller in manual or safe state via the operator station. Confirm the affected DI814 channel group is inhibited in the DCS configuration to prevent spurious interlock activation during module removal.

Step 2 — Module Removal: The S800 I/O system supports hot-swap replacement without powering down the entire rack. Unlatch the DI814 from the TB820/TB840 baseunit by pressing the release tab and sliding the module forward. Inspect the backplane connector pins for damage before inserting the replacement unit.

Step 3 — Replacement Insertion: Slide the new DI814 3BUR001454R1 into the baseunit slot until the latch clicks. The module will self-identify on the ModuleBus and download its configuration from the AC800M controller automatically — no manual address setting is required.

Step 4 — Verification: From the ABB Control Builder or 800xA System Studio, confirm the DI814 status changes from fault to healthy. Perform a channel-by-channel input verification using a field signal simulator or by confirming live process signals against field instrument readings.

Step 5 — Return to Service: Re-enable the inhibited channels, confirm interlock logic is restored, and document the replacement in the plant maintenance management system (CMMS) with the module serial number and replacement date for support terms tracking.

This workflow applies equally when upgrading from an earlier DI814 hardware revision or replacing a module that has reached its recommended service life. The DI814 3BUR001454R1 is backward-compatible with all AC800M controller versions and S800 I/O baseunits, eliminating firmware or configuration migration risk during emergency replacements.

Spare Parts Support FAQ

Q1: Is the DI814 3BUR001454R1 compatible with all AC800M controller versions?
Yes. The DI814 is compatible with all AC800M hardware versions (PM860, PM861, PM864, PM866) and integrates with both ABB 800xA and Freelance DCS platforms via the S800 ModuleBus. No firmware changes are required when replacing an existing DI814 with a unit of the same part number.

Q2: What testing is performed before shipment?
Every DI814 3BUR001454R1 supplied by KNMKS undergoes functional verification including power-on self-test, channel continuity check, and ModuleBus communication validation. Units are shipped with individual test records and original ABB labeling. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions.

Q3: Can you supply the DI814 for long-term or blanket purchase orders?
Yes. KNMKS supports long-term supply agreements for critical S800 I/O spares including the DI814 3BUR001454R1. We maintain buffer stock for high-demand ABB S800 modules and can fulfill scheduled quarterly deliveries to support planned maintenance programs and MRO inventory strategies.

Q4: What is the recommended spare holding quantity for a plant with multiple AC800M cabinets?
Industry best practice for continuous process plants is to hold a minimum of one DI814 per four installed units, with a floor of two units per site regardless of installed base size. For plants with safety instrumented systems (SIS) using S800 I/O, a dedicated safety-spare DI814 should be held separately from the general MRO pool to ensure availability during SIS proof-test windows.
