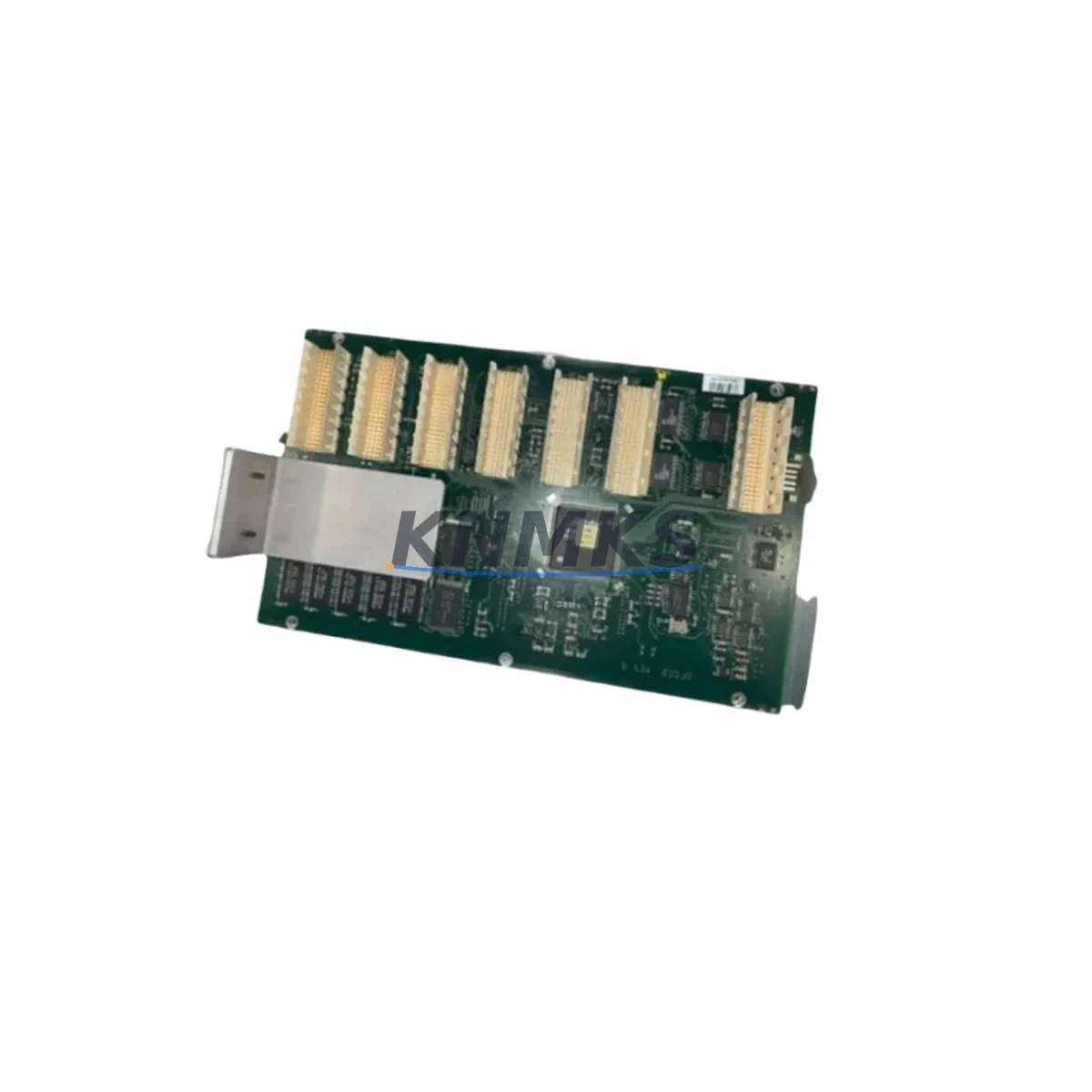

ABB DFC02 3BHE024577R0101 Migration-Ready Field Controller

Overview

ABB DFC02 3BHE024577R0101 Migration-Ready Field Controller for Legacy Control Systems

The ABB DFC02 (part number 3BHE024577R0101) is a field controller module designed for the AC800M distributed control system platform. As legacy DCS installations approach end-of-life, the DFC02 serves as a critical migration-ready replacement for aging field controllers that are no longer supported under current ABB firmware and hardware maintenance programs. Whether you are managing a brownfield retrofit, a control cabinet upgrade, or a phased migration from an earlier AC800 generation, the DFC02 provides the hardware continuity needed to preserve existing program logic, I/O mapping, and communication topology without requiring a full system redesign.

For plants running legacy AC800M configurations with older DFC01 or PM865 processor modules, the DFC02 offers a direct upgrade path that maintains backplane compatibility within the S800 I/O family. Engineers planning a retrofit must verify power supply capacity in the existing control cabinet — the DFC02 requires a stable 24 VDC rail, and aging SD821 or SD822 power supply modules should be inspected or replaced in parallel to avoid post-migration instability. Terminal wiring from existing field devices typically carries over without modification, though shield grounding and cable routing should be re-verified against current EMC standards during the retrofit window.

Backplane interface compatibility is a key checkpoint. The DFC02 connects via the standard AC800M backplane bus, and module address configuration must be confirmed against the existing hardware topology before installation. If the legacy system uses TB820 or TB840 Termination Units, these remain compatible with the DFC02 field controller and do not require replacement during the migration. This significantly reduces retrofit scope and helps contain downtime to planned maintenance windows.

Program compatibility is another area requiring careful pre-migration review. Control Builder Plus projects compiled for earlier DFC generations can typically be reloaded onto the DFC02 after a firmware alignment step, but engineers should validate all function block libraries and confirm that any custom-coded logic does not reference deprecated hardware objects. HMI screens built in ABB 800xA or linked via OPC DA/UA should be tested in simulation mode before cutover to confirm that tag bindings and alarm configurations remain intact after the controller swap.

Communication link continuity is essential for plants using PROFIBUS DP, Modbus RTU, or FOUNDATION Fieldbus H1 segments connected through CI840 or CI854 communication interface modules. These modules remain fully compatible with the DFC02 and do not require reconfiguration in most standard retrofit scenarios. For installations that have already migrated to PROFINET or HSE, the DFC02 supports these protocols through the appropriate CI module pairing, providing a forward-compatible architecture for future network upgrades.

Installation space confirmation is a practical step that is often overlooked in retrofit planning. The DFC02 occupies a standard AC800M module slot and fits within existing RM series racks without mechanical modification. However, if the control cabinet has been retrofitted with additional I/O expansion using AI810, AO810, or DI810 modules, slot availability should be mapped before scheduling the migration outage.

All DFC02 units supplied by KNMKS are pre-shipment tested under simulated load conditions, firmware-verified to the latest compatible release, and shipped with a support terms confirmed by quotation covering hardware defects and operational failures. In-stock inventory supports rapid dispatch to minimize lead time for urgent replacement scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DFC02 retrofit begins with a complete audit of the existing control architecture. In a typical AC800M installation, the field controller sits at the center of a network that includes CI840 or CI854 communication interface modules handling fieldbus segments, AI810 and DI810 I/O modules collecting process signals, and TB820 termination units providing the physical wiring interface to field instruments. All of these components remain compatible with the DFC02, which means the retrofit scope can be tightly contained to the controller module itself rather than requiring a cascade of downstream hardware changes.

Power supply integrity is a non-negotiable pre-check. Aging SD821 or SD822 power supply modules that have been in service for more than ten years should be evaluated for replacement during the same maintenance window as the DFC02 installation. A marginal power supply that passes initial checks may still introduce instability under the DFC02’s operating load, particularly during cold-start sequences or after a power interruption.

For plants using AO810 analog output modules to drive control valves or variable speed drives, signal continuity testing after the DFC02 installation is essential. Output scaling parameters stored in the legacy controller configuration must be re-verified against the new module’s firmware defaults to prevent process upsets during the first live run after cutover. Similarly, any signal isolation requirements between the DFC02 and third-party instrumentation should be reviewed, and signal isolators or barriers should be confirmed as correctly specified for the new hardware revision.

Programming cable and engineering workstation compatibility should also be confirmed before the migration window. Control Builder Plus requires a compatible USB or Ethernet connection to the DFC02 for project download and online monitoring. If the existing engineering workstation is running an older operating system, a compatibility check against the DFC02’s supported firmware version is recommended before the scheduled outage date.

Downtime Control During System Migration

Minimizing downtime during a DFC02 migration requires a structured pre-cutover preparation sequence. The existing program project should be fully backed up from the legacy controller and archived with version control before any hardware is disturbed. A complete I/O list with current signal states should be captured and documented as a reference baseline for post-migration verification.

Where process conditions allow, a hot-standby or manual override strategy should be implemented for critical control loops during the controller swap interval. For continuous process plants, coordinating the DFC02 installation with a scheduled turnaround or planned maintenance shutdown eliminates the risk of unplanned production impact. The physical module swap itself typically takes less than thirty minutes; the majority of migration time is consumed by firmware alignment, project download, I/O verification, and HMI screen validation.

After the DFC02 is installed and the project is reloaded, a structured commissioning sequence should step through each I/O channel, confirm communication link status on all CI modules, verify alarm and interlock logic against the pre-migration baseline, and perform a controlled process startup under close operator supervision. Documenting the commissioning results provides a traceable record for plant safety and compliance requirements.

KNMKS provides pre-shipment tested DFC02 units with firmware pre-aligned to the customer’s specified version where possible, reducing on-site firmware preparation time and supporting tighter downtime windows.

Retrofit Support FAQ

Q: Is the ABB DFC02 3BHE024577R0101 a direct replacement for the DFC01?
A: Yes. The DFC02 is the designated successor to the DFC01 within the AC800M platform. It occupies the same backplane slot and is compatible with the same RM series racks, TB820 and TB840 termination units, and S800 I/O modules. A firmware alignment step is required before reloading legacy Control Builder Plus projects.

Q: What pre-installation checks are required before fitting the DFC02 into an existing AC800M cabinet?
A: Verify 24 VDC power supply capacity (SD821/SD822 condition), confirm available module slot in the RM rack, map all CI module communication links, and back up the existing controller project. Check HMI tag bindings in ABB 800xA before scheduling the cutover.

Q: Has the DFC02 unit been tested before shipment?
A: Yes. All DFC02 units supplied by KNMKS undergo pre-shipment testing under simulated load conditions and firmware verification. Units are shipped ready for installation with a support terms confirmed by quotation covering hardware defects and operational failures.

Q: What is the lead time and stock availability for the ABB DFC02 3BHE024577R0101?
A: The DFC02 is held availability confirmed by RFQ and available for rapid dispatch. Contact KNMKS to confirm current inventory levels and arrange expedited shipping for urgent replacement requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DFC02
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DFC02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
