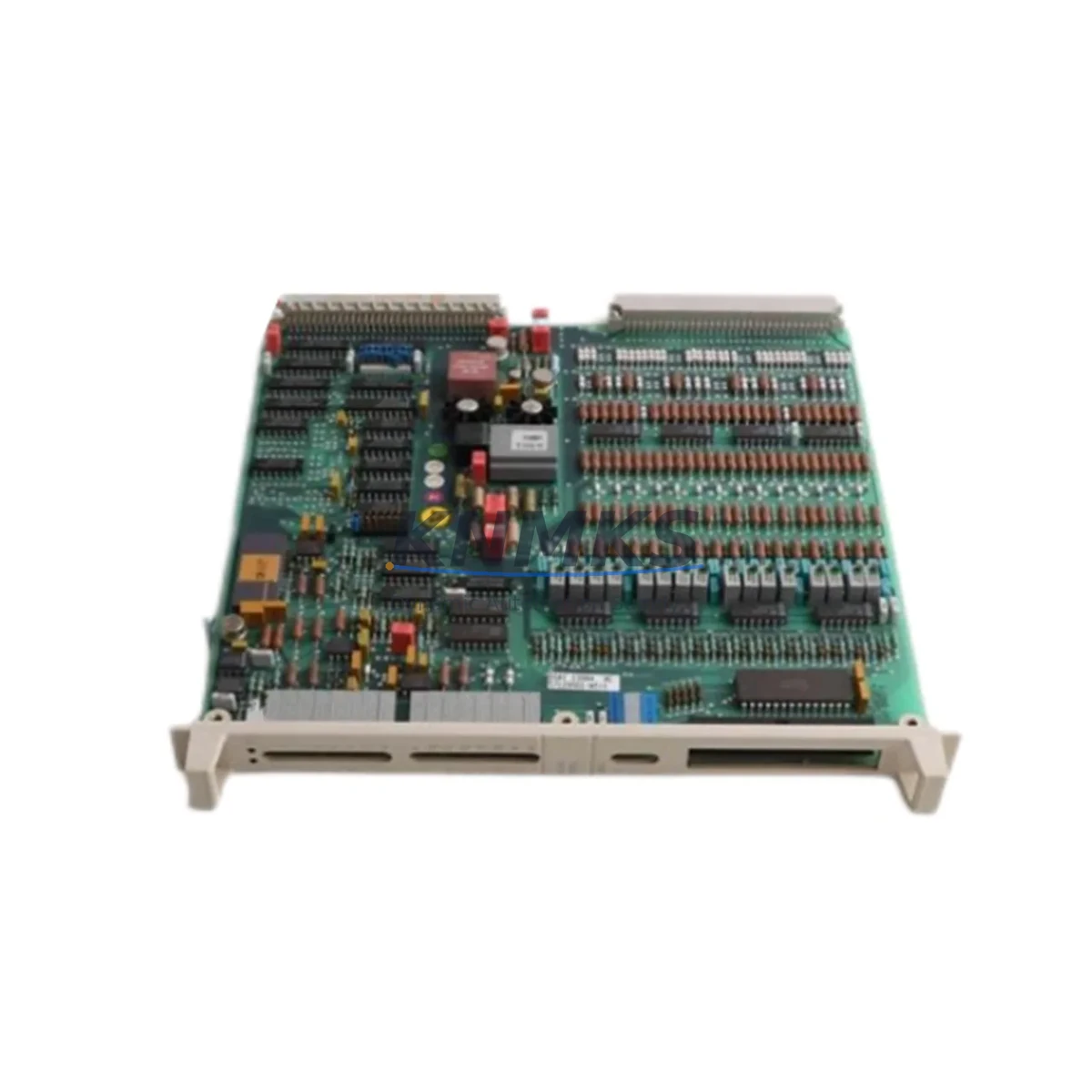

ABB DDO04 0369644M Migration-Ready Digital Output for Legacy DCS

Overview

ABB DDO04 0369644M Migration-Ready Digital Output for Legacy DCS

The ABB DDO04 0369644M is a digital output module designed for the ABB Harmony DCS platform, widely deployed in process industries including oil and gas, power generation, chemical processing, and pulp and paper. As legacy Harmony control systems approach end-of-life and OEM support windows close, the DDO04 0369644M has become a critical spare for engineers managing brownfield retrofit projects, unplanned shutdowns, and phased control system migrations.

This module provides discrete output capability within the Harmony rack architecture, interfacing directly with field devices such as solenoid valves, motor starters, relay coils, and indicator lamps. Its compatibility with the existing Harmony backplane means no rack replacement is required in most retrofit scenarios — a significant advantage when minimizing downtime and capital expenditure are primary project constraints.

For sites transitioning from older Harmony configurations to newer ABB System 800xA or ABB Ability™ Symphony® Plus environments, the DDO04 0369644M serves as a bridge component, allowing engineers to maintain operational continuity in sections of the plant that are not yet scheduled for full migration. This phased approach is common in large facilities where a complete cutover is operationally impractical.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DDO04 0369644M into an existing Harmony system requires a structured pre-installation review. Engineers should begin by auditing the current rack configuration to confirm available slot positions and verify that the existing Harmony power supply module — typically a redundant 24 VDC unit — can support the additional load of the replacement module. Power budget calculations are essential, particularly in densely populated racks where multiple I/O modules share a common supply rail.

Field termination wiring should be reviewed against the original loop drawings. The DDO04 0369644M connects to field devices through the Harmony FTA (Field Termination Assembly), which remains in place during a module swap. This eliminates the need to re-terminate field cables — one of the most time-consuming aspects of any I/O replacement. Engineers should confirm that the FTA model in use is compatible with the DDO04 variant being installed, as minor hardware revisions across the Harmony product lifecycle introduced changes to FTA pinout assignments.

For sites that also require analog output capability alongside discrete control, the ABB DAO01 or similar Harmony analog output modules may be installed in adjacent rack slots without affecting the DDO04 0369644M’s operation. Similarly, if the retrofit scope includes communication upgrades — for example, adding Modbus RTU or PROFIBUS DP connectivity to a legacy Harmony node — a Harmony communication interface module can be added to the same rack, provided slot and power capacity allow.

Where the retrofit involves expanding I/O capacity rather than simple replacement, engineers should evaluate whether the existing Harmony rack has sufficient free slots or whether an additional rack and Harmony rack controller are required. In multi-rack configurations, the module address assigned to the DDO04 0369644M must be set correctly to avoid address conflicts with other modules on the same node. Address configuration is typically performed via DIP switches or jumpers on the module itself — always cross-reference the site’s I/O database before powering up.

HMI screen updates are often overlooked during module replacements. If the original DDO04 unit was mapped to specific HMI faceplates or alarm groups within the Harmony operator station, the replacement module must carry the same address and tag assignments to ensure that existing HMI graphics, alarm priorities, and historian tags remain intact. Failure to verify this mapping is a common source of post-commissioning issues in brownfield retrofits.

For sites using ABB programming tools such as the Harmony Engineering Workstation or later ABB Ability™ Symphony® Plus engineering environment, the module’s I/O configuration should be exported from the live system before removal and re-imported after the replacement module is seated. This preserves all channel assignments, scaling parameters, and interlock logic without requiring manual re-entry.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a digital output module in a live process environment. For the DDO04 0369644M, the most effective strategy is a pre-staged hot-swap approach: the replacement module is configured, address-verified, and bench-tested before the maintenance window begins. This reduces the in-rack installation time to minutes rather than hours.

Where the process permits, a partial shutdown of only the affected control loop — rather than a full node or rack shutdown — is strongly recommended. The Harmony architecture supports individual module removal in many configurations without requiring a full rack power-down, though this must be confirmed against the site’s specific hardware revision and safety procedures before proceeding.

Original program logic stored in the Harmony controller is not affected by a module swap at the I/O level, provided the replacement module is installed in the same rack slot with the same address configuration. Engineers should document the pre-swap state of all output channels — including forced outputs, manual overrides, and interlock bypass states — and restore these after commissioning to ensure field control continuity.

Post-installation verification should include a channel-by-channel output test, confirming that each discrete output drives its associated field device correctly. Where possible, this testing should be performed in coordination with field personnel who can visually confirm valve positions, motor states, or indicator lamp status. A signed commissioning record should be completed before returning the loop to automatic control.

All units supplied are tested prior to shipment and covered by a support terms confirmed by quotation. In-stock availability supports rapid dispatch for emergency breakdown scenarios, reducing the risk of extended production outages caused by unavailable spare parts.

Retrofit Support FAQ

Q: Is the ABB DDO04 0369644M a direct replacement for the original DDO04 installed in my Harmony system?
A: Yes. The DDO04 0369644M is designed as a direct slot replacement within the Harmony rack. No rack modification or FTA rewiring is required in standard configurations. Confirm the module address and firmware revision match your site’s requirements before installation.

Q: How do I verify wiring and terminal compatibility before installing the replacement module?
A: Cross-reference your site’s loop drawings and FTA model number against the DDO04 0369644M specification. The Harmony FTA remains in place during the swap — only the module itself is replaced. If your FTA was installed with an earlier Harmony hardware revision, confirm pinout compatibility with your DCS engineer.

Q: What commissioning steps are required after installing the DDO04 0369644M?
A: Set the module address to match the original configuration (via DIP switch or jumper as applicable). Power up the rack and confirm the module is recognized by the Harmony controller. Perform a channel-by-channel output test with field personnel. Verify HMI tag mapping and alarm assignments are intact before returning to automatic control.

Q: What support terms and testing does this unit carry?
A: All DDO04 0369644M units are tested prior to shipment and covered by a support terms confirmed by quotation. In-stock units are available for immediate dispatch to support emergency breakdown and planned maintenance scenarios.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DDO04 0369644M
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB DDO04 0369644M
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
