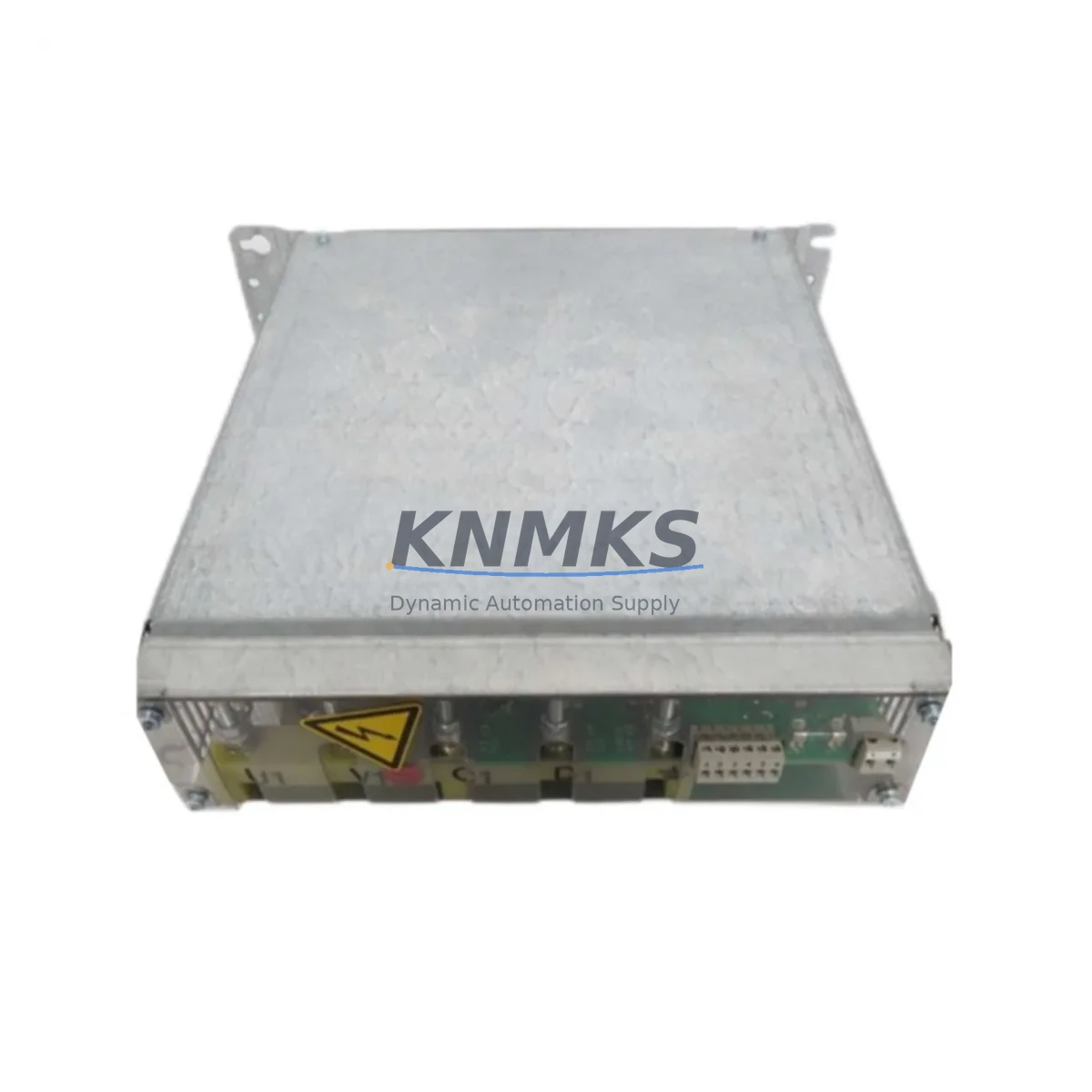

ABB DCF503-0050 Migration-Ready DC Field Exciter for Legacy Systems

Overview

ABB DCF503-0050 Migration-Ready DC Field Exciter for Legacy Control Systems

The ABB DCF503-0050 is a DC field exciter module designed for the DCF500 series drive platform, widely deployed in legacy DC motor control systems across steel, paper, mining, and heavy industrial applications. As original DCF500 installations age beyond their design lifecycle, the DCF503-0050 serves as the authoritative retrofit solution — providing a verified drop-in replacement path that preserves existing wiring topology, backplane addressing, and control logic without requiring a full drive cabinet redesign.

For maintenance engineers managing aging DC drive infrastructure, the DCF503-0050 addresses the most critical pain point in field exciter replacement: compatibility confidence. Unlike generic aftermarket alternatives, this module is manufactured to ABB’s original DCF500 series specifications, ensuring that terminal assignments, field current regulation characteristics, and communication interface behavior remain consistent with the installed base. This is particularly important in applications where the DCF500 drive is integrated with upstream DCS controllers or SCADA systems via PROFIBUS or SDCS communication boards, where any deviation in module behavior can trigger alarm cascades or process shutdowns.

When planning a DCF503-0050 retrofit, engineers should begin by auditing the existing field exciter’s terminal wiring against the DCF500 hardware manual. Key parameters to verify include field supply voltage range, rated field current output, armature feedback signal routing, and the presence of any external field suppression resistors wired to the F+ and F- terminals. In most DCF500 installations, the DCF503-0050 mounts directly to the existing drive chassis without mechanical modification, but rack slot positioning and backplane connector seating should be confirmed against the site’s original commissioning drawings before power-up.

Firmware compatibility is a frequent concern during field exciter replacement on older DCF500 platforms. The DCF503-0050 is compatible with the SDCS-CON-4 control board, which is the standard control interface for mid-generation DCF500 drives. Sites running earlier SDCS-CON-2 control boards should verify firmware revision levels before installation, as parameter set structures differ between control board generations. ABB’s DriveWindow Light software, connected via the SDCS-COM-8 PROFIBUS adapter or a direct RS-232 programming cable, provides the most reliable method for reading and restoring drive parameter sets during the changeover process.

HMI screen mapping is another area requiring attention during DCF500 field exciter replacement. In plants where the DCF500 drive is monitored through an ABB Panel 800 operator terminal or a third-party HMI configured with custom DCF500 data blocks, the field exciter status signals — including field current actual value, field current reference, and exciter fault codes — must be re-verified after module swap. If the site uses a SDCS-COM-8 for PROFIBUS connectivity, the GSD file and I/O mapping in the PLC program should be reviewed to confirm that field exciter diagnostic data is still correctly addressed after the replacement.

For control cabinets where space is constrained, the DCF503-0050’s physical envelope matches the standard DCF500 field exciter form factor, eliminating the need for bracket modifications or cable extension harnesses. Engineers retrofitting older cabinets that also house SDCS-PIN-51 power interface boards or SDCS-DSL-4 digital speed feedback modules should confirm that adjacent module clearances meet ABB’s minimum ventilation requirements, particularly in high-ambient-temperature environments where thermal derating may apply.

Downtime planning for a DCF503-0050 replacement should account for the full commissioning sequence: parameter backup via DriveWindow, physical module swap, parameter restore, field current calibration, and a supervised no-load test run before returning the motor to production. In most single-drive replacement scenarios, experienced commissioning engineers complete this sequence within a planned four-hour maintenance window. Sites with redundant drive configurations can further reduce production impact by pre-staging the replacement module and completing parameter loading offline before the scheduled outage.

All DCF503-0050 units supplied by KNMKS are sourced from verified supply channels, individually inspected prior to dispatch, and covered by a support terms confirmed by quotation against manufacturing defects. Stock availability is confirmed at time of order, and units are dispatched with full documentation support including datasheet, wiring diagram reference, and firmware compatibility notes where applicable.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DCF503-0050 retrofit begins well before the maintenance window opens. The first step is a full audit of the existing DCF500 drive cabinet, documenting the installed SDCS-CON-4 control board firmware version, the SDCS-PIN-51 power interface board configuration, and the field exciter’s current parameter set using DriveWindow Light. This pre-work ensures that the replacement module can be commissioned to an identical parameter baseline, minimizing the risk of process deviation after restart.

In multi-drive installations, the DCF503-0050 replacement is often performed alongside a broader cabinet refresh that may include SDCS-DSL-4 digital speed feedback module inspection, SDCS-COM-8 PROFIBUS adapter firmware updates, and replacement of aging SDCS-PIN-205 power supply boards. Coordinating these activities within a single planned outage reduces cumulative downtime and allows the commissioning team to perform a comprehensive system verification — including field current calibration, speed loop tuning, and PROFIBUS communication health checks — before returning the line to production.

For sites migrating from older DCF500 configurations to newer ABB ACS880 or DCS880 DC drive platforms, the DCF503-0050 serves as an interim solution that extends the operational life of the existing installation while the full migration project is planned and budgeted. This staged approach allows production to continue uninterrupted while engineering teams develop the new control architecture, update PLC programs, and retrain operators on the replacement HMI environment.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCF503-0050 replacement requires a structured pre-commissioning protocol. Before the maintenance window, the site team should complete a full parameter export from the existing drive using DriveWindow Light, photograph all terminal wiring connections, and confirm that a tested replacement module is on-site and pre-inspected. Where the DCF500 drive controls a critical production asset — such as a main line DC motor in a rolling mill or a winder drive in a paper machine — a shadow commissioning approach is recommended: the replacement module is parameter-loaded and bench-tested against a known-good parameter set before the production drive is taken offline.

During the physical swap, the original field exciter’s terminal connections should be transferred one-by-one using the pre-photographed wiring reference, with each connection verified against the DCF500 wiring diagram before power is restored. After module installation, a controlled no-load energization sequence — field supply on, armature supply off — allows the commissioning engineer to verify field current regulation and exciter fault-free status before the motor is reconnected to the load. This sequence protects both the replacement module and the connected DC motor from damage caused by incorrect wiring or parameter errors.

PROFIBUS communication restoration should be verified using the PLC’s diagnostic interface before the drive is returned to automatic control. In Siemens S7 or Allen-Bradley ControlLogix environments commonly found alongside ABB DCF500 drives, the PROFIBUS master’s device status table provides immediate confirmation that the replacement field exciter module is online and responding correctly to the control system’s cyclic data exchange.

Retrofit Support FAQ

Q: Is the DCF503-0050 a direct replacement for all DCF500 series field exciter variants?
A: The DCF503-0050 is the standard field exciter module for the DCF500 series and is compatible with the majority of DCF500 drive configurations. Sites with non-standard field current ratings or custom factory modifications should provide their original module part number and commissioning documentation for compatibility verification before ordering.

Q: Do I need to reconfigure my PLC program after replacing the field exciter?
A: In most cases, no PLC program changes are required. The DCF503-0050 maintains the same PROFIBUS data structure and I/O mapping as the original DCF500 field exciter. However, if the site’s PLC program references specific drive fault codes or field exciter diagnostic parameters, these should be verified against the replacement module’s parameter list after commissioning.

Q: What commissioning tools are required for the DCF503-0050 installation?
A: ABB’s DriveWindow Light software, connected via the SDCS-COM-8 PROFIBUS adapter or a direct RS-232 programming cable to the SDCS-CON-4 control board, is the recommended commissioning tool. A calibrated DC clamp meter for field current verification and a PROFIBUS diagnostic tool for communication health checks are also recommended for a complete commissioning sign-off.

Q: What does the support terms confirmed by quotation cover, and what documentation is included with the unit?
A: All DCF503-0050 units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects from the date of dispatch. Each unit is supplied with a datasheet, wiring diagram reference, and firmware compatibility notes. Pre-dispatch inspection records are available on request. For support requests or technical support, contact [email protected] or +86 18359268345.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

DCF503-0050
Legacy Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB DCF503-0050
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
