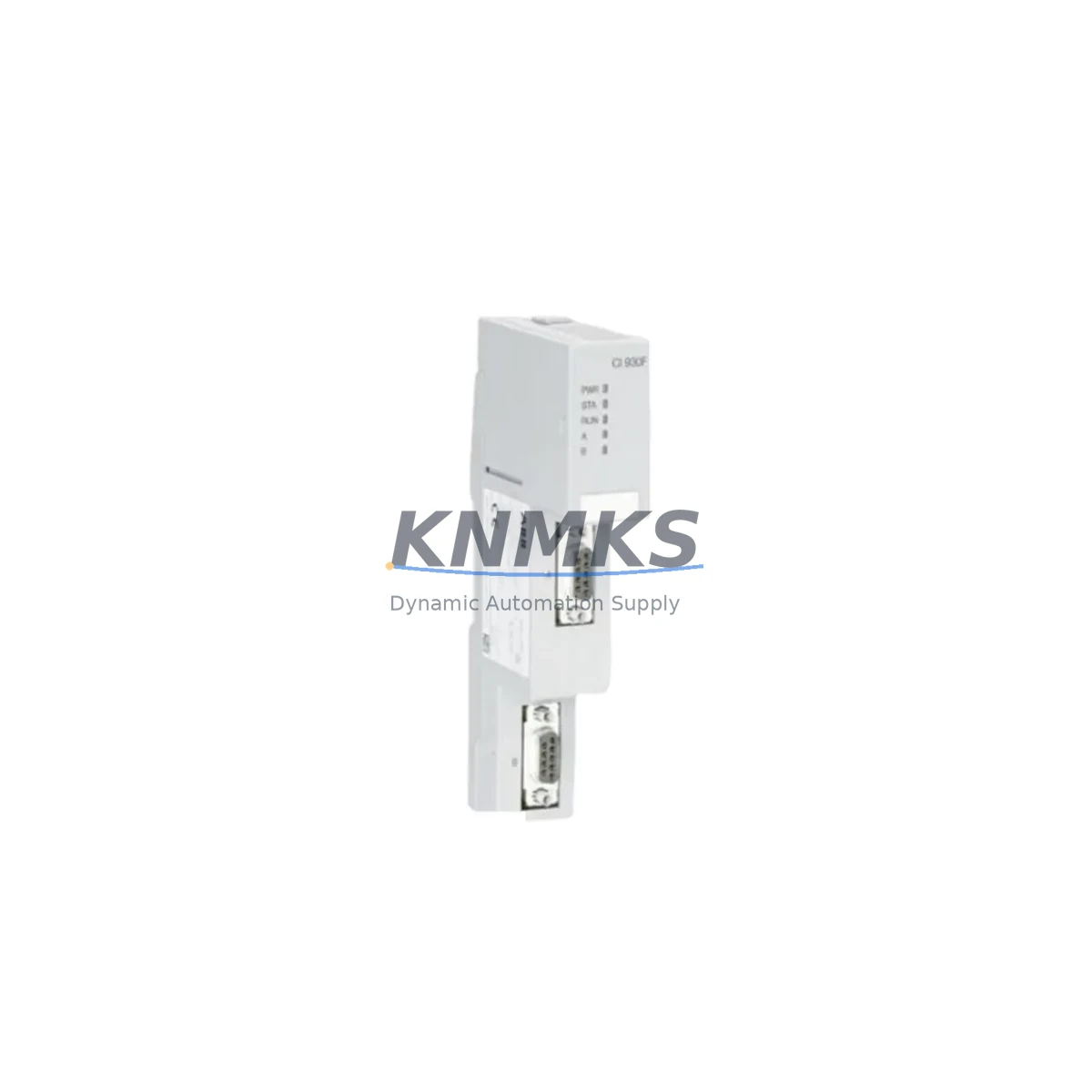

ABB CI930F 3BDH001010R0005 PROFIBUS DP Master Module

Overview

ABB CI930F 3BDH001010R0005 PROFIBUS DP Master Module: Migration-Ready for Legacy Control Systems

The ABB CI930F (3BDH001010R0005) is a PROFIBUS DP Master communication module designed for the ABB AC800M Distributed Control System platform. As industrial facilities worldwide face the challenge of maintaining aging DCS infrastructure, the CI930F has become a critical component in both spare parts management and system modernization programs. Whether you are replacing a failed unit in an active production line or planning a phased migration from an older ABB Advant or MOD 300 control architecture, the CI930F provides a reliable, drop-in compatible solution that minimizes engineering rework and commissioning time.

The module mounts directly into the AC800M controller rack and communicates with field devices via PROFIBUS DP (IEC 61158), supporting data rates up to 12 Mbit/s. It is fully compatible with the AC800M S800 I/O system and integrates seamlessly with ABB’s 800xA System software environment. For sites running legacy ABB Advant Controller 450 or AC 870P systems, the CI930F is frequently specified as part of a migration path that preserves existing PROFIBUS field device wiring while upgrading the controller backbone — a strategy that significantly reduces both downtime and re-engineering costs.

Before installing the CI930F as a replacement, engineers should verify several key parameters. Power supply capacity within the controller cabinet must be confirmed, as the AC800M rack draws regulated 24 VDC; the PM865 or PM891 processor module’s power budget should be reviewed to ensure the additional communication module load is within specification. Terminal wiring on the PROFIBUS segment — including bus termination resistors, cable shielding continuity, and connector pinout — must be inspected and documented prior to module swap. Backplane slot assignment and module addressing within the AC800M hardware configuration (managed via Control Builder M) must match the replacement unit’s configured node address to avoid address conflicts with other modules such as the CI854 PROFIBUS DP Slave interface or the CI857 INSUM communication interface.

Program compatibility is a critical checkpoint during any CI930F replacement. The existing Control Builder M project file should be backed up before any hardware change. If the replacement module carries a different firmware revision, a firmware compatibility check against the current Control Builder M library version is mandatory. In most cases, firmware updates can be applied via the USB service port on the PM8xx processor without requiring a full system restart, but this should be validated against the site’s change management procedure. HMI screen configurations in 800xA Operations — particularly faceplates linked to PROFIBUS device status tags — should be verified post-swap to confirm that communication status indicators and alarm thresholds are functioning correctly.

For sites integrating the CI930F into a broader migration from legacy fieldbus architectures, the module’s PROFIBUS DP Master capability allows it to manage up to 125 slave devices on a single segment. This makes it suitable for consolidating multiple legacy remote I/O drops — for example, replacing several S100 I/O panels with modern S800 I/O stations connected via PROFIBUS, while retaining the existing field instrument wiring. In such projects, the CI930F is commonly deployed alongside the TB820V2 ModuleBus Optical Port module for extended I/O reach, and the SD821 or SD822 power supply modules to ensure stable rack power during the transition period.

Communication link integrity must be validated end-to-end after installation. PROFIBUS segment diagnostics — including bus load percentage, slave response times, and error counters — should be reviewed using a PROFIBUS diagnostic tool or the built-in diagnostics available in 800xA System. If the site uses a redundant PROFIBUS configuration, both the primary and secondary CI930F modules must be confirmed as active and synchronized before returning the system to automatic control. Installation space within the controller cabinet should also be confirmed: the CI930F occupies a single slot in the AC800M rack, but adjacent module clearance for airflow and cable management must be maintained per ABB installation guidelines.

All CI930F 3BDH001010R0005 units supplied by KNMKS are sourced from verified industrial channels, pre-tested for functional operation prior to shipment, and covered by a support terms confirmed by quotation. Stock is maintained to support both emergency replacement orders and planned maintenance schedules. Global shipping is available with lead times confirmed at order placement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CI930F retrofit begins with a thorough audit of the existing AC800M rack configuration. Engineers should document the current slot layout, including the positions of the PM8xx processor module, any CI854 or CI857 communication interfaces, and the TB820V2 ModuleBus Optical Port modules used for extended I/O connectivity. If the site operates S800 I/O stations — such as AI810, AO810, DI810, or DO810 modules — their PROFIBUS addresses and GSD file configurations should be exported from Control Builder M before the hardware swap begins.

Power distribution within the cabinet is a common oversight in retrofit projects. The SD821 and SD822 power supply modules feeding the AC800M rack should be load-tested to confirm available headroom after the CI930F is added or replaced. If the existing power budget is marginal, a parallel power supply upgrade should be scheduled as part of the same maintenance window to avoid a secondary failure event.

For sites migrating from older PROFIBUS implementations — such as those originally built around ABB Advant fieldbus segments — the CI930F’s GSD-based slave management allows existing field device configurations to be imported directly into Control Builder M, reducing re-engineering time. Signal isolators may be required at segment boundaries where cable runs exceed PROFIBUS distance limits or where electrical noise from variable frequency drives or motor control centers is present. The installation of a PROFIBUS repeater or optical link module should be evaluated during the site survey phase.

Programming cable access to the PM8xx processor via the USB service port should be confirmed as part of the pre-work checklist. If a firmware update to the CI930F is required, this is typically performed via the processor’s firmware management interface in Control Builder M, and the update sequence should be tested in a staging environment or on a non-critical controller before being applied to production systems.

Downtime Control During System Migration

Minimizing production downtime during a CI930F replacement requires a structured pre-work and execution plan. The existing Control Builder M project should be fully backed up — including all hardware configuration files, function block diagrams, and I/O signal lists — before any physical work begins. If the AC800M controller supports hot-swap of communication modules (verify against the specific firmware version and rack configuration), the replacement can be performed without a full controller restart; otherwise, a controlled shutdown sequence should be prepared and communicated to operations.

To protect original program logic, the current application download should be archived to a secure engineering workstation and version-controlled. Any modifications made during the retrofit — such as updated PROFIBUS slave configurations or revised tag mappings — should be documented in the project change log and reviewed against the site’s functional safety assessment if applicable.

Field control continuity during the migration window can be maintained by pre-configuring the replacement CI930F offline using Control Builder M’s offline hardware configuration mode. This allows the new module’s PROFIBUS master parameters — including baud rate, bus cycle time, and slave address table — to be validated before the module is physically installed, reducing the time the system spends in an unconfigured state. Post-installation, a structured commissioning checklist covering bus diagnostics, slave response verification, HMI alarm acknowledgment, and control loop transfer back to automatic should be executed before the maintenance window is closed.

For sites with redundant AC800M controller pairs, the migration should be performed on the standby controller first, with a controlled switchover test before the primary controller is touched. This approach ensures that at least one fully operational controller remains in service throughout the maintenance window, maintaining field control continuity and reducing the risk of an unplanned process trip.

Retrofit Support FAQ

Q: Is the CI930F 3BDH001010R0005 a direct replacement for an existing CI930F in my AC800M rack?
A: Yes. The CI930F 3BDH001010R0005 is a direct slot-compatible replacement for any CI930F unit in an AC800M rack. After physical installation, verify that the PROFIBUS master configuration in Control Builder M matches the replacement module’s node address and that all slave GSD configurations are intact. No re-engineering of the PROFIBUS segment is required in a like-for-like replacement scenario.

Q: What pre-shipment testing is performed on CI930F units supplied by KNMKS?
A: All CI930F units are functionally tested prior to shipment, including power-on verification, backplane communication check, and PROFIBUS port integrity test. Each unit is supplied with a test record and is covered by a support terms confirmed by quotation from the date of shipment. Units showing any fault indication during testing are quarantined and not dispatched.

Q: Can the CI930F be used in a migration from an ABB Advant AC450 system to AC800M?
A: Yes. The CI930F is a standard component in ABB-recommended migration paths from Advant Controller 450 to AC800M. Existing PROFIBUS DP field devices and wiring can typically be retained, with the CI930F configured as the new PROFIBUS DP Master in the AC800M rack. GSD files from the legacy system can be imported into Control Builder M to accelerate the configuration process. Site-specific factors — including cable length, bus termination, and device firmware versions — should be verified during the migration engineering phase.

Q: What is the stock availability and lead time for the CI930F 3BDH001010R0005?
A: KNMKS maintains stock of the CI930F 3BDH001010R0005 to support both emergency replacement and planned maintenance requirements. Lead times and current stock levels are confirmed at order placement. For urgent requirements, contact [email protected] or call +86 18359268345 for same-day stock confirmation and expedited shipping options.
