ABB CI868K01 Maintenance-Proven Spare Part for Factory Uptime

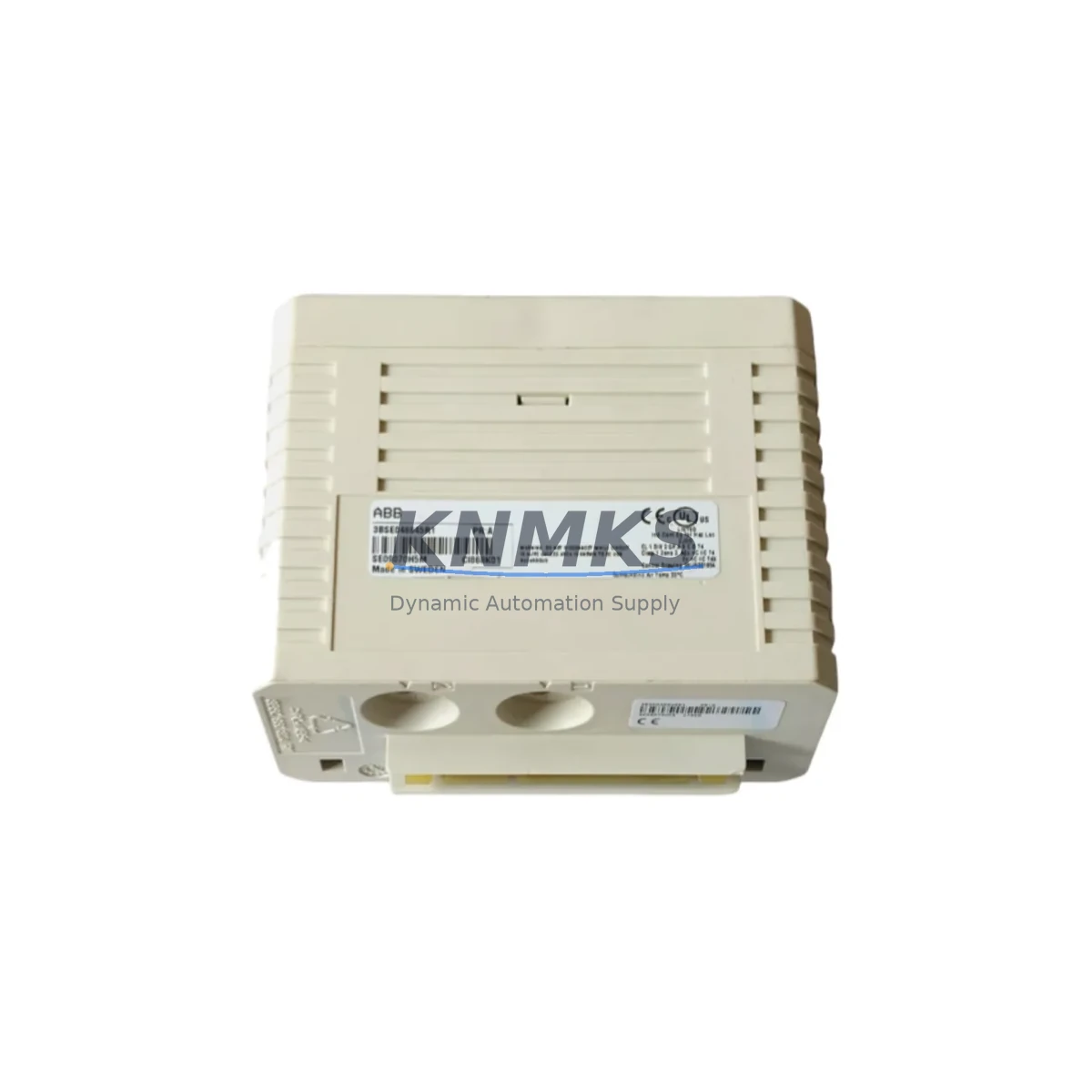

The ABB CI868K01 is a PROFIBUS DP communication interface module designed for the AC800M controller platform — one of ABB’s most widely deployed Distributed Control System (DCS) architectures in process industries including oil & gas, pulp and paper, power generation, and chemical manufacturing. As a maintenance-proven spare part, the CI868K01 enables field engineers and procurement teams to restore PROFIBUS DP network communication rapidly following module failure, without requiring controller reconfiguration or system downtime beyond the physical swap procedure.

Sourced as an original ABB component, each CI868K01 unit supplied by KNMKS undergoes pre-shipment functional verification to confirm PROFIBUS DP master/slave communication integrity, module identification, and hardware revision compatibility. A support terms confirmed by quotation is included with every unit, covering manufacturing defects and functional failures under normal operating conditions. Global logistics support ensures delivery to maintenance sites across Asia, Europe, the Middle East, and the Americas — with expedited options available for emergency shutdown recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI868K01 communication interface module is flagged during routine control cabinet inspection or fails during operation, the replacement procedure should be treated as part of a broader PROFIBUS network health review. Maintenance engineers should not limit their inspection to the module itself — the surrounding electrical environment directly affects long-term reliability of the replacement unit.

Begin by verifying the integrity of the PROFIBUS DP cable and termination resistors at both ends of the segment. A degraded cable shield or missing bus terminator is a common root cause of intermittent DP communication faults that are often misdiagnosed as module failure. Next, inspect the AC800M controller backplane for signs of oxidation, loose seating, or mechanical damage at the module slot — the PM865 or PM866 processor module should be confirmed as operational before the CI868K01 replacement is inserted.

Power supply stability is critical in PROFIBUS DP environments. The ABB SD831 or SD832 24 VDC power supply modules feeding the AC800M rack should be load-tested and output voltage verified within ±1% tolerance. Voltage ripple or transient spikes from an aging power supply can corrupt DP frame transmission and cause the new CI868K01 to report communication errors immediately after installation — a scenario that wastes replacement time and creates unnecessary diagnostic loops.

I/O integrity should also be confirmed at this stage. S800 I/O modules connected downstream via the PROFIBUS segment — including AI810 analog input modules, AO810 analog output modules, and DI810 digital input modules — should be checked for address conflicts and GSD file alignment. If the plant has undergone any field device additions since the last annual shutdown, the DP master configuration stored in the CI868K01 may need to be re-downloaded from the AC800M engineering station running ABB Automation Builder or Control Builder M.

For cabinets housing relay output modules such as the DO810 or DO820, verify that inductive load suppression (freewheeling diodes or RC snubbers) is correctly installed on all relay coil circuits. Inductive transients from relay switching are a known source of PROFIBUS communication disturbance in mixed-signal control cabinets. Additionally, inspect the TB820V2 or TB840A termination boards connected to the S800 I/O bus for loose terminal screws and correct grounding — poor termination board connections can cause sporadic I/O dropouts that are difficult to distinguish from DP master faults.

Finally, if the plant uses an ABB CP430 or CP450 HMI panel connected to the same PROFIBUS segment, confirm that the HMI DP slave address is correctly configured and that the panel firmware is compatible with the replacement CI868K01 hardware revision. Document all configuration parameters — DP address, baud rate, GSD version, and slave list — before powering down the controller for the swap. This documentation reduces re-commissioning time and provides a baseline for the next scheduled inspection.

Site Replacement Workflow

The CI868K01 is a direct replacement for earlier PROFIBUS DP interface modules used in AC800M systems, including units that may have been installed during initial plant commissioning a decade or more ago. The replacement workflow is designed to minimize controller downtime and maintain full PROFIBUS network continuity.

Step 1 — Pre-Replacement Verification: Confirm the hardware revision of the existing CI868K01 against the replacement unit. ABB hardware revisions for this module are backward-compatible within the AC800M platform, but firmware version alignment with the PM865 or PM866 processor should be verified in the ABB Library of Products documentation or via the ABB Automation Builder project file.

Step 2 — Configuration Backup: Export the current AC800M project from Control Builder M, including the PROFIBUS DP master configuration, slave address table, and I/O mapping. Store the backup on an isolated engineering workstation — not on the controller itself — before initiating any hardware change.

Step 3 — Controlled Shutdown: Place the affected PROFIBUS segment in a safe state. For process-critical loops, coordinate with the operations team to switch affected control loops to manual mode at the DCS operator station. This prevents process upsets during the communication interruption caused by the module swap.

Step 4 — Module Swap: Remove the faulty CI868K01 by releasing the module locking mechanism on the AC800M rack. Insert the replacement unit firmly until the locking tab engages. The module does not require tools for installation — forced insertion indicates a rack slot alignment issue that must be resolved before proceeding.

Step 5 — Re-commissioning: Power up the controller and allow the CI868K01 to complete its self-test sequence. Download the PROFIBUS DP master configuration from the engineering station if the module does not automatically recover the previous configuration. Verify all DP slave devices report online status in the diagnostic view of Control Builder M before returning control loops to automatic mode.

Step 6 — Post-Replacement Documentation: Record the replacement date, hardware revision of the new module, firmware version, and any configuration changes in the plant maintenance management system (CMMS). Schedule the next inspection interval based on the module’s operating environment — high-vibration or high-humidity environments warrant a shorter re-inspection cycle of 6 months rather than the standard 12-month annual shutdown interval.

Spare Parts Support FAQ

Q1: Is the CI868K01 still available as a new original part, or only as refurbished stock?
KNMKS supplies the CI868K01 as original ABB hardware. Each unit is sourced through authorized industrial distribution channels and verified against ABB part number documentation before listing. Units are not relabeled, remanufactured, or refurbished. Pre-shipment functional testing is performed on every unit, and a test report is available upon request for critical procurement requirements.

Q2: How do I confirm compatibility between the CI868K01 and my existing AC800M controller revision?
Compatibility is determined by the AC800M processor module generation (PM865, PM866, or PM891) and the Control Builder M software version in use at your site. The CI868K01 is compatible across all standard AC800M rack configurations. If your site uses a non-standard rack or a legacy PM810 processor, contact KNMKS sales with your controller serial number and software version for a compatibility confirmation before ordering.

Q3: What is the lead time for CI868K01, and do you maintain buffer stock for emergency orders?
KNMKS maintains regional buffer stock of high-demand AC800M spare parts including the CI868K01 to support emergency shutdown recovery scenarios. Standard lead time for stocked units is 3–7 business days for international shipments. Emergency air freight options are available for critical plant situations. Contact [email protected] or call +86 18359268345 to confirm current stock availability and expedited shipping options for your region.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover functional failure of the CI868K01 under normal operating conditions — including PROFIBUS DP communication failure, module non-recognition by the AC800M controller, and hardware defects identified during installation. The support terms does not cover damage caused by incorrect installation, overvoltage events, or physical impact. To initiate a support terms claim, contact KNMKS with the original order number, a description of the failure symptom, and photographic documentation of the installation environment. Replacement or credit will be processed within 10 business days of claim verification.
