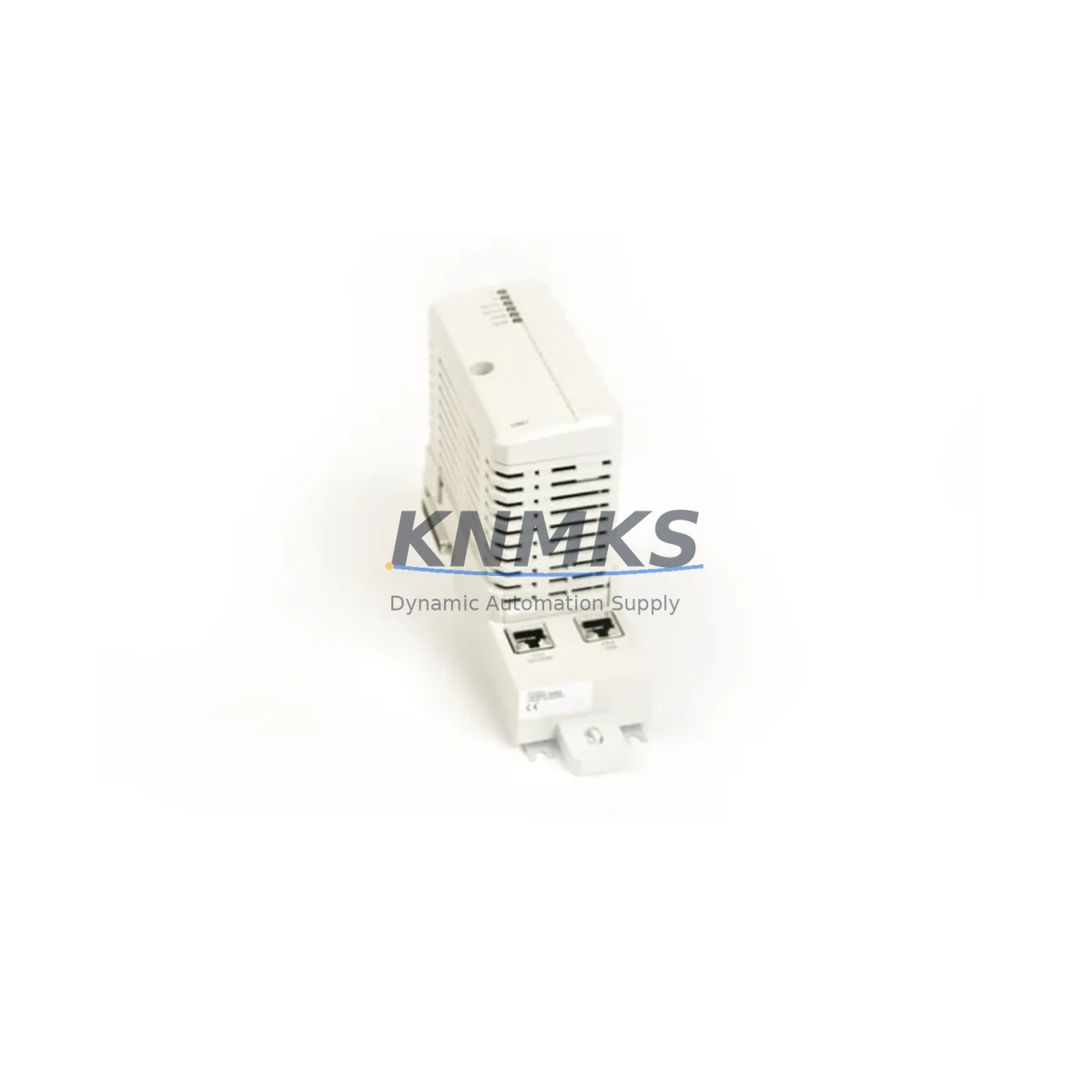

The ABB CI867K01 (catalog reference 3BSE043660R1) is an original Modbus TCP communication interface module designed for the ABB AC800M Distributed Control System platform. As a field-proven component in continuous process industries — including oil & gas, power generation, pulp & paper, and chemical manufacturing — the CI867K01 serves as a critical link between the AC800M controller and Modbus TCP-enabled field devices, drives, and instrumentation networks. Maintaining a verified spare unit of the CI867K01 in your site inventory is a fundamental element of any proactive maintenance strategy for AC800M-based control architectures.

For maintenance engineers managing aging DCS installations, the CI867K01 represents a high-risk single point of failure: a failed communication module can isolate entire Modbus TCP device networks from the controller, triggering unplanned shutdowns and extended recovery windows. Sourcing a tested, original replacement unit in advance — rather than initiating emergency procurement during a fault event — is the most effective way to protect production continuity and meet uptime KPIs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CI867K01 module is flagged for replacement during a fault investigation or scheduled outage, experienced maintenance engineers treat the event as a trigger for a broader cabinet inspection. The AC800M controller chassis hosting the CI867K01 typically shares backplane power with adjacent modules including the PM864 or PM866 processor modules, and any backplane voltage irregularity can accelerate communication module degradation. Verifying the SD822 or SD823 power supply unit output stability before re-inserting a replacement CI867K01 is a recommended first step — a marginal power supply will shorten the service life of the new module.

On the network side, the CI867K01 connects to Modbus TCP field devices through standard industrial Ethernet infrastructure. Maintenance teams should inspect the Ethernet patch cables, managed switches, and any media converters in the communication path, as degraded cabling or switch port faults are frequently misdiagnosed as module failures. If the site uses CI854AK01 or CI855K01 PROFIBUS communication modules in adjacent slots of the same AC800M chassis, their status should also be verified during the same maintenance window to avoid a secondary fault event shortly after the CI867K01 is restored.

For sites running mixed I/O architectures, the S800 I/O modules connected downstream of the AC800M — such as AI810, AO810, DI810, or DO810 units — should be confirmed as communicating correctly once the CI867K01 replacement is complete. Signal isolation barriers and MTL or P+F signal conditioners in the field wiring loops are also worth inspecting, particularly in older installations where insulation degradation can introduce ground loops that affect Modbus TCP data integrity. Finally, if the site operates an 800xA System or Freelance DCS alongside the AC800M, verifying OPC server connectivity and historian data flow after module replacement confirms full system restoration before the maintenance window is closed.

Site Replacement Workflow

Replacing a CI867K01 in an operational AC800M system follows a structured sequence to minimize downtime and avoid configuration loss. Before removing the faulty module, maintenance engineers should export the current Modbus TCP device configuration from ABB Control Builder M and document all active connection parameters, including IP addresses, unit identifiers, and polling intervals. This backup ensures that the replacement module can be commissioned to the identical network topology without requiring a full engineering re-configuration.

With the AC800M controller in a safe state (or with the affected communication channel isolated), the CI867K01 is removed from its backplane slot and the replacement unit is inserted. The module self-identifies to the controller firmware upon power-up; however, the Modbus TCP connection list must be re-loaded from the Control Builder M project to restore all device mappings. Engineers should verify each Modbus TCP connection status in the diagnostic view before releasing the controller back to automatic operation.

For sites migrating from an older CI867 revision to the CI867K01, the physical form factor and backplane connector are compatible, making the upgrade a direct slot-for-slot replacement. Firmware compatibility with the installed AC800M processor module version should be confirmed in the ABB release notes prior to installation. This drop-in compatibility significantly reduces the engineering effort required for legacy system life extension, allowing sites to defer full DCS migration while maintaining communication reliability.

Spare Parts Support FAQ

Q1: What is the recommended spare holding strategy for the CI867K01 in a critical process plant?
For plants where the AC800M controls safety-critical or high-availability processes, maintaining at least one CI867K01 spare per controller chassis is recommended. Sites with multiple AC800M systems should consider a pooled spare strategy — one or two units held centrally — with a documented retrieval and loan procedure. Given that OEM lead times for ABB communication modules can extend to 8–20 weeks during supply constraints, a pre-stocked spare eliminates the primary risk of extended downtime.

Q2: How is the CI867K01 tested before shipment?
Each CI867K01 unit supplied by KNMKS undergoes functional verification prior to dispatch, including power-on self-test confirmation, Ethernet port integrity check, and visual inspection for connector and PCB condition. Units are shipped with anti-static packaging and a test report. The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of delivery.

Q3: Can the CI867K01 replace earlier CI867 module revisions without firmware changes?
In most AC800M installations, the CI867K01 is backward-compatible with earlier CI867 hardware revisions at the slot level. However, firmware compatibility depends on the AC800M processor module version and the installed Control Builder M release. KNMKS recommends confirming the target firmware version against ABB’s compatibility matrix before ordering, and our technical team can assist with compatibility verification upon request.

Q4: What is the long-term supply outlook for the CI867K01?
ABB has indicated continued support for the AC800M platform, but communication module availability can be affected by component lifecycle changes. KNMKS maintains stock of CI867K01 units sourced through authorized distribution and secondary market channels, with quality verification on all units. For customers with multi-year maintenance contracts or planned outage schedules, we offer reserved stock arrangements to guarantee availability at agreed lead times.
