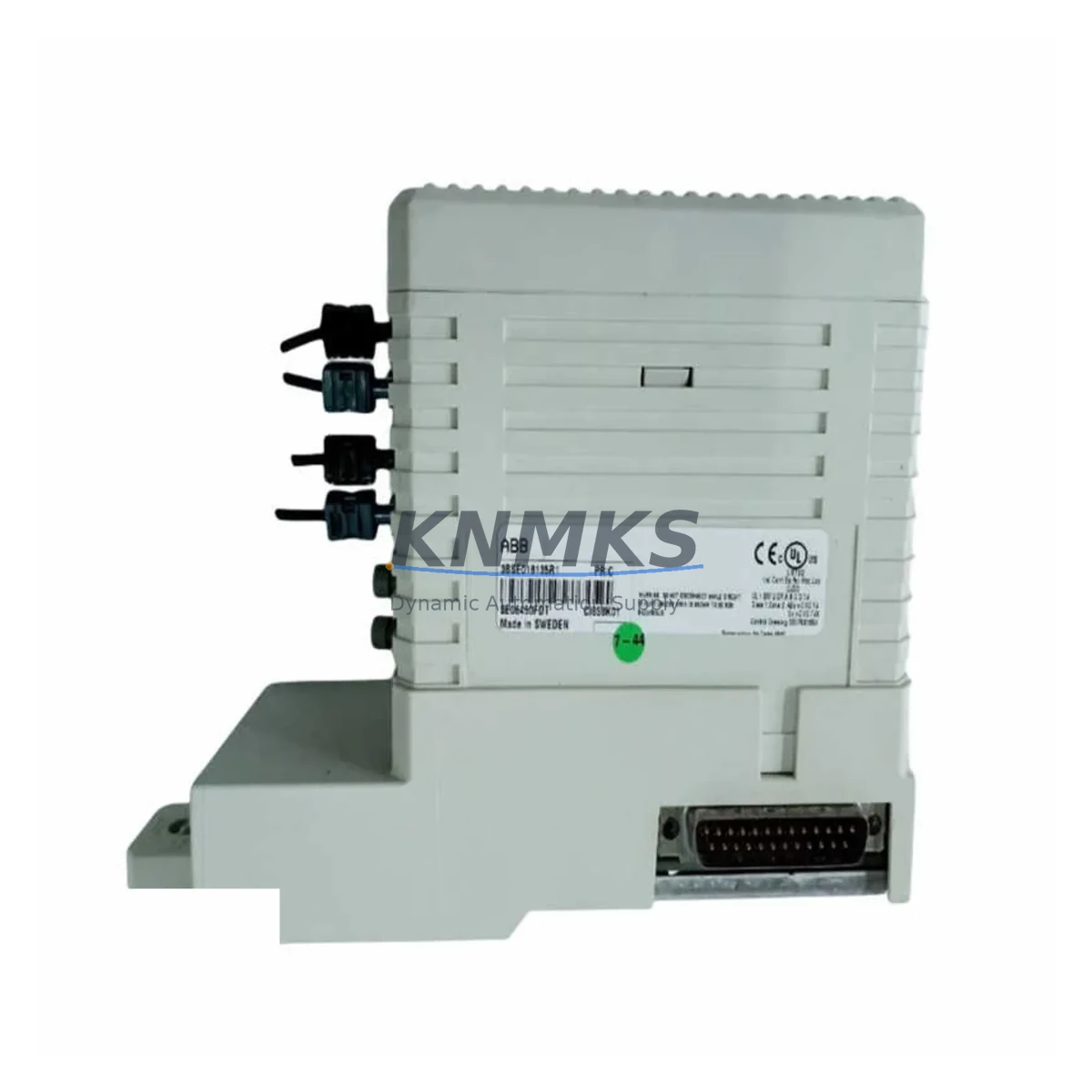

ABB CI858K01 3BSE018135R1 Fail-Safe PROFIBUS DP Interface

Overview

ABB CI858K01 3BSE018135R1 Fail-Safe PROFIBUS DP Interface: Fault Protection and Critical Industrial Field Reliability

The ABB CI858K01 (3BSE018135R1) is a high-integrity PROFIBUS DP interface module engineered for the ABB AC800M Distributed Control System platform. Designed to sustain uninterrupted fieldbus communication in the most demanding industrial environments, this module delivers fail-safe data exchange between the AC800M controller and PROFIBUS DP field devices — including remote I/O stations, variable frequency drives, intelligent valve positioners, and safety instrumented system (SIS) nodes. Its robust hardware architecture and ABB-certified firmware make it a cornerstone component for control engineers who cannot afford communication dropouts in continuous production facilities.

In petrochemical complexes, power generation plants, mining operations, water treatment facilities, metallurgical smelters, port logistics systems, and offshore marine installations, the CI858K01 provides the deterministic, low-latency fieldbus backbone that critical interlock loops depend on. Whether integrated into a redundant AC800M controller pair or deployed as a single-channel fieldbus master in a high-availability cabinet, this module maintains cyclic data integrity even under severe electromagnetic interference, voltage transients, and mechanical vibration — conditions that routinely compromise lesser interface hardware.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the CI858K01 within a well-engineered control cabinet architecture is essential to realizing its full fault-protection potential. In high-load automation cabinets — particularly those housing ABB AC800M PM866 or PM891 processor modules alongside S800 I/O clusters — the CI858K01 acts as the fieldbus gateway that keeps the entire PROFIBUS segment synchronized. When paired with an ABB SD821 or SD822 power supply unit, the module benefits from regulated, noise-filtered DC power that eliminates the voltage ripple and micro-interruptions that can trigger spurious communication resets on long PROFIBUS cable runs.

For installations where the control cabinet is located near high-power motor drives or transformer banks, the risk of conducted and radiated EMI is significant. In these scenarios, engineers frequently deploy ABB TK801V006 or TK801V012 PROFIBUS trunk cables with shielded twisted-pair construction and proper shield grounding at the cabinet entry point, ensuring that the CI858K01’s galvanic isolation is not overwhelmed by common-mode noise. Complementing this, ABB TB820V2 or TB840A ModuleBus modem modules are often installed in the same S800 I/O rack to extend the optical ModuleBus, physically separating the fieldbus segment from the controller backplane and further reducing cross-coupling interference.

In safety-critical interlock architectures — such as emergency shutdown (ESD) systems or burner management systems (BMS) — the CI858K01 is frequently deployed alongside ABB AI810 or AI820 analog input modules that feed 4–20 mA process signals from pressure transmitters, temperature sensors, and flow meters into the AC800M safety logic. The deterministic scan cycle of the PROFIBUS DP master ensures that these safety-relevant signals are polled within the required response time, preventing the signal latency that could cause a safety function to fail on demand. For applications requiring SIL 2 or SIL 3 compliance, the CI858K01 is typically integrated with ABB’s AC800M HI (High Integrity) controller platform, where redundant fieldbus paths and watchdog-supervised communication channels provide the diagnostic coverage required by IEC 61508 and IEC 61511.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the CI858K01 manages PROFIBUS DP communication to smart valve positioners, motor control centers, and remote I/O panels distributed across hazardous areas. Its ability to sustain fieldbus integrity during power fluctuations and ground fault events is critical to preventing unplanned shutdowns of distillation columns, compressor trains, and reactor feed systems.

In thermal and hydroelectric power generation, the module interfaces the AC800M DCS with turbine governor systems, excitation controllers, and boiler combustion management I/O — where a single communication dropout can trigger a unit trip and result in significant generation loss. The CI858K01’s fast fault detection and automatic bus recovery capability minimizes the window of exposure during transient disturbances.

In underground and open-pit mining, control cabinets are routinely exposed to dust ingress, humidity cycling, and mechanical shock from blasting and heavy equipment. The CI858K01’s wide operating temperature range and vibration-rated construction allow it to maintain reliable PROFIBUS communication to conveyor drive systems, crusher controls, and ventilation fan starters without requiring frequent maintenance interventions.

In municipal and industrial water treatment, the module coordinates PROFIBUS DP polling of pump station VFDs, chlorination dosing systems, and SCADA-connected remote terminal units. Its deterministic communication cycle ensures that process upsets — such as pump cavitation or chemical dosing anomalies — are detected and alarmed within the required response time, protecting both equipment and public safety.

In metallurgical and steel production environments, where arc furnace harmonics and high-current bus bars generate intense electromagnetic fields, the CI858K01’s EMI immunity rating and galvanic isolation prevent the communication errors and watchdog trips that can halt casting lines and rolling mills. Its compatibility with the AC800M redundancy framework allows hot-standby controller configurations that eliminate single points of failure in continuous casting operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CI858K01 3BSE018135R1?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional communication faults identified under normal operating conditions. If the module fails to establish or maintain PROFIBUS DP communication within its rated specifications during the confirmed support period, a replacement or repair will be provided at no additional cost. Support requests are processed with priority to minimize control system downtime.

Q2: What pre-shipment testing is performed before the CI858K01 is dispatched?
Every CI858K01 unit undergoes a full functional verification test prior to shipment. This includes backplane communication handshake testing, PROFIBUS DP master initialization, cyclic data exchange simulation with a test slave device, and visual inspection for physical damage. A test report is available upon request for quality-critical procurement processes.

Q3: Is the CI858K01 compatible with all AC800M controller versions and S800 I/O configurations?
The CI858K01 is designed for the ABB AC800M platform and is compatible with PM860, PM861, PM864, PM866, and PM891 processor modules. It integrates with the S800 I/O system via the standard ModuleBus backplane. Compatibility with specific firmware versions of the AC800M should be verified against ABB’s product compatibility matrix; our technical team can assist with version-specific confirmation prior to order placement.

Q4: Can long-term spare parts supply be guaranteed for the CI858K01?
Yes. We maintain dedicated stock of the CI858K01 3BSE018135R1 to support long-term spare parts programs for facilities with extended maintenance cycles. For customers operating AC800M-based DCS installations with 10+ year lifecycle requirements, we recommend establishing a framework spare parts agreement to ensure availability during ABB’s product lifecycle transitions. Contact our sales team to discuss volume reservation and scheduled delivery options.
