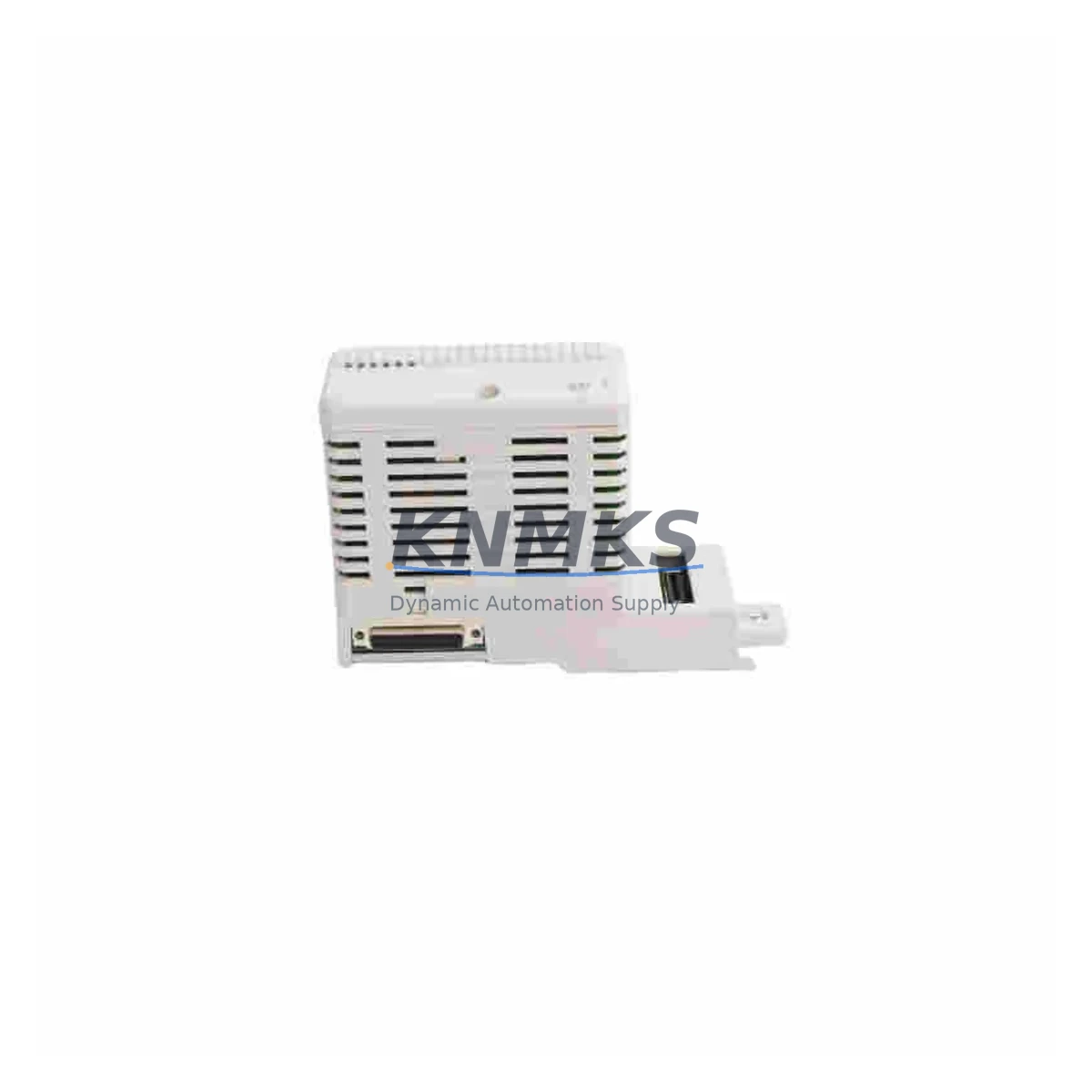

ABB CI856K01 Fail-Safe PROFIBUS DP Master for Industrial Control

Overview

ABB CI856K01 Fail-Safe PROFIBUS DP Master for Industrial Control Reliability

The ABB CI856K01 is a high-integrity PROFIBUS DP master communication module engineered for deployment within ABB’s S800 I/O system and AC800M Distributed Control System (DCS) architecture. Designed to sustain uninterrupted fieldbus communication in the most demanding industrial environments — including petrochemical plants, power generation facilities, mineral processing operations, and continuous manufacturing lines — the CI856K01 delivers the fail-safe performance that critical process control demands.

In high-stakes automation environments, a single communication fault on the fieldbus backbone can cascade into unplanned shutdowns, process upsets, or safety interlock activations. The CI856K01 addresses this risk directly. Its robust PROFIBUS DP master interface maintains deterministic, low-latency data exchange between the AC800M controller and distributed I/O nodes, even under conditions of elevated electromagnetic interference (EMI), voltage transients, and mechanical vibration. The module’s hardware design incorporates surge protection and signal isolation, reducing the probability of communication loss caused by inductive switching loads, variable frequency drives, or high-power motor starters operating in the same control cabinet.

For control cabinets operating in dusty, humid, or thermally stressed environments — common in cement plants, water treatment facilities, offshore platforms, and metallurgical operations — the CI856K01’s sealed connector interface and wide operating temperature tolerance ensure sustained signal integrity without requiring frequent maintenance intervention. This directly reduces the risk of signal drift, intermittent fieldbus faults, and the nuisance trips that erode operator confidence in automated safety systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The CI856K01 does not operate in isolation — its fail-safe value is fully realized when integrated into a well-engineered control cabinet architecture. In a typical AC800M-based DCS cabinet, the CI856K01 works in close coordination with the ABB PM856K01 or PM860K01 processor modules, which provide the master controller logic that the CI856K01 serves as a fieldbus gateway for. Redundant processor configurations using paired PM856 units further eliminate single points of failure at the controller level, ensuring that a processor fault does not interrupt fieldbus master operation.

On the power supply side, the ABB SD821 or SD823 system power supply units provide the stable 24 VDC rail that the S800 I/O backplane — and by extension the CI856K01 — depends on. Voltage ripple, brownout conditions, or power supply aging are among the most common root causes of intermittent fieldbus communication errors. Pairing the CI856K01 with a properly rated, regularly tested SD821 power supply eliminates this failure vector.

For PROFIBUS segment integrity, the ABB TB820V2 or TB840A S800 I/O bus interface modules serve as the physical connection point between the CI856K01’s fieldbus segment and the distributed I/O nodes. Ensuring these bus interfaces are correctly terminated and that PROFIBUS cable shielding is grounded at a single point prevents standing wave reflections and ground loop currents that degrade communication reliability in long cable runs across large plant areas.

In safety-critical applications where SIL-rated interlock loops are present, the CI856K01 is often deployed alongside ABB AI810 or AO810V2 analog I/O modules that handle 4–20 mA process signals from pressure transmitters, flow meters, and temperature sensors feeding into the safety logic. Maintaining clean, low-noise fieldbus communication between these I/O modules and the AC800M controller is essential to prevent spurious trips or missed safety activations caused by corrupted process data.

Critical Industrial Safety Applications

Petrochemical & Refinery Operations: In continuous process plants where emergency shutdown systems (ESD) and process control systems share a common DCS backbone, the CI856K01 provides the reliable PROFIBUS DP master link that keeps field device status — valve positions, pressure readings, flow rates — accurately reflected in the AC800M controller. Communication interruptions in these environments can trigger false ESD activations or, more critically, mask genuine process upsets from the control room.

Power Generation & Utilities: Turbine control, boiler management, and grid synchronization systems built on the AC800M platform rely on deterministic fieldbus communication for millisecond-level response to process deviations. The CI856K01’s high-speed PROFIBUS DP master capability — up to 12 Mbit/s — supports the fast scan cycles required in these applications without introducing latency that could compromise governor response or protection relay coordination.

Mining & Mineral Processing: Conveyor interlocks, crusher protection circuits, and slurry pump control systems in mining environments are subject to extreme vibration, dust ingress, and electrical noise from large motor drives. The CI856K01’s robust hardware design and EMI tolerance make it a dependable fieldbus master in these conditions, where a communication fault could result in uncontrolled equipment rundown or conveyor pile-up incidents.

Water & Wastewater Treatment: SCADA-integrated DCS systems managing pump stations, chemical dosing, and filtration processes depend on continuous fieldbus communication to maintain regulatory compliance and process safety. The CI856K01 supports long-term, maintenance-free operation in the humid, chemically aggressive atmospheres typical of water treatment facilities.

Metallurgy & Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the CI856K01 must withstand intense electromagnetic interference generated by high-current switching equipment. Its signal isolation and surge protection capabilities are directly relevant to maintaining control loop integrity in these environments, where fieldbus faults can result in product quality deviations or equipment damage.

Port & Marine Automation: Crane control systems, mooring winch interlocks, and cargo handling automation built on ABB DCS platforms benefit from the CI856K01’s ability to maintain reliable PROFIBUS communication in salt-air, high-humidity environments with variable power quality — conditions that challenge lesser-specified communication modules.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CI856K01?
The support terms confirmed by quotation cover all hardware-related failures, including communication faults, connector degradation, internal component failure, and signal integrity defects attributable to manufacturing or component quality. Support requests are supported with direct technical assistance and replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each CI856K01 unit?
Every CI856K01 unit undergoes full functional verification prior to dispatch, including PROFIBUS DP master communication testing, power-on self-test confirmation, and physical inspection of connectors and housing. This ensures that the module arrives on-site ready for installation without requiring additional bench testing by the maintenance team.

Q3: Is the CI856K01 compatible with all AC800M processor variants and S800 I/O configurations?
The CI856K01 is compatible with the full range of ABB AC800M processor modules (PM851, PM856, PM860, PM866) and integrates with S800 I/O systems via standard TB820V2 or TB840A bus interface modules. Compatibility with specific firmware versions and system configurations should be verified against the ABB System Version Information document for the target installation.

Q4: Can long-term supply agreements be arranged for CI856K01 as a critical spare part?
Yes. Given the long operational lifecycles of AC800M-based DCS installations — often 15 to 25 years — we support structured spare parts agreements covering 12 to 36 months of forward inventory reservation for the CI856K01 and associated S800 I/O components. Contact our technical sales team to discuss volume, lead time, and consignment stocking arrangements suited to your maintenance strategy.
