ABB CI840A 3BSE041882R1 Fail-Safe Redundant PROFIBUS Module

Overview

ABB CI840A 3BSE041882R1 Fail-Safe Redundant PROFIBUS Module: Critical Industrial Control Reliability

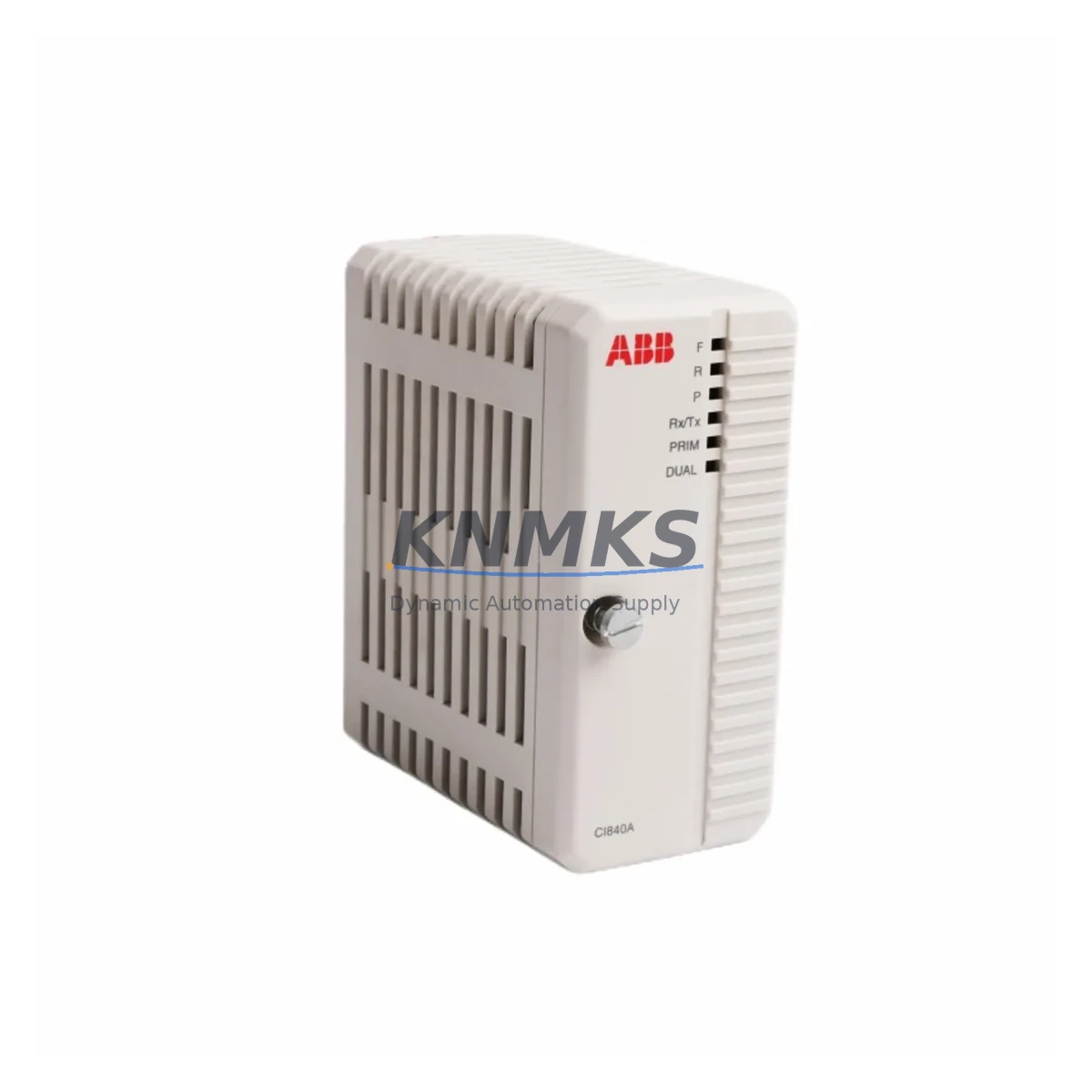

The ABB CI840A (3BSE041882R1) is a redundant PROFIBUS DP master communication module engineered for the ABB AC800M Distributed Control System platform. Designed to meet the demanding requirements of continuous process industries, this module delivers fail-safe fieldbus communication with hardware-level redundancy, ensuring that a single point of failure in the communication layer never results in an unplanned process shutdown. Every unit supplied by KNMKS is sourced from verified channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation — providing procurement engineers and maintenance teams with the confidence required for critical field deployments.

In high-stakes industrial environments — petrochemical reactors, power generation switchgear rooms, mineral processing control rooms, and continuous steel casting lines — communication integrity between the DCS controller and field instrumentation is non-negotiable. The CI840A addresses this by maintaining dual active PROFIBUS DP channels simultaneously. Should the primary channel experience signal degradation, electromagnetic interference, connector wear, or surge-induced disruption, the redundant channel assumes control within milliseconds, with no detectable interruption to the control loop. This bumpless switchover capability is fundamental to safety interlock systems where any communication gap could trigger emergency shutdowns or, worse, undetected process deviations.

The module integrates directly into the AC800M controller rack alongside the ABB PM866 processor module, sharing the same backplane bus architecture. This tight integration ensures deterministic scan cycle synchronization between the communication module and the CPU, eliminating timing jitter that could cause false alarms in safety-rated loops. When paired with the ABB TB807 termination board and field-side PROFIBUS segment terminators, the CI840A forms a complete, shielded communication chain from the controller to remote I/O clusters — a configuration widely adopted in offshore platform control cabinets where cable routing through high-EMI zones is unavoidable.

Surge and transient protection is a critical design consideration for any fieldbus module installed in heavy industrial cabinets. The CI840A incorporates internal protection circuitry rated to withstand the transient voltages commonly induced by large motor starts, arc flash events, and capacitor bank switching on shared power distribution systems. When deployed alongside ABB SDCS-CON-4 drive control boards or variable frequency drives on the same cabinet bus, the module’s surge immunity prevents communication resets that would otherwise force operators into manual override — a scenario that introduces significant human-factor safety risk in unmanned remote stations.

Environmental resilience is equally important. The CI840A is rated for operation across a wide temperature range and is designed to maintain stable PROFIBUS signal integrity in the presence of dust ingress, condensation cycles, and mechanical vibration — conditions routinely encountered in cement plant control rooms, port crane operator cabinets, and underground mining automation panels. The module’s conformal-coated PCB construction resists corrosive atmospheres, making it suitable for water treatment facilities where chlorine and hydrogen sulfide vapors can degrade unprotected electronics over time.

For control cabinet architects designing safety instrumented systems (SIS) or high-availability DCS architectures, the CI840A pairs naturally with the ABB CI858 DNALink communication interface for inter-controller data exchange, and with ABB S800 I/O modules on the PROFIBUS DP segment for distributed analog and digital signal acquisition. This combination creates a layered, fault-tolerant control architecture where redundancy exists at the controller, communication, and I/O levels simultaneously — a design pattern mandated by IEC 61511 for SIL-rated process safety applications in the oil and gas sector.

Long-term spare parts availability is a persistent concern for facilities running ABB AC800M systems installed in the 2000s and 2010s. KNMKS maintains verified inventory of the CI840A 3BSE041882R1 to support both emergency breakdown replacements and planned preventive maintenance programs. Each unit undergoes pre-shipment power-on testing and communication loop verification before dispatch, with full traceability documentation available on request. Our support terms confirmed by quotation cover functional defects arising under normal operating conditions, providing a reliable safety net for maintenance budgets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust AC800M control cabinet deployment extends well beyond the CI840A itself. The module’s redundant PROFIBUS channels are most effective when the surrounding cabinet architecture is equally hardened. The ABB PM866 processor module provides the CPU backbone, and its redundant configuration mirrors the CI840A’s dual-channel philosophy — ensuring that neither the controller nor the communication layer represents a single point of failure. Power supply integrity is maintained through redundant ABB SD833 power supply modules, which deliver regulated 24 VDC to the backplane with automatic load sharing and fault isolation, preventing voltage sag events from propagating into the communication module’s internal logic.

On the PROFIBUS segment itself, proper cable shielding, segment termination, and repeater placement are essential companions to the CI840A. In large plant layouts where PROFIBUS segments span more than 200 meters or cross high-voltage cable trays, ABB PROFIBUS DP repeaters regenerate signal integrity and galvanically isolate segment faults — preventing a wiring fault in one zone from collapsing the entire fieldbus. For safety loop monitoring, the ABB AI810 analog input module on the S800 I/O platform provides the 4–20 mA signal acquisition that feeds process variables into the CI840A’s PROFIBUS data frames, completing the measurement-to-controller data path with the accuracy required for SIL-rated interlock evaluation.

Cabinet thermal management is a frequently overlooked reliability factor. The CI840A’s operating temperature ceiling of +55°C can be approached in poorly ventilated enclosures during summer peak loads. Pairing the module with cabinet-mounted temperature monitoring and forced-air cooling units — coordinated through the AC800M’s own diagnostic channels — provides early warning of thermal stress before it affects module longevity or communication stability.

Critical Industrial Safety Applications

The CI840A 3BSE041882R1 is deployed across a broad spectrum of safety-critical and continuous-process industries where PROFIBUS DP remains the established fieldbus standard:

Petrochemical and Refinery Plants: In crude distillation units and catalytic cracker control systems, the CI840A’s redundant communication ensures that valve positioner feedback and flow transmitter data reach the DCS without interruption during high-EMI events caused by large pump motor starts. Loss of fieldbus communication in these environments can trigger emergency depressurization sequences with significant production and safety consequences.

Power Generation and Substation Automation: Coal-fired and combined-cycle power plants use AC800M systems with CI840A modules to manage burner management systems (BMS) and turbine protection interlocks. The module’s surge immunity is particularly valuable in substations where switching transients on 110 kV and 220 kV busbars can couple into control cable shields.

Mining and Mineral Processing: Underground conveyor control systems and surface concentrator plants rely on PROFIBUS DP for distributed motor control center (MCC) integration. The CI840A’s conformal coating and wide temperature tolerance support reliable operation in the dusty, vibration-prone environments of crusher control rooms and ball mill automation panels.

Water and Wastewater Treatment: Municipal water treatment facilities use AC800M DCS platforms for chlorination dosing control and pump station automation. The CI840A’s resistance to corrosive atmospheres makes it suitable for chemical dosing rooms where hydrogen chloride vapors are present.

Port and Marine Automation: Ship-to-shore crane control systems and bulk material handling terminals use PROFIBUS DP for real-time load cell and drive feedback. The CI840A’s bumpless redundancy switchover prevents cargo handling interruptions during communication disturbances caused by crane travel and cable flexing.

Metallurgy and Steel Production: Continuous casting lines and rolling mill automation demand zero-tolerance communication reliability. The CI840A supports the high-speed PROFIBUS DP polling cycles required for synchronized drive control in tandem rolling stands, where communication latency directly affects strip thickness uniformity and product quality.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CI840A 3BSE041882R1?
The support terms confirmed by quotation cover functional defects arising under normal operating conditions from the date of shipment. This includes communication failures, backplane interface faults, and internal component failures not caused by external physical damage, overvoltage beyond rated limits, or improper installation. KNMKS provides replacement or repair support within the confirmed support period, with priority processing for critical production environments.

Q2: What pre-shipment testing is performed on each CI840A unit?
Every CI840A 3BSE041882R1 unit undergoes power-on functional verification and PROFIBUS DP communication loop testing before dispatch. Units that fail any test parameter are quarantined and not shipped. Full test traceability documentation is available on request for quality audit purposes.

Q3: Is the CI840A 3BSE041882R1 compatible with all AC800M controller generations?
The CI840A is designed for the ABB AC800M platform and is compatible with PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions should be verified against the ABB AC800M Hardware Unit Installation and Replacement guide (3BSE043732). KNMKS technical support can assist with compatibility verification for your specific system configuration.

Q4: Can KNMKS support long-term supply for planned maintenance programs?
Yes. KNMKS maintains ongoing inventory of the CI840A 3BSE041882R1 to support both emergency breakdown replacements and scheduled preventive maintenance spare parts programs. We can provide volume pricing, reserved stock agreements, and lead time commitments for facilities managing multi-year maintenance contracts. Contact [email protected] to discuss your supply requirements.
