ABB CI830 3BSE013252R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB CI830 3BSE013252R1 Maintenance-Proven Spare Part for Factory Uptime

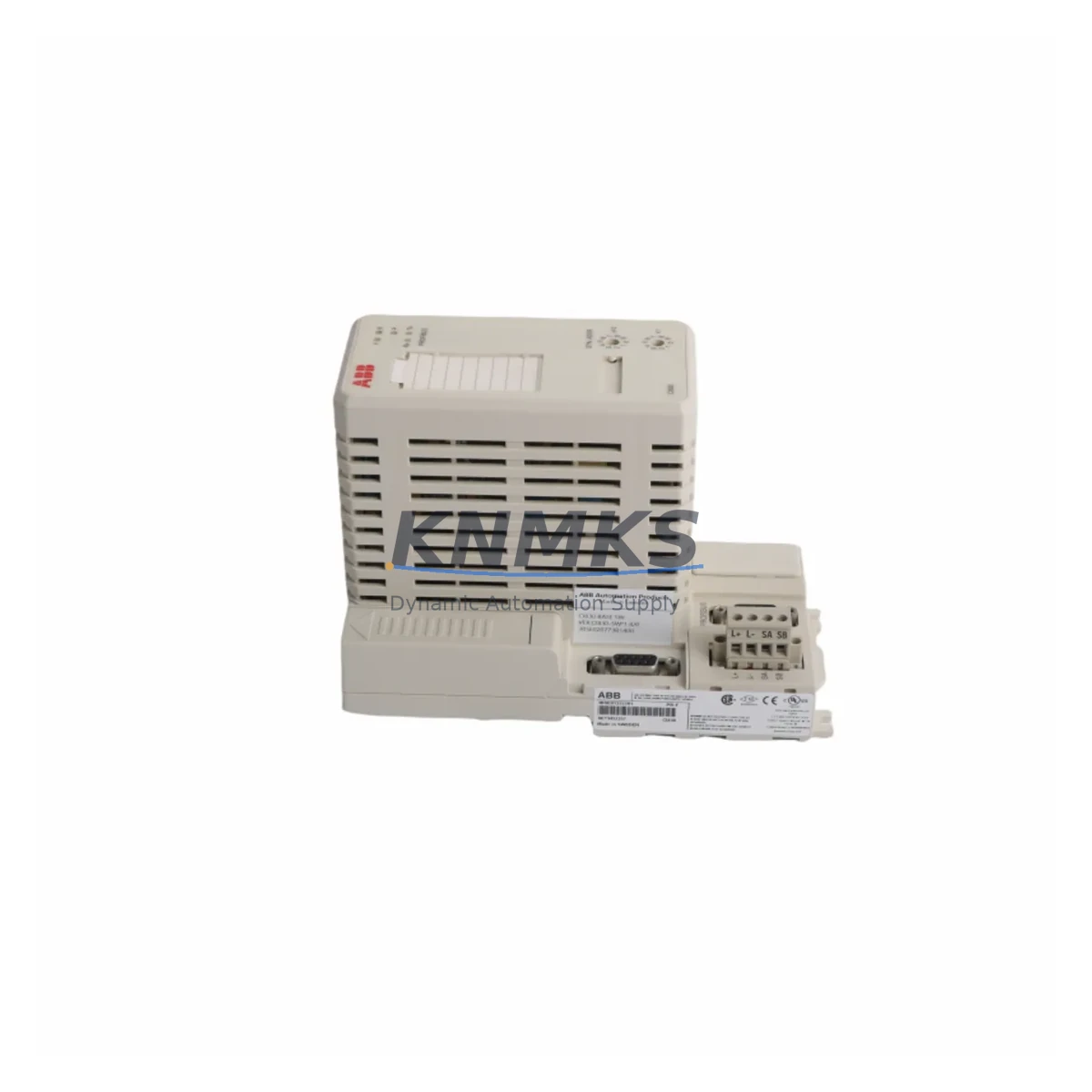

The ABB CI830 (3BSE013252R1) is a PROFIBUS DP interface module designed for the ABB AC800M Distributed Control System. In industrial facilities running continuous processes — chemical plants, pulp and paper mills, power generation, oil and gas, and water treatment — this module serves as the critical communication bridge between the AC800M controller and field-level PROFIBUS DP devices including drives, valve positioners, remote I/O stations, and intelligent field instruments.

Maintaining a verified spare of the CI830 3BSE013252R1 in your site inventory is a fundamental element of any serious DCS maintenance strategy. When a PROFIBUS DP communication fault is traced to this interface module, the difference between a two-hour recovery and a two-day shutdown often comes down to whether a tested, original replacement is already on the shelf. Procurement lead times for DCS communication modules from distribution channels can range from weeks to months, making proactive spare holding the only reliable path to fast restoration.

At KNMKS, every CI830 3BSE013252R1 unit is sourced as original ABB hardware, inspected on receipt, and function-tested prior to dispatch. Units are shipped with full traceability documentation and are covered by a support terms confirmed by quotation against manufacturing defects and functional failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The CI830 3BSE013252R1 does not operate in isolation. In a functioning AC800M control cabinet, it works alongside a range of interdependent components that maintenance engineers and spare parts planners should evaluate simultaneously when scheduling a PROFIBUS DP module replacement or annual inspection.

The AC800M controller itself — typically a PM856, PM860, or PM864 processor module — should be assessed for firmware version compatibility with the CI830 before replacement. Mismatched firmware between the processor and the communication interface module is a known source of post-replacement faults that can delay restart. Confirm the firmware baseline in your AC800M project documentation before ordering.

The TB807 or TB840 termination units and associated S800 I/O modules connected via the PROFIBUS DP segment should be inspected for contact oxidation, loose terminal connections, and address conflicts whenever the CI830 is replaced. A PROFIBUS DP segment fault is rarely caused by a single component; the cable shield continuity, bus termination resistors at both ends of the segment, and the DB9 connector condition on the CI830 itself are all common fault contributors.

For cabinet-level maintenance, the AC800M power supply module (SD821 or SD822) should be checked for output voltage stability. Undervoltage on the backplane bus is a documented cause of intermittent communication module resets that can be misdiagnosed as a CI830 failure. Replacing the interface module without verifying power supply health risks repeat failures.

If your PROFIBUS DP segment includes ABB ACS drives (such as ACS800 or ACS880 series) or TZID-C valve positioners, verify that the PROFIBUS DP slave addresses and GSD files remain correctly configured after the CI830 swap. Address conflicts introduced during replacement are a common cause of partial segment recovery where some field devices respond and others do not.

For sites running redundant AC800M architectures, the CI857 Ethernet interface module or CI858 DNP3 interface installed in the redundant controller should also be reviewed as part of the same maintenance window. Communication module failures in redundant DCS architectures often go undetected until the primary controller fails, at which point the backup system’s communication integrity becomes critical.

Spare parts planners should also consider holding a buffer stock of PROFIBUS DP bus connectors (Siemens 6ES7 972-series or equivalent) and PROFIBUS cable (Type A, shielded twisted pair). These consumable items are frequently overlooked in DCS spare parts lists but are a common root cause of intermittent PROFIBUS faults that are incorrectly attributed to the interface module.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement CI830 3BSE013252R1 part number matches the installed unit exactly. Check the AC800M project firmware version and verify compatibility. Download and archive the current PROFIBUS DP configuration from the AC800M engineering station (ABB Control Builder M) before any hardware change.

Step 2 — Safe isolation: Follow your site’s lockout/tagout procedure. The CI830 can be hot-swapped in some AC800M configurations, but this must be confirmed against your specific system version and site safety procedures. Do not assume hot-swap capability without verification.

Step 3 — Physical replacement: Remove the faulty CI830 by releasing the module latch and sliding it from the controller slot. Insert the replacement unit firmly until the latch engages. Reconnect the PROFIBUS DP DB9 cable, ensuring the connector screws are finger-tight.

Step 4 — Bus verification: After power-up, use the AC800M diagnostic LEDs and Control Builder M online diagnostics to confirm PROFIBUS DP bus status. Verify all slave devices are communicating. Check for address conflicts or GSD file mismatches.

Step 5 — Documentation: Record the replacement in your site maintenance log. Note the serial number of the removed unit and the replacement unit. Update your spare parts inventory to trigger reorder of a replacement buffer stock unit.

This workflow supports the goal of minimizing mean time to repair (MTTR) for PROFIBUS DP communication faults in AC800M-based DCS installations, keeping production lines running and reducing unplanned downtime costs.

Spare Parts Support FAQ

Q1: Is the CI830 3BSE013252R1 compatible with all AC800M controller versions?
The CI830 is designed for the ABB AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions should be confirmed against ABB’s product documentation or your site’s engineering baseline. KNMKS can provide technical support to assist with compatibility verification prior to purchase.

Q2: How is each unit tested before shipment?
Every CI830 3BSE013252R1 dispatched by KNMKS undergoes a pre-shipment functional inspection. Units are visually inspected for physical damage, connector condition, and label integrity. Functional testing confirms module initialization and communication readiness. A test report is available on request. All units are dispatched with ESD-protective packaging.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions as specified in ABB’s product documentation. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or use outside the specified environmental range. Support requests are processed with return of the defective unit for inspection.

Q4: Can KNMKS support long-term or repeat supply of the CI830 3BSE013252R1?
Yes. KNMKS maintains ongoing sourcing relationships for ABB AC800M platform components including the CI830 3BSE013252R1. For facilities managing multi-year maintenance contracts or annual inspection schedules, we can discuss framework supply arrangements, reserved stock, and priority dispatch terms. Contact our team to discuss your site’s long-term spare parts requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
