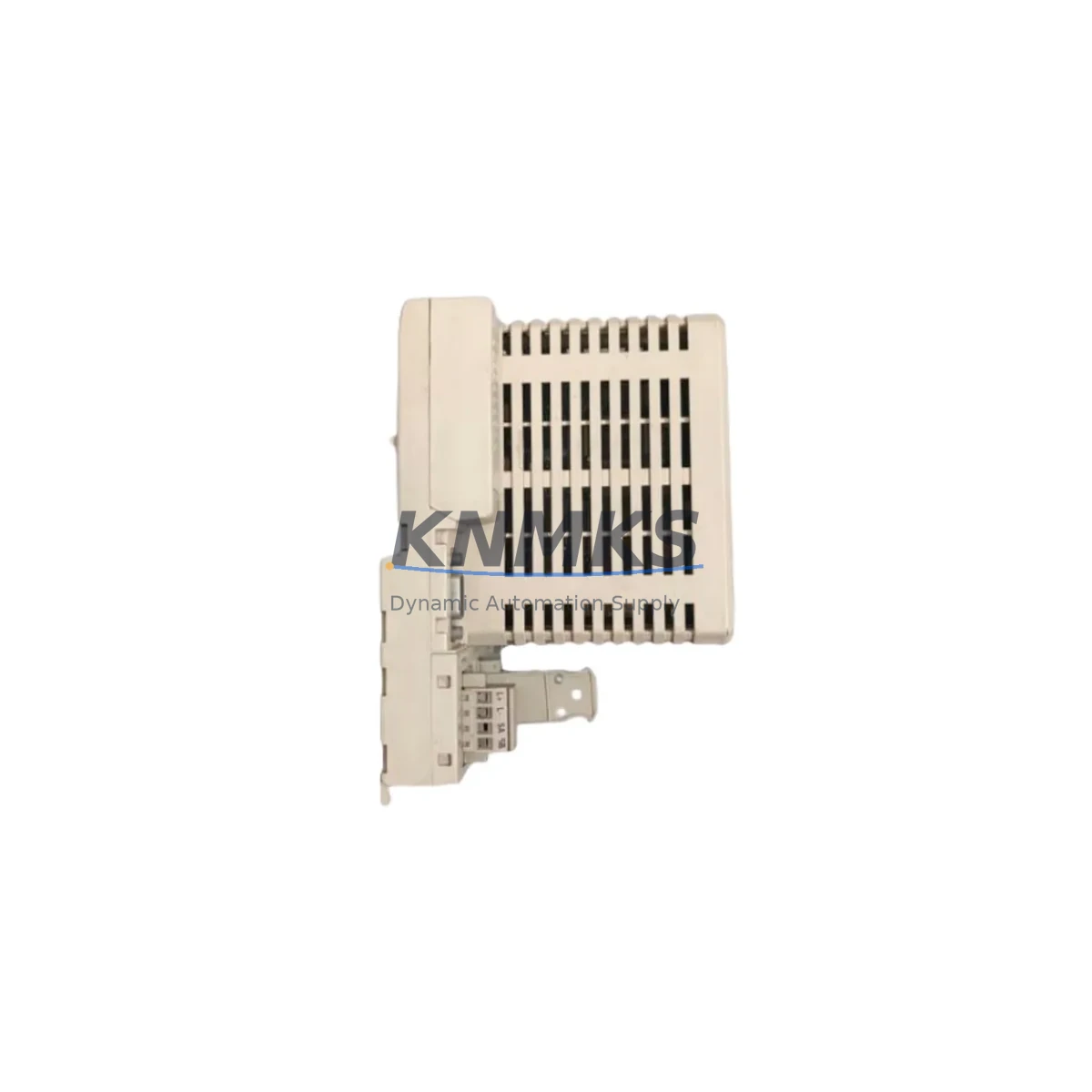

ABB CI810B 3BSE020520R1 Migration-Ready PROFIBUS DP Module

Overview

ABB CI810B 3BSE020520R1 Migration-Ready PROFIBUS DP Module for Legacy Control Systems

When a legacy distributed control system begins to show signs of communication instability — intermittent PROFIBUS DP timeouts, degraded fieldbus response, or the simple reality that the original CI810 module is no longer available through standard channels — the ABB CI810B 3BSE020520R1 becomes the critical link between operational continuity and unplanned downtime. Designed for the AC800M controller platform, this PROFIBUS DP master/slave communication module is a direct retrofit solution for facilities running ABB’s Symphony Plus, 800xA, or earlier DCI-based architectures that depend on PROFIBUS DP as their primary fieldbus backbone.

The CI810B carries the ABB catalog reference 3BSE020520R1 and slots directly into the AC800M controller rack, occupying a standard module bay without requiring backplane adapter plates or custom bracket modifications. For engineers managing a retrofit project, this physical compatibility is the first checkpoint — and the CI810B passes it without compromise. The module communicates over PROFIBUS DP at speeds up to 12 Mbit/s, supporting both DP-V0 and DP-V1 services, which means it can interface with a broad range of field devices including remote I/O stations, variable frequency drives, intelligent valve positioners, and third-party PROFIBUS slaves already installed in the field.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CI810B retrofit begins well before the module arrives on site. Engineers should first audit the existing AC800M rack configuration to confirm available module slots, verify that the controller processor — typically a PM856 or PM864 — is running a firmware version compatible with the CI810B, and review the PROFIBUS DP network topology to understand segment lengths, termination resistor placement, and the number of active slaves on each segment. In many legacy installations, the original CI810 was configured as a DP master managing 20 to 60 field devices; the CI810B preserves this master role and retains the same GSD file structure, which significantly reduces the effort required to rebuild the hardware configuration in ABB’s Control Builder M engineering tool.

During the planning phase, it is equally important to review the power budget of the AC800M rack. The CI810B draws its operating power from the rack’s internal bus, supplied by the SM810 or SM811 power supply module. If the existing power supply is already near its rated output — a common situation in densely populated racks that also house CI840A PROFINET modules, CI854A IEC 61850 communication interfaces, or multiple AI810 and AO810 analog I/O modules — the power margin must be confirmed before adding or swapping modules. A power budget shortfall during commissioning can cause intermittent module resets that are difficult to diagnose in the field.

Terminal wiring for the PROFIBUS DP connection uses a standard 9-pin D-sub connector. When replacing an older CI810, the existing PROFIBUS cable and connector can typically be reused directly, provided the cable shielding is intact and the termination resistors at both ends of the segment are correctly enabled. Engineers should also verify the PROFIBUS station address assigned to the CI810B in Control Builder M matches the address previously held by the replaced module, as a mismatch will cause the DP master to fail to recognize its slave devices during startup. For sites using TK212A or TK213A PROFIBUS cables and connectors, these accessories remain fully compatible with the CI810B’s D-sub interface.

Where the retrofit involves migrating from an older CI801 or CI820V1 module, additional steps are required: the hardware configuration in Control Builder M must be updated to reference the CI810B module type, and any function blocks that reference the old module’s I/O addresses may need to be remapped. This process is straightforward but must be completed in a staging environment before the live cutover to avoid introducing logic errors into the running control program.

Downtime Control During System Migration

Minimizing control system downtime during a PROFIBUS DP module replacement is achievable with disciplined pre-work. The most effective approach is to perform the full hardware configuration update and program compilation in Control Builder M offline, using a duplicate of the live project, and to validate the new configuration against the CI810B’s module parameters before scheduling the physical swap. This offline validation catches address conflicts, firmware incompatibilities, and missing GSD entries before they become field problems.

On the day of the cutover, the sequence should follow a structured shutdown: place the affected PROFIBUS DP segment into a safe state by confirming that all connected field devices — drives, valve actuators, remote I/O stations — are in their defined safe positions or hold states. Remove the old module, insert the CI810B, and restore power to the rack. The AC800M controller will perform an automatic module recognition sequence; if the hardware configuration has been correctly pre-loaded, the CI810B will come online within seconds and the PROFIBUS DP master will begin polling its slave devices. In most straightforward replacements, total control interruption is measured in minutes rather than hours.

For sites where even brief interruptions are unacceptable — continuous chemical processes, power generation auxiliaries, or water treatment dosing systems — a parallel commissioning approach can be used: install the CI810B in a spare rack slot, configure it as a secondary DP master on a separate segment, validate its operation against a subset of field devices, and then perform the final cutover during a scheduled maintenance window. This approach preserves the original CI810’s operation until the last possible moment and provides a verified fallback path if the cutover encounters unexpected issues.

All CI810B units supplied by KNMKS are subject to full functional testing prior to shipment, including PROFIBUS DP communication verification, backplane interface checks, and power consumption measurement. Units are shipped with original or equivalent protective packaging to prevent ESD damage during transit. Stock is maintained to support both immediate single-unit replacements and larger project quantities requiring phased delivery over 12 to 36 months.

Retrofit Support FAQ

Q1: Is the CI810B a direct drop-in replacement for the original CI810 (3BSE008584R1)?
In most AC800M installations, yes. The CI810B uses the same rack slot, the same backplane interface, and the same PROFIBUS DP D-sub connector as the CI810. The hardware configuration in Control Builder M must be updated to reference the CI810B module type, but the PROFIBUS network topology, cable wiring, and field device configurations remain unchanged. Firmware version 5.0 or above on the AC800M processor is recommended for full CI810B feature support.

Q2: What pre-shipment testing is performed on each CI810B unit?
Every CI810B supplied by KNMKS undergoes a full functional test sequence before dispatch. This includes power-on self-test verification, PROFIBUS DP master communication test at multiple baud rates, backplane interface continuity check, and visual inspection for connector pin condition and housing integrity. A test record is maintained for each unit. Units that do not pass all test criteria are not shipped.

Q3: Can the CI810B operate alongside other communication modules in the same AC800M rack?
Yes. The AC800M architecture supports multiple communication modules in a single rack, including combinations of CI810B PROFIBUS DP, CI840A PROFINET, CI854A IEC 61850, and CI871A PROFIBUS PA modules, subject to the rack’s power budget and the controller’s module capacity limits. Each module operates independently on its respective fieldbus segment and is configured separately in Control Builder M.

Q4: What support terms and long-term supply support does KNMKS provide for the CI810B?
All CI810B units are covered by a support terms confirmed by quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions. KNMKS maintains stock of CI810B and related AC800M modules to support long-term spare parts programs, with supply agreements available for 12 to 36-month forward coverage. For project quantities or scheduled phased deliveries, contact [email protected] to discuss inventory reservation and delivery scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

CI810B 3BSE020520R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB CI810B 3BSE020520R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
