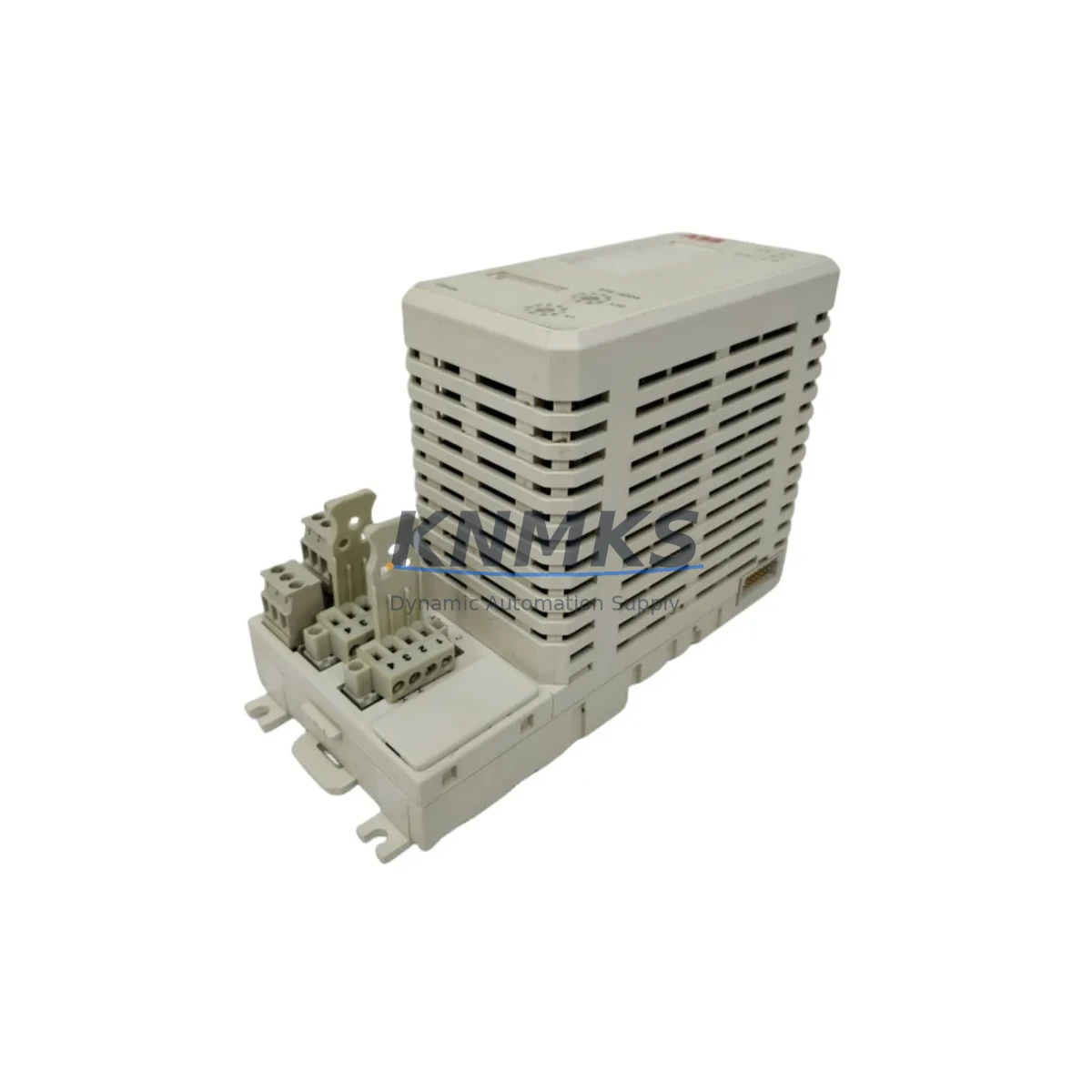

ABB CI810A 3BSE013262R1 Fail-Safe Fieldbus Interface Module

Overview

ABB CI810A 3BSE013262R1 Fail-Safe Fieldbus Interface Module: Fault-Protected DCS Communication for Critical Industrial Sites

The ABB CI810A (3BSE013262R1) is a high-integrity AF100 Fieldbus Interface Module engineered for the AC800F Distributed Control System platform. Designed to sustain uninterrupted fieldbus communication in the most demanding process environments, the CI810A delivers deterministic, fault-tolerant data exchange between field devices and the DCS controller — eliminating the communication gaps that trigger unplanned shutdowns, process upsets, and safety interlock failures.

In continuous production facilities — petrochemical reactors, power generation turbines, mineral processing circuits, and water treatment networks — a single fieldbus communication fault can cascade into a full-process trip. The CI810A addresses this risk through redundant communication path support, robust EMI shielding, and a hardened backplane interface that maintains signal integrity even under severe electrical noise, ground potential fluctuations, and high-frequency switching transients generated by variable frequency drives and large motor starters in the same control cabinet.

The module is rated for operation in environments with ambient temperatures up to 60 °C, relative humidity up to 95% non-condensing, and vibration levels consistent with IEC 60068-2-6 — making it suitable for deployment in offshore platforms, smelter control rooms, port crane automation panels, and shipboard automation cabinets where thermal cycling and mechanical stress are constant concerns. Its conformal-coated PCB construction provides additional protection against corrosive atmospheres, airborne particulates, and condensation ingress common in cement, pulp-and-paper, and chemical processing plants.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable fieldbus communication depends on the integrity of the entire control cabinet ecosystem. The CI810A operates in close coordination with the ABB PM865 processor module, which serves as the AC800F controller backbone — any instability in the processor’s communication bus directly affects fieldbus throughput. To protect against power-induced resets and voltage sag events, the CI810A cabinet should be supported by an ABB SD833 power supply module or equivalent 24 VDC redundant supply, ensuring the fieldbus interface remains energized during mains fluctuations and switchgear operations.

In high-EMI environments where variable speed drives, contactors, and high-current switching loads share the same panel infrastructure, the ABB TB820 Modulebus Modem provides an additional communication buffer layer, isolating the CI810A from conducted interference on the backplane. For installations requiring safety-rated I/O integration, pairing the CI810A with ABB AI810 analog input modules and ABB DO810 digital output modules creates a complete, validated signal chain from field transmitters through to the DCS controller — maintaining loop integrity across the full safety instrumented function.

Where surge protection is required at the cabinet entry point — particularly in outdoor substations, exposed field junction boxes, or lightning-prone regions — installing ABB-compatible surge protective devices (SPDs) on the fieldbus cable shield and power supply lines prevents transient energy from reaching the CI810A’s communication circuitry, extending module service life and reducing nuisance trip events caused by surge-induced data corruption.

Critical Industrial Safety Applications

The CI810A is deployed across a broad spectrum of safety-critical and continuous-process industries where communication reliability is non-negotiable:

Petrochemical and Refinery Plants: In distillation column control and reactor temperature management loops, the CI810A maintains real-time fieldbus communication between field-mounted pressure transmitters, control valves, and the DCS — ensuring that safety interlock logic receives accurate, latency-free process data. A communication dropout in these loops can trigger emergency shutdown sequences, flare events, and significant production loss.

Power Generation: Turbine control systems and boiler management platforms rely on deterministic fieldbus communication for combustion optimization and load-following response. The CI810A’s redundant path capability ensures that a single cable fault or connector failure does not interrupt the control loop, preventing turbine trips and grid instability events.

Mining and Mineral Processing: In SAG mill and crusher automation panels, the CI810A withstands the high vibration, dust ingress, and ground noise characteristic of heavy mineral processing environments, maintaining stable communication between motor control centers and the process DCS without requiring frequent recalibration or module replacement.

Water and Wastewater Treatment: Pump station automation and chemical dosing control systems benefit from the CI810A’s moisture-resistant construction and stable low-temperature operation, ensuring continuous fieldbus communication in partially outdoor or underground installations subject to condensation and temperature swings.

Metallurgy and Steel: In electric arc furnace and rolling mill control cabinets, where electromagnetic interference levels are extreme, the CI810A’s hardened EMC design prevents signal corruption that could cause erratic actuator behavior or false safety trips in critical process interlocks.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CI810A 3BSE013262R1?
The support terms confirmed by quotation cover all hardware defects, communication failures, and component-level faults identified under normal operating conditions. Each unit is pre-tested for full AF100 fieldbus communication functionality before dispatch. Support requests are supported with direct technical assistance and priority replacement from our multi-region inventory.

Q2: How is the CI810A tested before shipment?
Every CI810A unit undergoes a structured pre-shipment verification protocol including power-on self-test, AF100 communication link validation, backplane interface check, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not dispatched — ensuring that every module received on-site is field-ready.

Q3: Is the CI810A 3BSE013262R1 compatible with existing AC800F and Advant OCS installations?
Yes. The CI810A is a direct replacement module for AC800F-based DCS platforms and is also used in Advant OCS and MOD 300 migration projects. It is compatible with ABB’s standard AF100 fieldbus topology and requires no firmware modification for drop-in replacement in most existing cabinet configurations. Compatibility with specific firmware revisions should be confirmed against the installed PM865 or PM864 processor version.

Q4: Can long-term supply be arranged for ongoing maintenance programs?
Yes. We maintain multi-region stock of the CI810A 3BSE013262R1 to support both emergency replacement and scheduled maintenance programs. Long-term supply agreements are available for facilities managing planned outage cycles, ensuring that critical spare modules are available without lead-time risk when the original ABB supply chain is constrained or the part reaches end-of-availability status.
