ABB BHE036342R0101 Maintenance-Proven Spare for AC800M

Overview

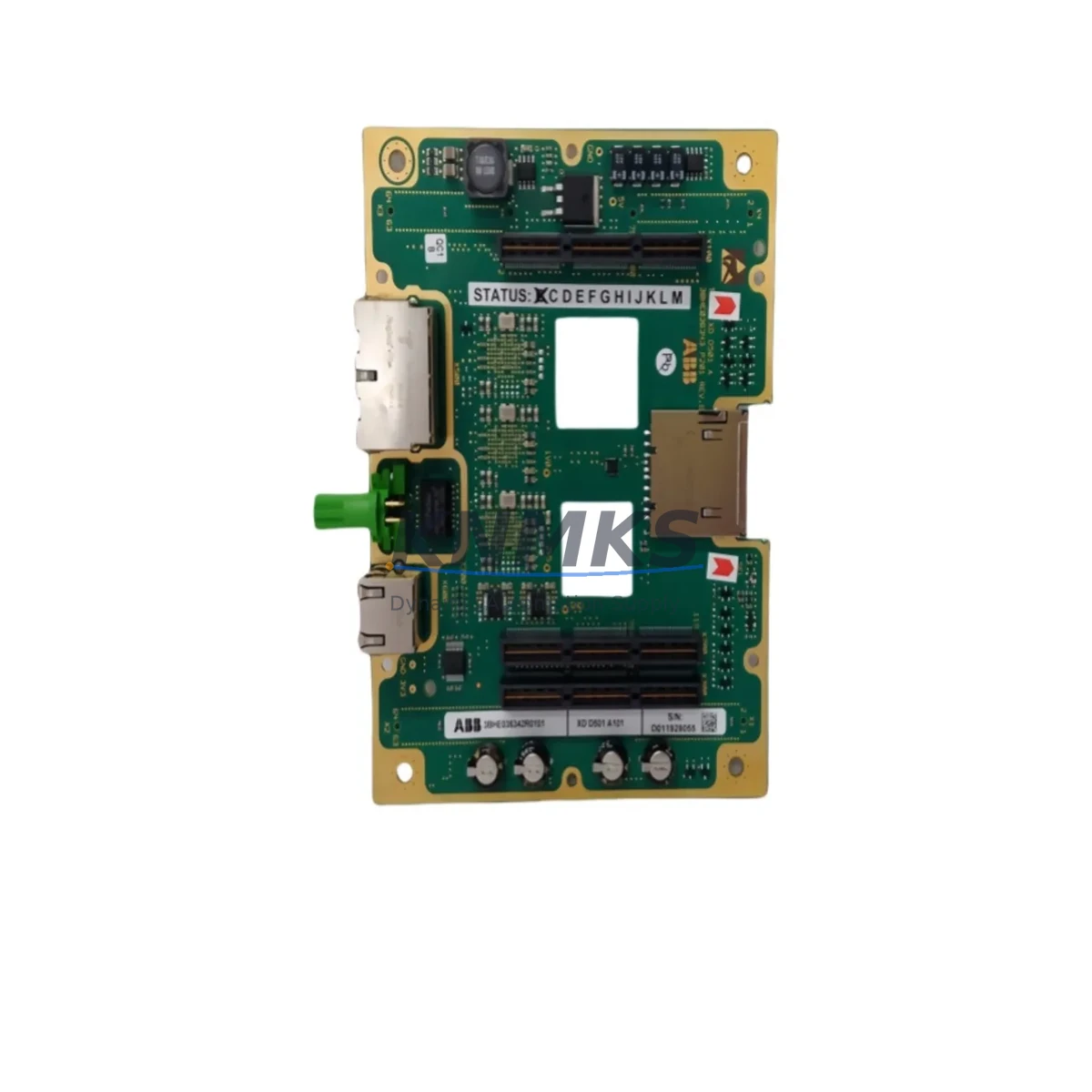

ABB BHE036342R0101 Maintenance-Proven Spare for AC800M

The ABB BHE036342R0101 (also referenced as XDD501) is a critical spare part for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. Sourced as an original ABB component, this module is pre-tested prior to shipment and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned maintenance inventory.

Maintenance engineers and spare parts procurement teams working with AC800M controllers understand the operational risk of running without verified backup modules. The BHE036342R0101 is a communication and interface module within the AC800M ecosystem, and its failure can disrupt I/O communication, process data acquisition, and controller redundancy — leading to unplanned downtime that can cost thousands per hour in high-throughput facilities. Keeping a tested unit on the shelf is a proven strategy for minimizing mean time to repair (MTTR).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BHE036342R0101 module is flagged during routine control cabinet inspection or fails during operation, the replacement workflow should extend beyond the module itself. Experienced maintenance engineers know that a single module fault is often a symptom of broader system stress. Before returning the AC800M rack to service, it is advisable to inspect the PM891 or PM865 processor module for firmware integrity and communication health, as these controllers directly interface with the XDD501 in multi-node configurations.

The TB820 or TB840 PROFIBUS communication interface modules should also be checked for signal continuity and termination resistance, particularly in installations where the fieldbus cable runs exceed recommended lengths or pass through electrically noisy environments. Similarly, the SA811F or SA801F power supply modules feeding the AC800M backplane should be verified for output voltage stability — a marginal power supply is a common root cause of intermittent module faults that are misdiagnosed as module failures.

For sites running the ABB 800xA System, the OPC server connectivity and controller redundancy configuration should be validated after any module swap. If the plant uses CI854 or CI857 PROFIBUS DP interface modules in the same cabinet, their diagnostic LEDs and configuration parameters should be reviewed to confirm no address conflicts or bus errors were introduced during the replacement. Procurement teams building annual maintenance kits for AC800M-based systems should also consider stocking TK850V007 or TK850V010 fiber optic cables and relevant terminal block assemblies, as these consumables are frequently overlooked until a fault occurs.

Fuse protection for the 24 VDC backplane supply rail should be inspected and replaced if any signs of thermal stress or discoloration are present. A proactive spare parts list for an AC800M control cabinet typically includes at minimum: one processor module, one communication interface module (such as the BHE036342R0101 / XDD501), one power supply module, and one set of I/O modules matching the installed configuration.

Site Replacement Workflow

Step 1 — Preparation: Before removing the BHE036342R0101, export the current controller configuration from ABB Control Builder M or the 800xA engineering workspace. Confirm the firmware version of the replacement module matches or is compatible with the installed system version. If the site runs a redundant AC800M pair, initiate a controlled switchover to the secondary controller before touching the primary rack.

Step 2 — Safe Removal: De-energize the affected slot following site lockout/tagout (LOTO) procedures. The AC800M backplane supports hot-swap on select module types, but the BHE036342R0101 should be replaced with the rack powered down where site safety procedures require it. Label all fieldbus connectors before disconnection to prevent wiring errors during reinstallation.

Step 3 — Installation & Verification: Seat the new BHE036342R0101 firmly into the backplane slot. Reconnect all fieldbus and communication cables. Power up the rack and observe the module status LEDs — a solid green RUN indicator confirms successful initialization. Use Control Builder M to verify that all I/O nodes and fieldbus devices are communicating correctly before releasing the system to operations.

Step 4 — Documentation: Record the replacement in the plant maintenance management system (CMMS), including the old module’s serial number, fault symptoms, and the date of replacement. This data supports future failure trend analysis and spare parts planning cycles.

This workflow applies equally to planned annual overhauls and emergency fault recovery scenarios, and is designed to minimize total downtime from fault detection to system restoration — typically achievable in under two hours with a pre-tested spare on hand.

Spare Parts Support FAQ

Q1: Is the BHE036342R0101 compatible with both AC800M and 800xA systems?
Yes. The BHE036342R0101 (XDD501) is designed for the AC800M controller platform, which is the hardware foundation of the ABB 800xA System. It is compatible with all standard AC800M rack configurations. Always verify the firmware version in your engineering tool before installation to ensure full compatibility with your system software version.

Q2: What testing is performed before shipment?
Every BHE036342R0101 unit shipped from KNMKS undergoes functional verification testing prior to dispatch. This includes power-on self-test confirmation, communication interface check, and visual inspection for physical integrity. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage long-term spare parts inventory for AC800M systems?
For AC800M-based plants, industry best practice recommends maintaining at least one spare unit for each critical module type installed in the control system. The BHE036342R0101 should be stored in an ESD-safe bag in a climate-controlled environment (10°C–40°C, <85% RH non-condensing). KNMKS offers long-term supply agreements for customers requiring guaranteed stock availability over multi-year maintenance contracts.

Q4: What is the support terms coverage and what does it include?
All BHE036342R0101 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides direct technical support for support requests, with replacement or repair turnaround typically within 5–7 business days. For urgent operational needs, advance replacement arrangements can be discussed with our sales team.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

BHE036342R0101-XDD501-A101
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB BHE036342R0101-XDD501-A101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
