ABB BFPS-48C 3AUA0000074419 Spare Part for Factory Uptime

Overview

ABB BFPS-48C 3AUA0000074419 Spare Part for Factory Uptime

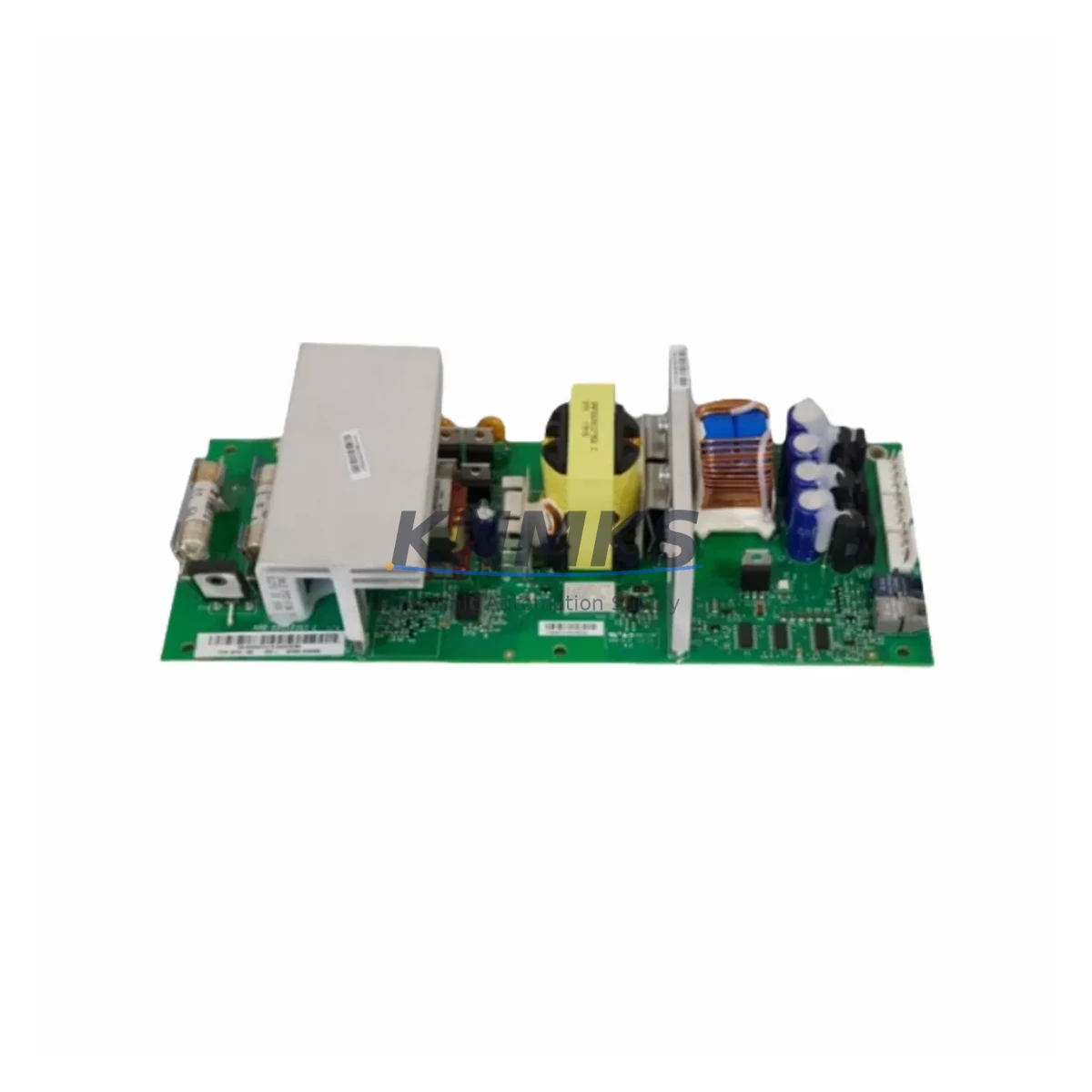

The ABB BFPS-48C (part number 3AUA0000074419) is an original 48V DC auxiliary power supply board engineered for the ACS800 series variable frequency drive platform. In high-demand industrial environments — from paper mills and metal processing lines to water treatment facilities and offshore installations — the ACS800 drive is a critical asset. When the BFPS-48C fails, the entire drive goes offline, halting production and triggering costly unplanned downtime. Stocking a verified, pre-tested replacement is the most effective insurance against extended outages.

This board supplies regulated 48V DC auxiliary power to the ACS800 drive’s internal control circuitry, gate driver boards, and communication interfaces. Degradation or failure of the BFPS-48C typically manifests as erratic drive behavior, fault codes related to internal supply voltage, or complete loss of control panel response. Maintenance engineers who recognize these symptoms early can execute a planned swap during a scheduled maintenance window rather than scrambling during an emergency shutdown.

Each unit supplied is sourced as an original ABB component, subjected to pre-shipment functional testing under load conditions, and dispatched with a support terms confirmed by quotation. Global stock availability ensures rapid dispatch to support both emergency replacement and planned annual overhaul schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BFPS-48C in an ACS800 drive is rarely an isolated task. A thorough maintenance engineer will treat this event as an opportunity to audit the entire drive cabinet and associated electrical circuit. Before returning the drive to service, the following components and subsystems should be inspected or tested alongside the power supply board replacement:

The AINT-02C or AINT-14C inverter control board shares the 48V auxiliary bus with the BFPS-48C; any sustained overvoltage or undervoltage event that damaged the power supply may have stressed the control board’s input protection circuits. Similarly, the APOW-01C auxiliary power supply module — where fitted — should be checked for output stability, as cascaded supply faults are common in aging ACS800 cabinets.

The RDCO-03C or RDCO-04C DDCS fiber optic communication module draws from the same internal supply rail and is sensitive to voltage ripple; inspect fiber connectors and verify communication integrity after board replacement. The IOEC I/O extension modules connected to the drive’s I/O bus should also be verified for correct signal levels, as a supply interruption can corrupt configuration registers in some firmware versions.

At the cabinet level, inspect the main AC input fuses and DC bus fuse links for signs of thermal stress or partial blow — a failing power supply board can draw abnormal current before complete failure. The 24V DC control power supply feeding the PLC or DCS interface should be tested for output stability, and terminal blocks on the control wiring harness should be re-torqued to manufacturer specification. Where an ABB ACS800 panel bus adapter (RPBA-01 or RCAN-01) is installed for fieldbus communication, verify that the adapter’s power LED is stable and that the fieldbus master reports no communication errors after the board swap.

Procurement engineers should consider holding a minimum of one BFPS-48C per site as a critical spare, particularly for installations where the ACS800 drives operate in continuous 24/7 process environments. Lead times for original ABB internal boards can extend to 8–16 weeks through standard distribution channels; maintaining on-site stock eliminates this risk entirely.

Site Replacement Workflow

Step 1 — Isolation and De-energization: Follow the ACS800 hardware manual lockout/tagout procedure. Confirm that the DC bus voltage has discharged to safe levels (below 50V DC) using a calibrated multimeter before opening the drive cabinet.

Step 2 — Documentation: Photograph the existing board orientation, connector positions, and cable routing before disconnection. Record any active fault codes from the drive panel or DCS historian for post-replacement comparison.

Step 3 — Board Removal: Disconnect all connectors from the BFPS-48C in sequence. Remove the board mounting screws and extract the board carefully, avoiding contact with adjacent gate driver boards or capacitor banks.

Step 4 — Compatibility Verification: Confirm that the replacement BFPS-48C carries the correct part number (3AUA0000074419) and matches the hardware revision required by your ACS800 firmware version. Consult the ACS800 spare parts catalog or contact your maintenance supplier if revision compatibility is uncertain.

Step 5 — Installation and Re-energization: Install the replacement board, reconnect all connectors in reverse order, and restore power. Monitor the drive’s internal supply voltage readings via the panel or DriveWindow software during initial power-up. Confirm that no supply-related fault codes are active before returning the drive to automatic control.

Step 6 — Functional Test: Run the drive at low speed under no-load conditions for a minimum of 10 minutes. Verify all I/O signals, communication links, and control panel functions before resuming full production load.

Spare Parts Support FAQ

Q: Is the BFPS-48C 3AUA0000074419 compatible with all ACS800 hardware revisions?
A: The BFPS-48C is the standard 48V DC auxiliary power supply board across the ACS800 single-drive series. Compatibility with specific hardware revisions should be confirmed against the ACS800 spare parts catalog or the drive’s nameplate data. Contact our team with your drive serial number for revision-specific confirmation before ordering.

Q: What pre-shipment testing is performed on each unit?
A: Every BFPS-48C unit undergoes functional load testing prior to dispatch to verify regulated output voltage, ripple performance, and connector integrity. A test record is available on request. All units are dispatched with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q: How quickly can a replacement unit be dispatched for an emergency shutdown situation?
A: We maintain multi-region stock of the BFPS-48C to support emergency dispatch requirements. In most cases, same-day or next-business-day dispatch is available. Contact our team directly at [email protected] or +86 18359268345 to confirm current stock availability and expedited shipping options for your location.

Q: What is the recommended long-term spare parts strategy for ACS800 drives?
A: For ACS800 drives in continuous process applications, we recommend holding a minimum of one BFPS-48C per drive or per site as a critical spare. Given that ABB has transitioned the ACS800 platform toward end-of-life support, original internal boards are increasingly difficult to source through standard channels. Establishing a long-term supply agreement ensures access to verified original components for the full remaining service life of your installed base.
