ABB BDPS-11C Migration-Ready Drive Module for Legacy Systems

Overview

ABB BDPS-11C Migration-Ready Drive Module for Legacy Control Systems

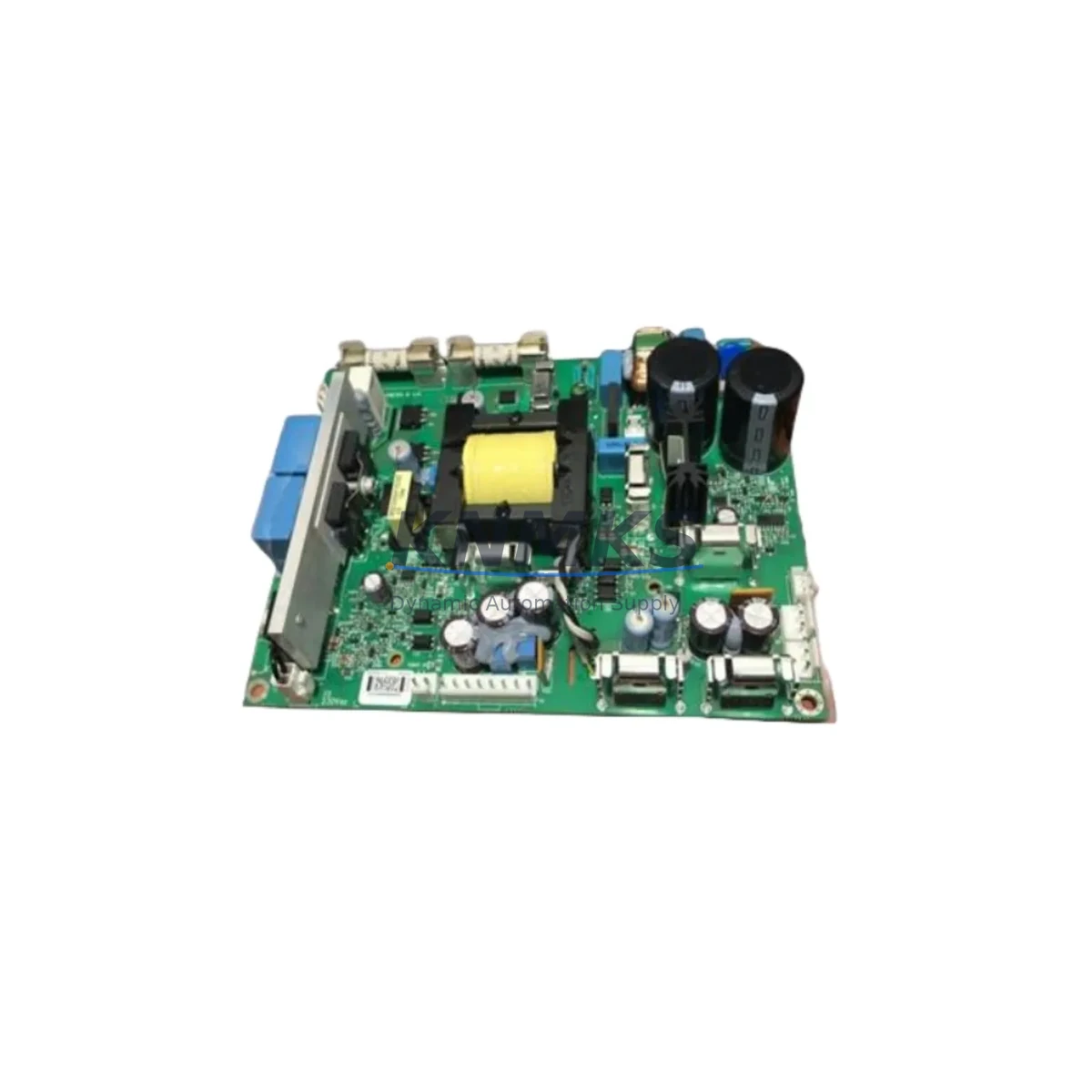

The ABB BDPS-11C is a migration-ready drive control module engineered for direct replacement within ABB BDPS Series drive platforms deployed across legacy industrial automation environments. As aging drive systems approach end-of-life and OEM support windows close, the BDPS-11C provides a validated, stock-backed solution for facilities in petrochemical processing, power generation, water treatment, metallurgy, and port automation that cannot afford unplanned downtime or extended procurement lead times.

Designed as a drop-in replacement for the original BDPS-11C position within the BDPS Series control cabinet, this module maintains full electrical and mechanical compatibility with existing backplane connectors, terminal wiring layouts, and drive communication links. Engineers undertaking a retrofit or spare parts replenishment program will find that the BDPS-11C eliminates the need for panel redesign, rewiring, or firmware re-architecture in most standard BDPS Series installations.

Before committing to a replacement, site engineers should verify the following critical parameters: supply voltage and power capacity at the drive cabinet bus, terminal block pinout against the existing wiring schedule, backplane slot address and module node configuration, firmware revision compatibility with the resident drive controller, and available installation clearance within the control enclosure. Where the existing system integrates an ABB ACS800 or ACS880 series drive controller as the supervisory layer, communication link integrity between the BDPS-11C and the drive control board must be confirmed prior to energization.

For sites running coordinated multi-drive systems, the BDPS-11C retrofit often occurs alongside replacement of companion components such as the SDCS-CON-4 control board, AINT-02C fieldbus adapter, or RDCO-04 optical communication module. In distributed I/O architectures, the module may interface with AIMA-01 I/O extension units or RETA-02 Ethernet adapter modules that handle upstream SCADA or DCS communication. Ensuring that these adjacent modules carry compatible firmware versions is essential to maintaining program logic continuity and avoiding nuisance faults during commissioning.

HMI screen configurations referencing drive status, fault codes, and parameter sets tied to the original BDPS-11C should be reviewed and validated against the replacement unit’s parameter map before returning the drive to automatic control. In systems where the drive is supervised by a Siemens S7-300 or Allen-Bradley ControlLogix PLC via Profibus or DeviceNet, the module address and GSD/EDS file assignments must be confirmed to match the original configuration to prevent communication loss at startup.

All BDPS-11C units supplied by KNMKS are sourced from verified supply channels, subjected to pre-shipment functional testing, and covered by a support terms confirmed by quotation from the date of delivery. Stock is maintained to support both emergency breakdown replacements and planned maintenance programs with extended spare parts horizons of 12 to 36 months.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful BDPS-11C retrofit begins with a thorough audit of the existing drive cabinet. Engineers should document the current module slot assignments, confirm that the BDPS Series backplane is free of corrosion or mechanical damage, and verify that the cabinet power supply delivers adequate capacity for the replacement module under full load conditions. Where the drive system includes an SDCS-CON-4 control board managing the inner current loop, the interface between the control board and the BDPS-11C must be tested for signal integrity before the drive is returned to service.

In multi-axis or coordinated drive systems, the AINT-02C fieldbus adapter or RDCO-04 optical link module may need to be inspected and potentially replaced alongside the BDPS-11C to ensure that the communication chain between the drive and the supervisory controller remains intact. For installations using AIMA-01 I/O extension modules to handle analog and digital signals from field instruments, the I/O mapping should be verified against the original program to prevent signal inversion or scaling errors after the retrofit.

Where the control system includes a RETA-02 Ethernet adapter for integration with plant-level SCADA or historian systems, the IP address configuration and communication timeout parameters should be documented before the retrofit and restored immediately after module replacement. Programming cables and configuration tools appropriate for the BDPS Series platform should be on-site and tested before the maintenance window begins to avoid delays during the commissioning phase.

Downtime Control During System Migration

Minimizing downtime during a BDPS-11C replacement requires advance preparation that begins well before the scheduled maintenance window. A complete parameter backup of the existing drive configuration should be extracted and stored offline using the appropriate ABB drive tool, ensuring that motor data, ramp settings, fault response parameters, and application-specific tuning values can be restored to the replacement module without manual re-entry.

The original program logic residing in the supervisory PLC — whether a Siemens S7-400, Allen-Bradley ControlLogix, or ABB AC500 — should be archived and version-controlled before any hardware changes are made. This protects against accidental overwrite and provides a verified restore point if commissioning reveals unexpected behavior. HMI screens should be tested in simulation mode against the replacement module’s parameter set before the drive is returned to automatic control, reducing the risk of operator confusion or incorrect fault interpretation during the first production run after the retrofit.

On-site commissioning should follow a structured sequence: power-on self-test, communication link verification, parameter restore and validation, no-load motor run, and finally a loaded production trial under close supervision. This sequence ensures that each layer of the control system — from the drive module through the fieldbus adapter to the supervisory controller and HMI — is confirmed operational before full production load is applied. With a pre-tested, warranted BDPS-11C unit from KNMKS stock, the risk of a second unplanned outage due to a faulty replacement part is eliminated.

Retrofit Support FAQ

Q: Is the BDPS-11C a direct replacement for the original ABB BDPS-11C module?
A: Yes. The BDPS-11C is designed as a direct drop-in replacement for the original module position within the BDPS Series drive platform. In standard installations, no panel redesign or rewiring is required. Engineers should verify the terminal wiring schedule and backplane slot address against the site documentation before installation.

Q: What pre-shipment testing is performed on BDPS-11C units?
A: All BDPS-11C units supplied by KNMKS undergo functional testing prior to dispatch to confirm that the module powers up correctly and passes basic operational checks. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: How do I confirm firmware compatibility before installing the BDPS-11C?
A: Check the firmware revision of the resident BDPS Series drive controller and compare it against the compatibility matrix for the BDPS-11C. If the existing system uses a fieldbus adapter such as the AINT-02C or RDCO-04, confirm that the adapter firmware is also compatible with the replacement module. Contact KNMKS technical support with your system firmware details if you require compatibility confirmation before ordering.

Q: What is the lead time and stock availability for the BDPS-11C?
A: KNMKS maintains inventory of the BDPS-11C to support both emergency breakdown replacements and planned maintenance programs. Standard orders are processed and dispatched promptly. For large-quantity spare parts programs covering 12 to 36-month horizons, contact [email protected] to discuss dedicated stock allocation and pricing.
