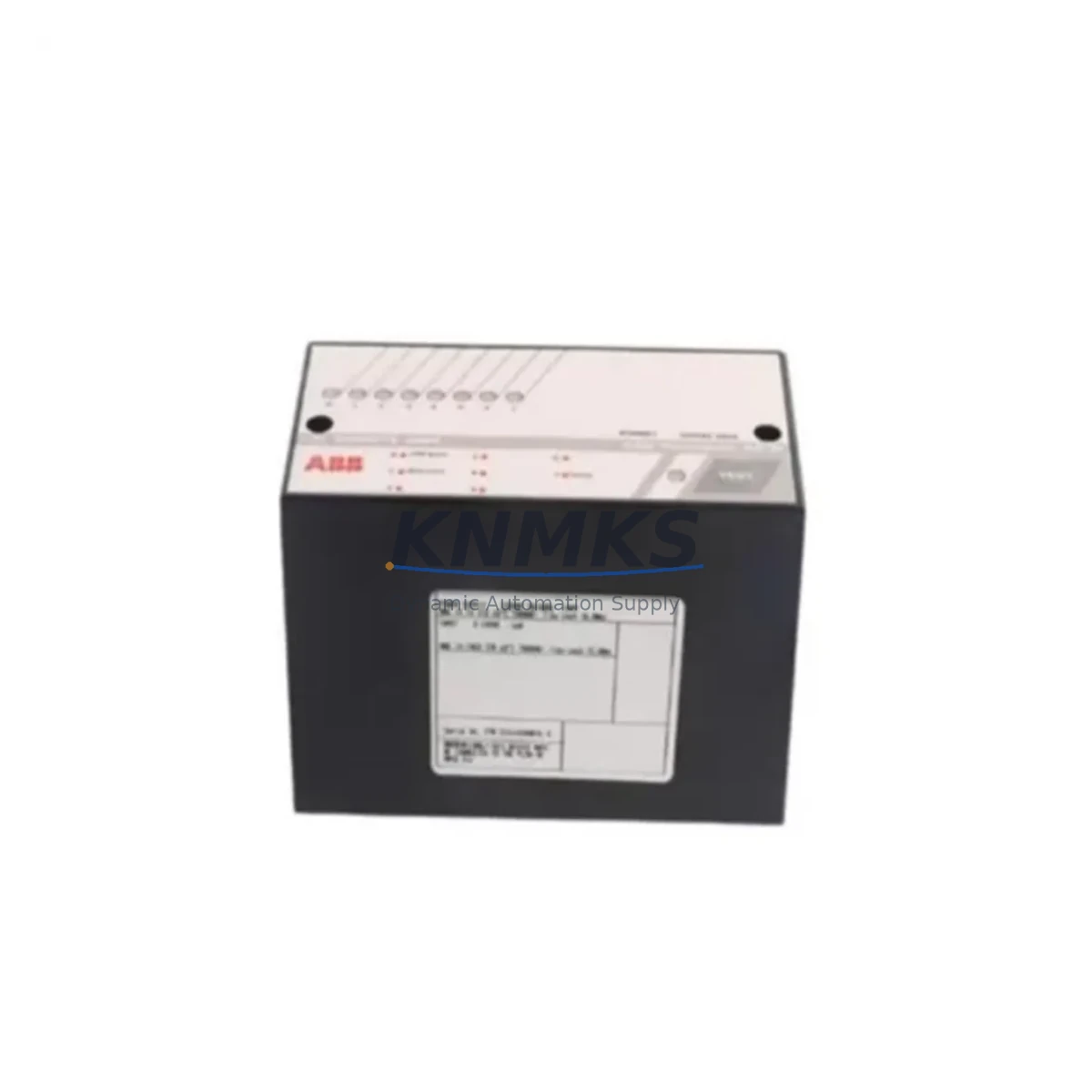

ABB AX645 3BHB001914R1 Migration-Ready Analog I/O Module

Overview

ABB AX645 3BHB001914R1 Migration-Ready Analog I/O Module for Legacy Control Systems

The ABB AX645 (3BHB001914R1) is a high-density analog I/O module designed for the ABB AC800M distributed control system platform. As legacy DCS installations age and original spare parts become increasingly scarce, the AX645 3BHB001914R1 has become a critical component in retrofit projects, control cabinet upgrades, and production line modernization programs across the process industries.

Whether you are replacing a failed module in an operating plant, executing a planned migration from an older ABB Advant or MOD 300 platform, or extending the service life of an existing AC800M rack, the AX645 3BHB001914R1 delivers the signal accuracy, backplane compatibility, and firmware alignment required for a controlled, low-risk cutover. Each unit shipped from our inventory undergoes functional verification and is backed by a support terms confirmed by quotation.

For engineers managing aging automation infrastructure, sourcing a verified AX645 3BHB001914R1 from a reliable supplier eliminates the lead-time uncertainty that typically forces unplanned shutdowns. Our stock is drawn from authenticated industrial channels, and every module is inspected prior to dispatch to confirm hardware revision, terminal block integrity, and backplane connector condition.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AX645 3BHB001914R1 retrofit begins well before the module arrives on site. The first step is a thorough audit of the existing rack assembly. In a typical AC800M cabinet, the S800 I/O bus carries multiple module types — including AI810 analog input modules, AO810 analog output modules, and DI810 / DO810 digital I/O modules — all powered through a shared SD821 or SD822 power supply unit. Before inserting the replacement AX645, engineers must confirm that the rack PSU has sufficient headroom to support the additional load, particularly in high-density cabinets where power budgets are already tight.

Terminal base selection is equally important. The AX645 mounts onto a dedicated terminal base — typically a TB820 or TB840 — and field wiring connects directly to the base rather than the module itself. This design allows the module to be swapped without disturbing field cables, which is a significant advantage during live-plant maintenance windows. However, the terminal base revision must match the module generation; mismatched combinations can cause intermittent signal errors that are difficult to diagnose under production pressure.

For sites migrating from older ABB Advant OCS or MOD 300 architectures, the AX645 retrofit often runs in parallel with a communication infrastructure upgrade. The CI854A PROFIBUS DP coupler is the standard interface between the S800 I/O bus and the AC800M controller in most legacy-to-modern migration paths. If the existing installation uses an older CI854 (non-A suffix), verify firmware compatibility with the target controller version before committing to the cutover schedule. In some cases, a CI858 DeviceNet coupler or CI860 Modbus coupler may already be present in the cabinet, and the AX645 will integrate without any coupler-side changes.

HMI screen updates are frequently overlooked during module-level replacements. If the AX645 is replacing a module with a different channel count or signal range, the corresponding AC800M Control Builder M project must be updated to reflect the new I/O mapping, and any associated ABB 800xA or third-party SCADA graphics must be revised to display the correct engineering units and alarm limits. Scheduling this software work in parallel with hardware procurement is the most effective way to compress total project duration.

Signal isolation requirements should also be reviewed. In mixed-signal environments where thermocouples, RTDs, and 4–20 mA transmitters share the same I/O rack, a signal isolator or signal conditioner may be required upstream of the AX645 to prevent ground loops and ensure measurement accuracy after the swap. This is particularly relevant in older plants where cable shielding practices were inconsistent.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a module-level replacement in a running process plant. The AX645 3BHB001914R1’s hot-swap capability — supported within the AC800M architecture when the system is configured for redundant I/O — allows the module to be removed and reinserted without a full controller restart in qualifying configurations. Before relying on this feature, confirm that the specific rack and controller firmware version in your installation supports hot-swap for analog I/O modules, as this capability is configuration-dependent.

For non-redundant installations, the recommended approach is to pre-configure the replacement AX645 offline using a bench test setup with a spare PM864 or PM866 controller module and a known-good terminal base. Downloading the existing Control Builder M project to the bench controller and verifying signal behavior against the I/O list before the scheduled maintenance window eliminates the most common sources of commissioning delay — incorrect node addressing, mismatched signal ranges, and firmware version conflicts.

Protecting the original program logic is non-negotiable. Before any hardware change, export and archive the current AC800M application, including all function block diagrams, sequential function charts, and alarm configurations. Store the backup on an isolated engineering workstation and verify the archive integrity before proceeding. This ensures that if the cutover encounters an unexpected issue, the system can be restored to its pre-maintenance state within the shortest possible timeframe.

Field commissioning should follow a structured loop-check protocol: energize the module, confirm green status LED, verify channel-by-channel signal values against the process transmitter outputs, and document results against the I/O list before releasing the loop to operations. For sites with formal management-of-change procedures, the loop-check records also serve as the commissioning evidence required to close the MOC.

Retrofit Support FAQ

Q1: Is the ABB AX645 3BHB001914R1 a direct replacement for all AX645 variants?
The 3BHB001914R1 is a specific hardware revision of the AX645 module. For a like-for-like replacement, match the revision suffix on the existing module’s nameplate. If the installed module carries a different revision, consult the ABB S800 I/O compatibility matrix or contact our technical team to confirm interchangeability before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every AX645 3BHB001914R1 dispatched from our inventory is functionally tested to verify backplane connector integrity, channel signal response, and hardware revision labeling. Units that do not pass inspection are quarantined and not offered for sale. A test report is available upon request for critical-application orders.

Q3: Can the AX645 be used in a PROFIBUS DP network without reconfiguring the existing GSD file?
In a like-for-like module replacement within an existing AC800M / CI854A PROFIBUS configuration, no GSD file changes are required. The module address is inherited from the terminal base DIP switch setting, which should match the address assigned in the original Control Builder M project. Confirm the DIP switch position before power-up to avoid address conflicts on the PROFIBUS segment.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with priority turnaround; replacement units are dispatched from stock to minimize plant downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

AX645 3BHB001914R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB AX645 3BHB001914R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
